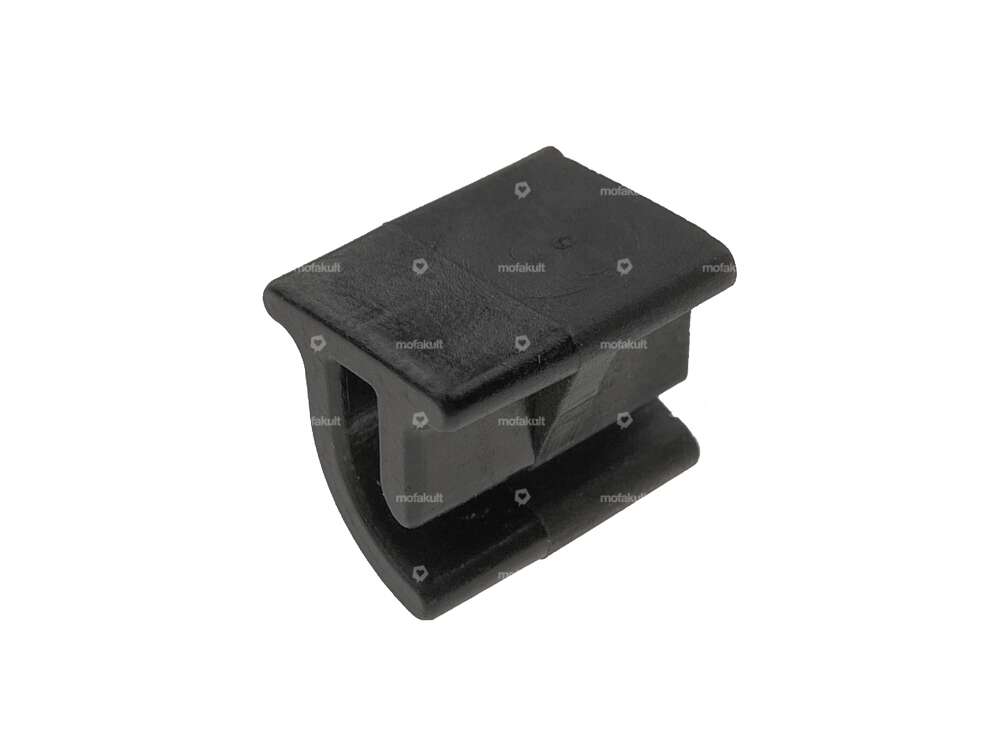

swiing® revival frame guard black | Puch X30

swiing® revival rubber grommet ignition | Puch X30 Z50

Manufacturer: swiing® revival parts · Material: Rubber · Area of application: Standard · Color: black · Surface: raw · Ø Cable bushing: 2.5 mm · Ø Cable bushing: 5.2 mm · Total length: 19.3 mm · Width: 15.6 mm · Height: 3.5 mm · Total height: 11.3 mm

GPO license plate holder Inox

Manufacturer: GPO · Material: Chrome steel (stainless steel) · Color: silver · Thread type: M5x0.8 (standard thread) · Total length: 145 mm · Width: 105 mm · Mounting type: Nuts & bolts · Height: 5.3 mm · Number of fixing points: 2 pcs · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Ø mounting hole: 5 mm

Chain tensioner Puch X30 & Maxi

Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Number of teeth: 10 pcs · Total length: 170 mm · Ø outside sprocket: 36 mm · Number of fixing points: 1 pcs · Puch spare part no.: 349.1.28.520.0

Repair instructions | Puch X30 Velux

Material: Paper · Number of pages: 52 pcs

Long fuel tank bracket | Puch X30 Velux

Material: Steel · Color: silver · Number of fixing points: 3 pcs · Manufacturer: Puch · Surface: galvanized (blue) · Mounting type: Nuts & bolts · Hole spacing: 60 mm

swiing® revival perforated struts chrome | Puch X30 NS, NL

Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 320 mm · Width: 50 mm · Mounting type: Nuts & bolts · Height: 30 mm · Number of fixing points: 4 pcs · Hole spacing: 285 mm · Ø mounting hole: 8 mm

swiing® revival buffer ring fork | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Rubber · Color: black

Karcoma fuel tap M12x1 vertical | Puch X30 Sport NS (perforated tank)

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Aluminum · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Siggnature grille fan cowl aluminum | Puch X30 Velux

Manufacturer: Siggnature · Material: Aluminum · Height: 3 mm · Ø outside: 84 mm

66HEROES Fuel tank Inox "blank" | Puch X30 NS, X30 NG-2AH, X30 N-2AH, X30-A

Manufacturer: 66HEROES · Material: Chrome steel (stainless steel) · Outer width: 154 mm · Color: Chrome · Surface: polished · Tank capacity: 3.5 l · Fuel filler cap: Bayonet 40 mm · Total length: 312 mm · Height: 288 mm

GPO license plate holder Inox

Manufacturer: GPO · Material: Chrome steel (stainless steel) · Color: silver · Thread type: M5x0.8 (standard thread) · Total length: 145 mm · Width: 105 mm · Mounting type: Nuts & bolts · Height: 5.3 mm · Number of fixing points: 2 pcs · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Ø mounting hole: 5 mm

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

Chain tensioner Puch X30 & Maxi

Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Number of teeth: 10 pcs · Total length: 170 mm · Ø outside sprocket: 36 mm · Number of fixing points: 1 pcs · Puch spare part no.: 349.1.28.520.0

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Manufacturer: swiing® revival parts · Material: Nylon · Surface: blank · Color: black · Bearing type: Plain bearing · Ø outside: 20.2 mm · Total length: 19 mm · Ø inside: 16.2 mm · Ø Bundle: 24.1 mm · Puch spare part no.: 349.1.42.005.1

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Ø outside: 29 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Material thickness: 0.6 mm · Ø inside: 17 mm · Total length: 1.7 mm

GPO pedal cranks pair chrome | Puch

Manufacturer: GPO · Wide intake: 28 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Thread type: FG14.3 (9/16" 20G) · Crank length (center-center): 156 mm · Ø Pedal wedge: 9.5 mm · Total length: 180 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm

swiing® revival bearings & oil seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 6 pcs

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M7x1 (standard thread) · Angle crank wedge: 4.5° · Ø outside: 9.5 mm · Total length: 43 mm

swiing® ingenious bottom bracket bushing brass | Puch Maxi, X30 Sport, Velux, NG-2AH

Manufacturer: swiing® ingenious parts · Material: Brass · Surface: blank · Color: bronze · Bearing type: Plain bearing · Total length: 19 mm · Ø Bundle: 23.9 mm · Ø inside: 16.1 mm · Ø outside: 20 mm · Puch spare part no.: 349.1.42.005.1
