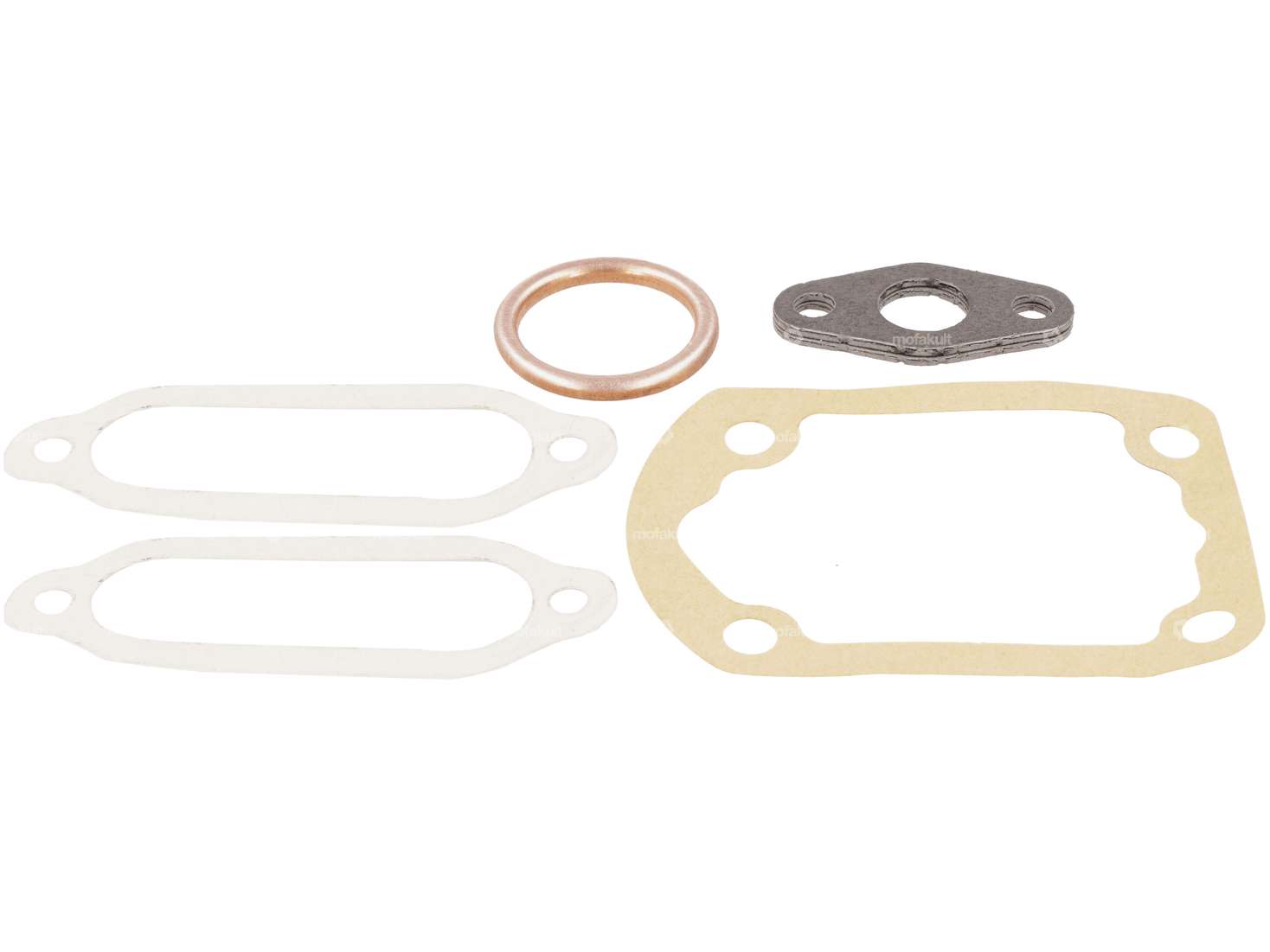

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Manufacturer: Elring · Area of application: Chemistry · Contents [ml]: 70 ml · Color: green · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Area of application: Standard · Color: green · Contents [ml]: 1000 ml

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight: 79 g · Pony spare part no.: A2772 · Pony spare part no.: A4358 · Sachs spare part no.: 0286 377 010 · Sachs spare part no.: 0286 378 005

swiing® revival exhaust nut M35x2 galvanized | Sachs 50/2 (A1507)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M35x2 (standard thread) · Nut type: Union nut · Ø outside: 43 mm · Ø inside: 30 mm · Pony spare part no.: A1507 · Sachs spare part no.: 0242 048 101

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Surface: blue galvanized · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

swiing® revival cylinder head gasket 38 mm cylinder | Sachs 503, 502, 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Standard · Ø cylinder: 38 mm · Thickness: 0.2 mm · Nominal diameter: 38 mm · Place of use: Cylinder head · Hole pattern [mm]: 37 x 37

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight: 86 g

swiing 38 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Manufacturer: Meteor · Manufacturer: swiing · Material: Gray cast iron · Camouflaged: Yes · Area of application: Tuning · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 38 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole spacing inlet: 31 mm

swiing® ingenious 41 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Manufacturer: GPO · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Camouflaged: Yes · Area of application: Tuning · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø Inlet inside: 19 mm · Ø outlet inside: 26 mm · Inlet window: 57.5 x 19 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole spacing inlet: 68 mm
