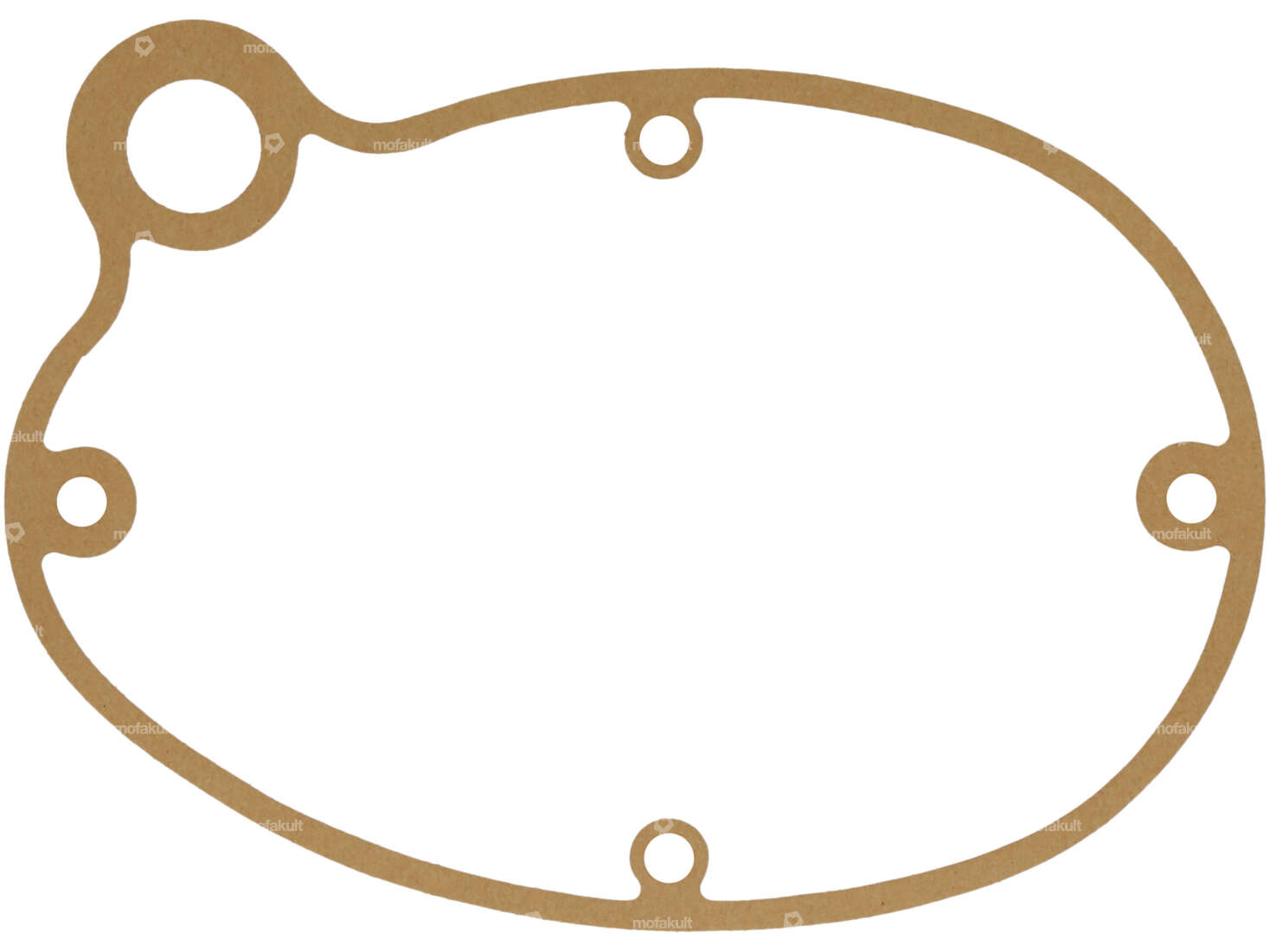

swiing® revival gearbox cover gasket | Cilo 502T

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Manufacturer: Elring · Area of application: Chemistry · Color: green · Contents [ml]: 70 ml · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

swiing® revival bearings & oil seals Motor | Cilo

Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 7 pcs

swiing® revival sealing kit | Cilo

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 16 pcs

Gasket set cylinder 38 mm Cilo 502

Area of application: Standard · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Hole spacing inlet: 32 mm

swiing® revival gasket set cylinder 40 mm | Cilo 502

Manufacturer: swiing® revival parts · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 40 mm · Hole spacing inlet: 32 mm · Ø outlet inside: 28 mm

swiing 38 mm cylinder kit | Cilo 502

Manufacturer: swiing · Area of application: Standard · Camouflaged: Yes · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Nominal diameter: 38 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: Union nut

swiing tuning cylinder 40 mm | Cilo 502

Nominal diameter: 40 mm · Manufacturer: swiing · Material: Gray cast iron · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Outlet type: Union nut

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Cable length: 2200 mm

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Material lever: Metal · Mounting type: screw in (thread) · Thread type: MF10x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

swiing® revival cylinder base gasket | Cilo 502T

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.5 mm · Place of use: Cylinder base

swiing® revival piston 38 mm | Cilo 502

Manufacturer: swiing® revival parts · Ø outside piston (A): 37.94 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm

Fuel tap M10x1 (to screw in) bottom outgoing | Cilo / Pony Cross 521 (P8068)

Manufacturer: Made in Italy · Spare tube shape: straight · Thread type: MF10x1 (fine pitch thread) · Mounting type: screw in (thread) · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

swiing® revival clutch spring old version | Cilo 502

Spring design: Pressure spring · Ø inside: 32.5 mm · Ø wire: 5 mm · Ø outside: 42.8 mm · Manufacturer: swiing® revival parts · Total length: 30 mm

swiing® revival clutch spring new version | Cilo 502

Spring design: Pressure spring · Ø inside: 26.35 mm · Ø wire: 4 mm · Ø outside: 34.4 mm · Manufacturer: swiing® revival parts · Total length: 30 mm

swiing® revival gasket 2 mm inlet Ø 16 mm | Cilo 502

Place of use: Admission · Manufacturer: swiing® revival parts · Thickness: 2 mm · Ø outlet inside: 16 mm · Ø screw holder: 6.8 mm · Hole spacing inlet: 32 mm

Gasket set cylinder 38 mm Cilo 502

Area of application: Standard · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Hole spacing inlet: 32 mm
