swiing® revival piston 38 mm | Sachs 503

Home
| Motor
| Cylinder
| Piston
63,80 EUR

Incl. 19% VAT.

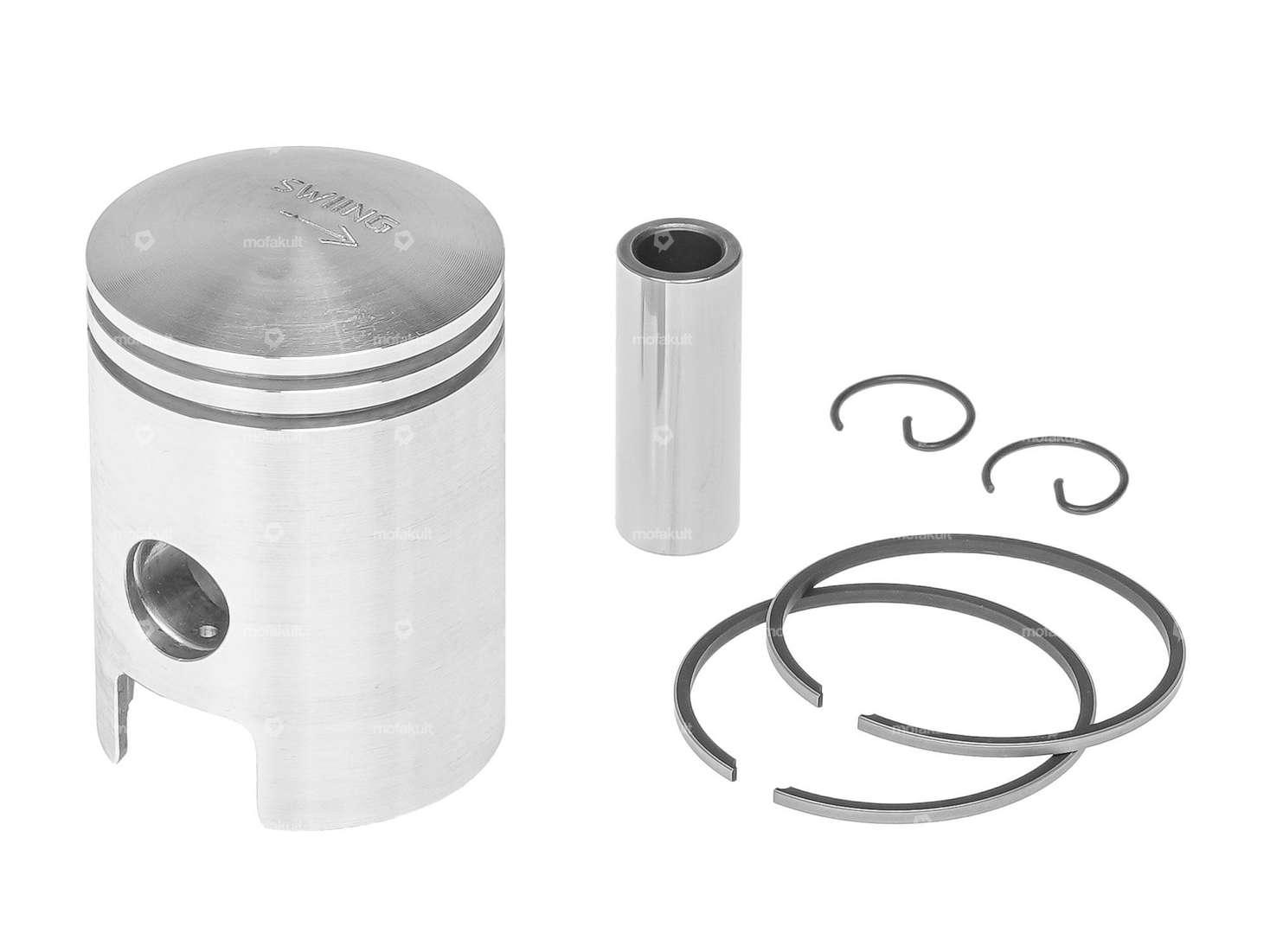

38.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) for swiing aluminum cylinder for Sachs 503 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.

Nostalgic product for the highest demands of the quality brand swiing®.

Details

Manufacturerswiing® revival parts
Ø outside piston (A)37.97 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)3.6 mm
Total piston height (E)54.1 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Piston weight73 g

Suitable for the following models

Sachs

503 - AAL, ABL, 2AL / 2BL
