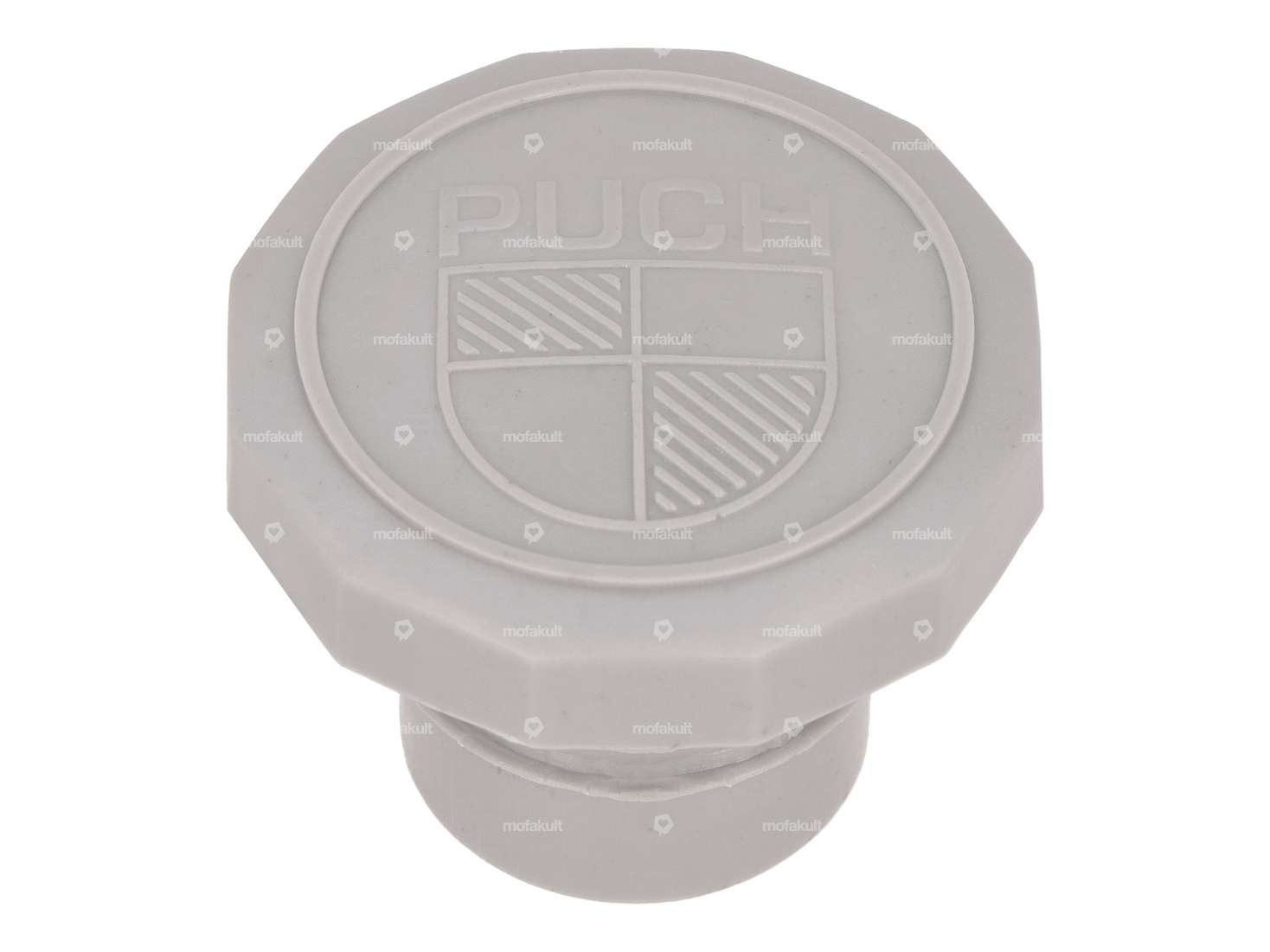

Grey plastic fuel filler cap with 30 mm plug closure suitable for your Puch Maxi N moped / moped
The Puch logo is molded into the top of the fuel filler cap. There is a small hole for venting so that there is no negative pressure in the tank.
Note: When the fuel filler cap is first fitted, it is not yet fully seated. The plastic swells after 1 - 2 days due to the fuel vapors and ensures a tight fit on the tank.
Alternative sealing plugs can be found in the accessories section.
Alternative to the original Puch spare part number: 349.1.22.020.1
Details
| Material | Plastic |
| Color | gray |
| Fuel filler cap | Plug 30 mm |
| Lockable | No |
| Vented | Yes |
| Ø External head | 47.1 mm |
| Ø outside connection piece | 30 mm |
| Height | 36.9 mm |
| Puch OEM number | 349.1.22.020.1 |
Suitable for the following models
| Puch |
