Kit to quickly and professionally repair stripped and defective threads on your moped, moped and small motorcycle.
The kit contains M5, M6, M8, M10 and M12 threaded holes.
The stripped M thread is drilled out with the drill included in the set and then the appropriate thread is cut with the tap.
Now the threaded bushing can be screwed in and optionally secured with Loctite.
Scope of delivery:

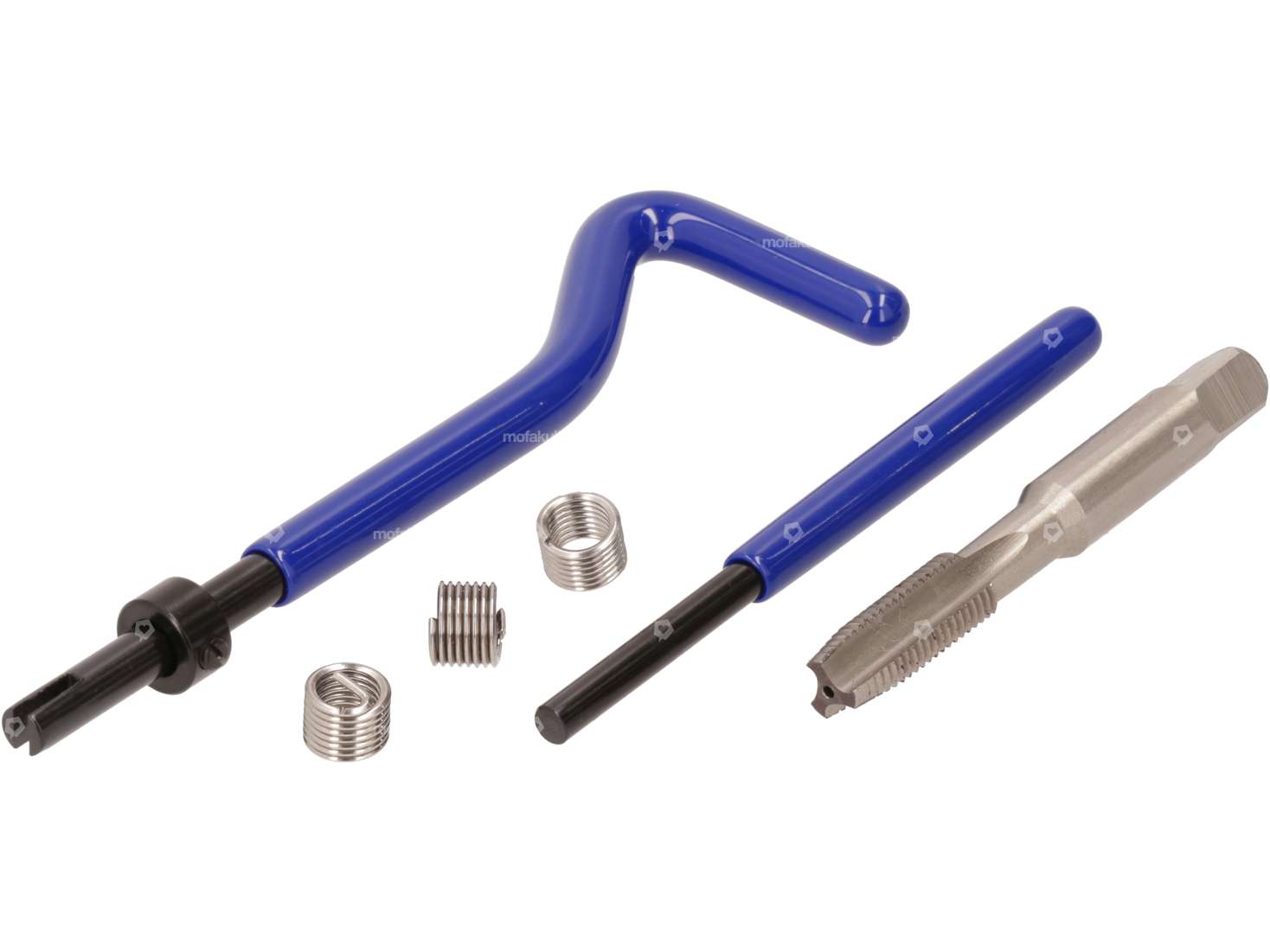

1 pc. twist drill
1 pc. Thread cutter
1 pc. Installation tool
1 pc. Tenon breaker
25 pcs. Threaded insert M5 x 0.8 mm (1D)
25 pcs. Threaded insert M6 x 1.0 mm (1D)
25 pcs. Threaded insert M8 x 1.25 mm (1D)
25 pcs. Threaded insert M10 x 1.5 mm (1D)
10 pcs. Threaded insert M12 x 1.75 mm (1D)
The threaded inserts are also known colloquially as helicoils or V-coils, but these are not the original product.
You can find the matching threadlocker and other repair solutions in the accessories section.
Details
| Storage method | Suitcase |
| Dimension storage box | 355 x 230 x 28 mm |
| Thread type | M5x0.8 (standard thread), M6x1 (standard thread), M8x1.25 (standard thread), M10x1.5 (standard thread), M12x1.75 (standard thread) |
| Number of components | 130 pcs |
