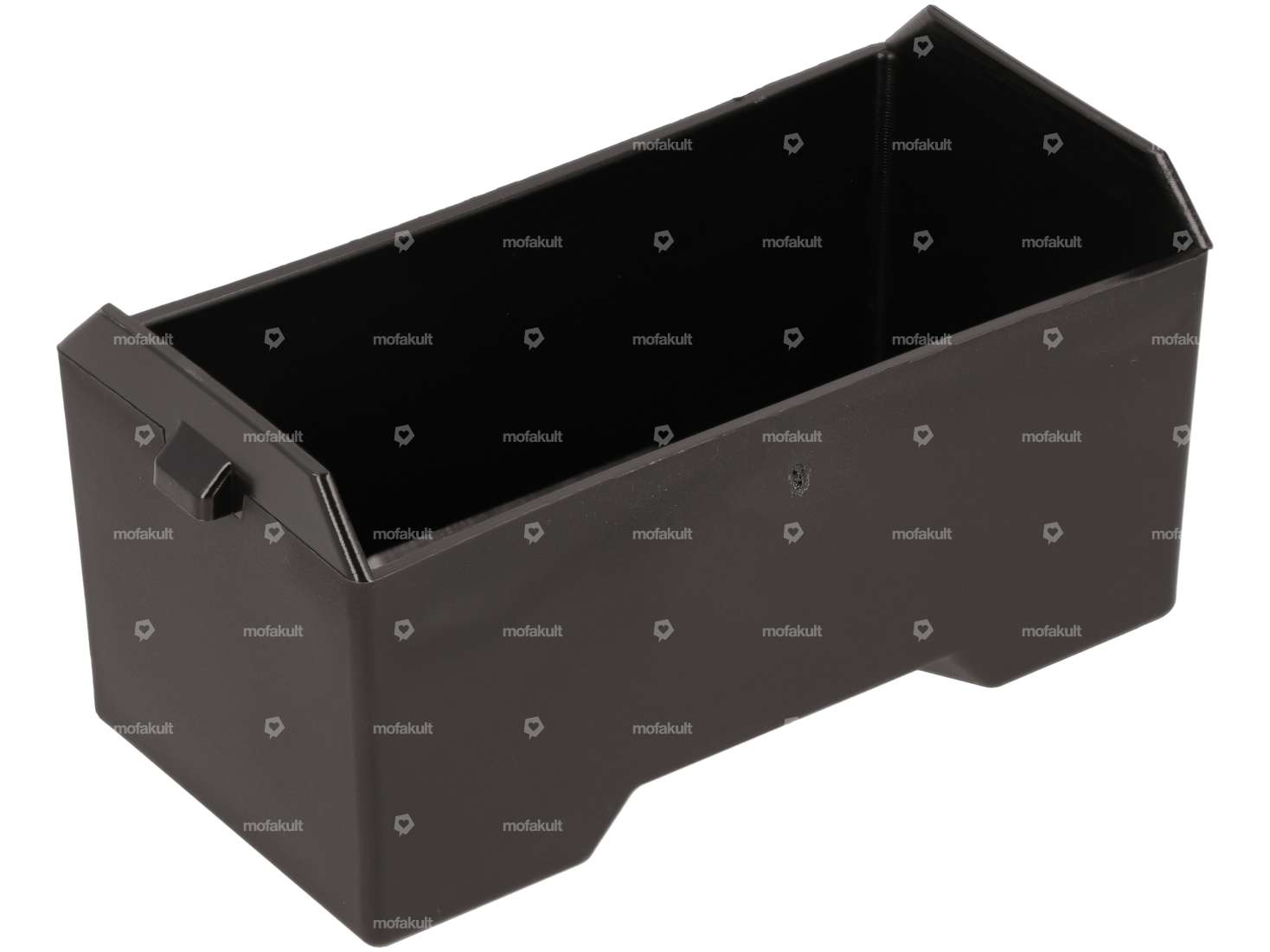

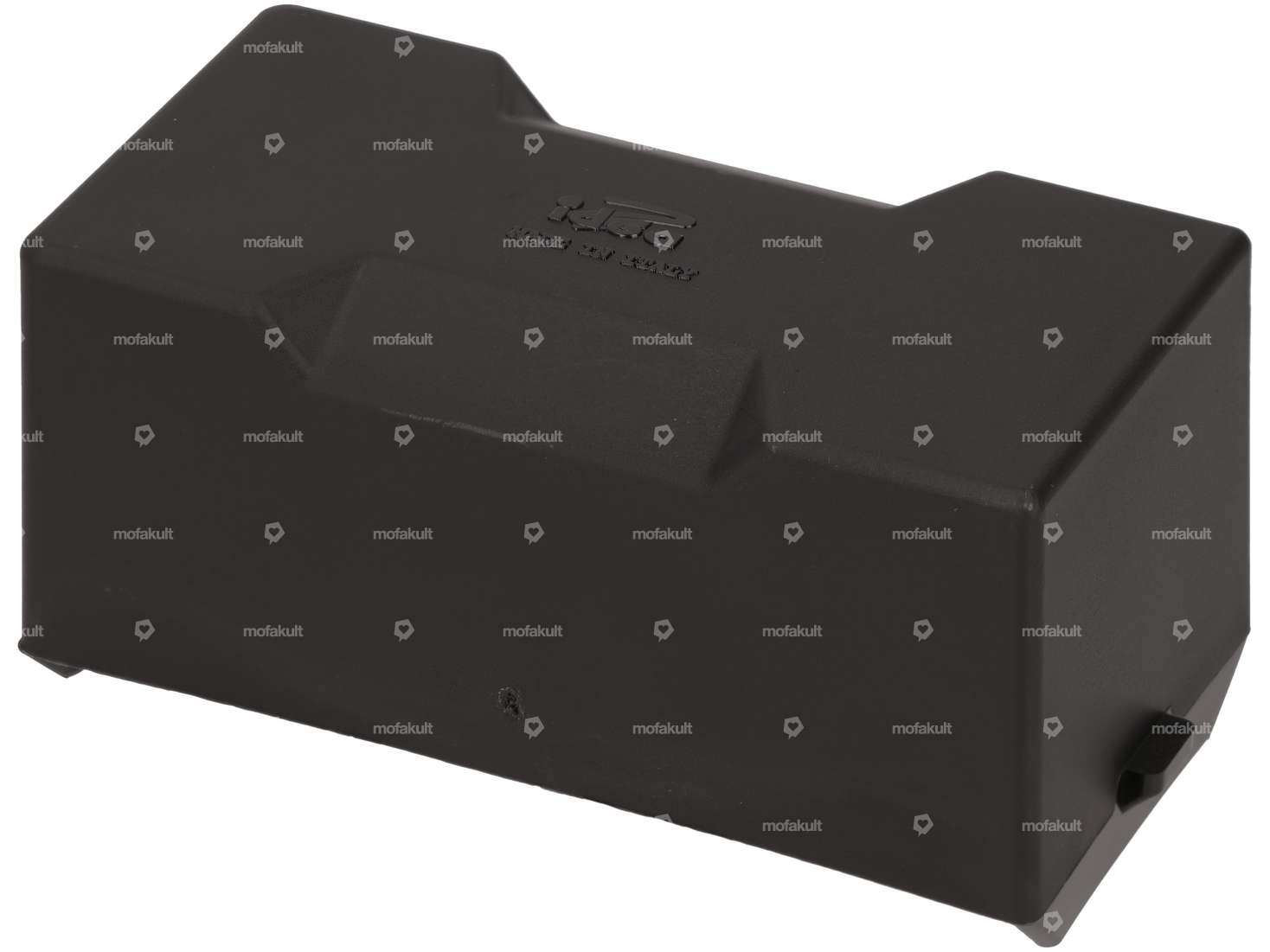

Toolbox | Piaggio Ciao PX

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 11 mm · Total length: 25 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 11 mm · Thread type: M7x1 (standard thread) · Manufacturer: CIF · Thread length: 19.5 mm · Number of components: 6 pcs · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Surface: ribbed · Color: black · Drive: Outer edge · Thread type: FG14.3 (9/16" 20G) · Width across flats SW: 15 mm · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Reflectors: Yes

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Cable available: No · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

swiing® revival screw footboard M6 Inox | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Thread type: M6x1 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 13.8 mm · Total length: 17 mm · Piaggio OEM number: 102986 · Piaggio OEM number: 259349

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Mounting type: Plug connection clamped · Total length: 46 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning

Splash guard front fender | Piaggio Ciao

Manufacturer: Made in Italy · Material: Rubber · Color: black · Total length: 115 mm · Number of fixing points: 2 pcs · Width: 90 mm · Mounting type: Rivets · Ø mounting hole: 3.3 mm · Piaggio OEM number: 100446

Spring guard black | Piaggio Ciao SC, PX

Material: Plastic · Color: black

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Total length: 13 mm · Width: 8 mm · Clamping range: 3 - 5 mm · Piaggio OEM number: 008108
