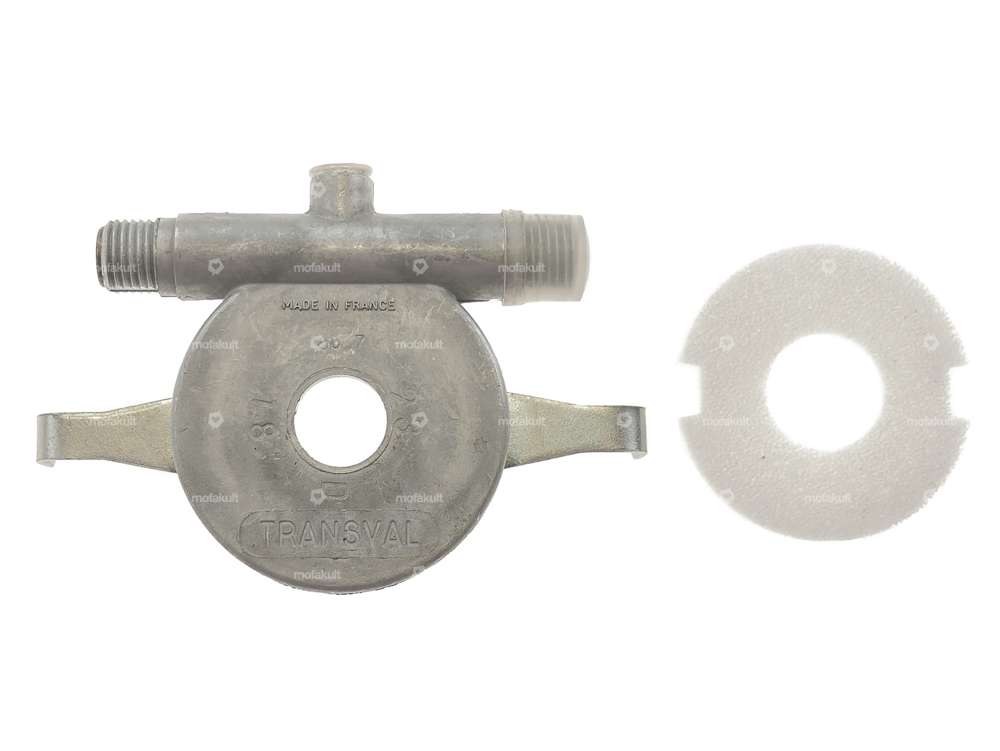

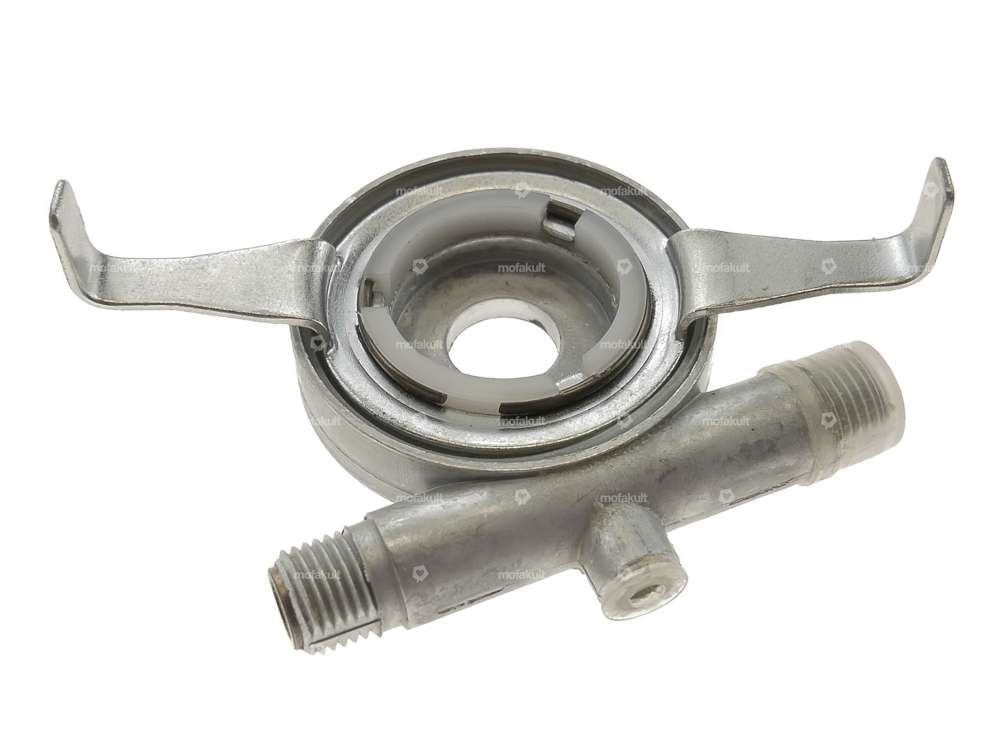

Drive for the speedometer head of MBK 88 mopeds with 18 inch rims
The speedometer drive is mounted on the left side of the front wheel and has two brackets for mounting and locking.
The housing is made of cast aluminum.
Ø Bore for axle: 11 mm (can be drilled out if required)
Type of speedometer cable: VDO - M10 x 1 / Transval - M10 x 1
Internal 4-ct. speedometer cable: 2.6 mm (speedometer cable attachment for VDO required)
Total width: 60 mm
Total height: 52 mm
Ø Total: 41 mm
There is a thread in the housing for servicing the speedometer drive or for pressing grease onto the speedometer worm.
Suitable speedometer cables, speedometer cable attachments, speedometers and speedometer brackets can be found in the accessories section.
Quality product from the French manufacturer Transval.
Details
Thread type | MF10x1 (fine pitch thread) |
Manufacturer | Transval |
Ø axle | 11 mm |
Material | Aluminum |
Place of use | left |
Wheel size [inch] | 18 " |
4-edge speedometer cable | 2.6 mm |
Overall width outside | 60 mm |
Ø outside | 41 mm |
Ø mounting hole | 11 mm |
Total height | 52 mm |
Suitable for the following models
MBK |
