High-quality 12 volt bulb set including voltage regulator and Y-cable, suitable for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds with electronic 12 volt ignition.

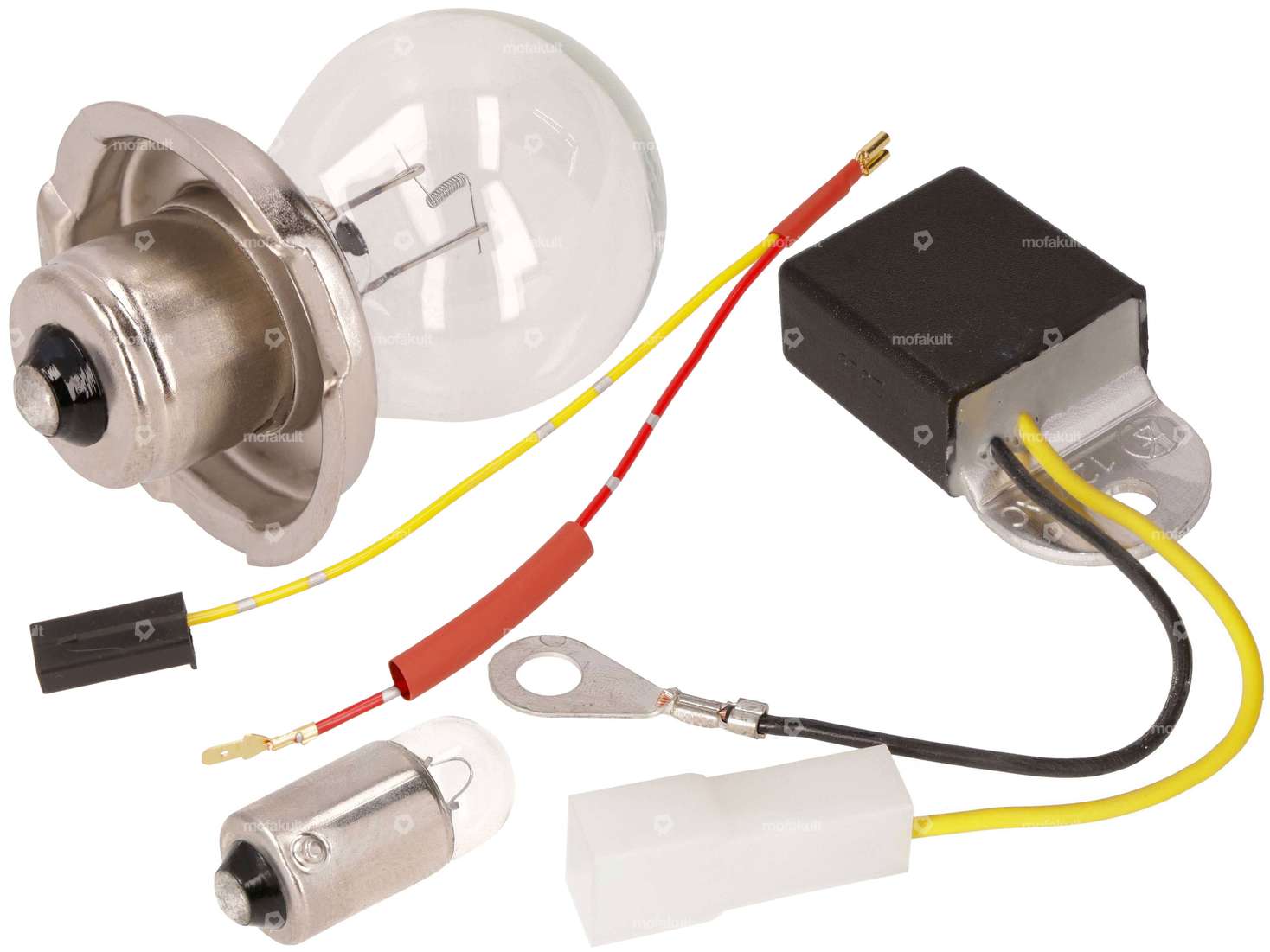

The set includes a 12 V Leonelli voltage regulator, a single-pole 12 V P26s front light and a BA9s or E10 rear light with 12 V.
Thanks to the included transition cable, you don't have to cut up your original wiring harness or patch it up with solder terminals and other connectors. Simply connect the red cable lugs to the wiring harness and the black flat connector to the controller contact. To insulate the connection point, slide the heat-shrink tubing over the connection and shrink it together with a lighter or hot air gun.
The set includes the following fixed parts:
Manufacturer: Leonelli · Material: Plastic, Aluminum · Surface: galvanized (blue) · Tension: 12 V · Type of current: Alternating current (AC) · Performance: 100 W · Total length: 50 mm · Width: 27 mm · Height: 15 mm · Mounting type: Screws · Ø mounting hole: 6 mm
Number of cables: 2 pcs · Cable cross-section [mm²]: 1.5 mm² · Cable bifurcation to motor: 150 mm
Details
| Manufacturer | Leonelli, swiing® revival parts |
| Test mark | none |
| Bulb holder | BA9s, E10, P26s |
| Tension | 12 V |
| Performance | 3 W, 5 W, 15 W, 20 W |
| Color | white |
| Ø base | 9 mm, 9.5 mm, 26 mm |
| Ø Lamp head | 9 mm, 11 mm, 25 mm |
| LED | No |
| Total length | 23 mm, 24 mm, 44 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
