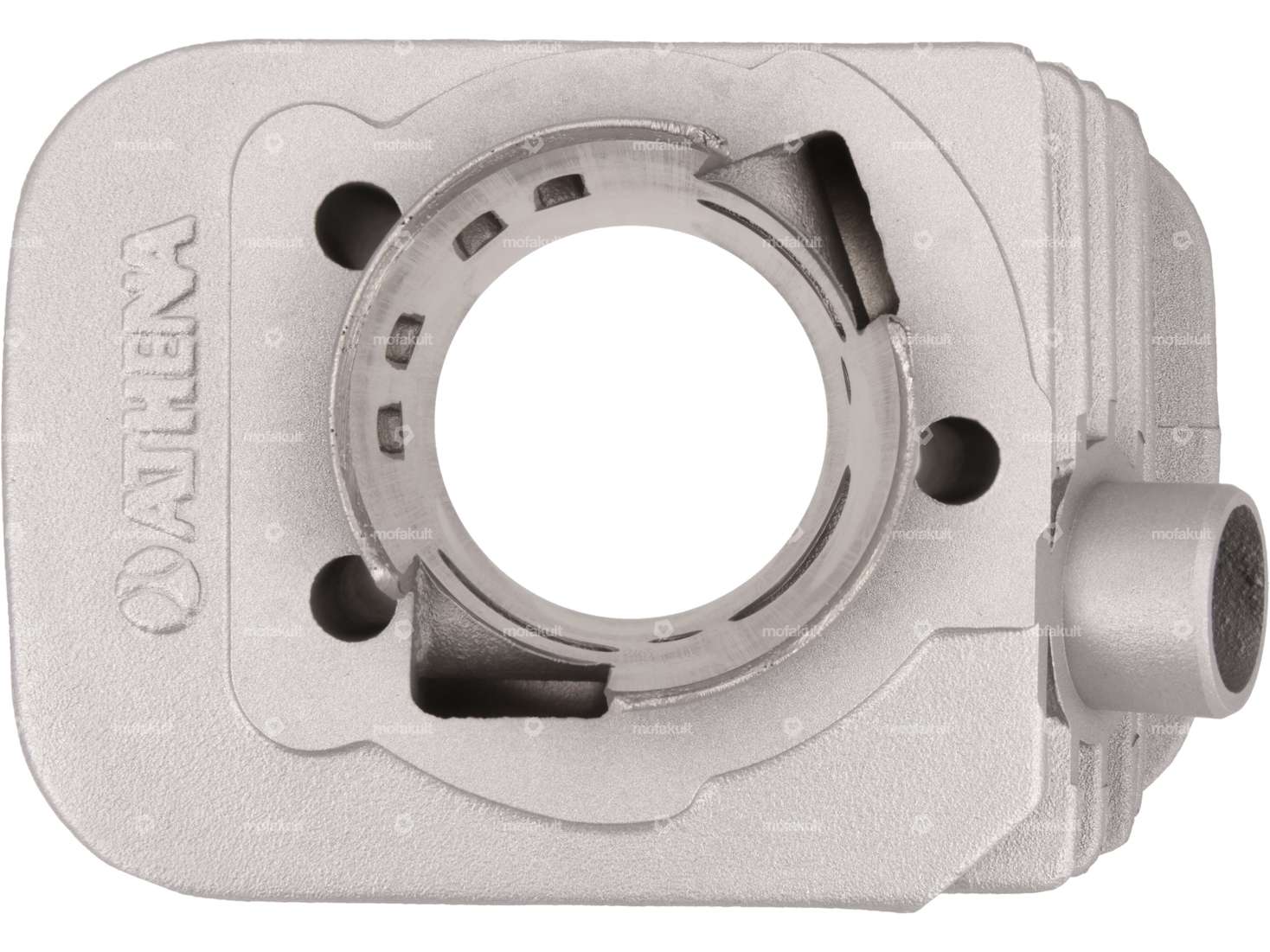

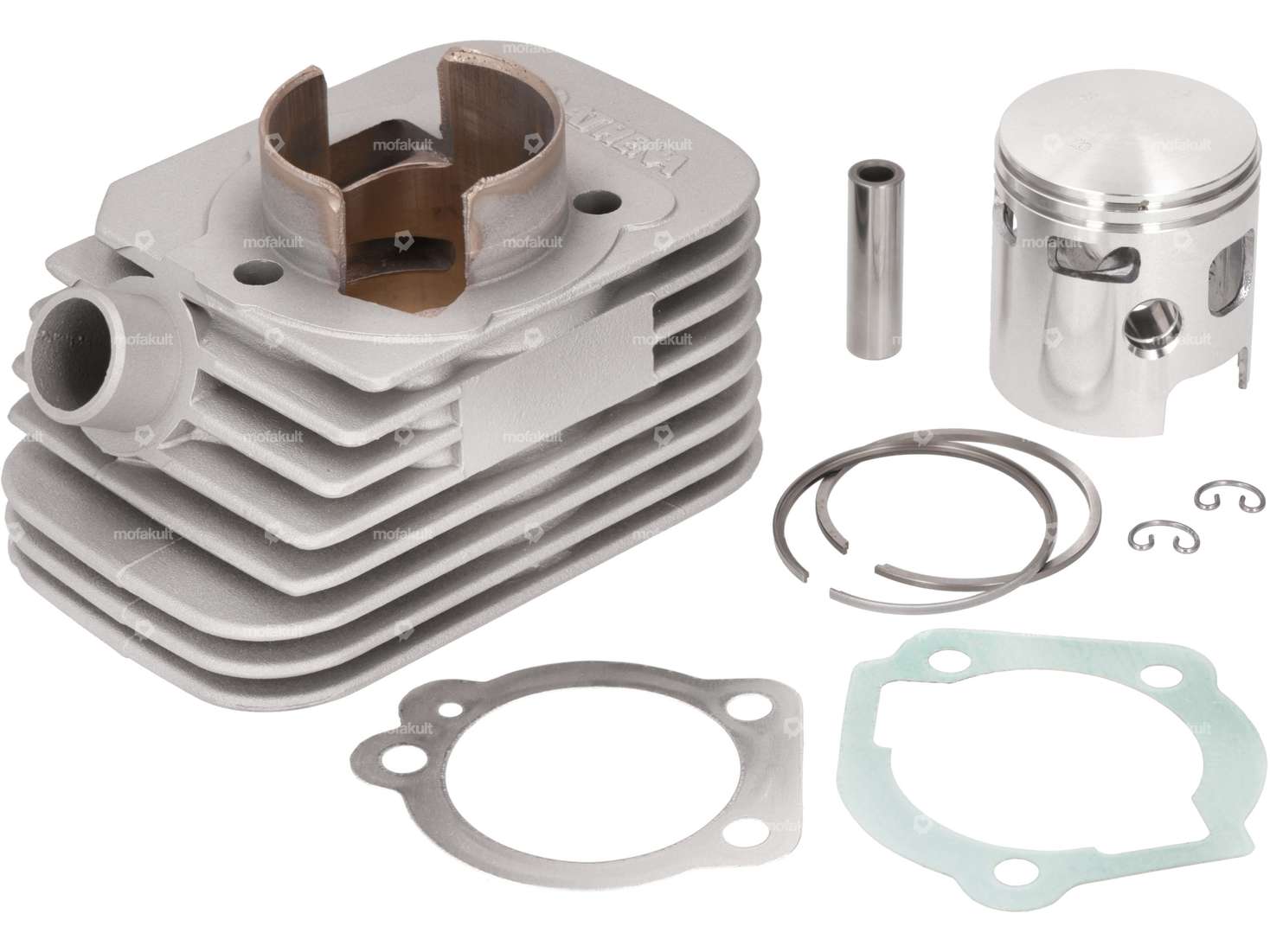

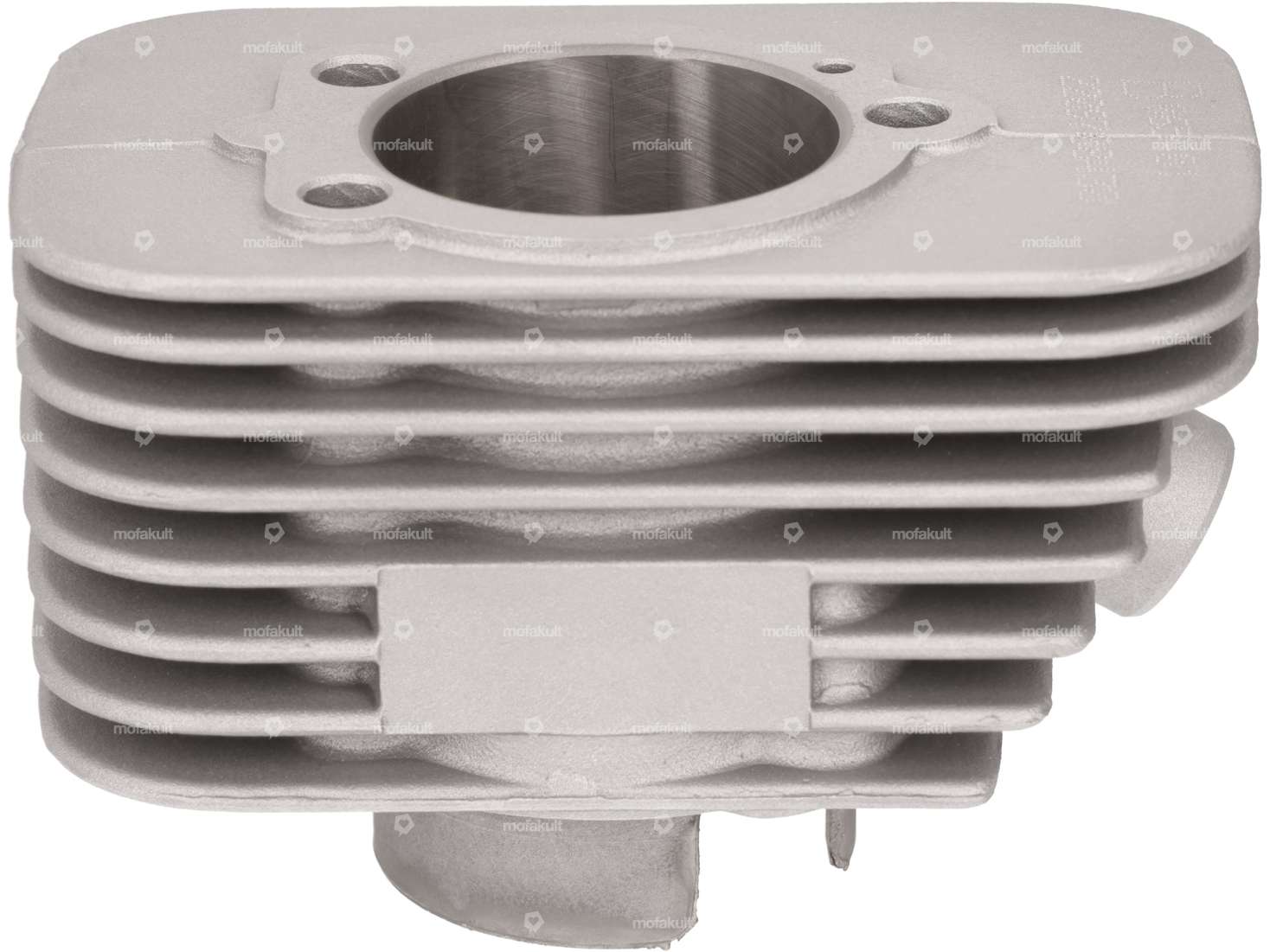

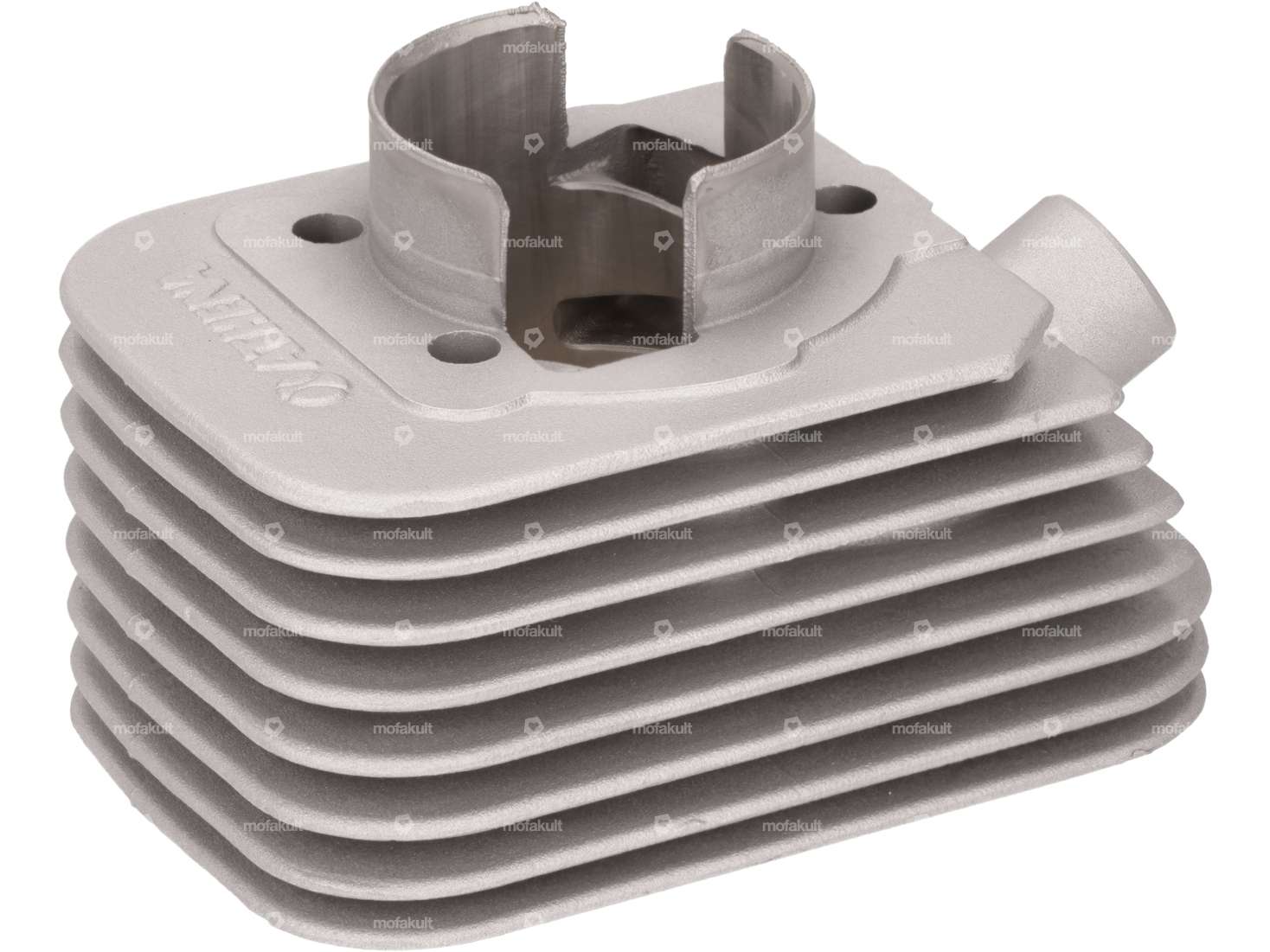

Athena 46 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Motorex 2-stroke oil semi-synthetic (for running in cylinders!) 1 L

Manufacturer: Motorex · Area of application: Standard · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green

Decompressor set | Piaggio Ciao, Bravo, Boxer

Material: Spring steel · Area of application: Standard · Material: Steel · Surface: blank · Surface: blue galvanized · Total length: 75 mm

Stud bolt M7x120 mm (budget)

Material: Steel · Surface: blue galvanized · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 25 mm

Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer

Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Area of application: Racing · Surface: sandblasted · Width: 87 mm · Ø cylinder: 44 - 47 mm · Height: 60 mm · Total length: 122 mm · Candle thread: long · Decompressor: Yes · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Ø outside: 1 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio SI

Manufacturer: Malossi · Area of application: Racing · Ø cylinder: 44 - 47 mm

Athena piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Athena · Ø outside piston (A): 45.93 mm · Ø piston pin (B): 10 mm · Compression height (C): 26 mm · Curvature (D): 2.92 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm

Athena gasket set 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 46 mm · Decompressor: Yes · Number of components: 2 pcs

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No · Width across flats SW: 21 mm

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blue galvanized · Diameter: 7.3 mm · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9

swiing® revival cable guide mudguard black | Puch

Material: Plastic · Manufacturer: swiing® revival parts · Color: black · Mounting type: Plug connection · Total length: 74 mm · Height: 12.5 mm · Number of fixing points: 2 pcs · Hole spacing: 63 mm

GPO 45 mm cylinder head tuning new version | Puch (AT)

Manufacturer: GPO · Material: Aluminum · Width: 140 mm · Total length: 135 mm · Ø cylinder: 45 mm · Height: 55 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Decompressor: No

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Cast aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Decompressor: Yes · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44

Main stand black | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Color: silver · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread) · Ø outside: 41 mm · Ø mounting frame: 31 mm · Surface: blue galvanized

swiing® ingenious clutch springs reinforced (+20%) (Version 2.0) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Color: blue · Ø inside: 4.8 mm · Number of components: 3 pcs · Total length: 28 mm · Ø outside: 8.3 mm · Area of application: Tuning

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs

Width across flats (trigger): 27 mm · Manufacturer: GPO · Clamping depth: 10 mm · Width across flats Screw: 19 mm · Material: Steel · Surface: blackened · Number of components: 1 pcs · Total length: 55 mm · Total length: 75 mm · Area of application: (Dis)assembly tool · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Strength class: 8.8

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

GPO chain tensioner | Puch Maxi S

Color: black · Color: silver · Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Number of teeth: 10 pcs · Number of fixing points: 1 pcs · Ø outside sprocket: 36 mm · Total length: 175 mm

Ignition cover Standard | Puch

Ø inside: 125 mm · Ø outside: 130 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Height: 48 mm · Number of fixing points: 2 pcs
