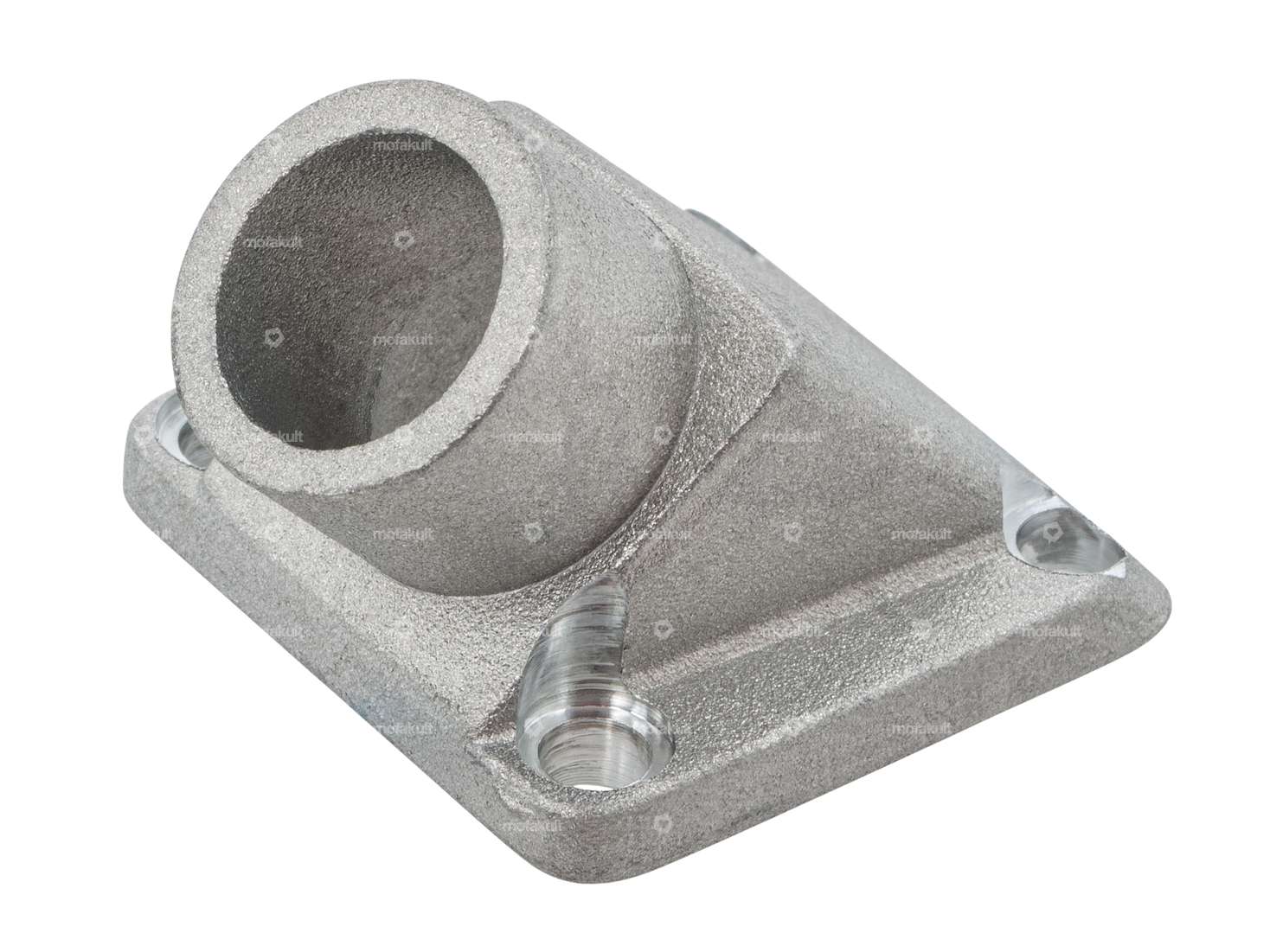

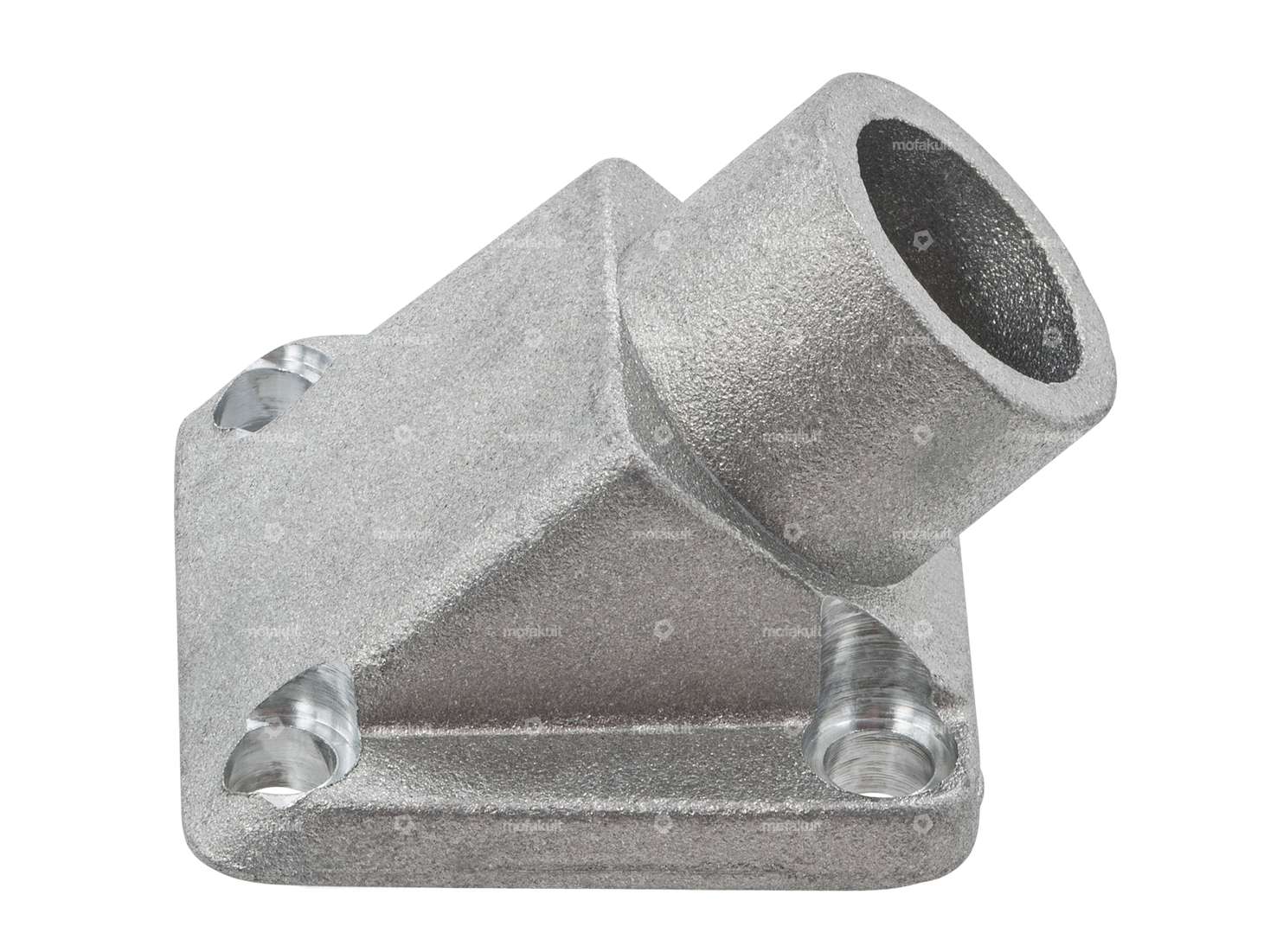

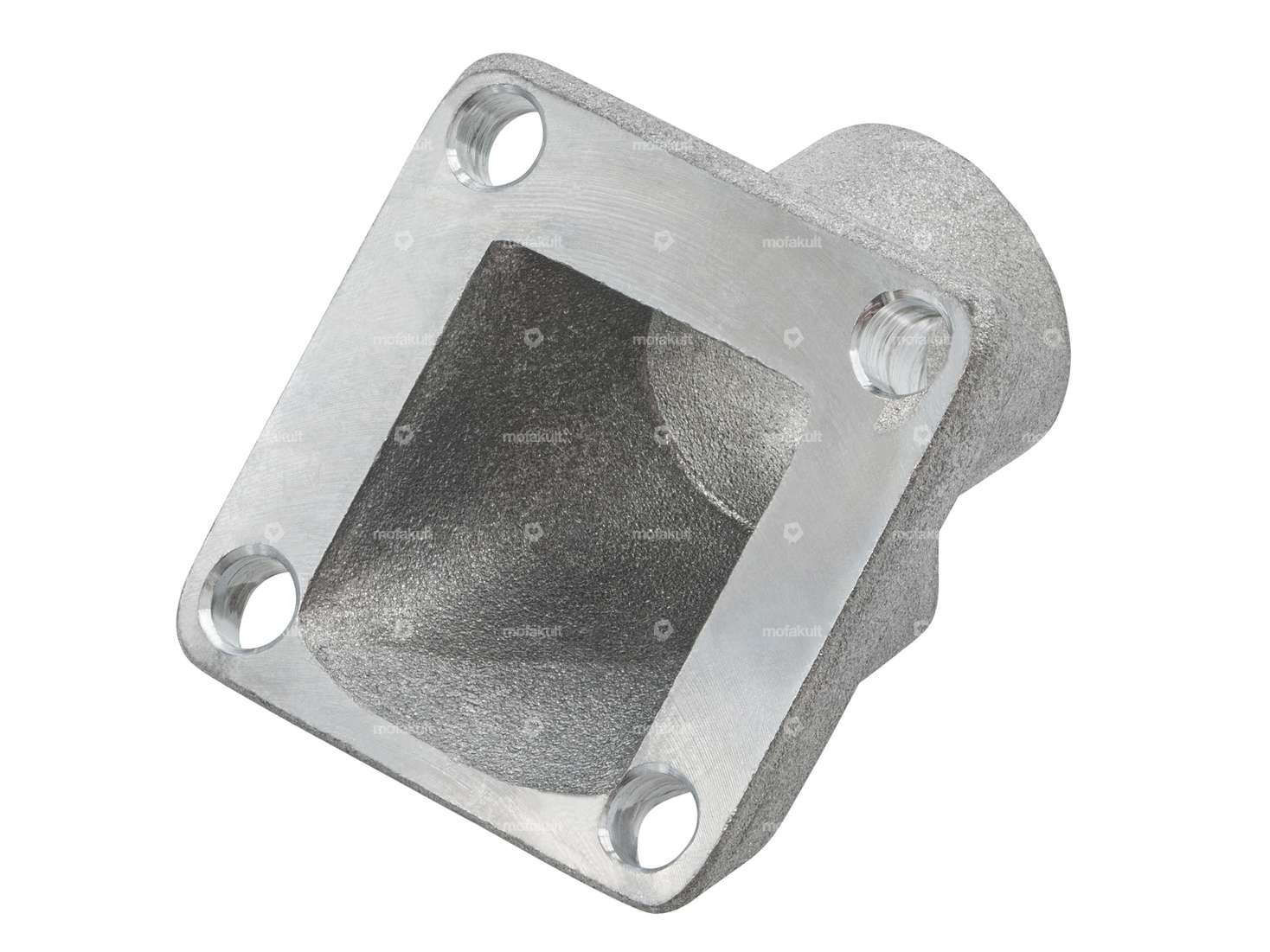

An intake manifold from the Athena brand for cylinders with diaphragm system, both for Puch and Sachs mopeds.
The matching cylinders are listed below in the accessories.
Connection diameter: 24 mm
Internal diameter: 18 mm
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Material | Aluminum |
| Ø inside | 18 mm |
| Ø External connection | 24 mm |
| Area of application | Tuning |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
