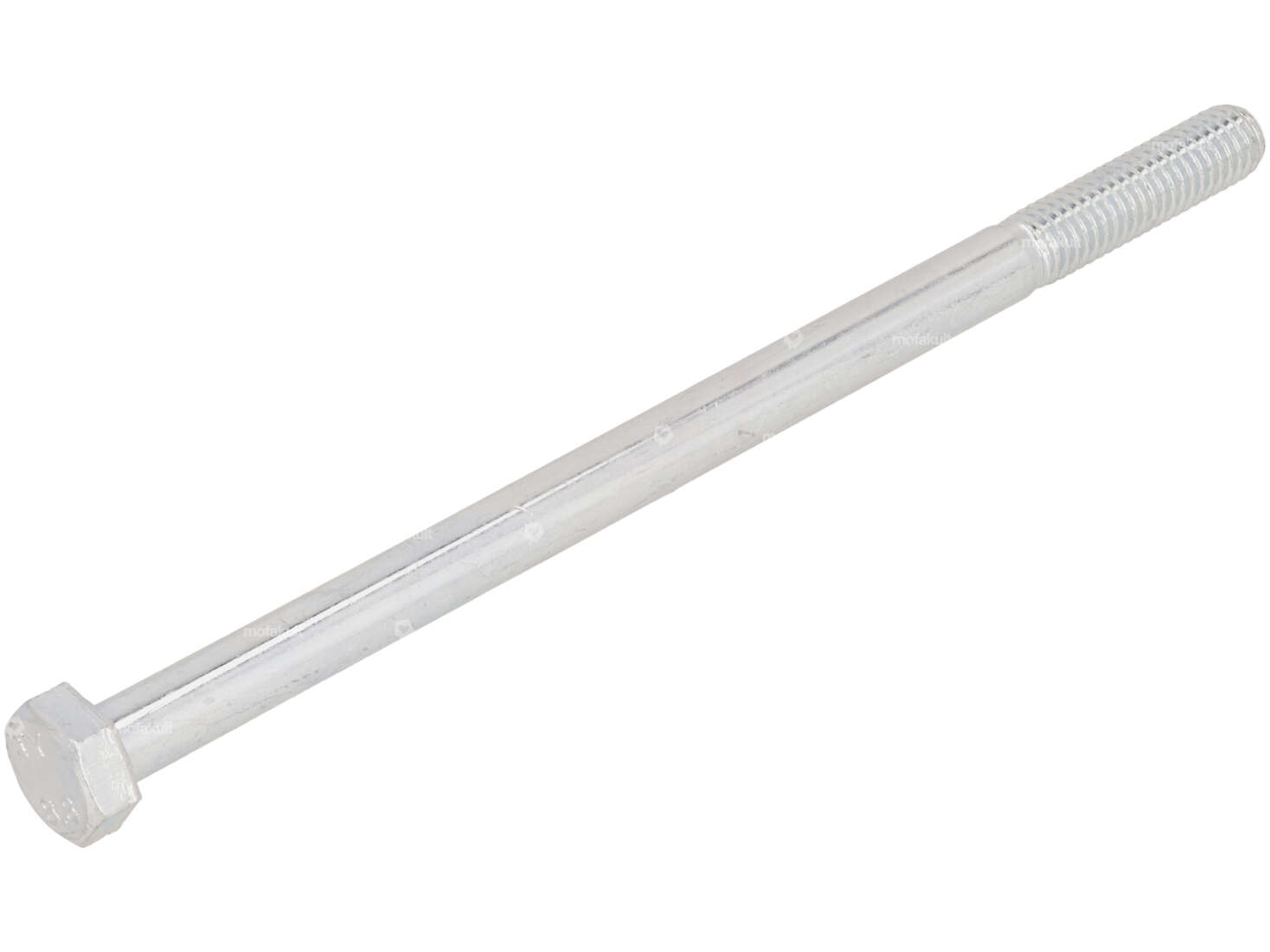

Bolt M8x140 Luggage carrier bracket original | Piaggio Ciao PX, C24

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Thread type: M7x1 (standard thread) · Thread length: 19.5 mm · Material: Steel · Surface: galvanized (blue) · Ø outside: 11 mm · Number of components: 6 pcs · Total length: 25 mm · Screw head: Hexagon · Width across flats SW: 11 mm · Drive: External hexagon · Area of application: Standard

Tail light black | Piaggio Ciao PX, C24, Bravo

Manufacturer: Made in Italy · Mounting type: Nuts & bolts · Material: Plastic · Bulb holder: BA9s · Color: black · Color: red · Height: 58 mm · Test mark: none · Battery operated: No · Depth: 43 mm · Width: 130 mm · Number of fixing points: 2 pcs

GPO control bearing set | Piaggio Ciao

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: FG25.4 (1" 24G) · Bearing type: Bearing ring · Ø inside: 27 mm · Ø outside: 41.4 mm · Ø outside: 42 mm · Height: 10.5 mm · Height: 17 mm · Ø mounting frame: 30.05 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

Saddle spring set | Piaggio Ciao SC, PX

Spring design: Pressure spring · Manufacturer: Quenching · Number of components: 5 pcs

Splash guard front fender | Piaggio Ciao

Manufacturer: Made in Italy · Mounting type: Rivets · Material: Rubber · Color: black · Width: 90 mm · Total length: 115 mm · Ø mounting hole: 3.3 mm · Number of fixing points: 2 pcs · Piaggio OEM number: 100446

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Material: Rubber · Color: black · Surface: raw · Ø outside: 7.9 mm · Total length: 22.8 mm · Ø mounting hole: 6.9 mm · Height: 8.8 mm · Area of application: Standard · Width: 16.25 mm · Total height: 22.7 mm

Screw M8x140 galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Total length: 140 mm · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Shank length: 110 mm

swiing® revival screw set engine mounting Inox | Piaggio Ciao, SI, Bravo, Boxer

Storage method: Sack · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Color: silver · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 19 mm · Thread length: 25 mm · Screw head: Hexagon · Width across flats SW: 10 mm · Shank: Yes · Area of application: Standard · Number of components: 10 pcs · Dimension storage box: 120 x 110 x 10 · Piaggio OEM number: 006176 · Piaggio OEM number: 008977 · Piaggio OEM number: 020106 · Piaggio OEM number: 031092

Sleeve swing arm luggage carrier original | Piaggio Ciao SC, PX, C24

Manufacturer: Piaggio · Ø inside: 12.4 mm · Ø outside: 15.25 mm · Nominal diameter inside: 12 mm · Total length: 19.85 mm · Ø Bundle: 17.75 mm · Piaggio OEM number: 135253

swiing® revival steerer tube nut 1" / 24G open stem chrome | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Thread type: FG25.4 (1" 24G) · Ø outside: 34.5 mm · Drive: External hexagon · Width across flats SW: 32 mm · Height: 18 mm · Thread depth: 12 mm
