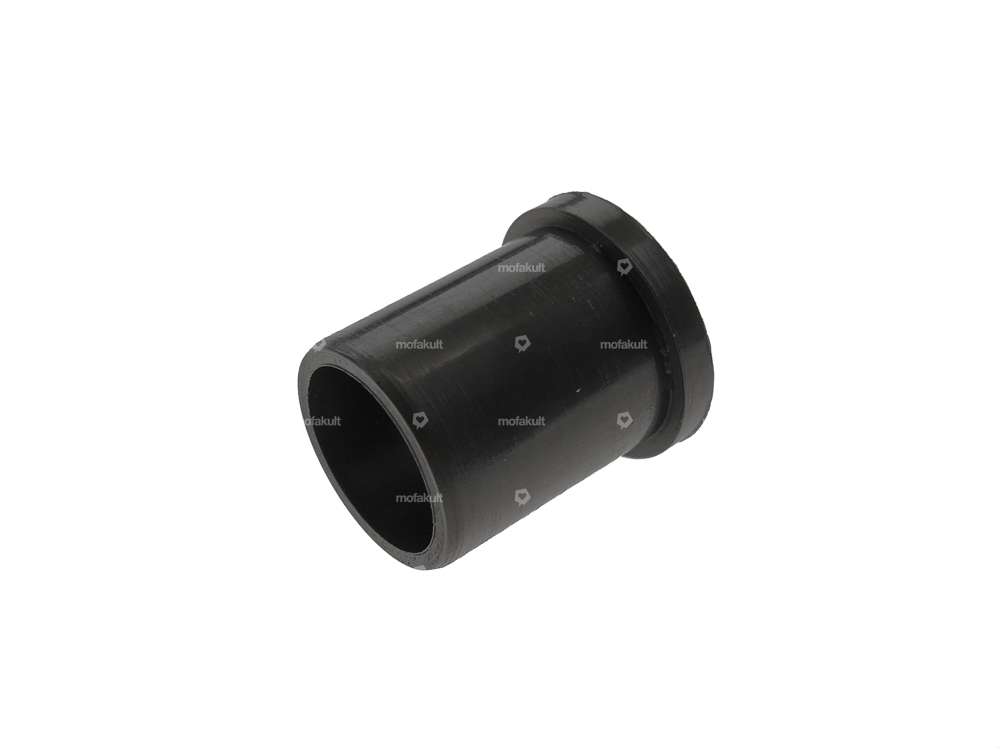

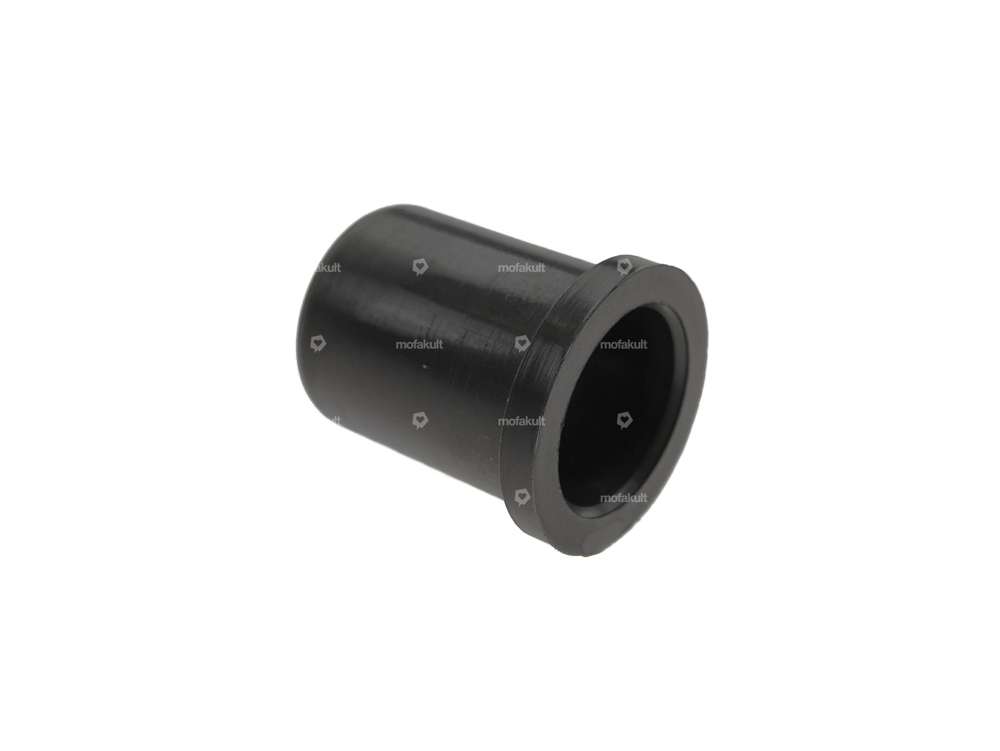

Original plastic bushings for the swing arm under the luggage carrier of Piaggio Ciao SC, PX and C24 mopeds / mopeds.
The bushings are pressed into the side of the swing arm.
Ø inner: 12.4 mm
Ø outer: 15.25 mm
Ø outer collar: 17.75 mm
Length: 19.85 mm
Two bushes are required per swing arm.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 135253
Details
| Nominal diameter inside | 12 mm |
| Manufacturer | Piaggio |
| Ø inside | 12.4 mm |
| Ø Bundle | 17.75 mm |
| Ø outside | 15.25 mm |
| Total length | 19.85 mm |
| Piaggio OEM number | 135253 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao |
