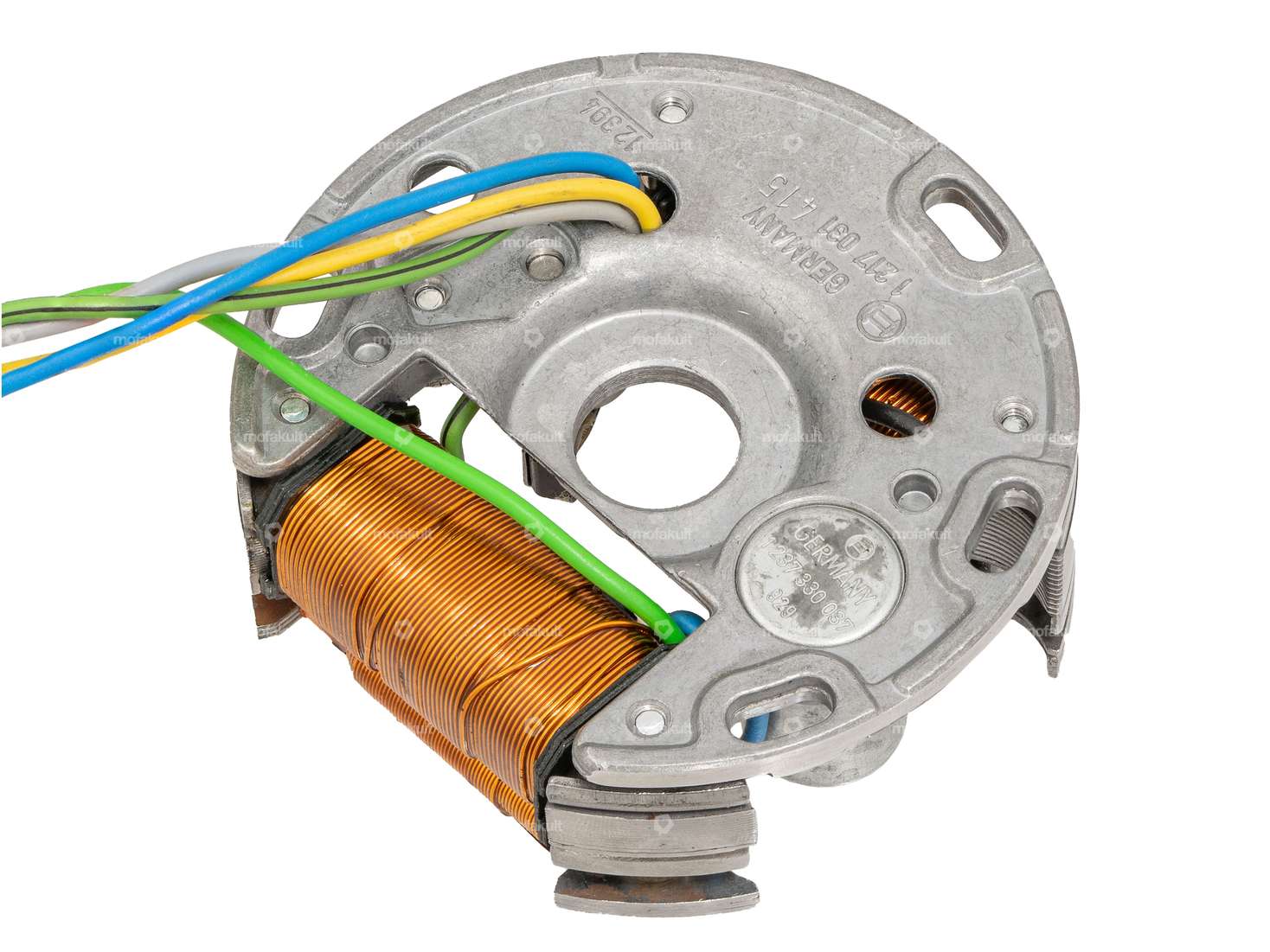

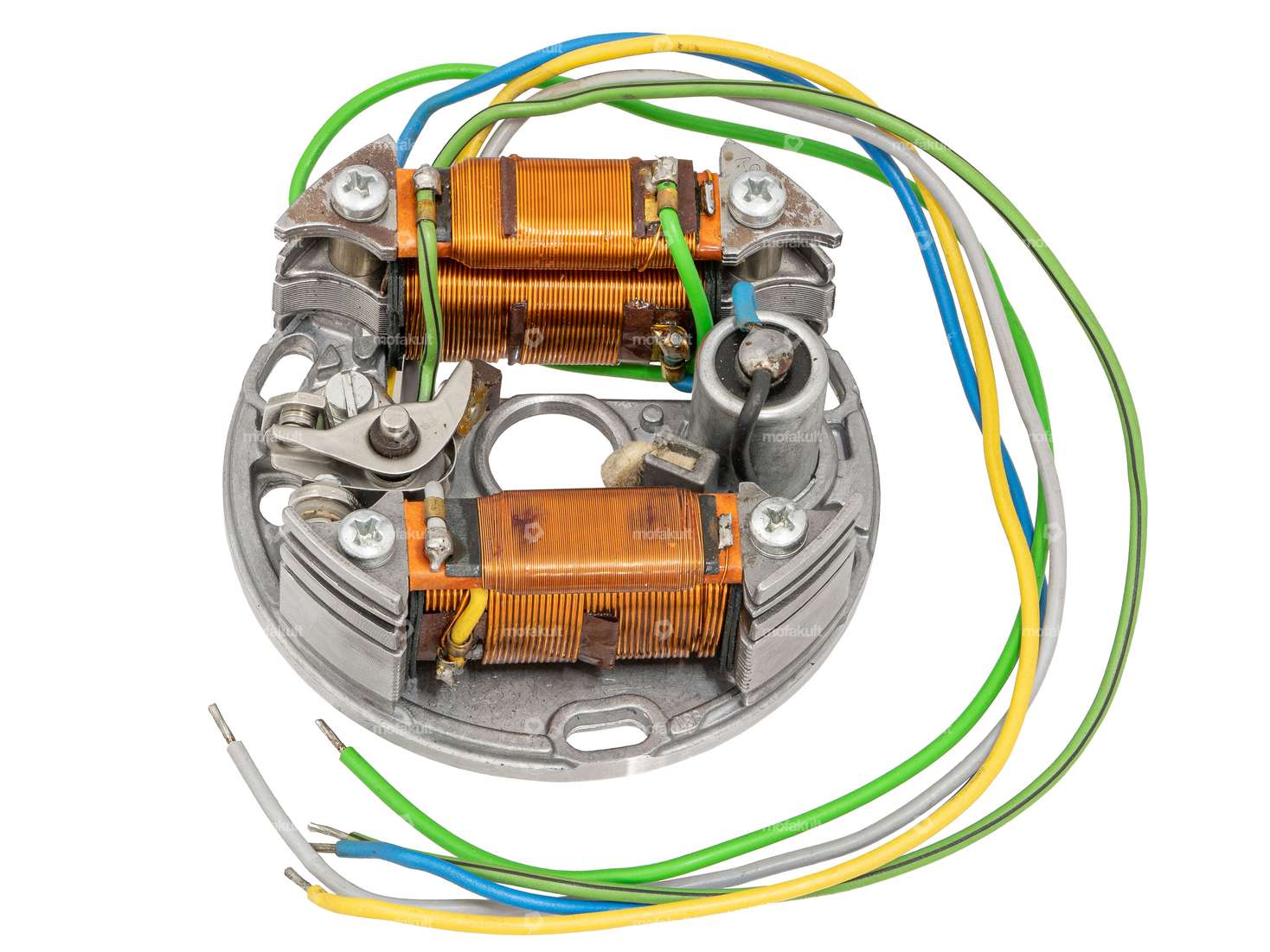

Complete Bosch ignition, which can be fitted to Puch Maxi S, N mopeds / mopeds with E50 single-automatic engine, among others. This ignition is originally installed on various Puch small engines.
An external ignition coil is required for this interrupter ignition.
The ignition is equipped with coils for brake lights and other power consumers such as horns etc.
Connection legend:
Blue cable: external ignition coil (excitation current)
Yellow cable: light 6 Volt 22 Watt
Grey cable: additional consumer 6 Volt 5 Watt (e.g. brake light)
Green cable / black cable: ground
Green cable: Additional consumer 6 volt 10 watt (e.g. horn)
Corresponding add-on parts such as external ignition coil, flywheel, adjustment tool etc. can be found under accessories.
The following number is stamped on the ignition plate: 1 217 031 415
Quality product from the German manufacturer BOSCH in original equipment quality.
NOS – New from old stock.
Details
Cable length | 350 mm |
Manufacturer | BOSCH |
Material | Aluminum |
Area of application | Standard, Original, Custom, Security |
Surface | dull |
Color | gray |
Ø outside | 90 mm |
Tension | 6 V |
Number of cables | 5 pcs |
Number of fixing points | 4 pcs |
Performance | 10 W, 5 W, 22 W |
Ø inside | 18 mm |
Ø bolt circle | 80 mm |
Suitable for the following models
Puch |
Accessories & related products
GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521
Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Number of components: 1 pcs · Total length: 55 mm · Total length: 75 mm · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Strength class: 8.8 · Area of application: (Dis)assembly tool
11,10 EUR
GPO blade gauge set 0.05 - 1.00 mm 13 pcs.
Measuring range [mm]: 0.05 - 1 mm · Manufacturer: GPO · Material: Metal · Surface: blank / oiled · Number of components: 13 pcs · Width: 13 mm · Total length: 105 mm · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Area of application: Measuring tool
13,30 EUR
Nut M10x1 SW14 Flywheel
Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 14 mm · Ø outside: 18.8 mm · Height: 8.9 mm · Area of application: Standard · Pony spare part no.: A4513 · Sachs spare part no.: 0942 072 102
2,70 EUR
Bosch flywheel clockwise NOS | Puch E50
Manufacturer: BOSCH · Weight: 900 g · Material: Steel · Thread type: MF26x1.5 (fine pitch thread) · Direction of rotation: right · Ø cone small inside: 11.9 mm · Ø Internal flywheel: 91.2 mm · Ø cone large inside: 15 mm · Ø Flywheel outside: 115.8 mm · Cone length: 17.8 mm · Cone ratio: 1:5 · Height: 36.6 mm · Thread length: 6.5 mm
243,00 EUR
DUCATI ignition E50 clockwise external ignition coil NOS | Puch Maxi S, N
Manufacturer: DUCATI · Area of application: Original · Area of application: Standard · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Tension: 6 V · Number of fixing points: 4 pcs · Mounting type: Screws
372,10 EUR
Ignition clockwise external ignition coil / additional light coils 6V 22-5 / 10W NOS
Manufacturer: Puch · Material: Aluminum · Area of application: Custom · Area of application: Original · Area of application: Security · Area of application: Standard · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Tension: 6 V · Performance: 5 W · Performance: 10 W · Performance: 22 W · Number of fixing points: 4 pcs · Mounting type: Screws
381,60 EUR
