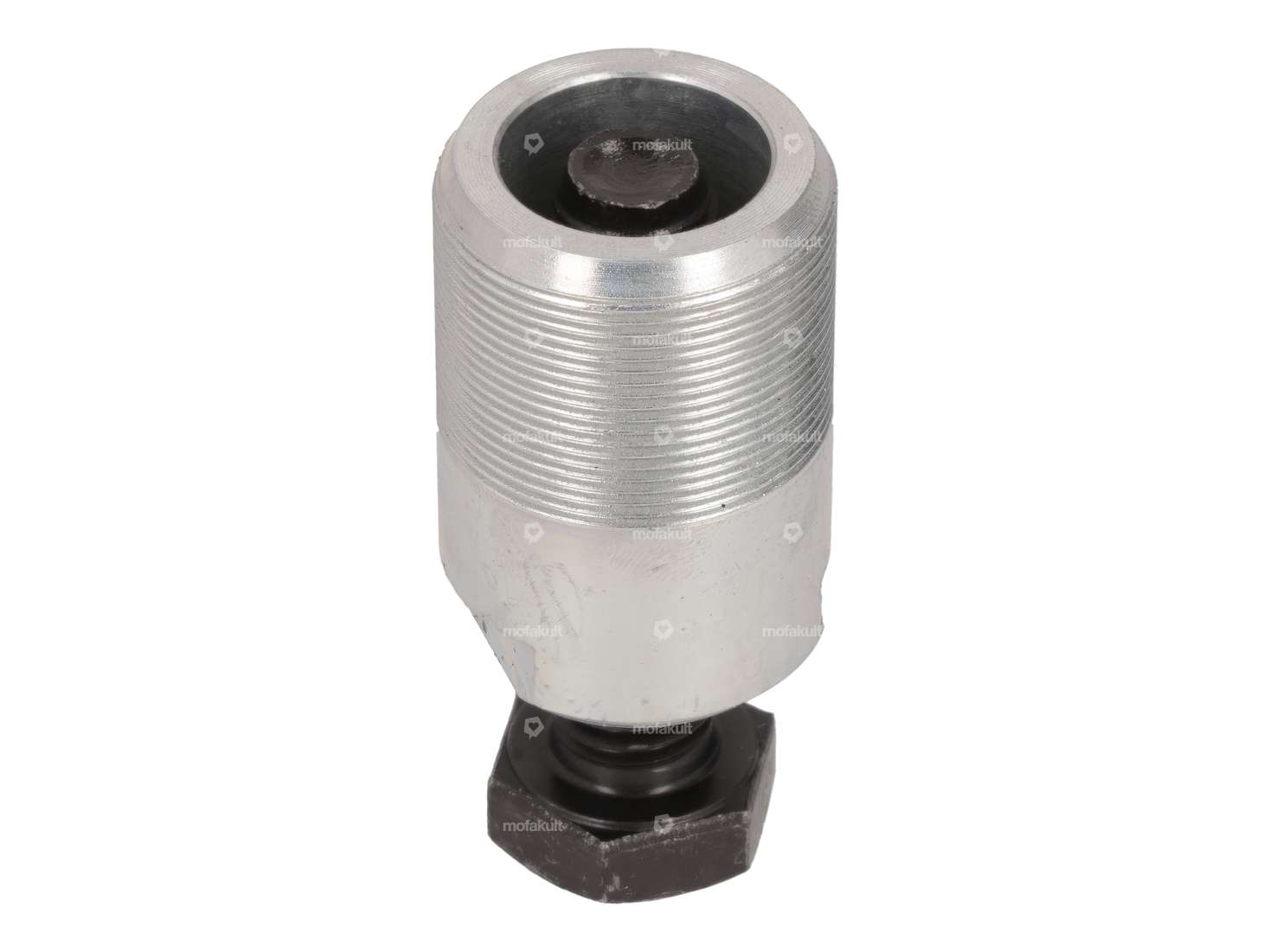

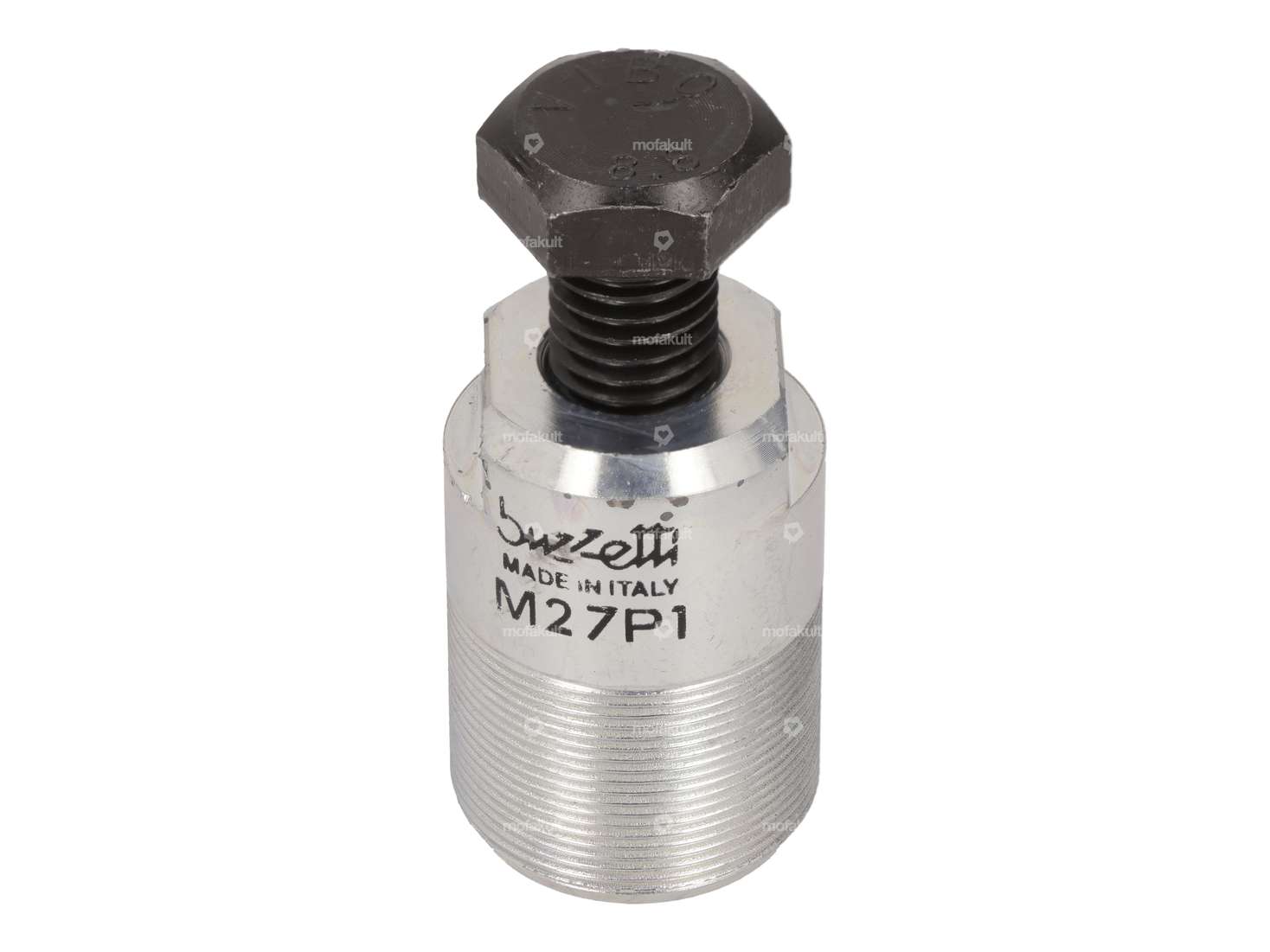

Buzzetti flywheel trigger M27x1 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

Rear light black - red

Width: 65 mm · Material: Plastic · Test mark: none · Bulb holder: BA9s · Color: black · Color: red · Mounting type: Nuts & bolts · Depth: 55 mm · Battery operated: No · Ø Receptacle: 3.5 mm · Number of fixing points: 1 pcs

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Ø inside: 26.8 mm · Material: Steel · Surface: blue galvanized · Thread type: MF26x1 (fine pitch thread) · Color: silver · Ø outside: 41 mm · Ø mounting frame: 31 mm

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521

Width across flats (trigger): 27 mm · Manufacturer: GPO · Clamping depth: 10 mm · Number of components: 1 pcs · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Area of application: (Dis)assembly tool · Width across flats Screw: 19 mm · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8

GPO fork lock | Puch

Ø Pin: 8 mm · Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Width: 17 mm · Ø outside: 12 mm · Total length: 40.8 mm · Length of turned part: 25.6 mm

GPO chain tensioner | Puch Maxi S

Manufacturer: GPO · Material: Plastic · Material: Steel · Color: black · Surface: blue galvanized · Color: silver · Thread type: M6x1 (standard thread) · Number of teeth: 10 pcs · Total length: 175 mm · Ø outside sprocket: 36 mm · Number of fixing points: 1 pcs

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch spare part no.: 349.4.28.502.2 · Alternative version of the Puch spare part no.: 349.4.28.603.2 · Puch spare part no.: 349.7.28.503.2

Flywheel trigger M27x1 LH (left-hand thread) HPI

Manufacturer: Made in Italy · Area of application: (Dis)assembly tool · Material: Steel · Surface: blue galvanized · Surface: burnished · Thread type: MF27x1 LH (fine/left-hand thread)

Buzzetti flywheel trigger M28x1 mm

Width across flats (trigger): 21 mm · Manufacturer: Buzzetti · Area of application: (Dis)assembly tool · Thread type: MF28x1 (fine pitch thread) · Total length: 40 mm
