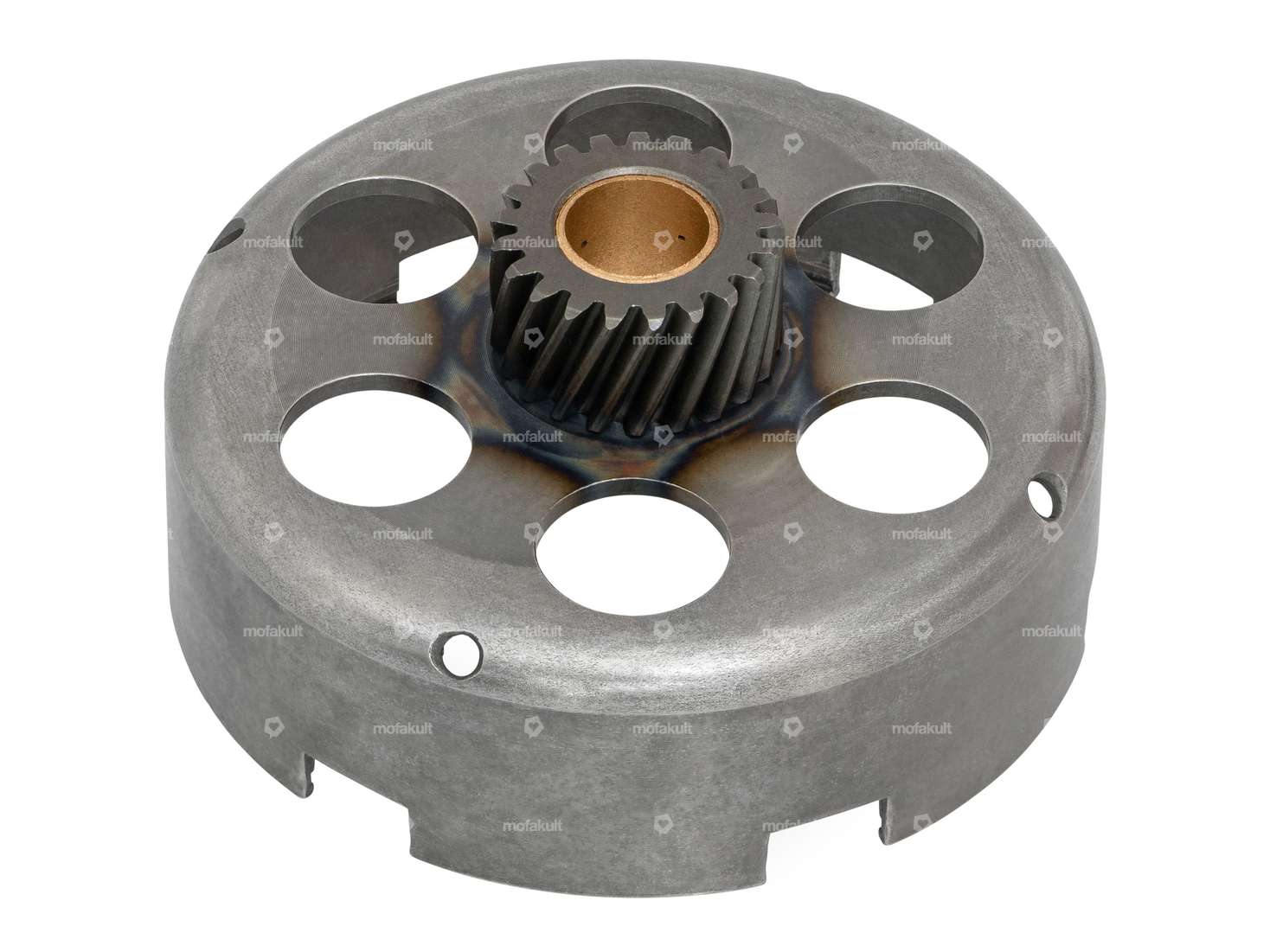

Lightened clutch basket with 21 teeth suitable for Puch Maxi mopeds / mopeds with 1-speed E50 engine.
The clutch basket is designed for the often installed spur gear with 106 teeth.

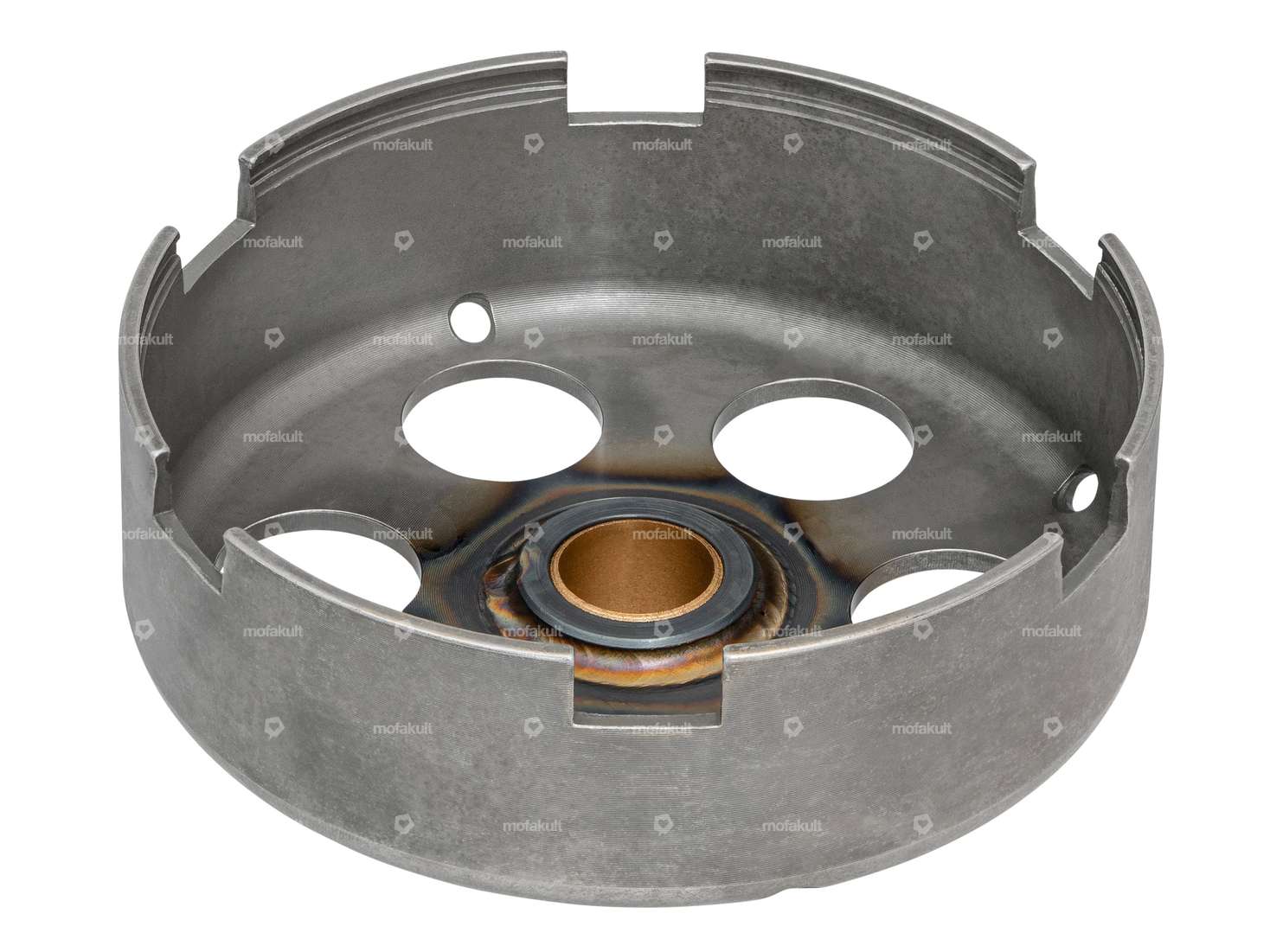

With pressed-in brass bushing. There are four small holes on the sliding bush for additional lubrication.

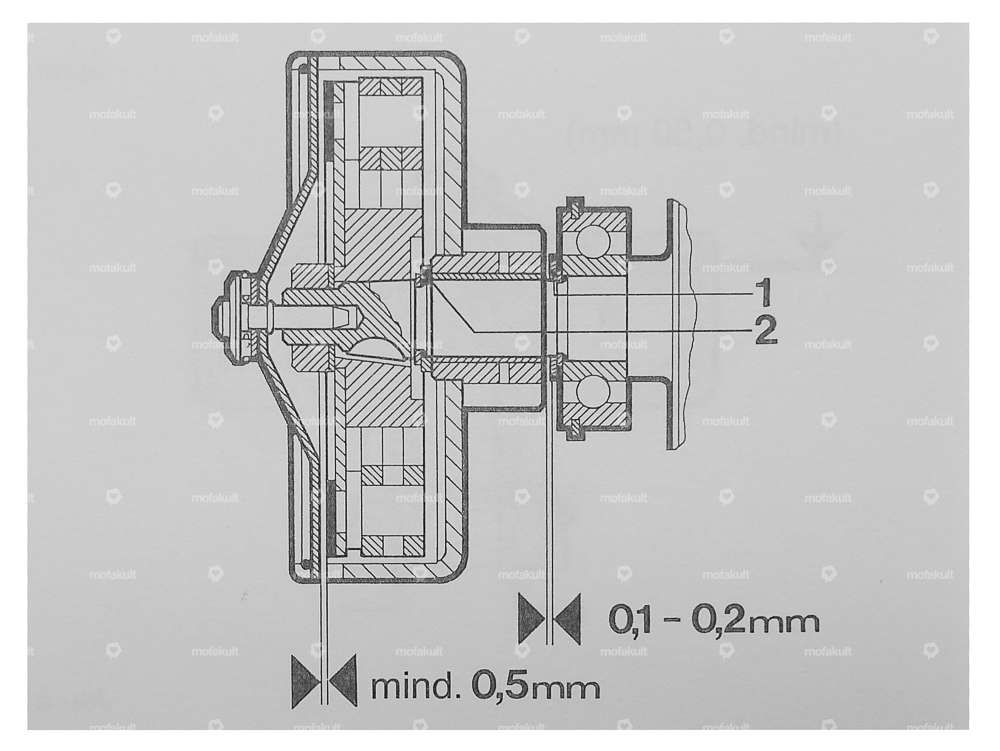

Note that the play of the clutch basket must be correctly balanced. Figure 3 shows the corresponding dimensions.
You will find suitable thrust washers in the accessories, which are mounted in front of and behind the clutch basket.
Details
| Material | Steel |
| Toothing type | helical toothed |
| Ø inside | 14.5 mm |
| Number of teeth | 21 pcs |
| Recording type | Interlocking |
| Height | 49.3 mm |
| Ø Receptacle | 30.5 mm |
| Ø outside | 99.5 mm |
| Area of application | Tuning |
Suitable for the following models
| Puch | E50 |
