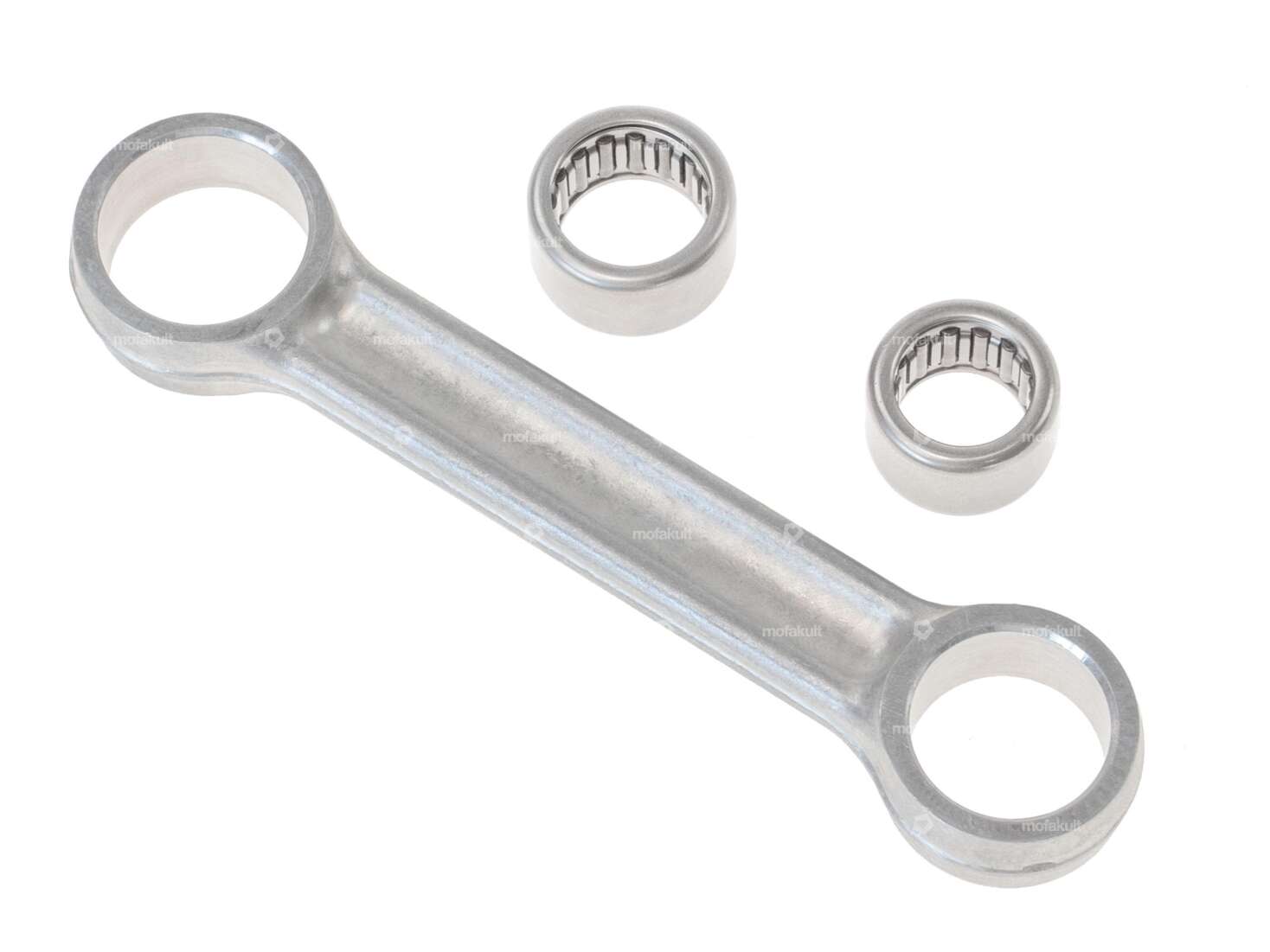

Complete connecting rod made of cast aluminum suitable for crankshafts of various engines of your Solex moped / moped.
The two needle sleeves, which serve as connecting rod bearings, must still be pressed in.
Connecting rod length (center – center): 90 mm
Total connecting rod length: 115.7 mm
Thickness: 12 mm
Ø outside lower connecting rod eye: 26.3 mm
Outer diameter upper connecting rod eye: 24.8 mm
Ø inside lower bearing: 20 mm
Ø inside upper bearing: 18 mm
Alternative connecting rods and other Solex items can be found in the accessories section.
Details
| Total length | 115.7 mm |
| Material | Aluminum |
| Area of application | Standard |
| Surface | raw |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Ø Connecting rod bolt | 14 mm |
| Ø lower connecting rod eye outside | 26.3 mm |
| Ø upper connecting rod eye outside | 24.8 mm |
| Ø lower bearing inside | 20 mm |
| Ø inside upper bearing | 18 mm |
| Dimension lower bearing | 14/20 x 12 mm |
| Dimension upper bearing | 12/18 x 12 mm |
| Thickness | 12 mm |
Suitable for the following models
| Solex |
