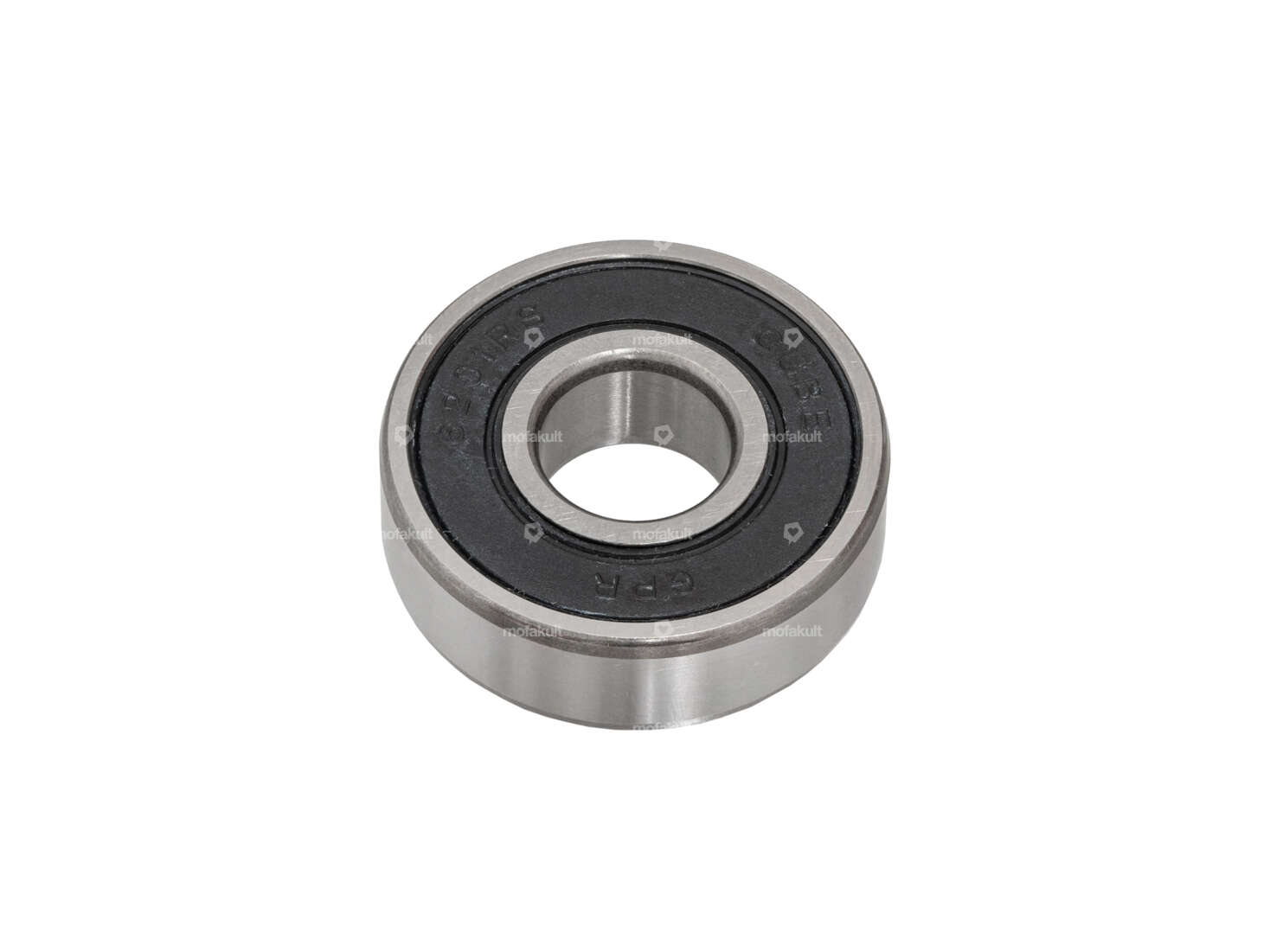

CUBE 6201 2RS ball bearing 12/32/10

swiing® ingenious bearing press-on plunger Ø 12/32 mm (type 6201)

Manufacturer: swiing® ingenious parts · Area of application: Special tool · Material: Aluminum · Surface: anodized · Number of components: 2 pcs · Total length: 52.5 mm · Ø inside: 12 mm · Ø outside: 32 mm · Ø Pin: 12 mm

KMC drive chain 415H (reinforced) 128L

Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm · Color: gray

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

NewFren brake shoes Ø 90 x 17

Manufacturer: NewFren · Ø drum: 90 mm · Width: 17 mm · Number of springs: 1 pcs · Springs included: Yes · Ø locating bolt: 10 mm · Slotted: No · Color: silver · Area of application: Standard

Nut M12x1 x 10 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Height: 10 mm · Thread depth: 10 mm · Width across flats SW: 19 mm · Strength class: 8

NTN wheel bearing 12/28/8 rear cast hub Leleu | Puch Maxi

Bearing type: Deep groove ball bearing · Stock number: 6001 · Ø inside: 12 mm · Ø outside: 28 mm · Width: 8 mm · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Area of application: Standard

FAG 16101 A 2RS wheel bearing 12/30/8

Ø inside: 12 mm · Bearing type: Deep groove ball bearing · Ø outside: 30 mm · Stock number: 16101 · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: FAG · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Area of application: Standard

CUBE 6001 2RS wheel bearing 12/28x8 rear cast hub Leleu black | Puch Maxi

Bearing type: Deep groove ball bearing · Stock number: 6001 · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Area of application: Standard · Ø inside: 12 mm · Ø outside: 28 mm

CUBE 6201 2RS wheel bearing 12/32/10 cast hub rear Grimeca

Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides

CUBE 6201 2RS wheel bearing 12/32/10 front & rear | Tomos

Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Tomos OEM number: 044225

SKF 6001 2RSH Ball bearing 12/28/8

Bearing type: Deep groove ball bearing · Stock number: 6001 · Ø inside: 12 mm · Ø outside: 28 mm · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided
