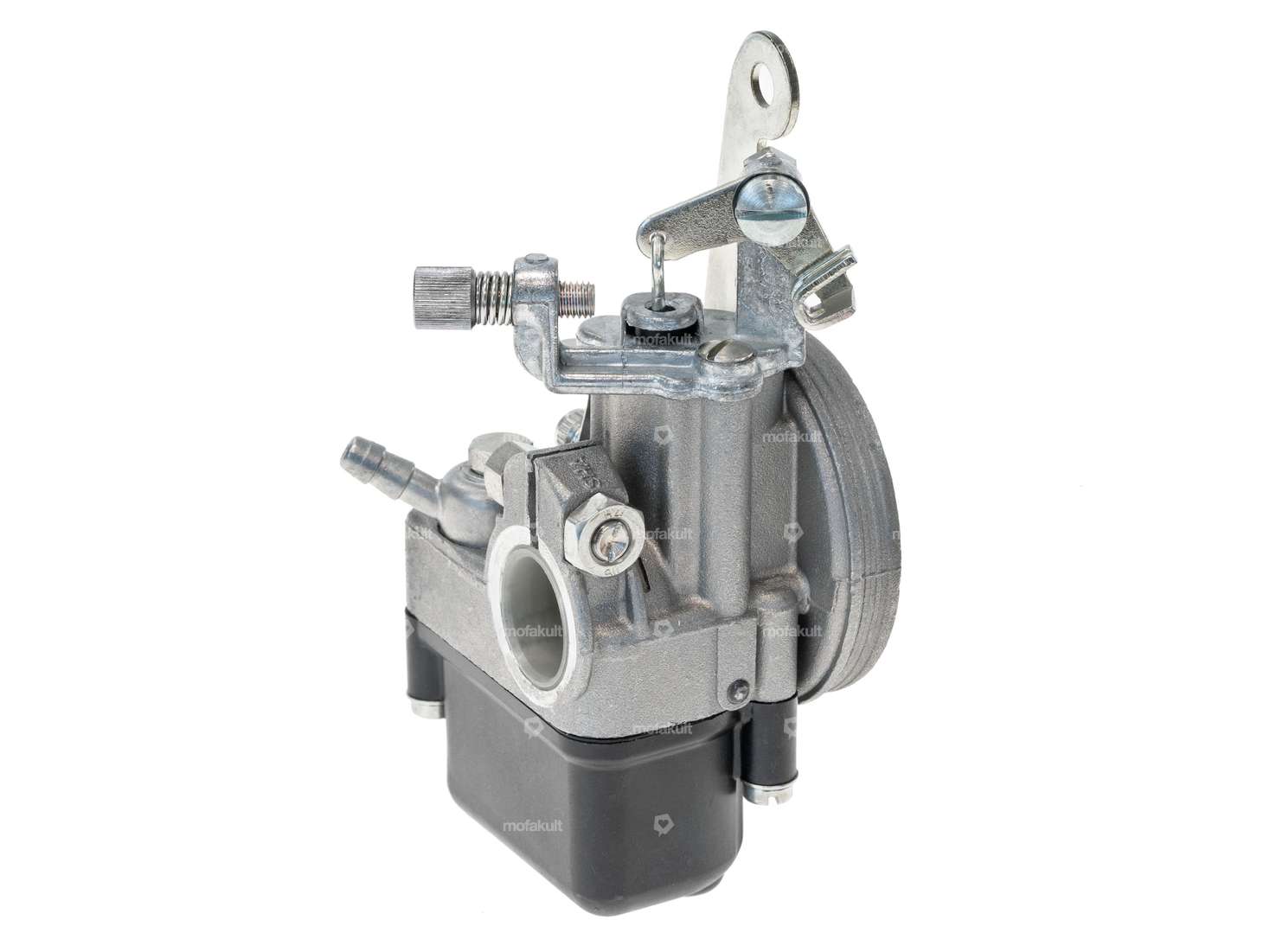

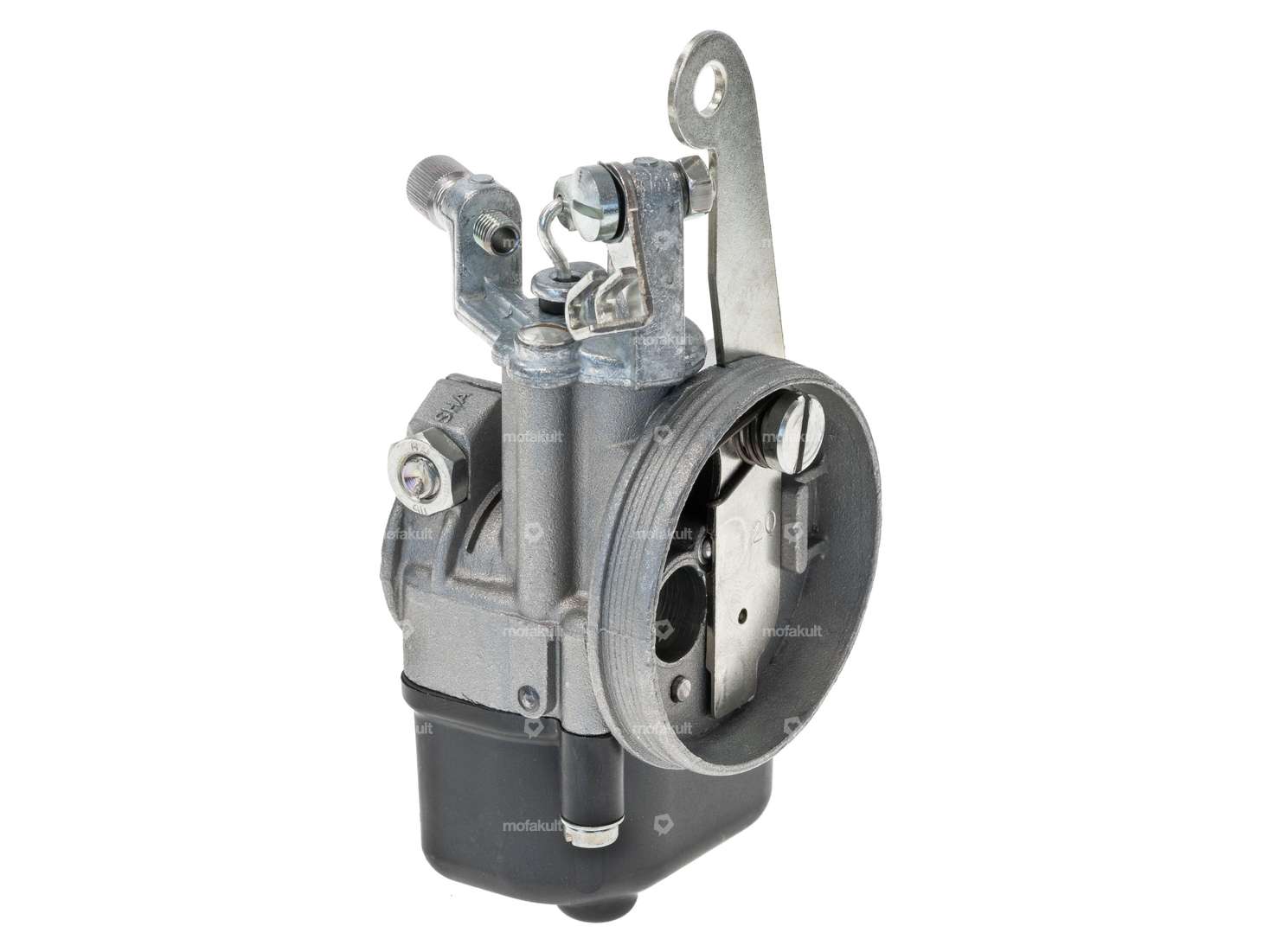

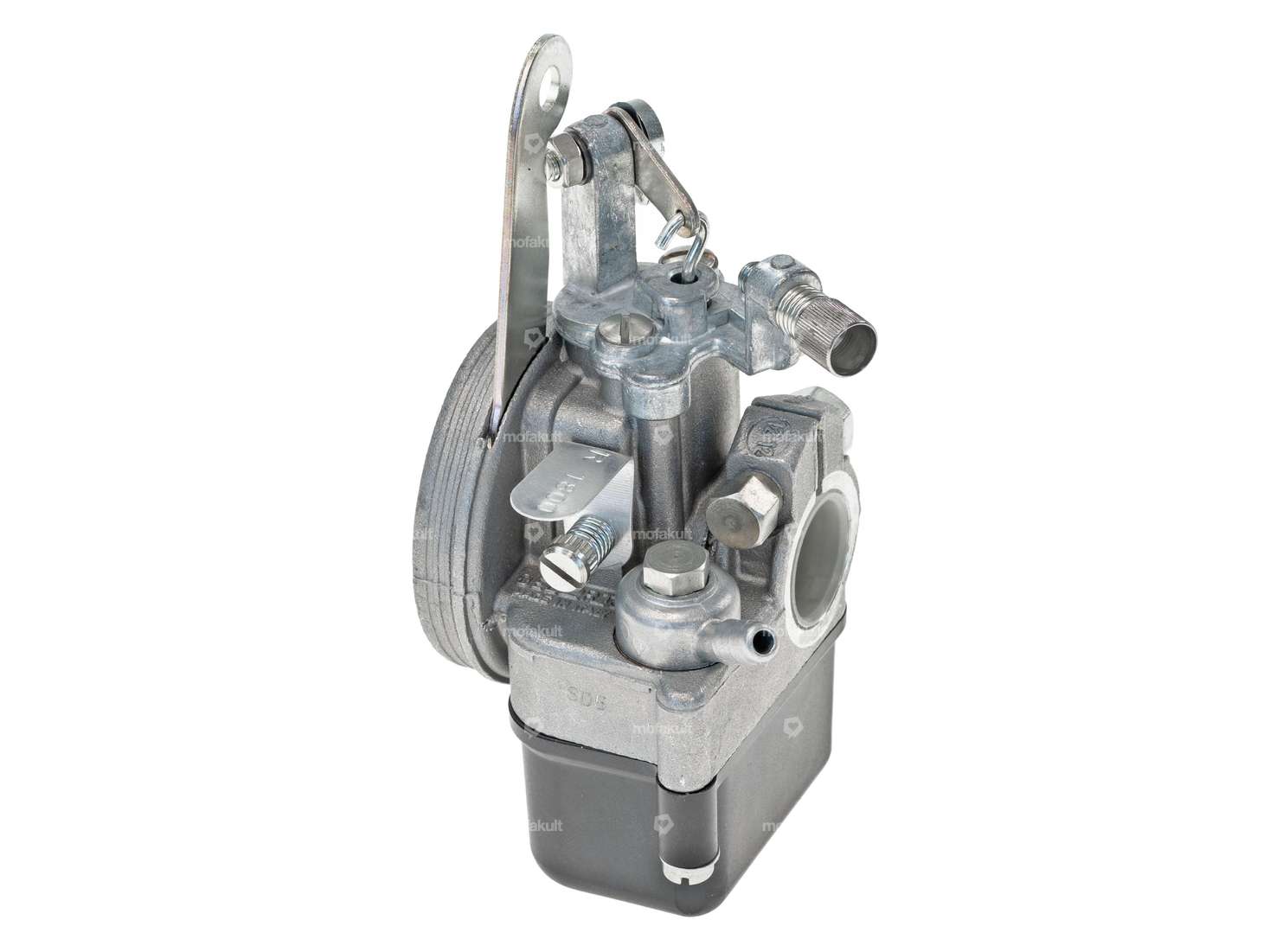

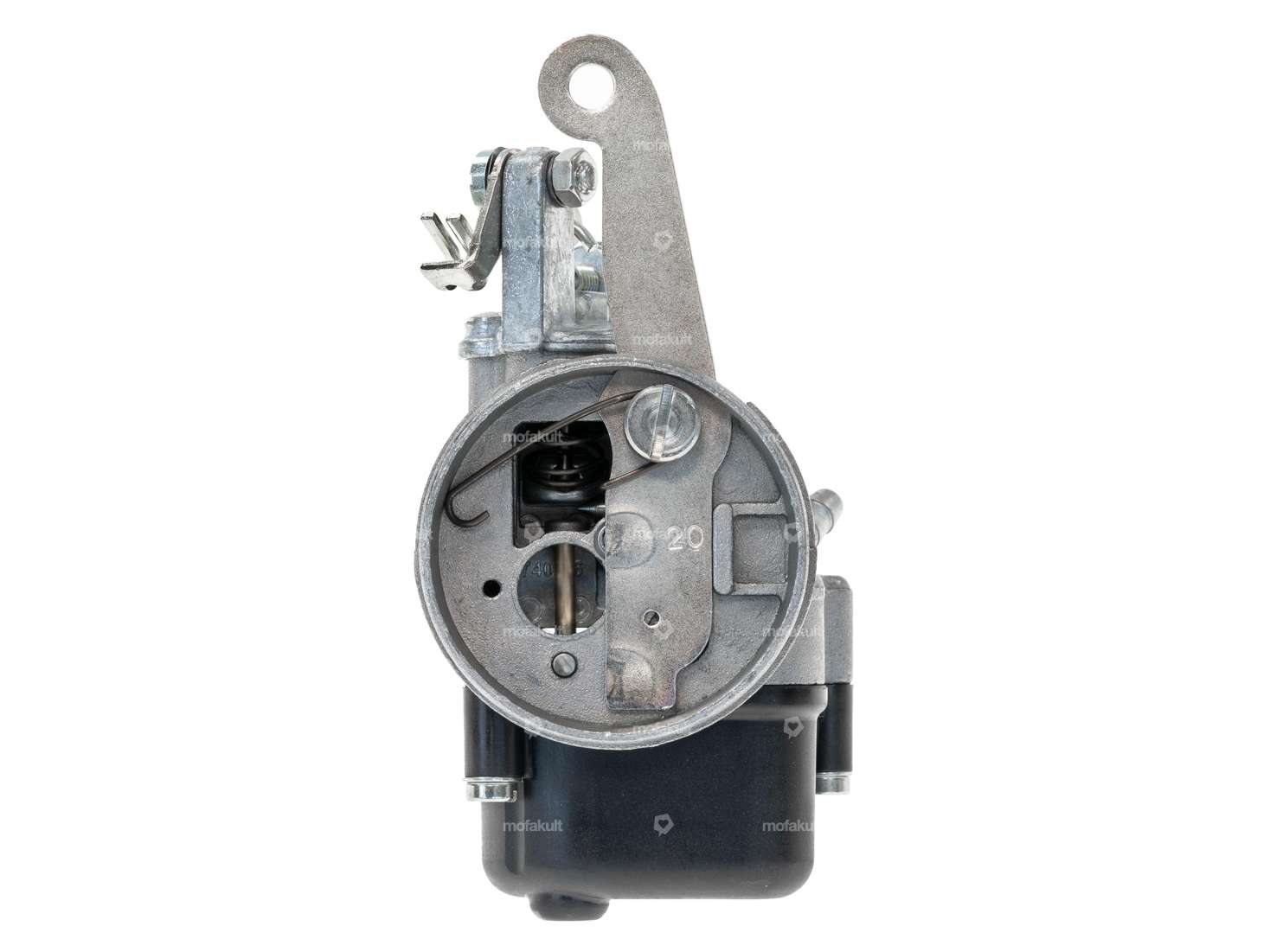

The 12 / 12 SHA racing carburetor impresses with its compact design and fits your Piaggio Si, Boss and Grillo moped / moped.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 49
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.7 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 117 mm
Total length: 55 mm
Total width: 62 mm
Matching nozzles and air filters can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Color | black |
| Carburetor type | SHA (type 3) |
| Nominal diameter | 12 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.7 mm |
| Ø fuel hose connection | 6 mm, 5.3 mm |
| Mixed oil connection | No |
| Mounting type | Plug connection clamped |
| Width | 59 mm |
| Vacuum connection | No |
| Total length | 55 mm |
| Choke control | Hand choke |
| Area of application | Tuning |
| Nozzle thread | M5 |
| Nozzle size | 49 |
| Camouflaged | No |
| Height | 117 mm |
Suitable for the following models
| Piaggio | Si |
