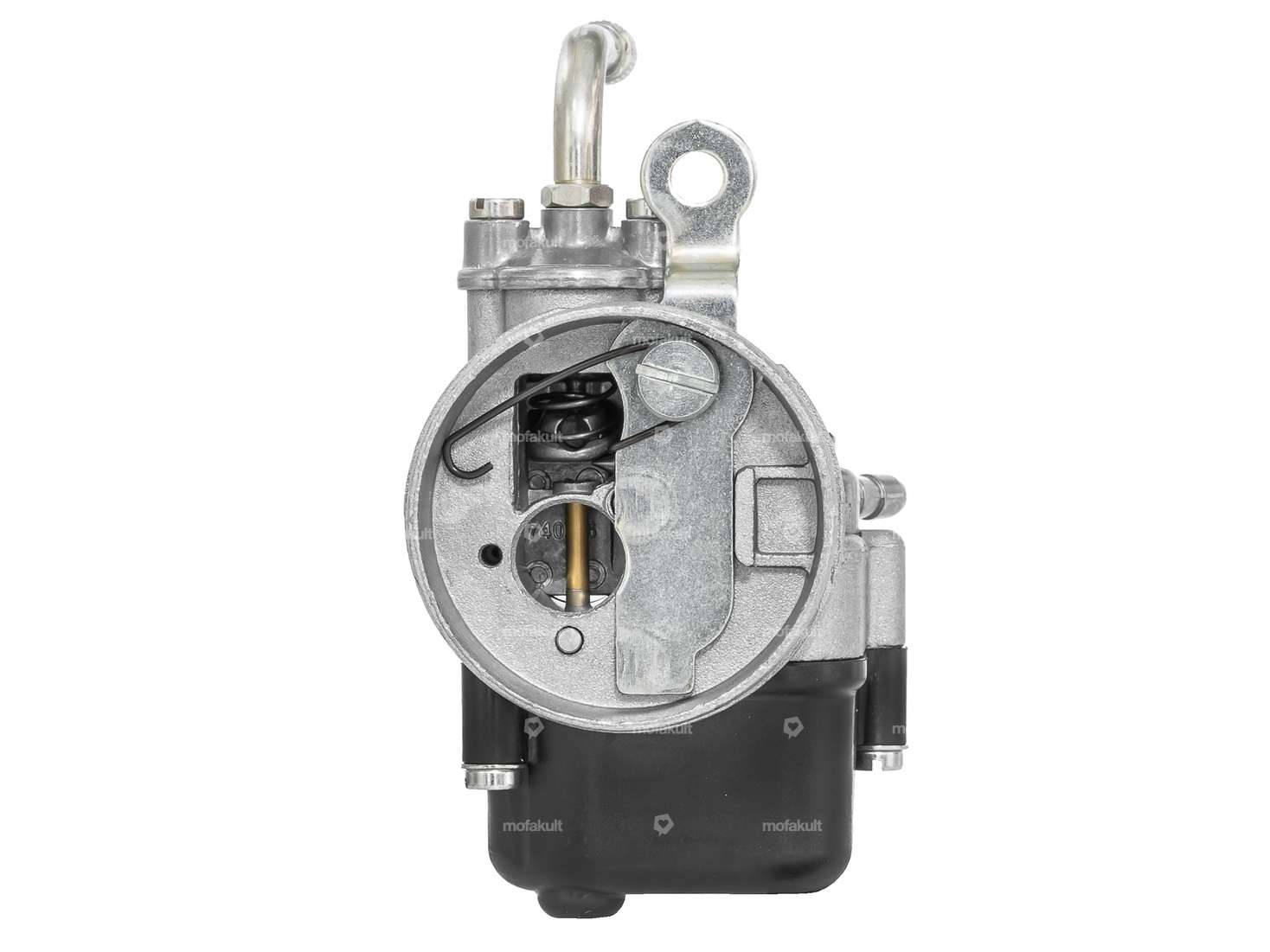

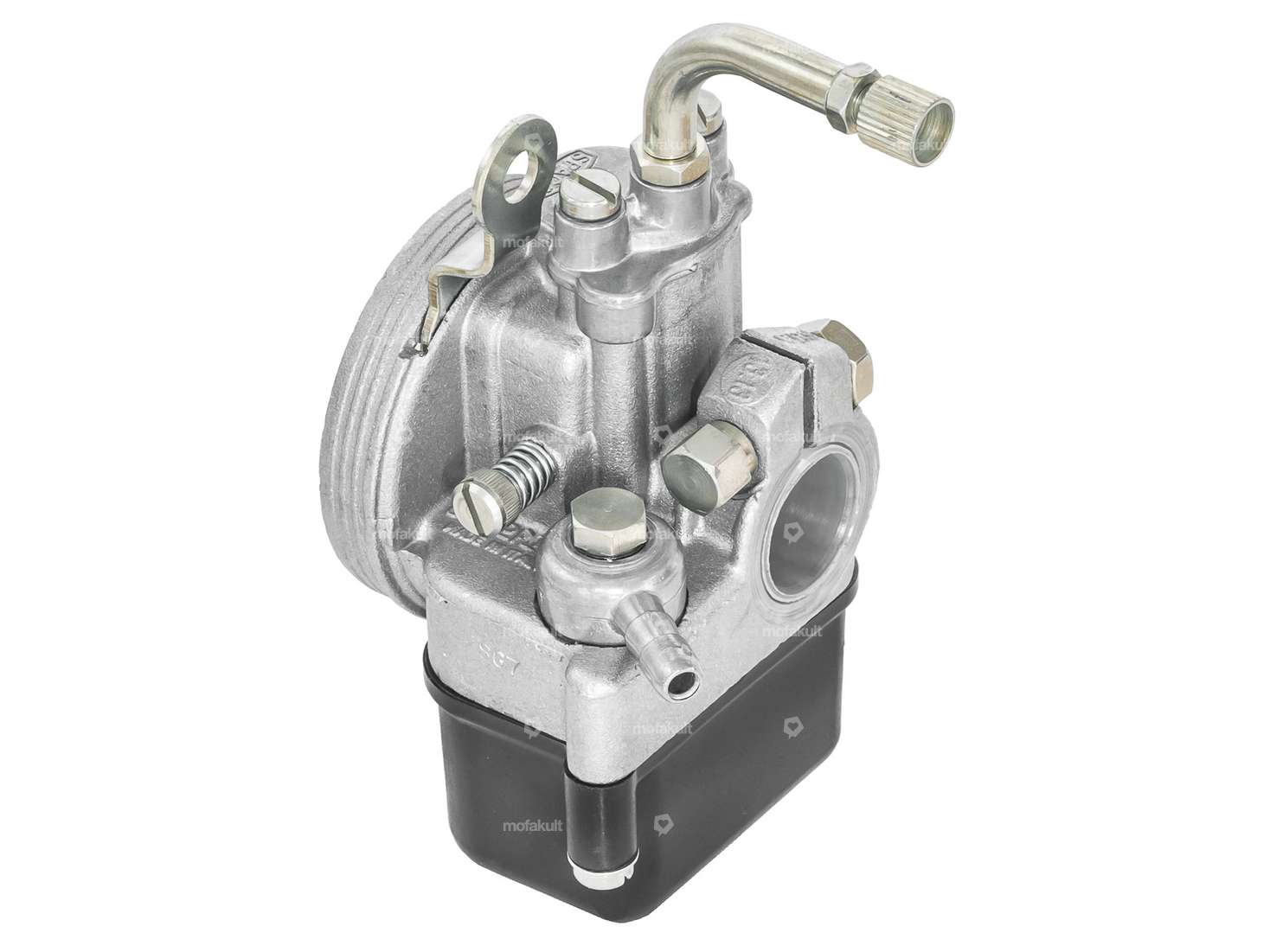

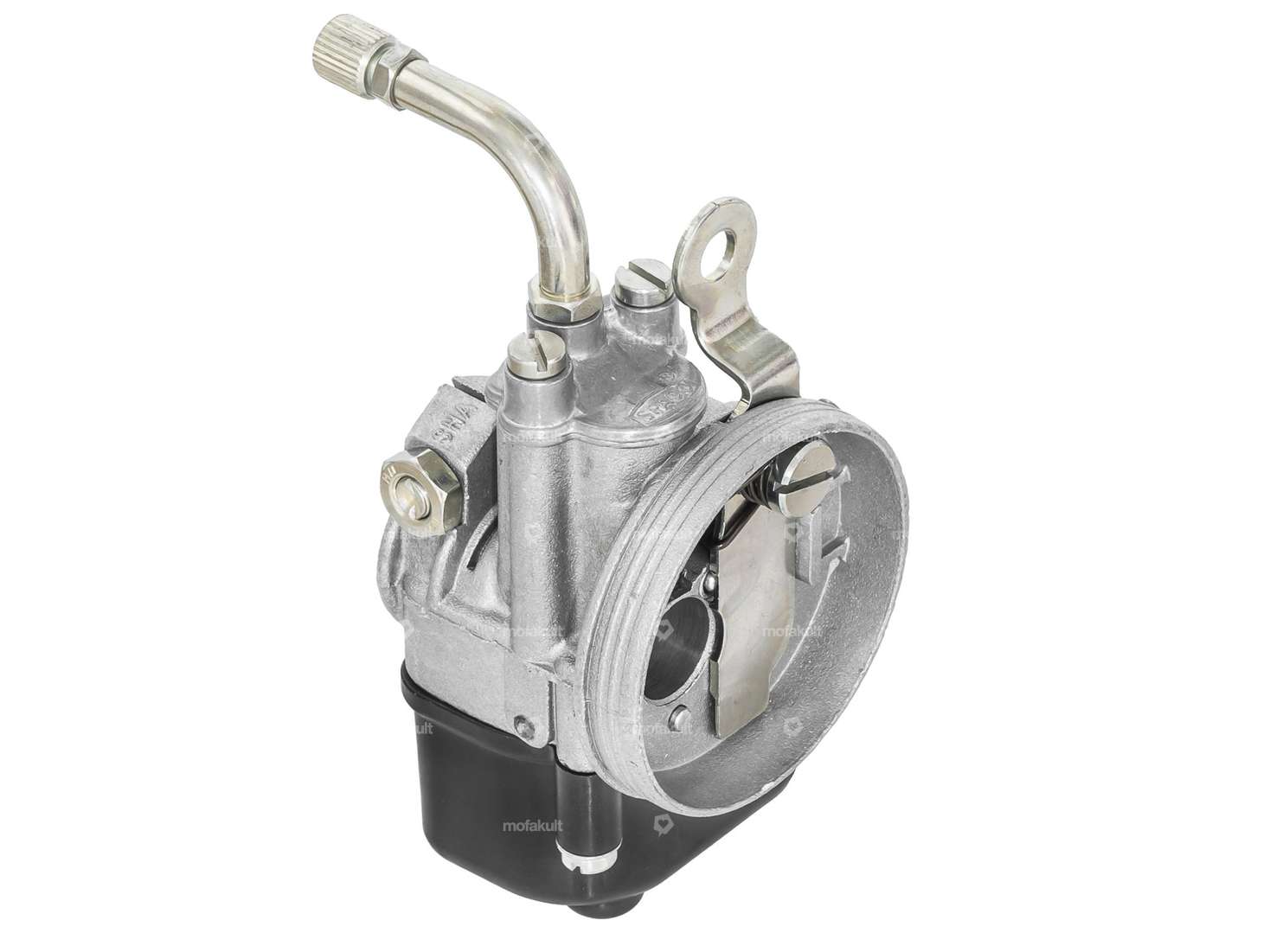

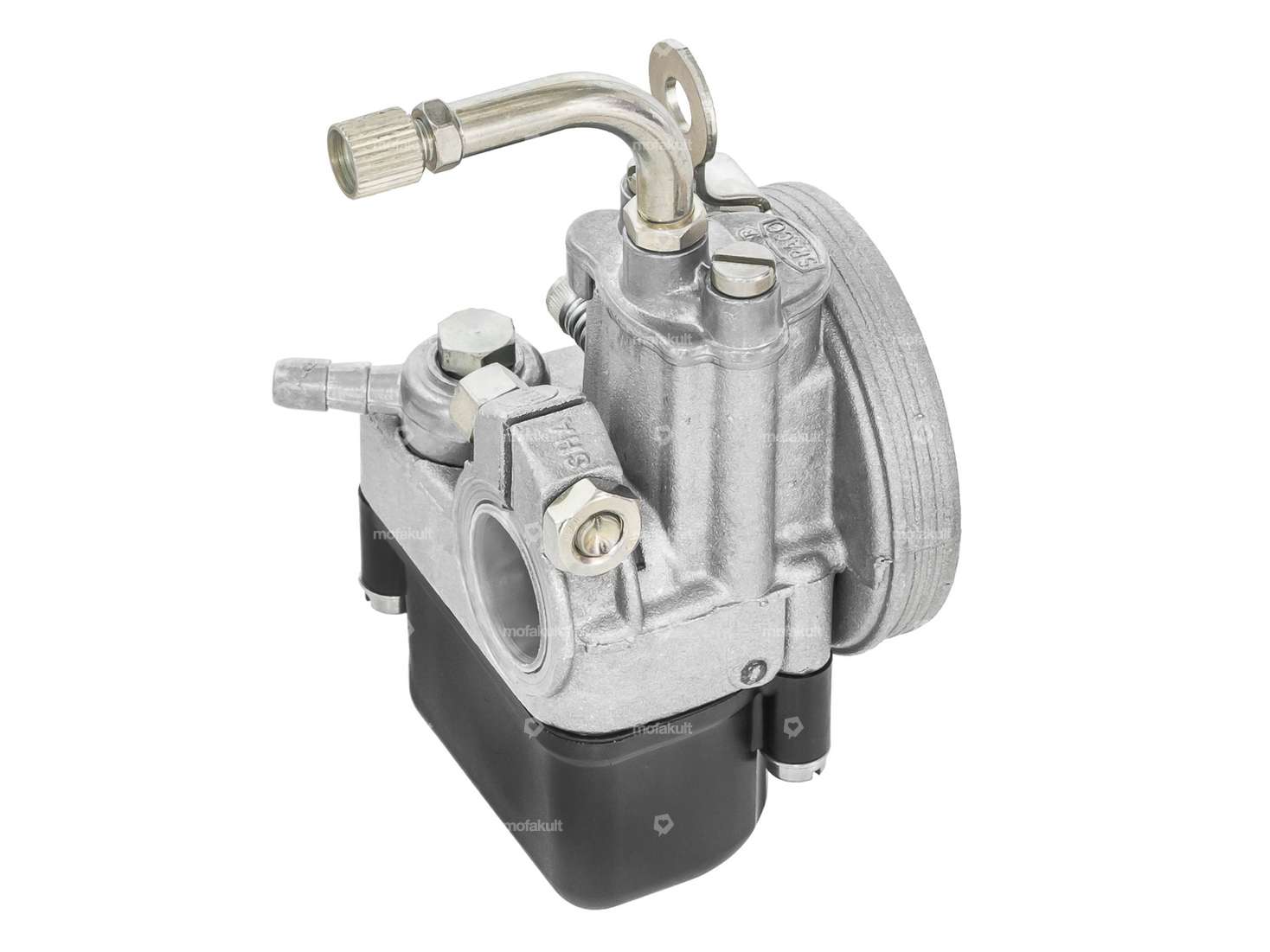

High-quality Dell'Orto 13 / 13 SHA racing carburetor in a set with compact racing air filter, suitable for your Piaggio Bravo 2 and Bravo 3 moped / moped.
The classic from Dell'Orto and at the same time the largest possible carburetor for the original and Polini Speed-Engine engine housing, in combination with a tuning air filter, enables large performance gains for your Italian two-wheeler.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

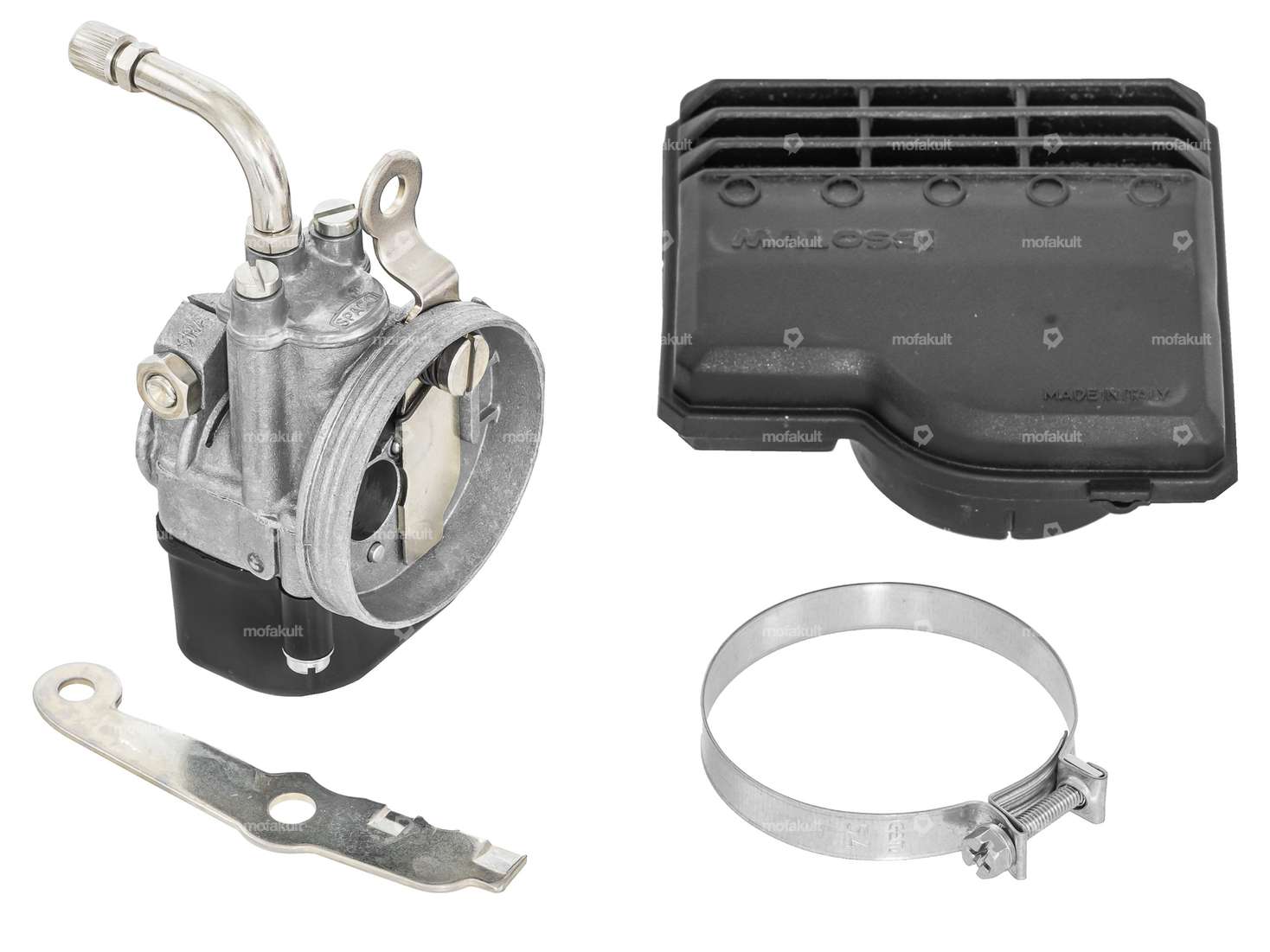

The set includes the following fixed parts:
Nozzle size: 66 · Manufacturer: Dell'Orto · Camouflaged: No · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm, 5.2 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Total length: 46 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: Dell'Orto · Material: Steel · Surface: galvanized (yellow) · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Component group Carburetor: Choke control
Details
| Manufacturer | Dell'Orto, Malossi |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA (Piaggio) |
| Nominal diameter | 13 mm |
| Total length | 46 mm |
| Width | 60 mm |
| Ø Internal connection | 16 mm |
| Height | 96 mm |
| Nozzle size | 66 |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 13 mm |
| Area of application | Tuning |
| Ø Output inside | 13 mm |
| Ø Air filter connection | 50.8 mm |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Mounting type | Plug connection clamped |
Suitable for the following models
| Piaggio | Bravo/Superbravo |
Accessories & related products

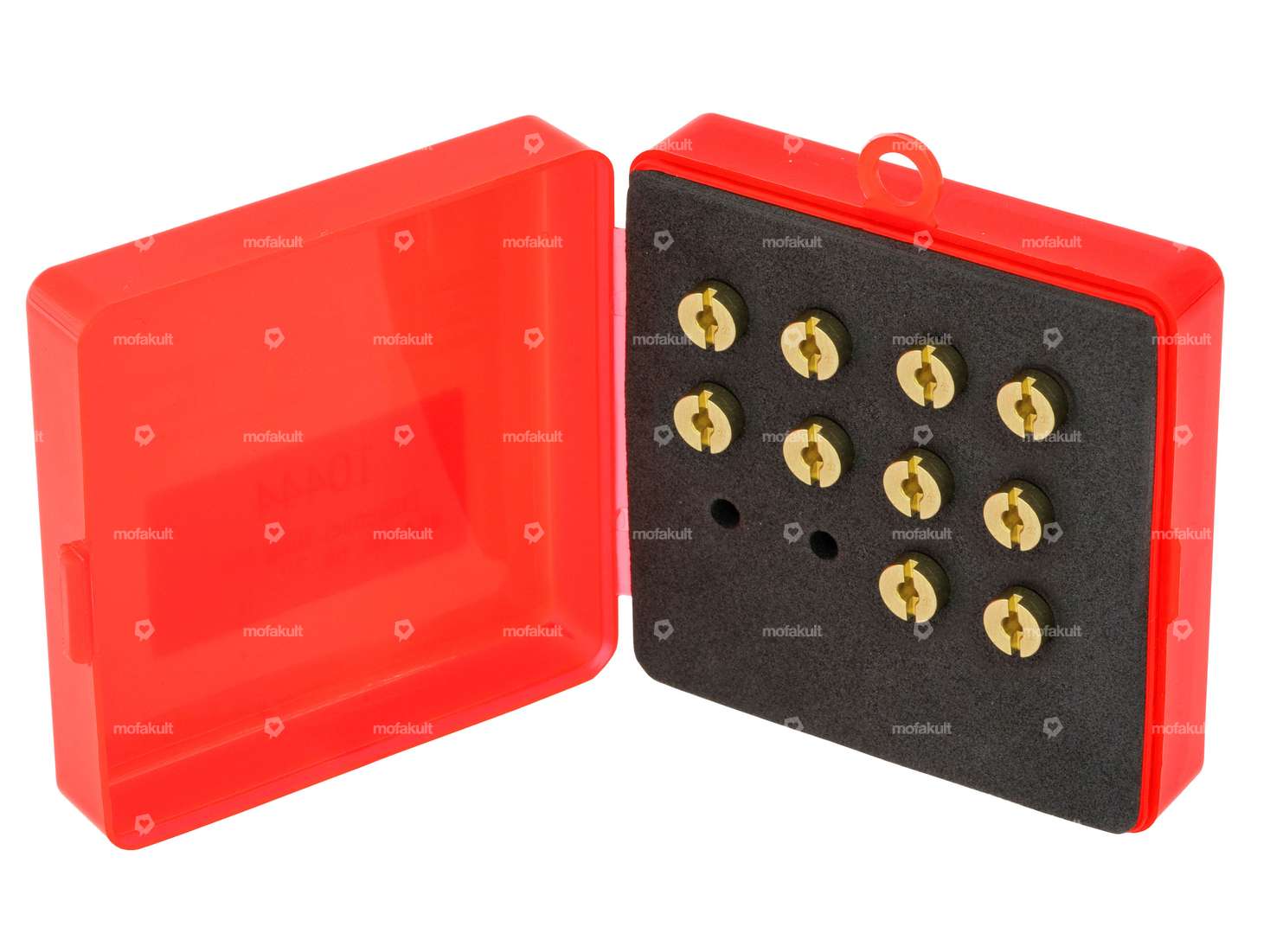

swiing nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
