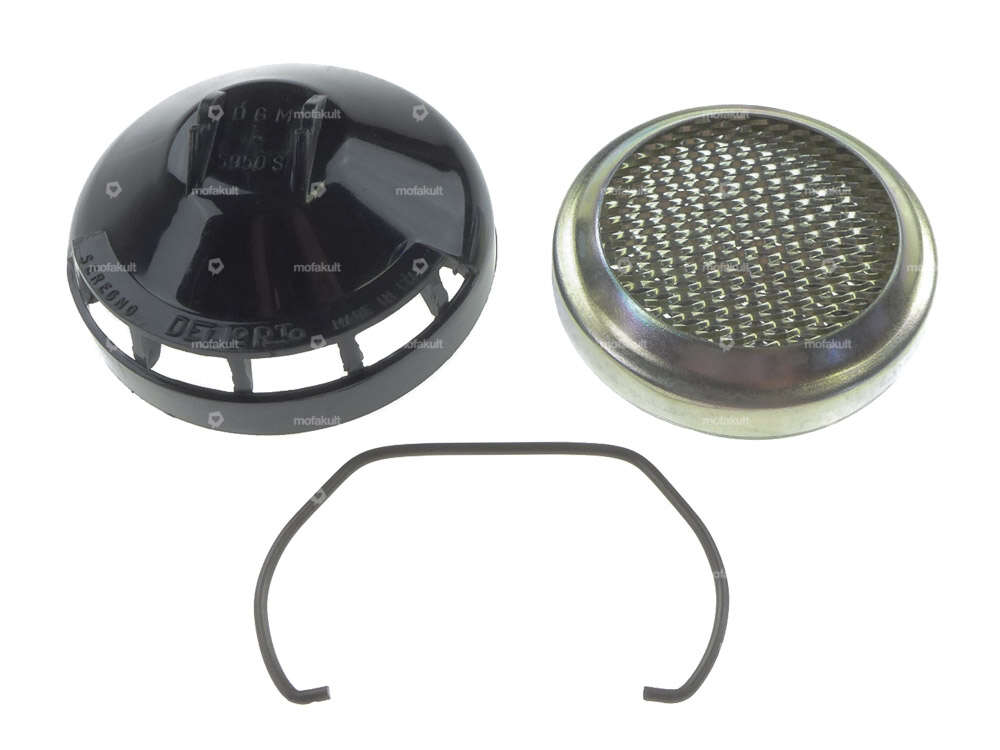

Dell'Orto air filter set SHA carburetor

Chrome mirror

Thread type: M8x1.25 (standard thread) · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Total length: 285 mm · Clamping diameter: 22 mm · Mirror rod length: 230 mm · Thread size: M8

Magura cable clamp Ø 8 x 15 mm

Ø outside: 8 mm · Total length: 15 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats SW: 7 mm · Thread type: M6x1 (standard thread) · Manufacturer: Magura · Thread length: 7 mm · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Area of application: Standard

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Number of components: 1 pcs · Area of application: Standard

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Drive: Slot · Number of components: 2 pcs · Ø Cable bushing: 1.6 mm · Thread length: 4 mm · Ø outside: 5 mm · Screw head: Lens head · Total length: 6 mm · Thread type: M4x0.7 (standard thread)

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Number of components: 1 pcs · Area of application: Standard

Petrol hose clamp (Ø 8.8 - 9.3 mm) Standard

Outer width: 5.3 mm · Material: Spring steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9.5 mm · Ø inside: 7.5 mm · Clamping range: 7.6 - 9.3 mm · Mounting type: Plug connection clamped

Dell'Orto SHA reducing bushing (21/18 mm)

Manufacturer: Dell'Orto · Component group Carburetor: Adjusting screws, float, etc. · Material: Plastic · Color: white · Carburetor type: SHA · Total length: 14 mm · Ø inside: 18 mm · Ø outside: 21 mm

Dell'Orto 14/14 L SHA carburetor hand choke

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA · Nominal diameter: 14 mm · Ø Internal connection: 19 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 14 mm · Ø Output inside: 14 mm · Ø Air filter connection: 59 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 68 · Mounting type: Plug connection clamped · Total length: 58 mm · Width: 65 mm · Height: 95 mm · Area of application: Tuning

Petrol hose Ø 5 / 7 mm transparent 30 cm (1A quality)

Manufacturer: Made in Italy · Ø outside: 7 mm · Color: transparent · Ø inside: 5 mm · Total length: 300 mm
