For: Puch

35217

DMP piston 45 mm diaphragm cylinder kit | Puch

Home
| Motor
| Cylinder
| Piston
34,70 EUR

Incl. 19% VAT.

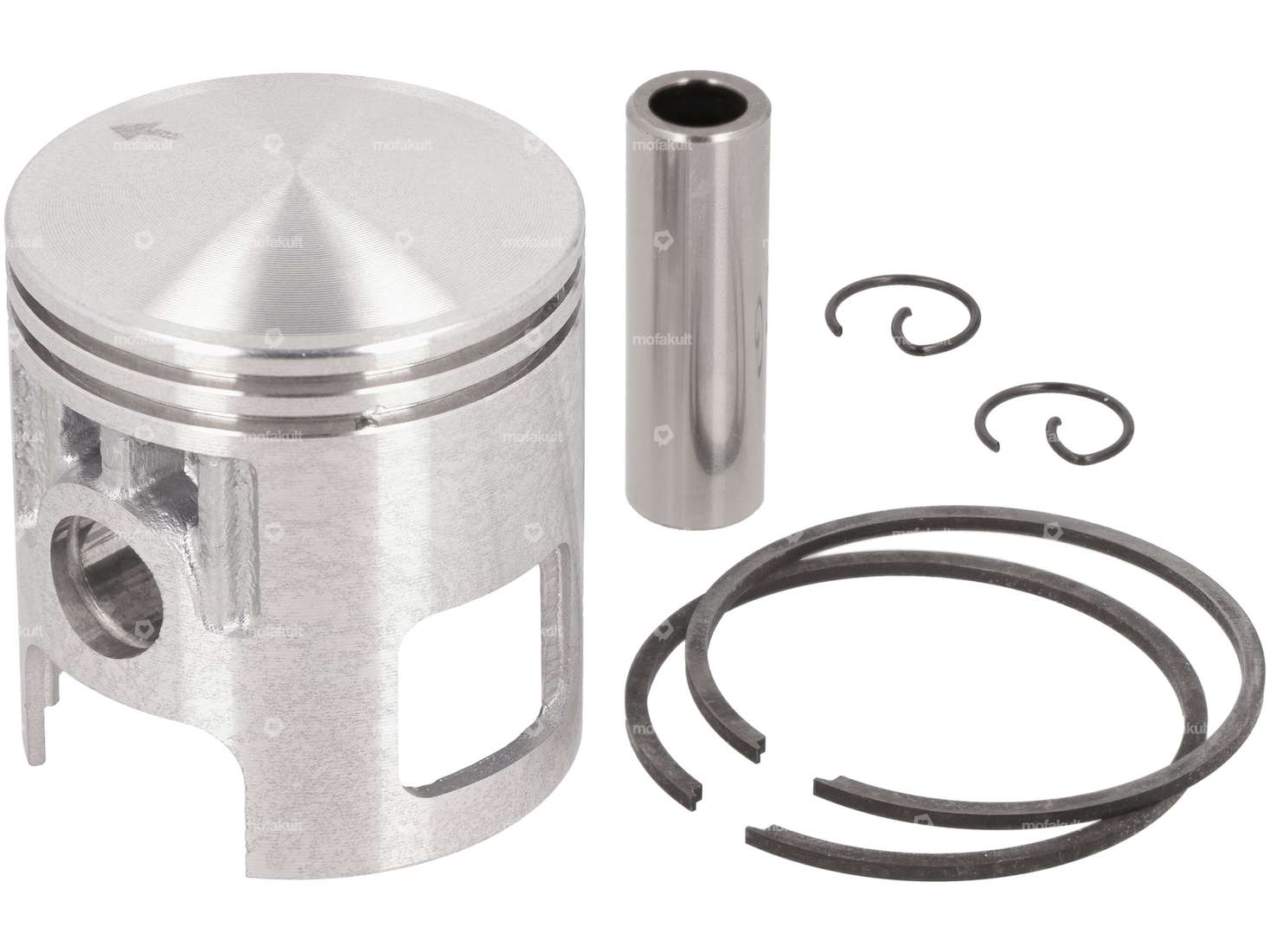

45.0 mm piston with two rectangular piston rings with internal fuse (IS) for your Puch moped / moped with the 45 DMP diaphragm racing kit.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Details

ManufacturerDMP
MaterialAluminum
Nominal diameter45 mm
Thick piston ring1.85 mm
Ø outside piston (A)45 mm
Ø piston pin (B)12 mm
Compression height (C)24.4 mm
Curvature (D)3.05 mm
Total piston height (E)50.9 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Piston weight90 g

Suitable for the following models

Puch

E50

ZA50 (Fahrtwindgekühlt)

Z50 (X30 Sport)

Accessories & related products

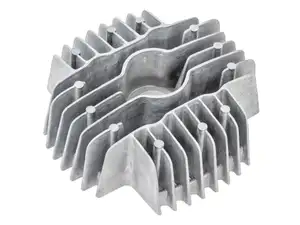

GPO 45 mm cylinder head tuning new version | Puch (AT)
undefined

For: Puch

10064

GPO 45 mm cylinder head tuning new version | Puch (AT)

Manufacturer: GPO · Material: Aluminum · Width: 140 mm · Ø cylinder: 45 mm · Total length: 135 mm · Height: 55 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Decompressor: No

40,50 EUR

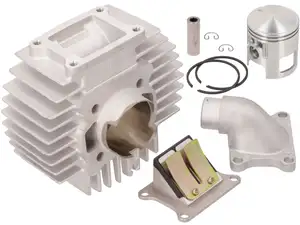

DMP 45 mm cylinder kit incl. diaphragm | Puch
