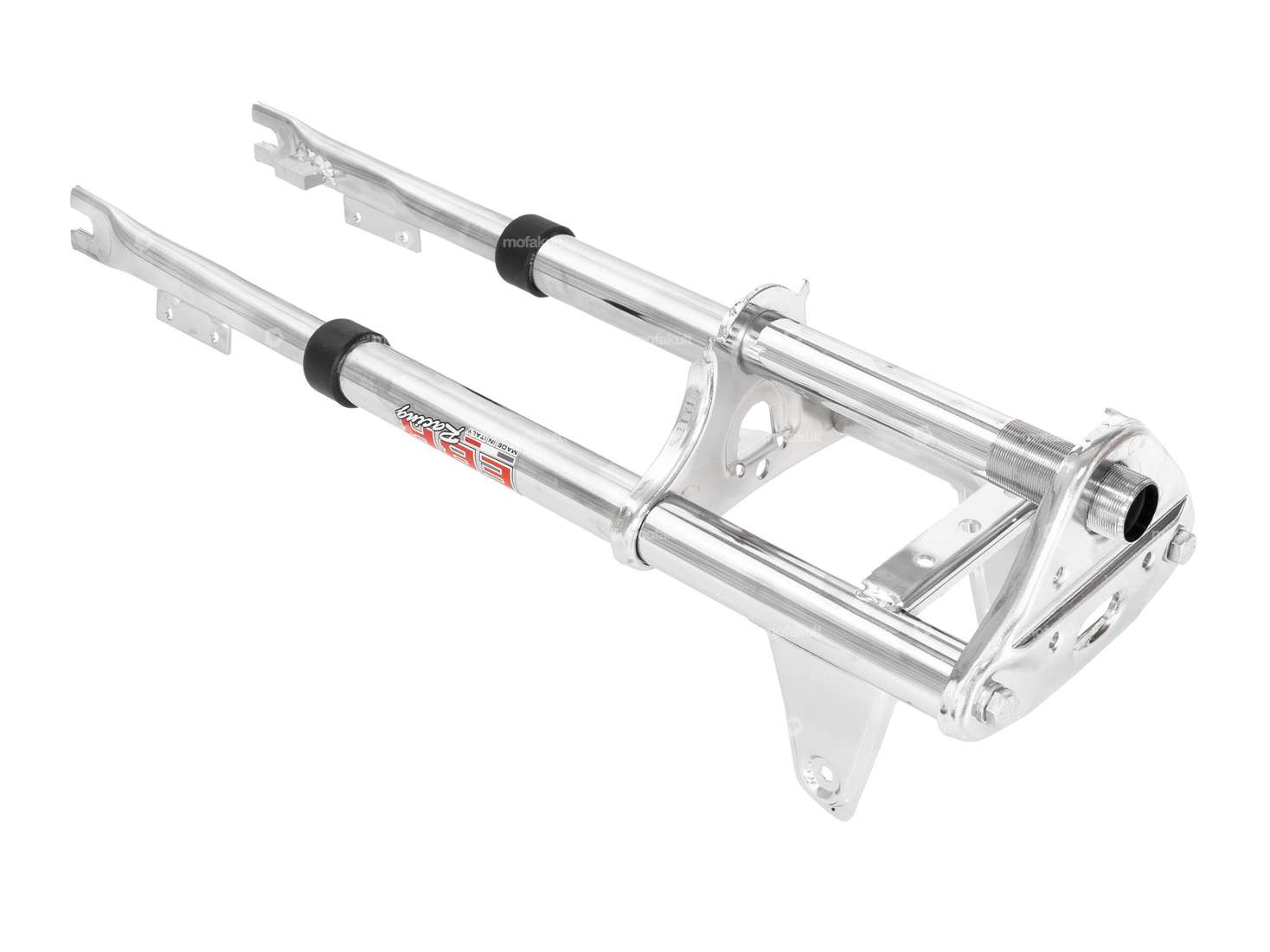

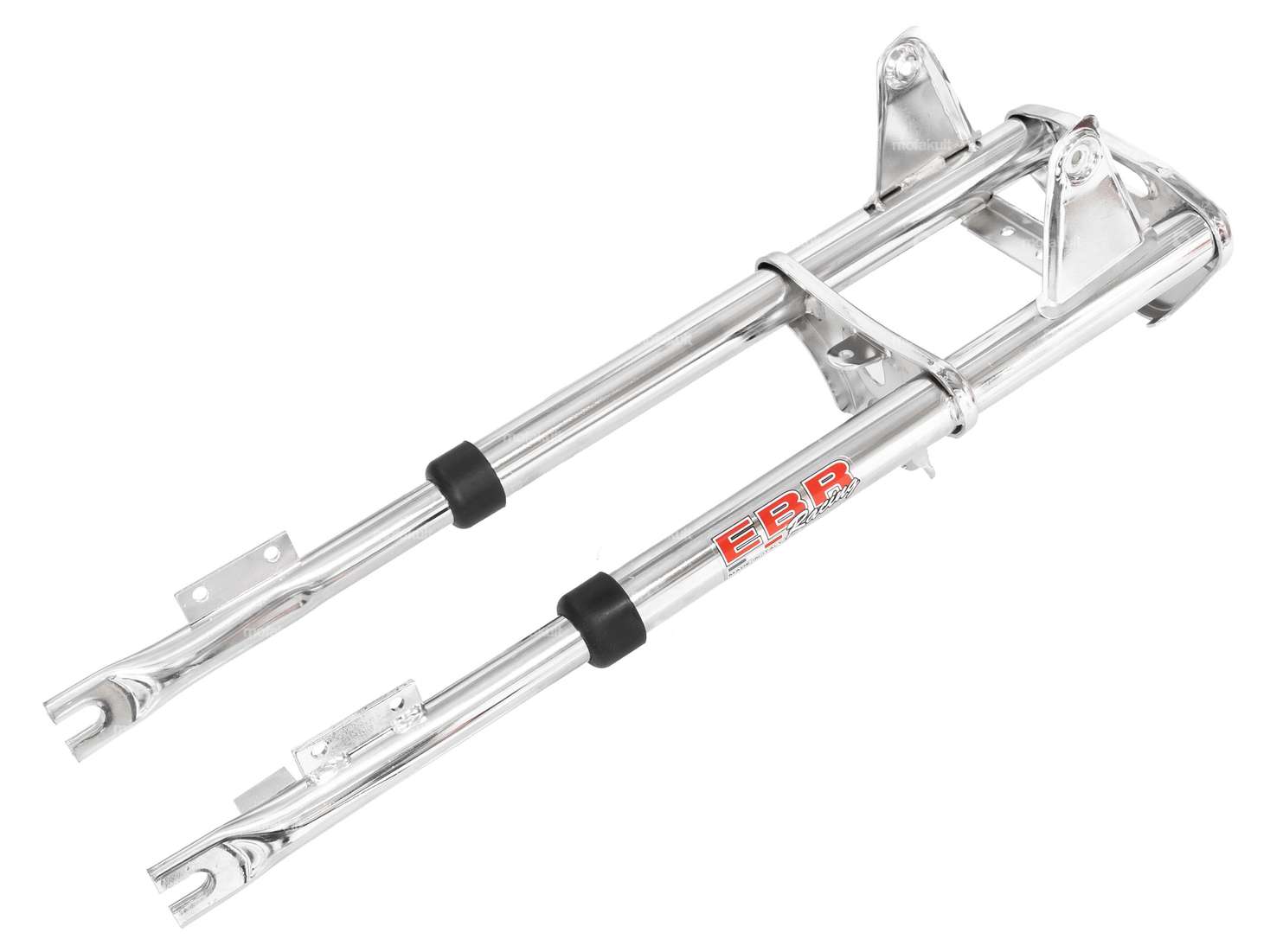

Chromed EBR standard fork for Puch X30 NS, NL, NG-2AH and Supermaxi LG1 and LG2 mopeds/mopeds.

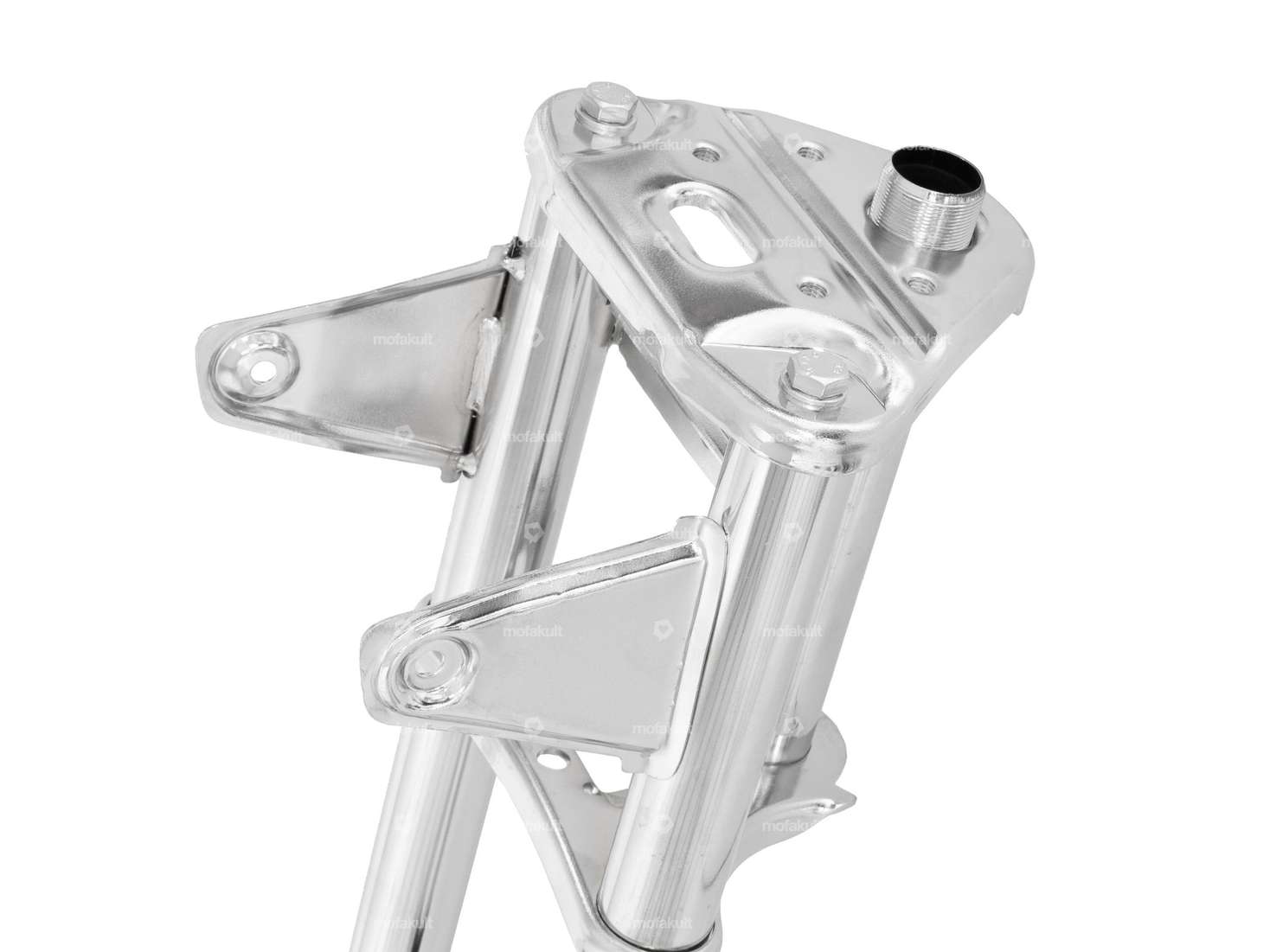

Threads are provided on the fork plate for handlebar mounting using two clamps.

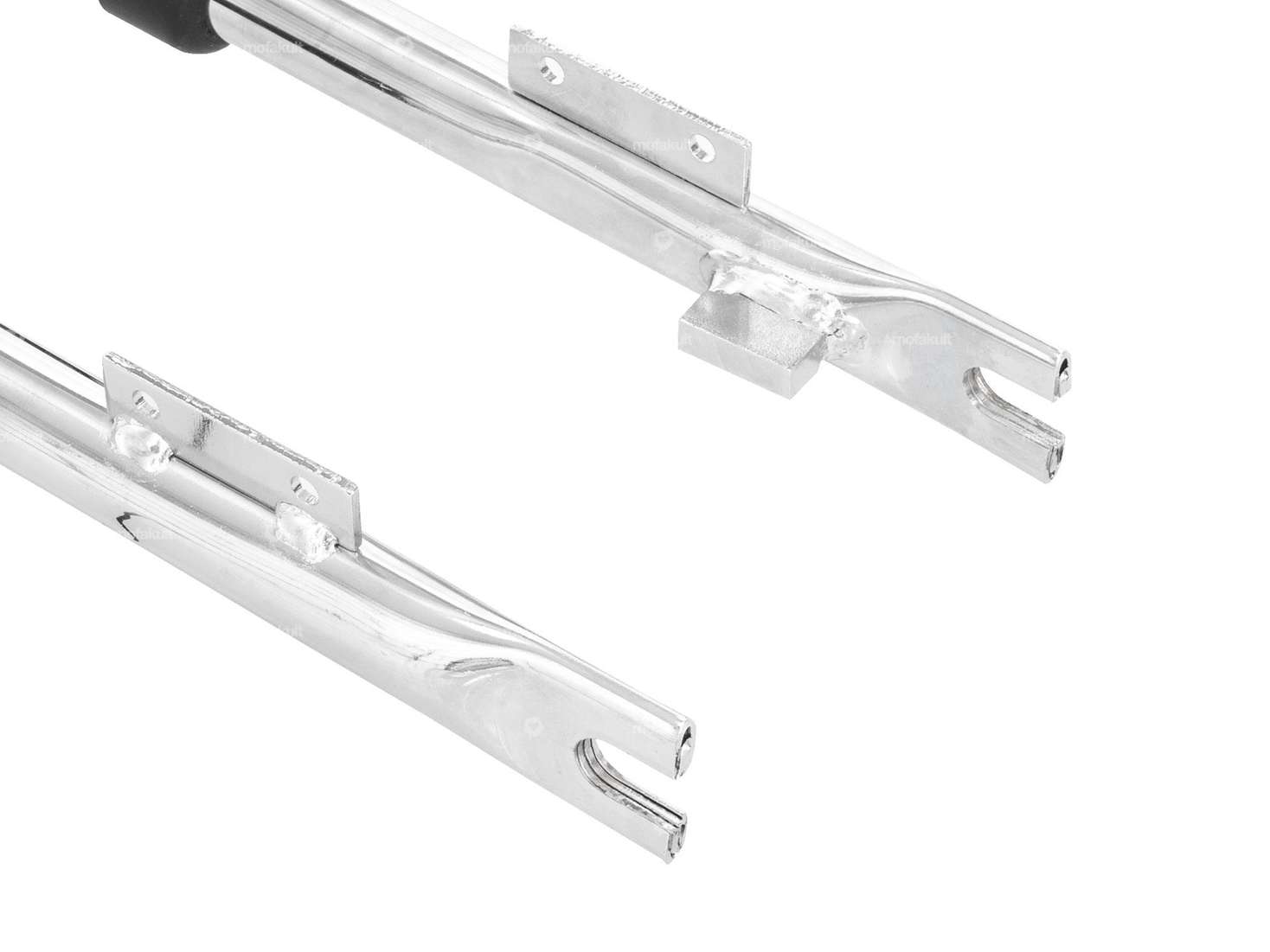

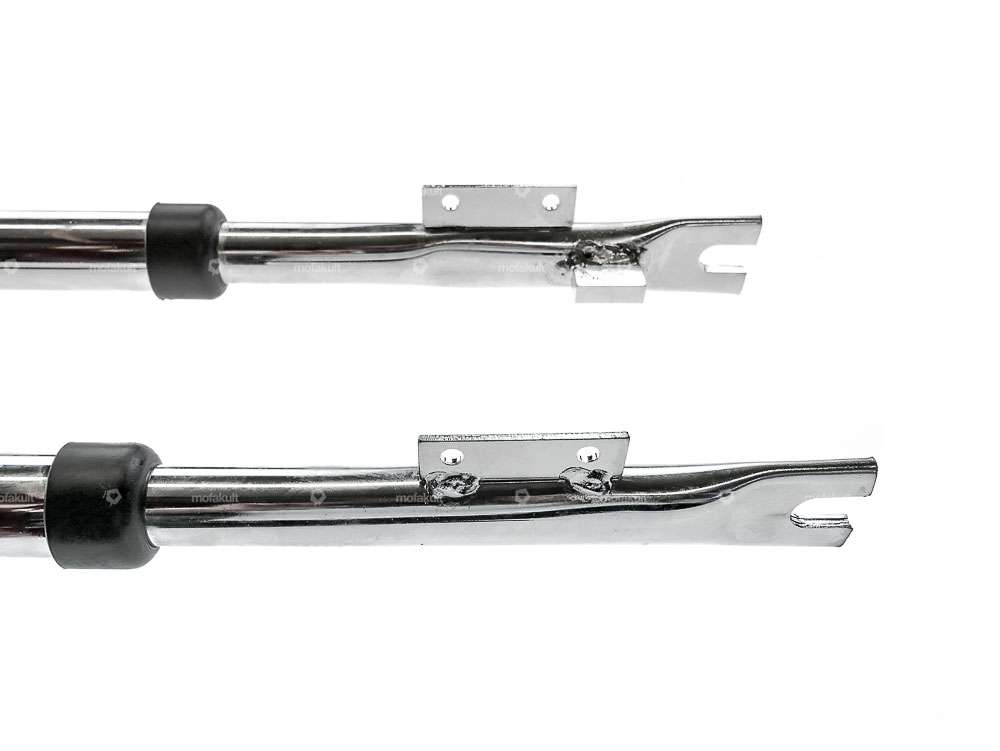

To mount the mudguard arch, there is a tab with two holes per fork leg.
Ø inner head tube (for stem mounting): 22 mm
Head tube length: 180 mm
Installation height (center of wheel axle to top edge of lower fork crown): 375 mm
Total length: 570 mm
Head tube thread: M26x1
Thread length on head tube: 60 mm
Distance center of bars - center of bars: 124 mm
Distance center - center of fender arch: 36 mm
Ø fender arch mounting hole: 6 mm
Dimension lower edge of lug from axle center: 56 mm
Dimension lower edge of brake anchor block from axle center: 30 mm
Dimension brake anchor block: 25.5 x 8.2 mm
Hole pattern for clamping blocks: 60 x 30 mm
Thread for clamping blocks: M7x1
Note: Small adjustments may be required to the cam, which engages in the brake anchor plate. The edges and corners should be slightly rounded to ensure a proper fit.
You can find a headset set, clamps or a matching mudguard arch in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Steel |
Color | Chrome |
Surface | chrome-plated |
Total length | 570 mm |
Adjustable | No |
Ø spars | 23 mm |
Spar end distance (center-center) | 120 mm |
Ø outer head tube | 26 mm |
Ø head tube inside | 22 mm |
Head tube length | 180 mm |
Thread type | MF26x1 (fine pitch thread) |
Fork bridge - center wheel axle | 375 mm |
Distance brake cam to wheel axle center-center | 35 mm |
Thread length | 58 mm |
Suitable for the following models
Puch |
