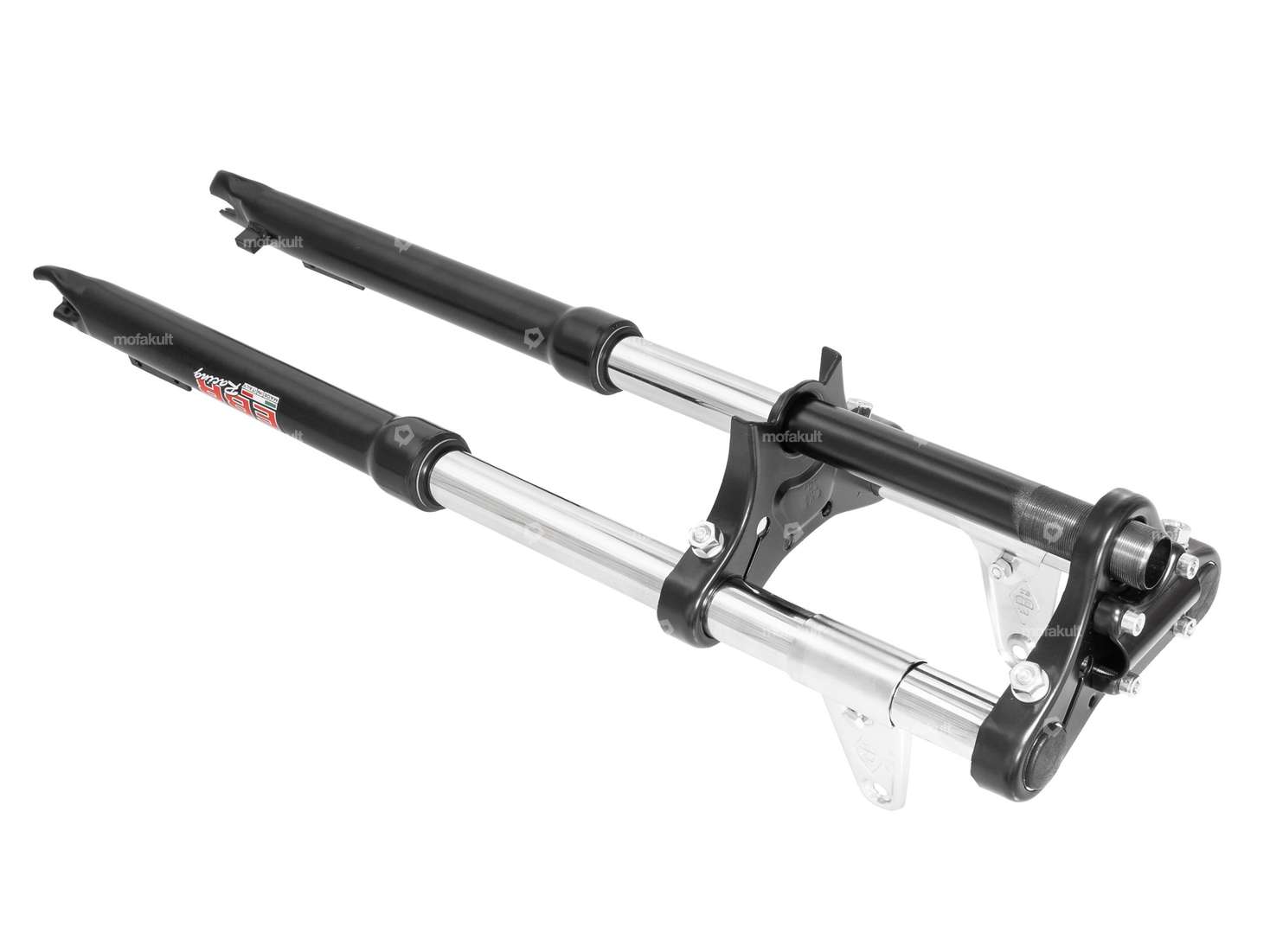

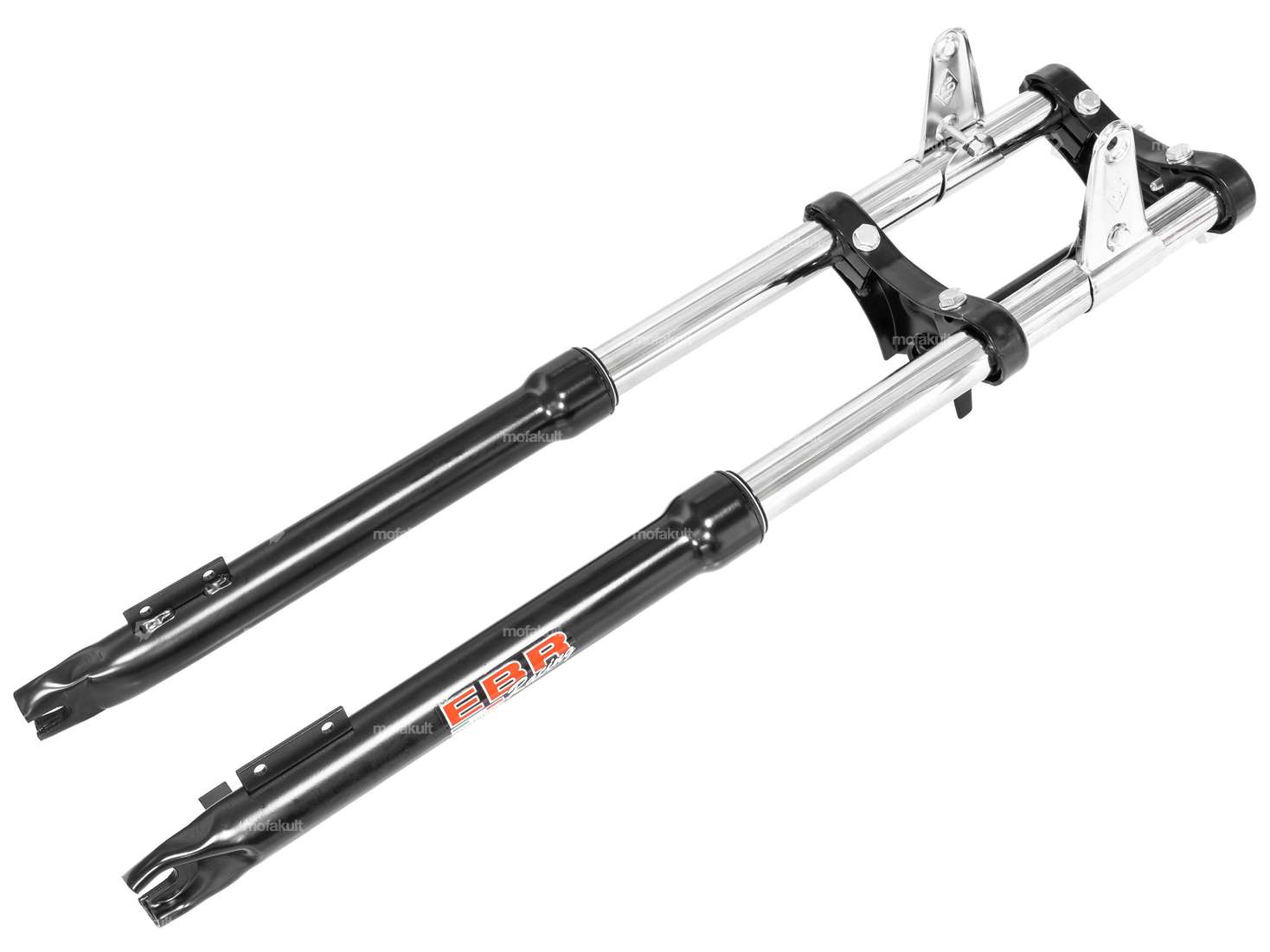

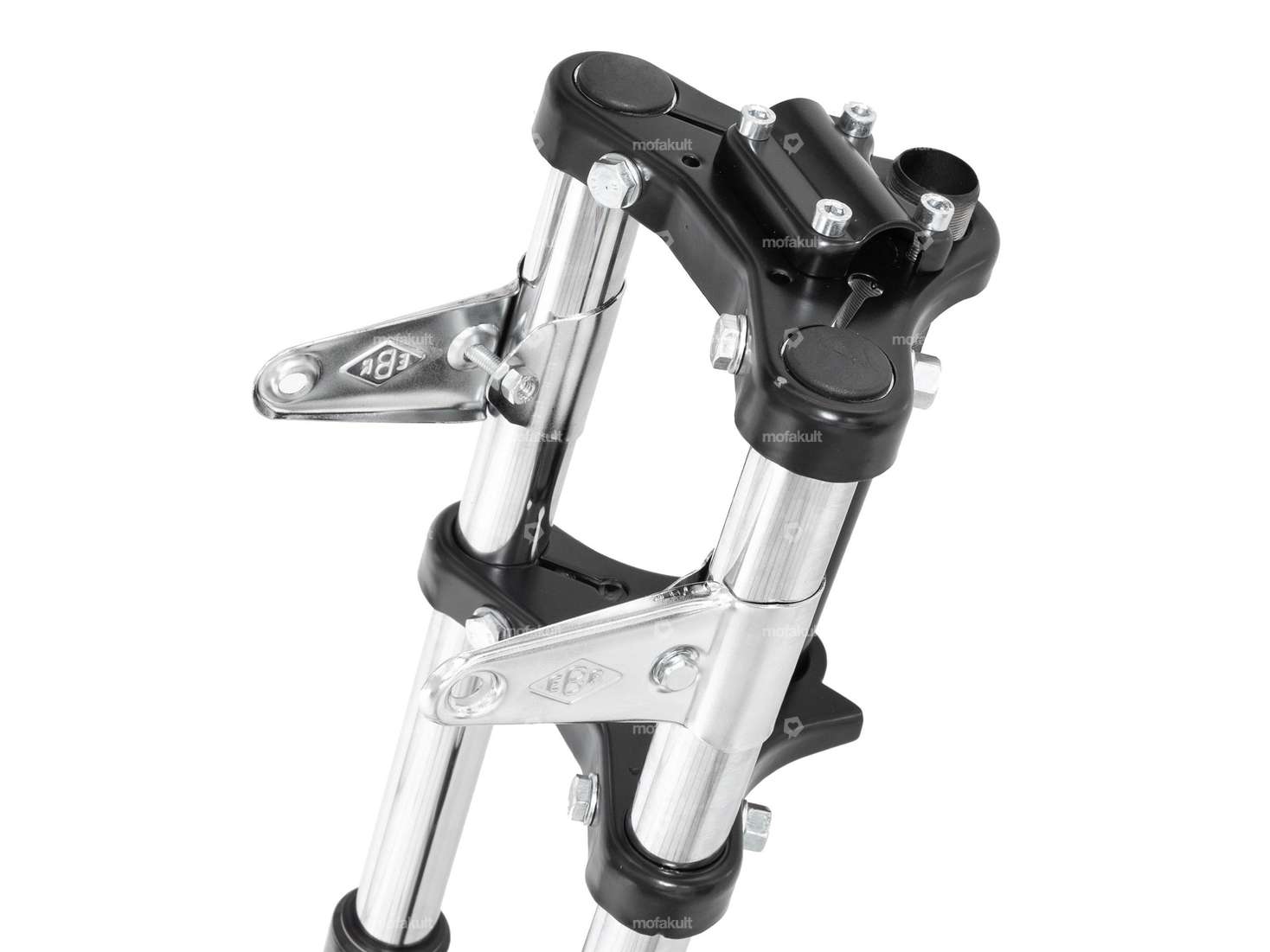

Reinforced, mechanical telescopic fork suitable for various Puch mopeds (Puch Maxi S / N, Puch X30 Sport / X30 Velux, Puch Supermaxi LG1 / LG2).

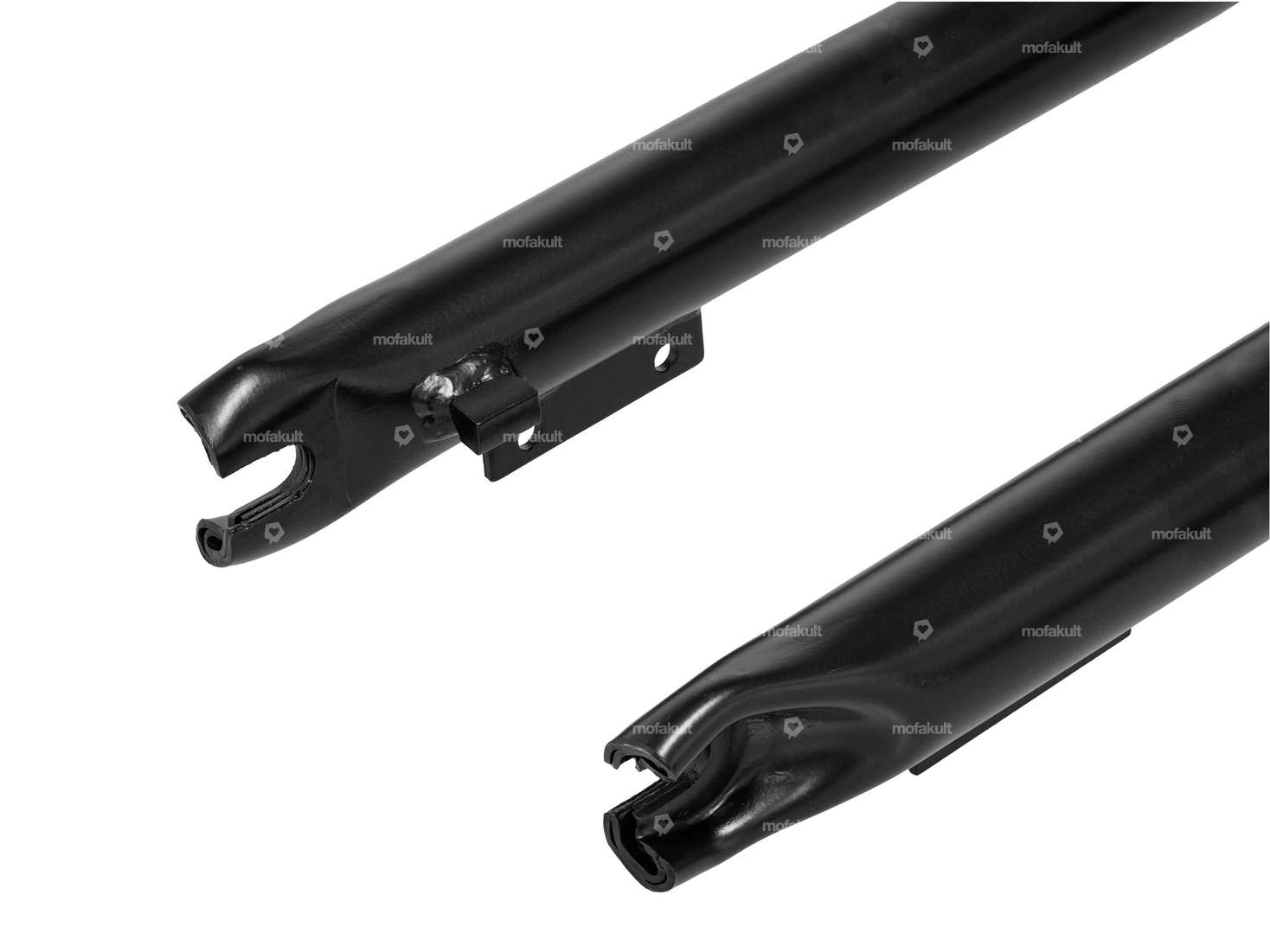

Bolts for attaching the brake anchor plate are located on both sides 4 cm above the center of the wheel axle.
Two lugs are provided for attaching the mudguard.
Internal diameter of the head tube (for stem mounting): 22 mm
Stanchion tube diameter: 30 mm
Total length: 690 mm
Fork bridge - center wheel axle: 500 mm
Length center wheel axle to lower edge of lower fork bridge: 485 mm
Head tube length: 180 mm (55 mm thread length)
Head tube thread: M26x1
Hole spacing for lugs: 36 mm
Branded product from the Italian manufacturer EBR.
Details
| Total length | 695 mm |
| Manufacturer | EWC |
| Thread length | 57 mm |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Adjustable | Yes |
| Ø spars | 30 mm |
| Spar end distance (center-center) | 130 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Ø head tube inside | 22 mm |
| Ø outer head tube | 26.2 mm |
| Head tube length | 180 mm |
| Color | black, Chrome |
| Fork bridge - center wheel axle | 480 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
Suitable for the following models
| Puch |
Accessories & related products
EBR fork reinforced black | Puch
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Adjustable: No · Color: Chrome · Color: black · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 381 mm · Total length: 580 mm · Distance brake cam to wheel axle center-center: 40 mm · Ø spars: 28 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm
153,40 EUR
EBR standard fork chrome | Puch
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Thread type: MF26x1 (fine pitch thread) · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Ø spars: 23 mm · Thread length: 57 mm
150,00 EUR
EBR standard fork black | Puch
Total length: 570 mm · Manufacturer: EWC · Surface: chrome-plated · Color: Chrome · Color: black · Adjustable: No · Material: Steel · Thread type: MF26x1 (fine pitch thread) · Ø spars: 23 mm · Thread length: 57 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm
162,60 EUR
EBR telescopic fork hydraulic black | Puch
Total length: 635 mm · Manufacturer: EWC · Thread length: 58 mm · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Material: Aluminum · Material: Steel · Adjustable: Yes · Thread type: MF26x1 (fine pitch thread) · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm
366,00 EUR

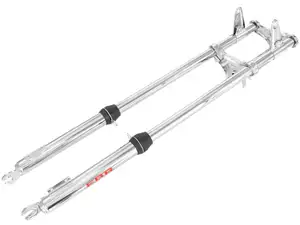

EBR Fork ULTRA LANG Chrome | Puch
