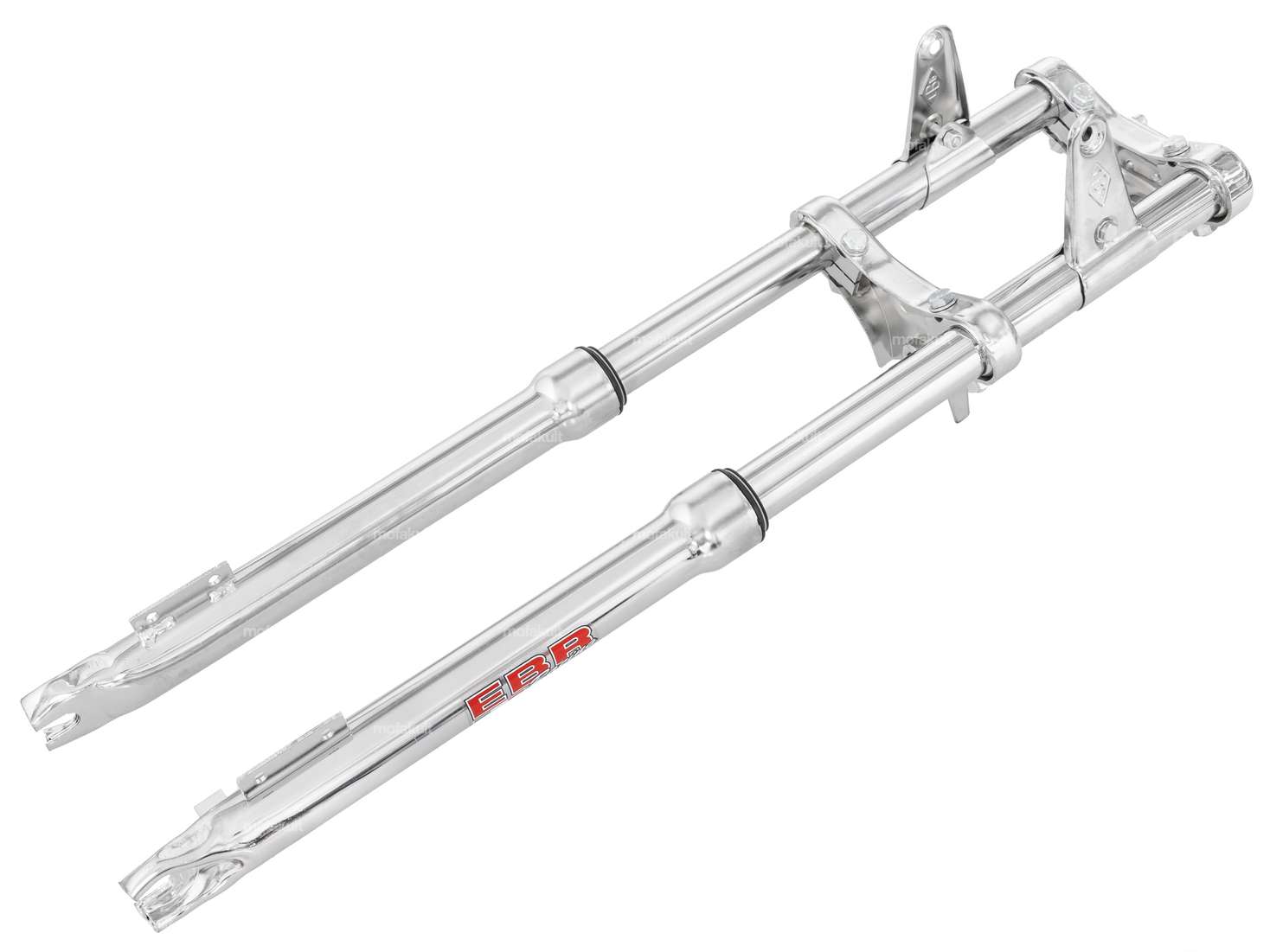

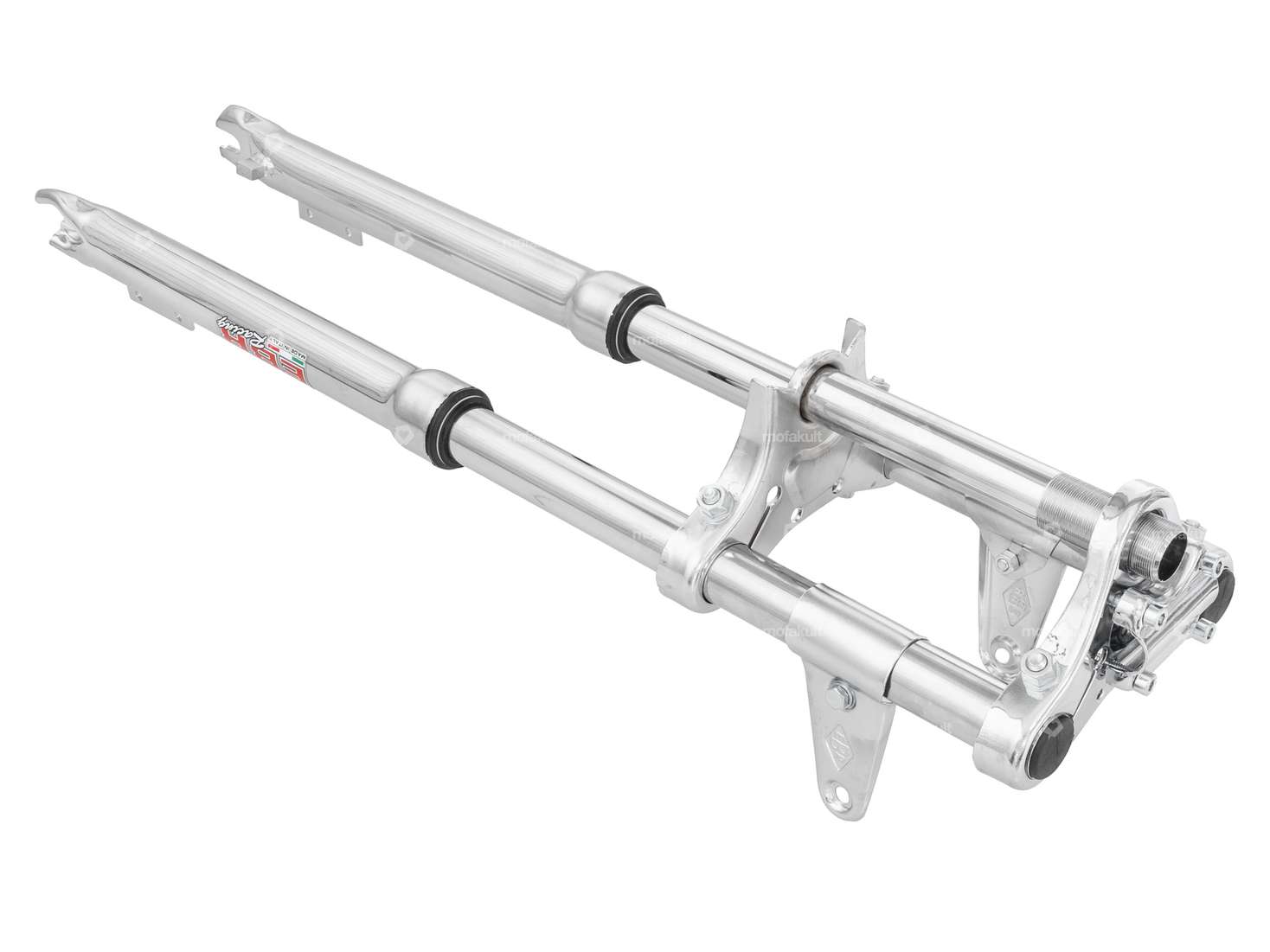

Reinforced, mechanical telescopic fork suitable for various Puch mopeds (Puch Maxi S / N, Puch X30 Sport / X30 Velux, Puch Supermaxi LG1 / LG2).
Bolts for attaching the brake anchor plate are located on both sides 40 mm above the center of the wheel axle.

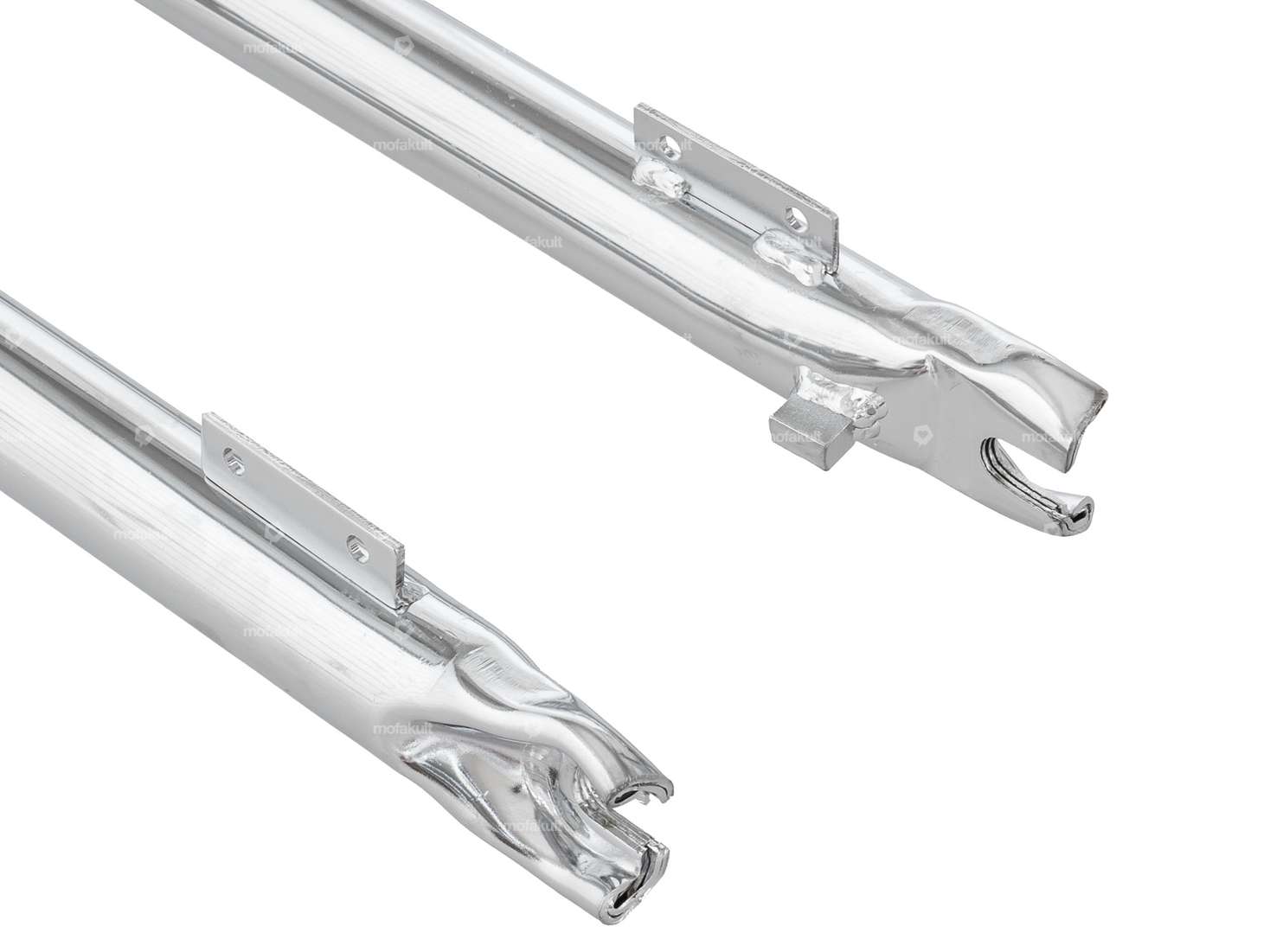

Two lugs are provided for attaching the mudguard.

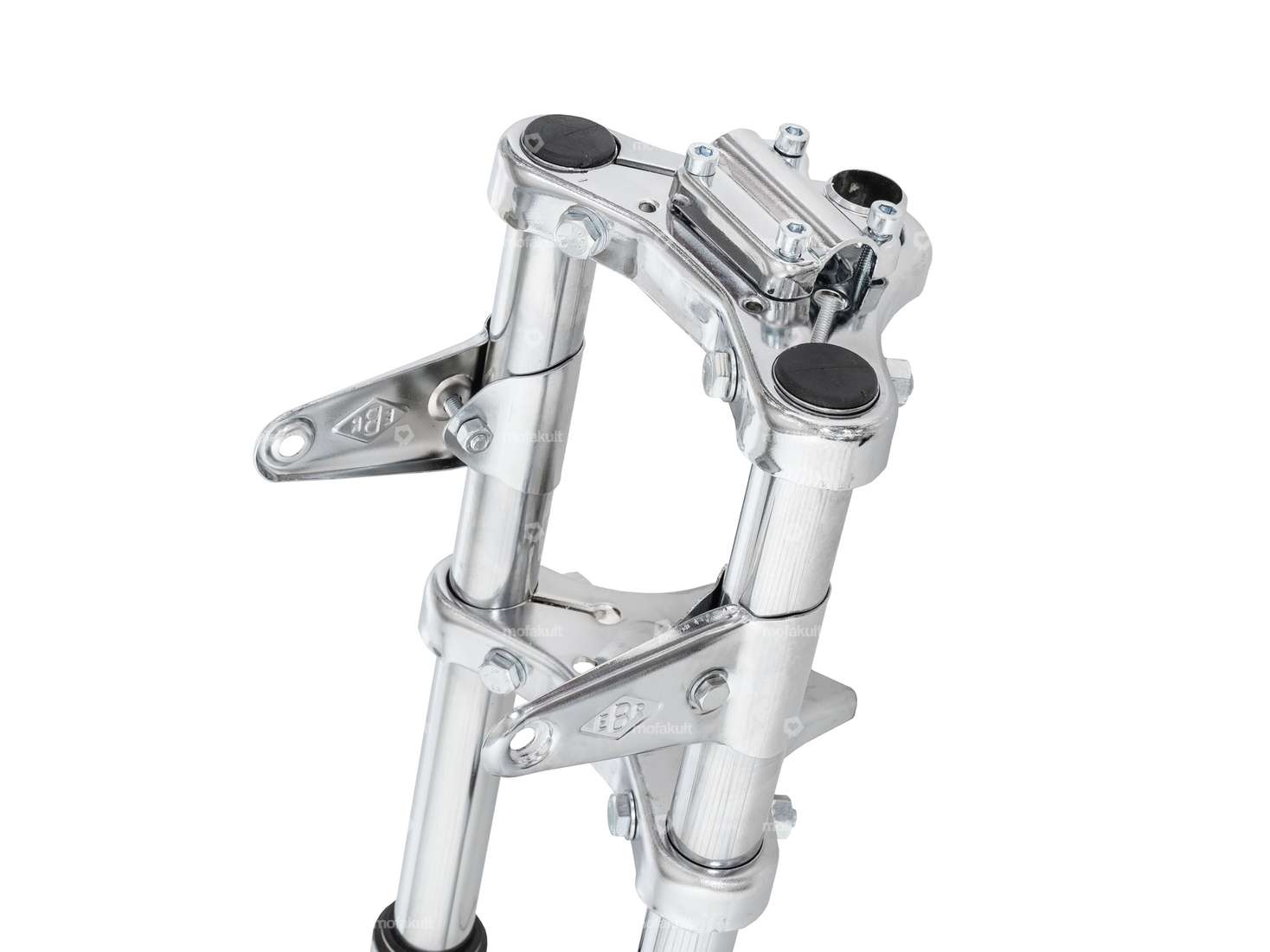

Internal diameter head tube (for stem mounting): 22 mm
Stanchion tube diameter: 30 mm
Total length: 690 mm
Fork bridge - center wheel axle: 500 mm
Length center wheel axle to lower edge of lower fork bridge: 485 mm
Head tube length: 180 mm (55 mm thread length)
Head tube thread: M26x1
Hole spacing for lugs: 36 mm
Branded product from the Italian manufacturer EBR.
Details
| Total length | 700 mm |
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | Yes |
| Ø spars | 30 mm |
| Spar end distance (center-center) | 130 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Ø outer head tube | 26.1 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 182 mm |
| Thread length | 57 mm |
| Fork bridge - center wheel axle | 485 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
Suitable for the following models
| Puch |
