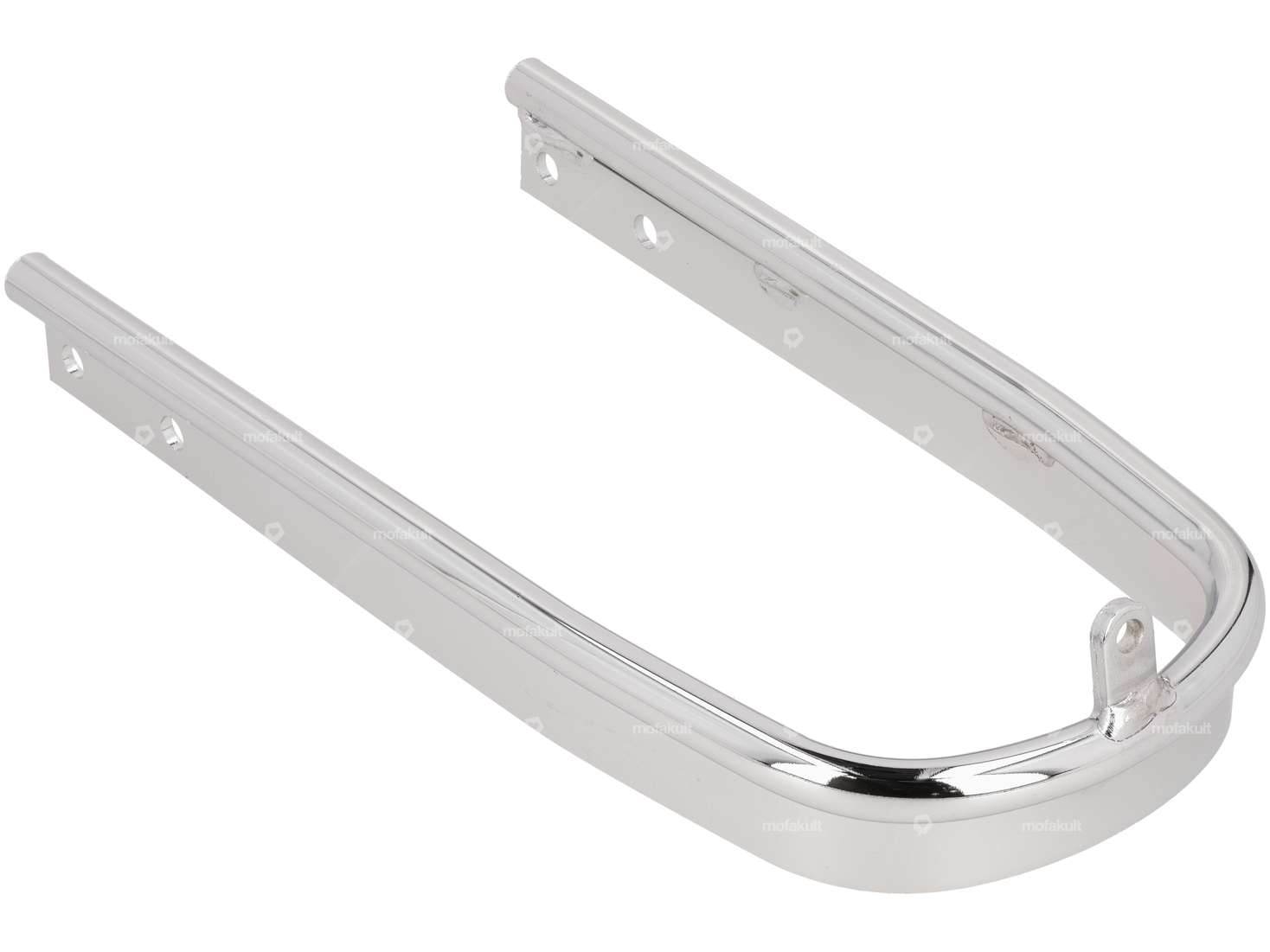

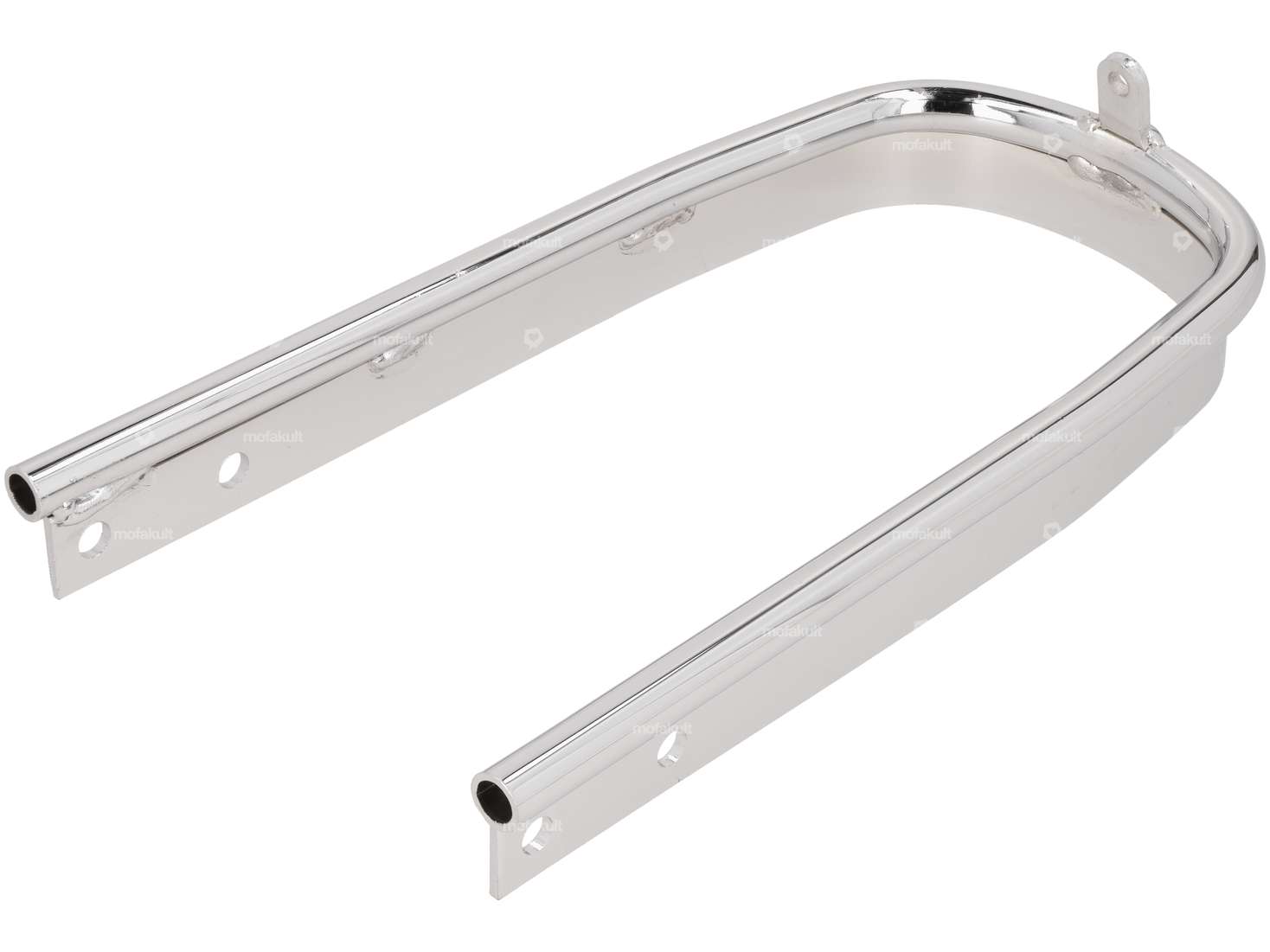

Massive, chrome-plated tube bend for attaching the front fender.
Also increases the stability of the fork.
Fits all reinforced EBR forks with the tabs towards the front.
Total height of arch: 263 mm
Width (outer edges of flat bar): 136 mm
Hole spacing of side holes: 36 mm
Hole diameter: 7.2 mm
Distance from upper hole of flat bar to lower edge of mudguard mount: 212 mm
Figure 5 is for illustration purposes only.
Branded product of the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Mounting type | Nuts & bolts |
| Distance mudguard - center hole | 212 mm |
| Ø mounting hole | 7.2 mm |
| Total length | 263 mm |
| Wide intake | 136 mm |
| Hole spacing | 36 mm |
| Number of fixing points | 5 pcs |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo |
