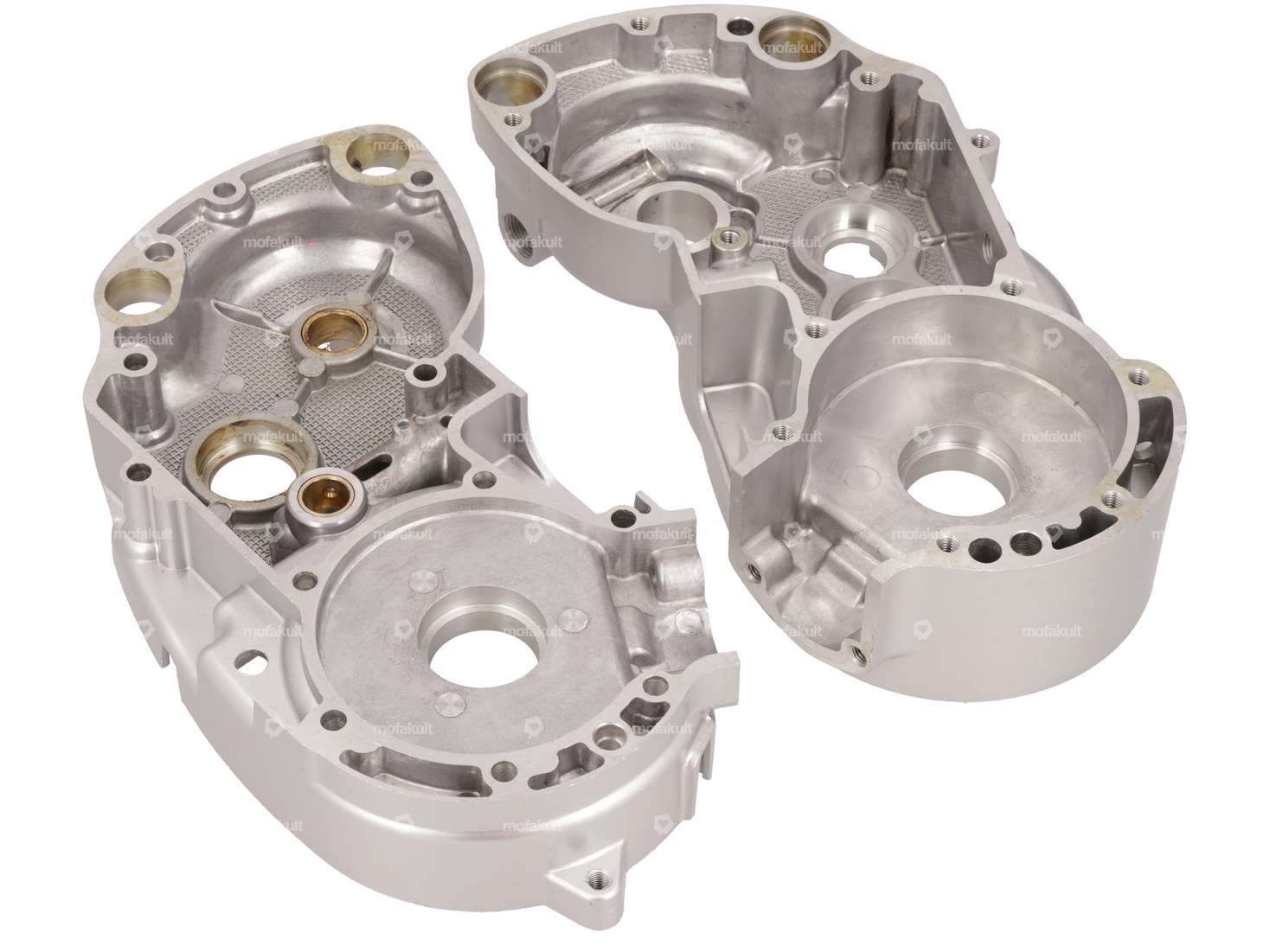

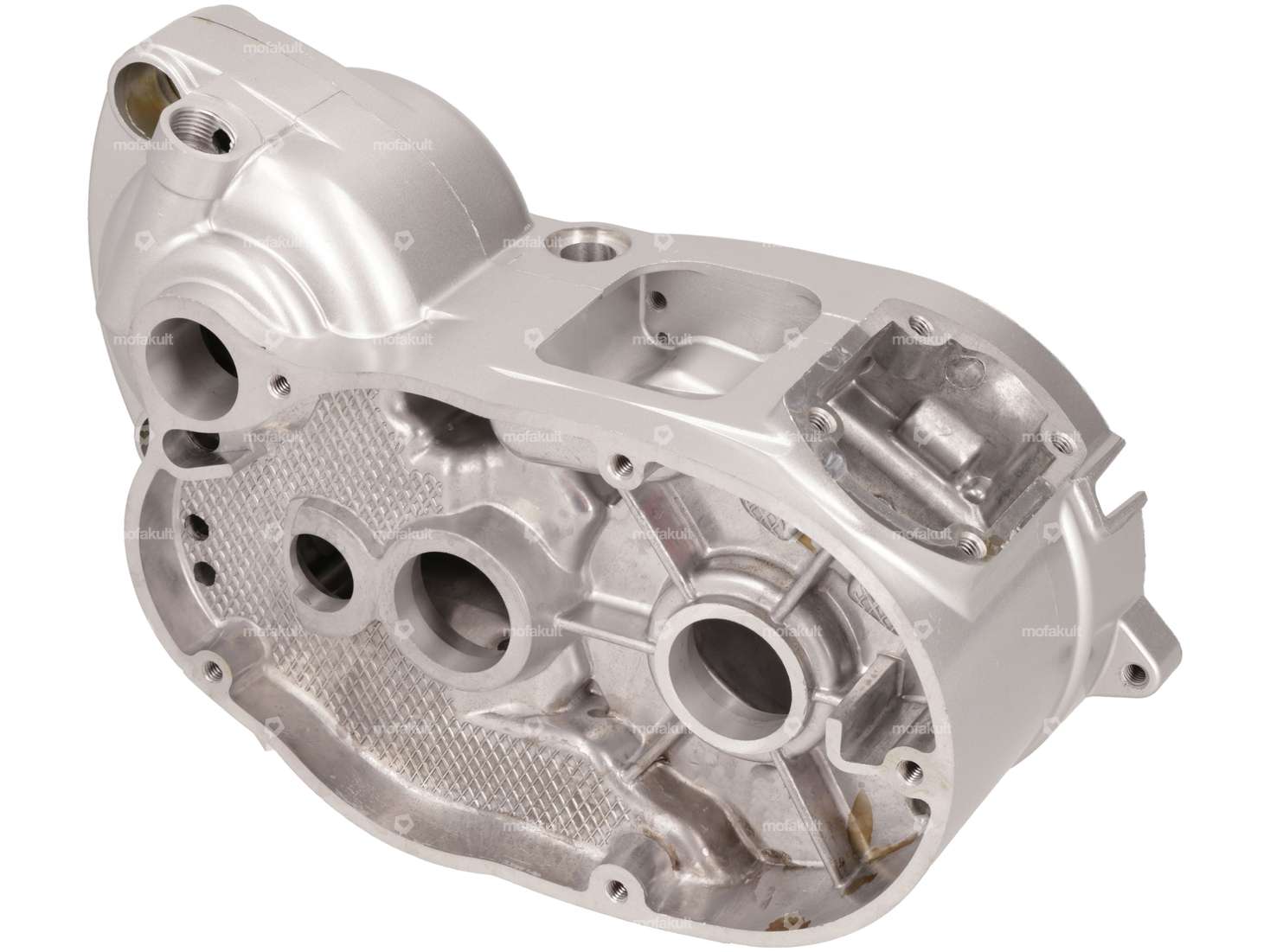

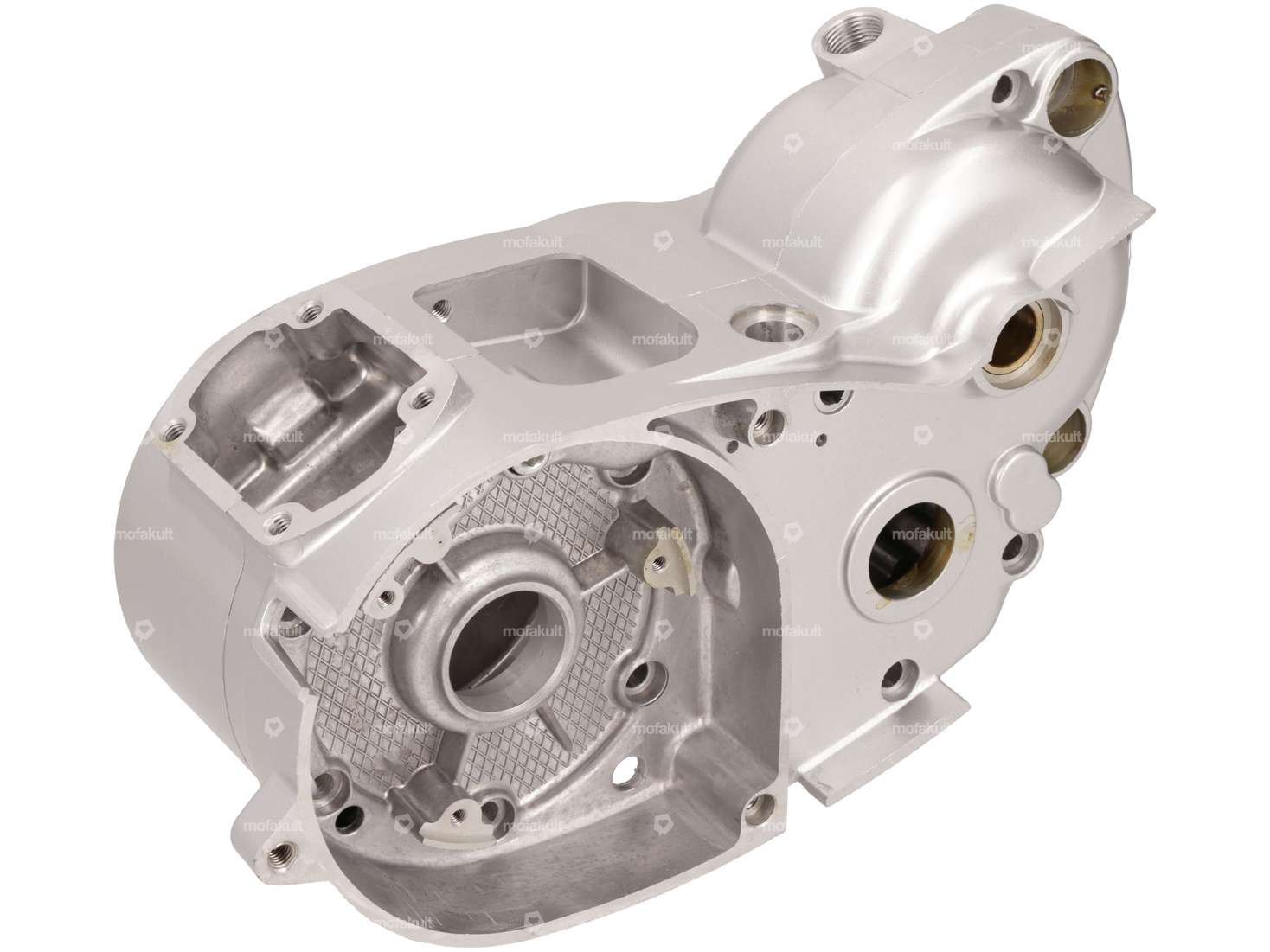

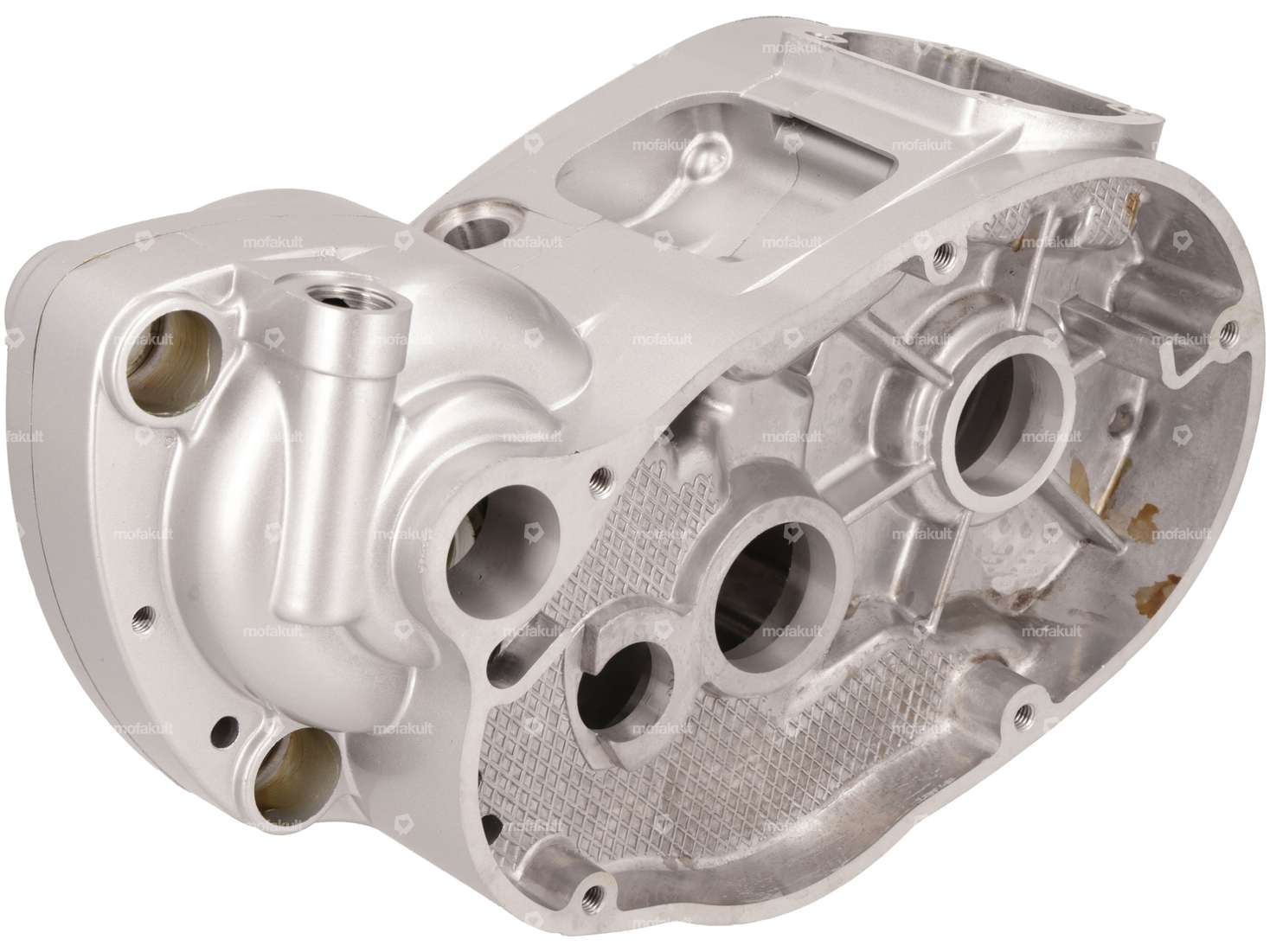

Engine housing 3-speed manual transmission | Sachs 50/3

swiing® revival crankshaft standard | Sachs 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Thread length: 8 mm · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Weight: 901 g · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Pony spare part no.: A2565 · Sachs spare part no.: 0286 139 400

swiing® revival screw set Motor Inox | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel)

NSK crankshaft bearing set | Sachs 50/2

Manufacturer: NSK · Manufacturer: Sachs · Number of components: 4 pcs

Engine revision set small | Sachs 502, 50/2

Manufacturer: NSK · Area of application: Standard · Number of components: 18 pcs

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 250 mm · Thickness: 0.4 mm · Width: 170 mm · Ø inside: 86 mm · Number of fixing points: 16 pcs · Number of components: 1 pcs · Pony spare part no.: A1828 · Sachs spare part no.: 0250 088 100

swiing 41 mm cylinder kit Racing fan-cooled (Version 2.0) | Sachs 50/2, 50/3, 50/4 (DE)

Manufacturer: swiing · Material: Aluminum · Camouflaged: No · Area of application: Racing · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole spacing inlet: 31 mm

swiing® revival stud bolt set M6x30 (strength 10.9) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Drive: External hexagon · Width across flats SW: 10 mm · Thread length: 12 mm · Strength class: 8 · Strength class: 10.9

swiing® revival bleed screw M16x1.25 aluminum | Sachs 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Color: silver · Surface: anodized · Total length: 14 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 17 mm · Thread type: MF16x1.25 (fine pitch thread)

Speedometer 60 km/h Ø 48 mm black / chrome

Manufacturer: Made in Germany · Material: Metal · Material: Plastic · Color: Chrome · Color: black · Surface: chrome-plated · Color: red · Color: white · Ø Receptacle: 48 mm · Thread type: MF10x1 (fine pitch thread) · Maximum speed: 60 Km/h · Lighting: Light slit · 4-edge speedometer cable: 2 mm · Ø outside: 50.4 mm · Depth: 50 mm · Total height: 70 mm

swiing® revival wheel axle set M12x1 x 185 cast rear wheel galvanized | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: MF12x1 (fine pitch thread) · Ø outside: 11.8 mm · Ø shaft: 11.9 mm · Width across flats SW: 19 mm · Thread length: 26 mm · Thread length: 52.5 mm · Shank length: 100 mm · Total length: 185 mm

swiing® revival wheel axle M10.5x1 x 175 coaster brake Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Thread type: MF10.5x1 (fine pitch thread) · Total length: 175 mm · Thread length: 34 mm · Thread length: 45 mm · Ø shaft: 10.5 mm · Shank length: 95.6 mm

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 5 mm · Area of application: Original · Area of application: Standard · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Piaggio spare part no.: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø outside: 18 mm · Height: 26 mm · Ø mounting hole: 4.4 mm · Piaggio spare part no.: 102939

Gearbox gasket | Piaggio Ciao, SI, Bravo, Boxer

Area of application: Standard · Material: Sealing paper · Surface: blank · Place of use: Gear hub · Thickness: 0.2 mm

Starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Ø inside: 75 mm · Material: Steel · Ø outside: 79 mm · Area of application: Standard · Thickness: 13.4 mm · Thickness: 23.6 mm · Piaggio spare part no.: 114943

IceTool cable cutting pliers

Manufacturer: IceToolz · Area of application: Workshop accessories

Pressure plate clutch mono original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Area of application: Standard · Material: Steel · Surface: blue galvanized · Piaggio spare part no.: 104488

Oil seal NBR 17/25/4 A Gearbox Mono original | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Width: 4 mm · Ø outside: 25 mm · Temperature resistance (min.): -30 - 100 °C
