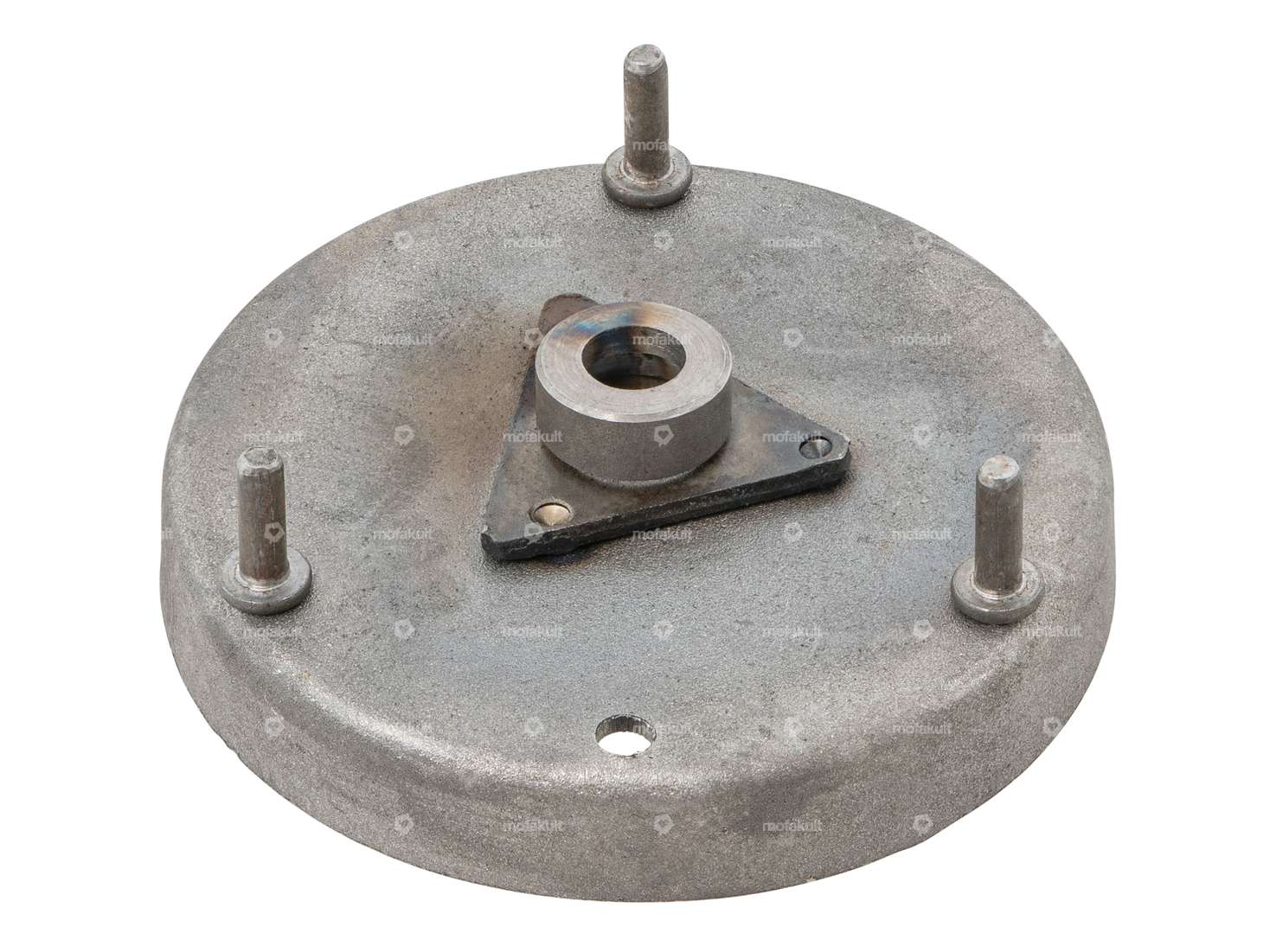

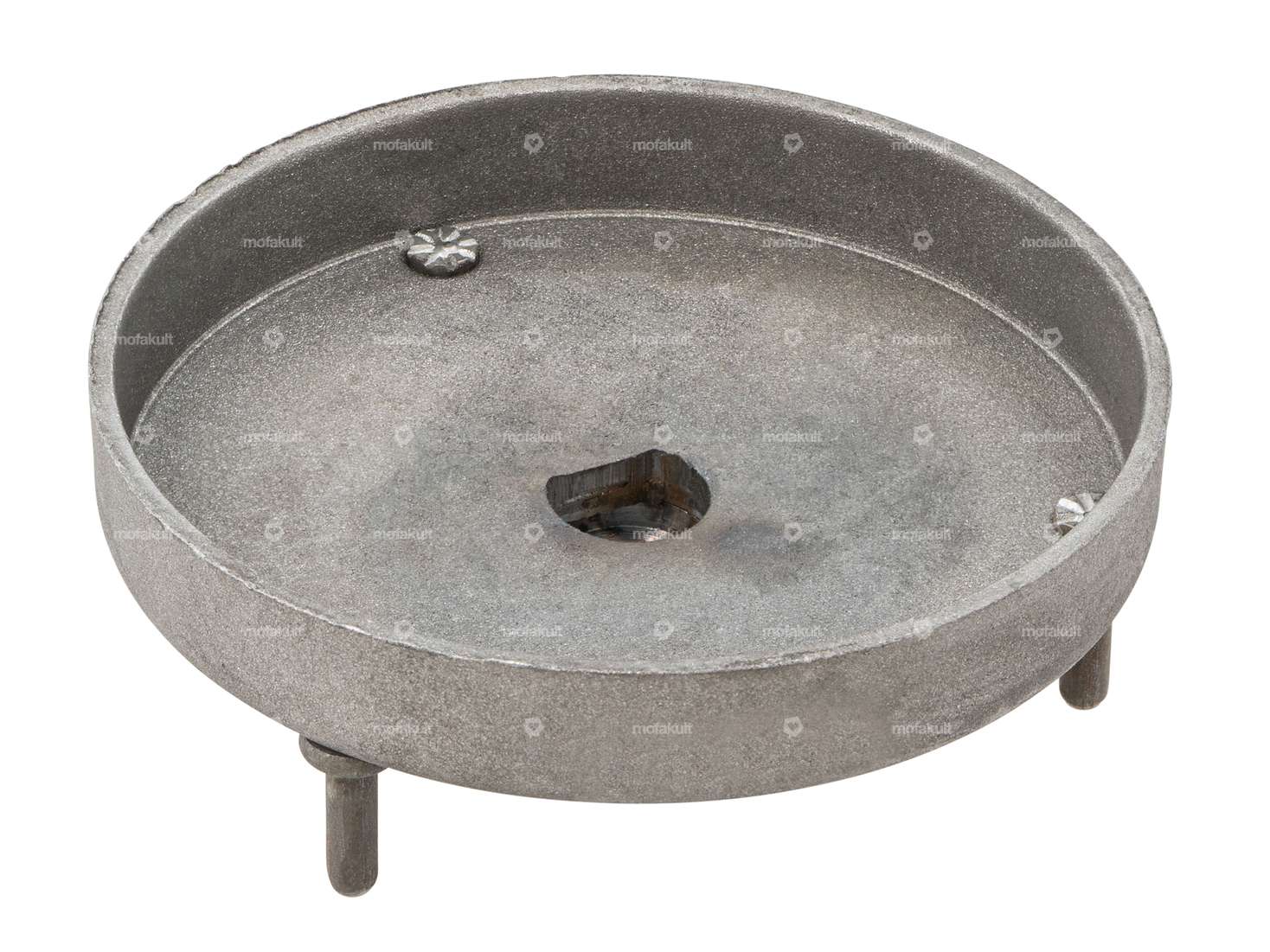

Starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Clutch 56 mm (reproduction) | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Material: Steel · Ø Outer pulley: 56 mm · Surface: coated · Material addition: Composite materials · Ø outside: 90 mm · Ø inside: 8.45 mm · Ø inside: 12 mm · Number of jaws: 2 pcs · Number of springs: 2 pcs · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: Standard

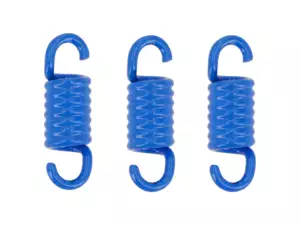

Polini clutch spring set mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Polini · Material: Spring steel · Color: blue · Surface: varnished · Total length: 23.4 mm · Area of application: Tuning

Pressure plate clutch mono original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Surface: blue galvanized · Material: Steel · Area of application: Standard · Piaggio spare part no.: 104488

CIF clutch bell Ø 56 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Ø Outer pulley: 56 mm · Material: Steel · Ø outside: 90 mm · Piaggio spare part no.: 165149

Clutch springs mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Made in Italy · Material: Spring steel · Ø wire: 1.2 mm · Total length: 22 mm · Area of application: Original · Area of application: Standard

Spring starter shoe original | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Tension spring · Manufacturer: Made in Italy

RMS V-belt Mono 960 mm (original) | Piaggio Ciao

Height: 8.5 mm · Manufacturer: RMS · Material: Fabric insert · Material: Rubber · Outer width: 9.8 mm · Gearbox type: Mono · Rolling circumference: 960 mm · Belt profile: untoothed / untoothed

Set of clutch shoes (3 pcs.) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Aluminum · Material addition: Composite materials · Thickness: 14 mm · Number of jaws: 3 pcs · Area of application: Standard

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Manufacturer: CIF · Material: Steel · Surface: blue galvanized · Ø inside: 12 mm · Nominal diameter: 12 mm · Ø Bundle: 16.3 mm · Ø outside: 23 mm · Total length: 5 mm

Malossi Mono clutch linings reinforced | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Material addition: Composite materials · Thickness: 13 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: Tuning

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Pressure plate clutch mono original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Surface: blue galvanized · Material: Steel · Area of application: Standard · Piaggio spare part no.: 104488

CIF bushing clutch mono gearbox (Ø 16x12x29 mm) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Ø outside: 16 mm · Nominal diameter: 12 mm · Ø inside: 12 mm · Total length: 29 mm

Spacer disk 12/24/1.2 clutch original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter: 12 mm · Ø inside: 12.05 mm · Thickness: 1.2 mm · Ø outside: 23.7 mm

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Width: 3 mm · Height: 4.9 mm · Total length: 12.1 mm

Nut M8 SW17 crankshaft / clutch mono NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Height: 6 mm · Width across flats SW: 17 mm · Area of application: Original · Area of application: Standard · Piaggio spare part no.: 015229
