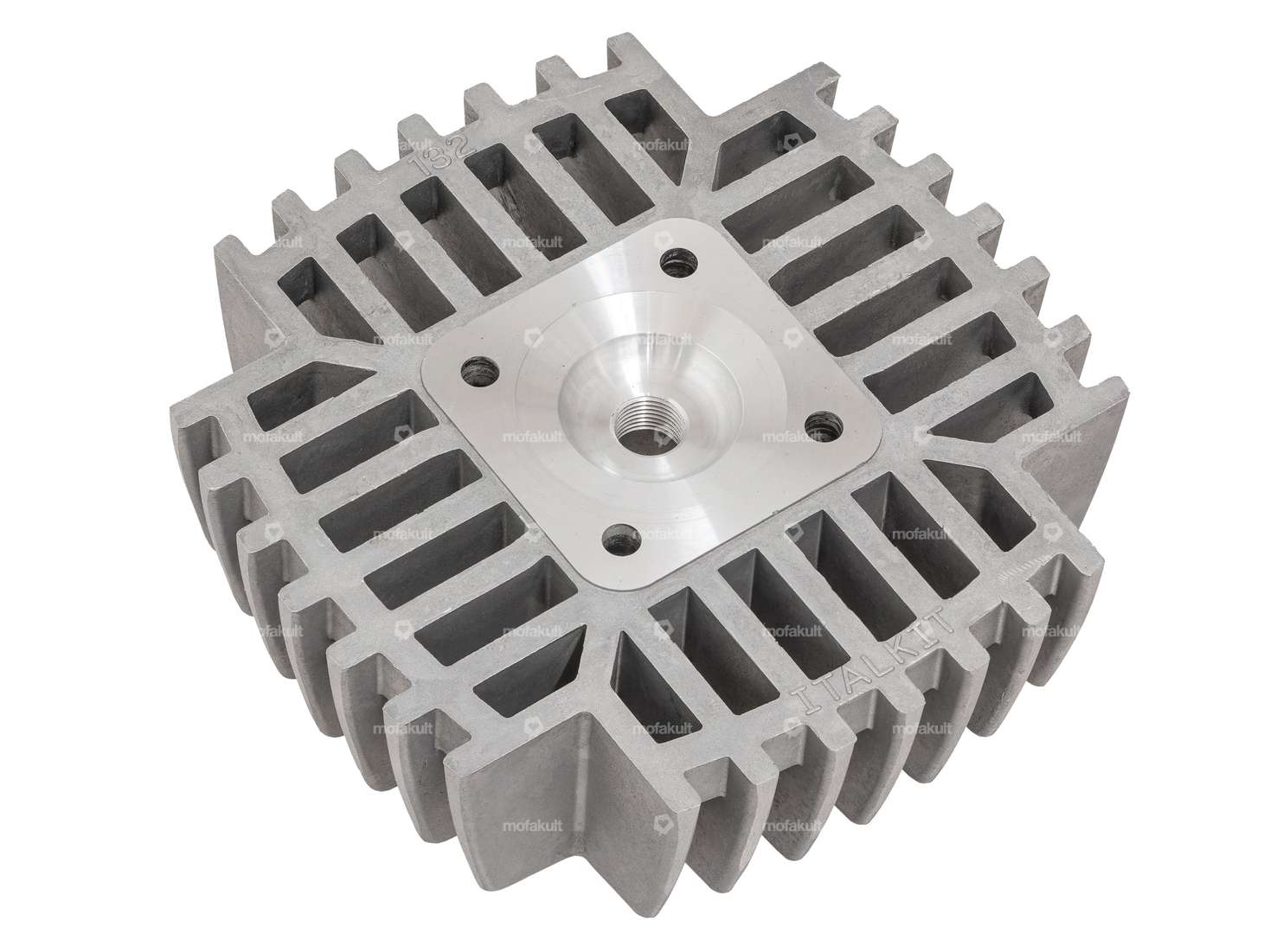

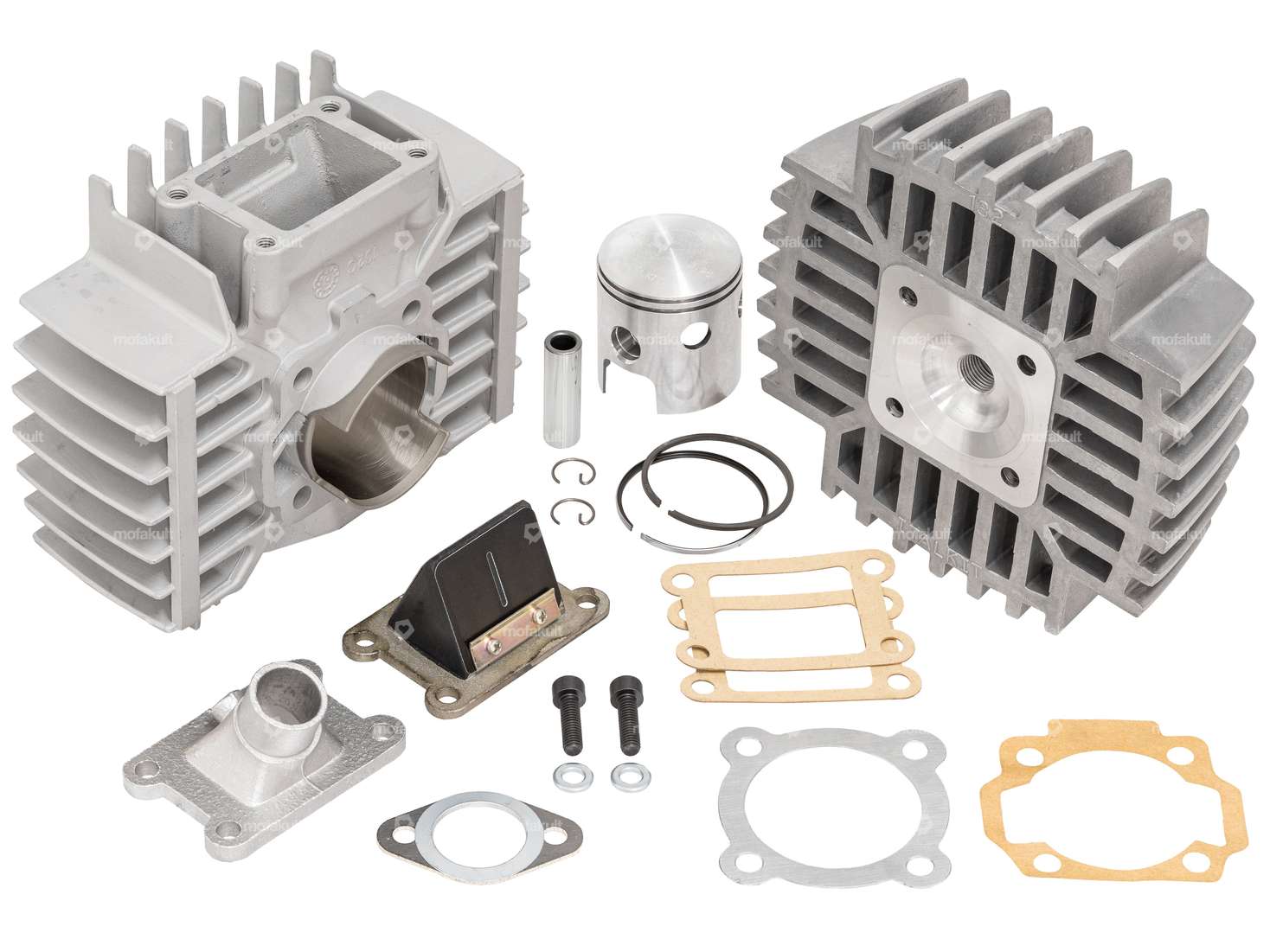

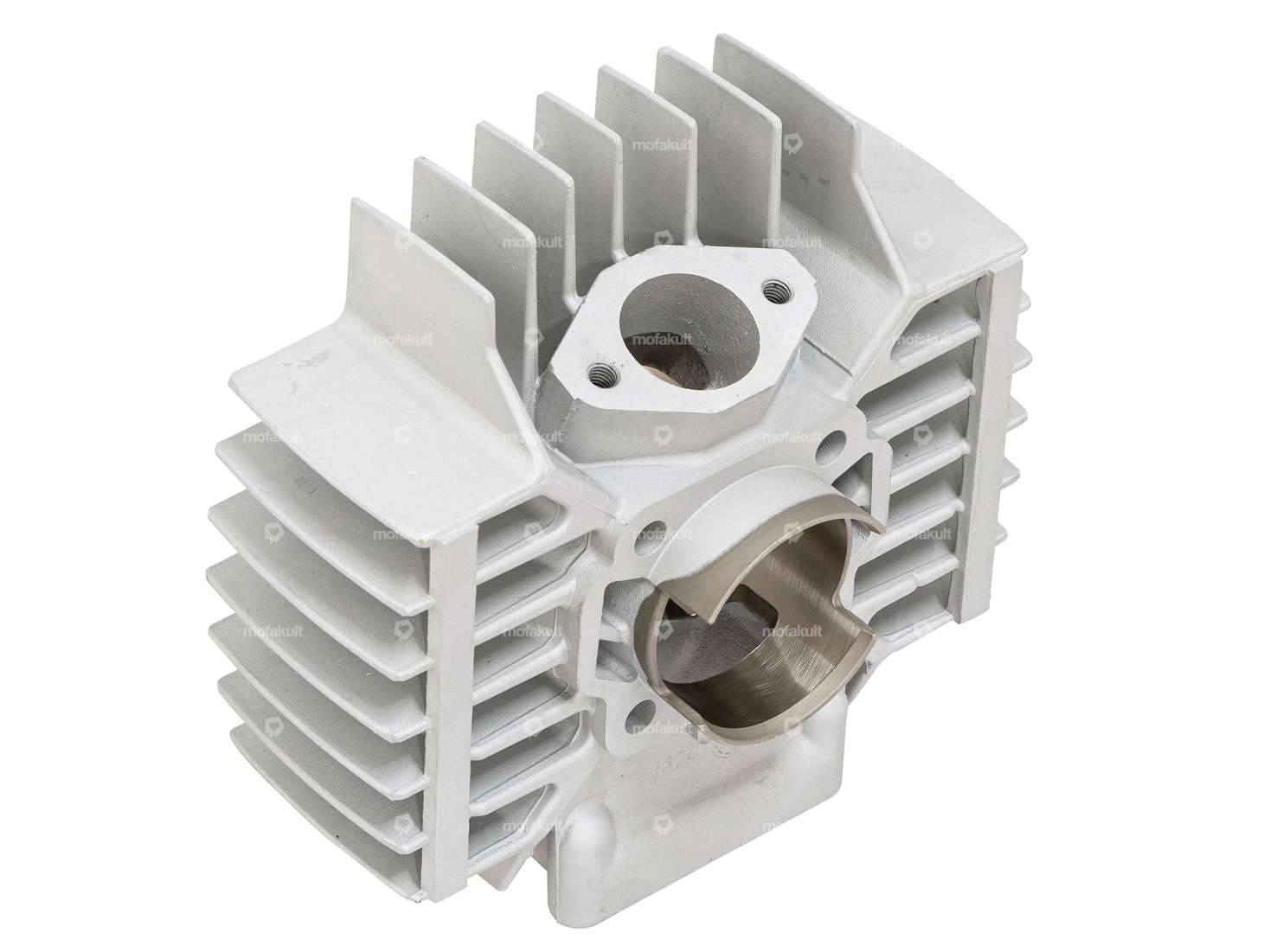

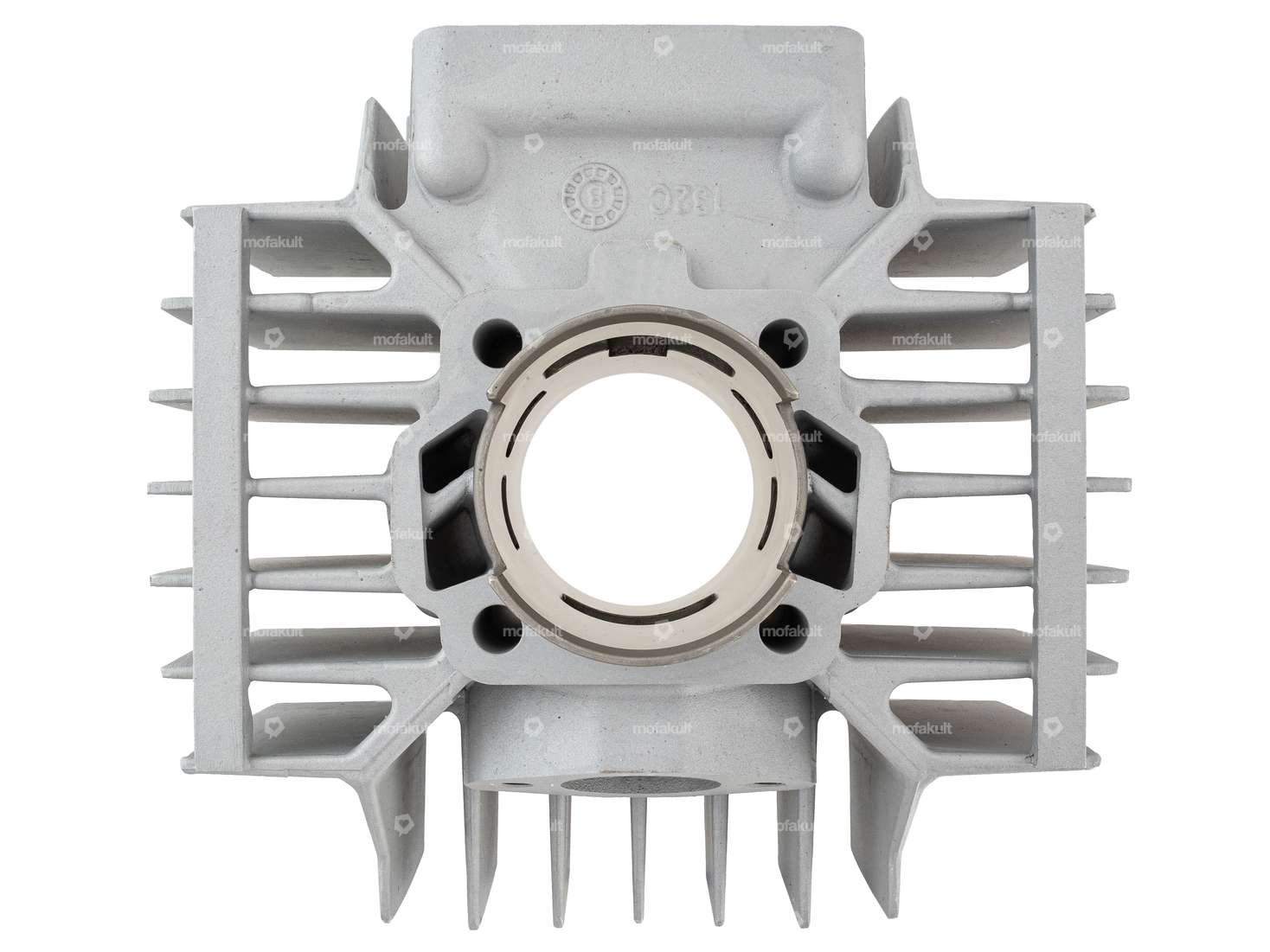

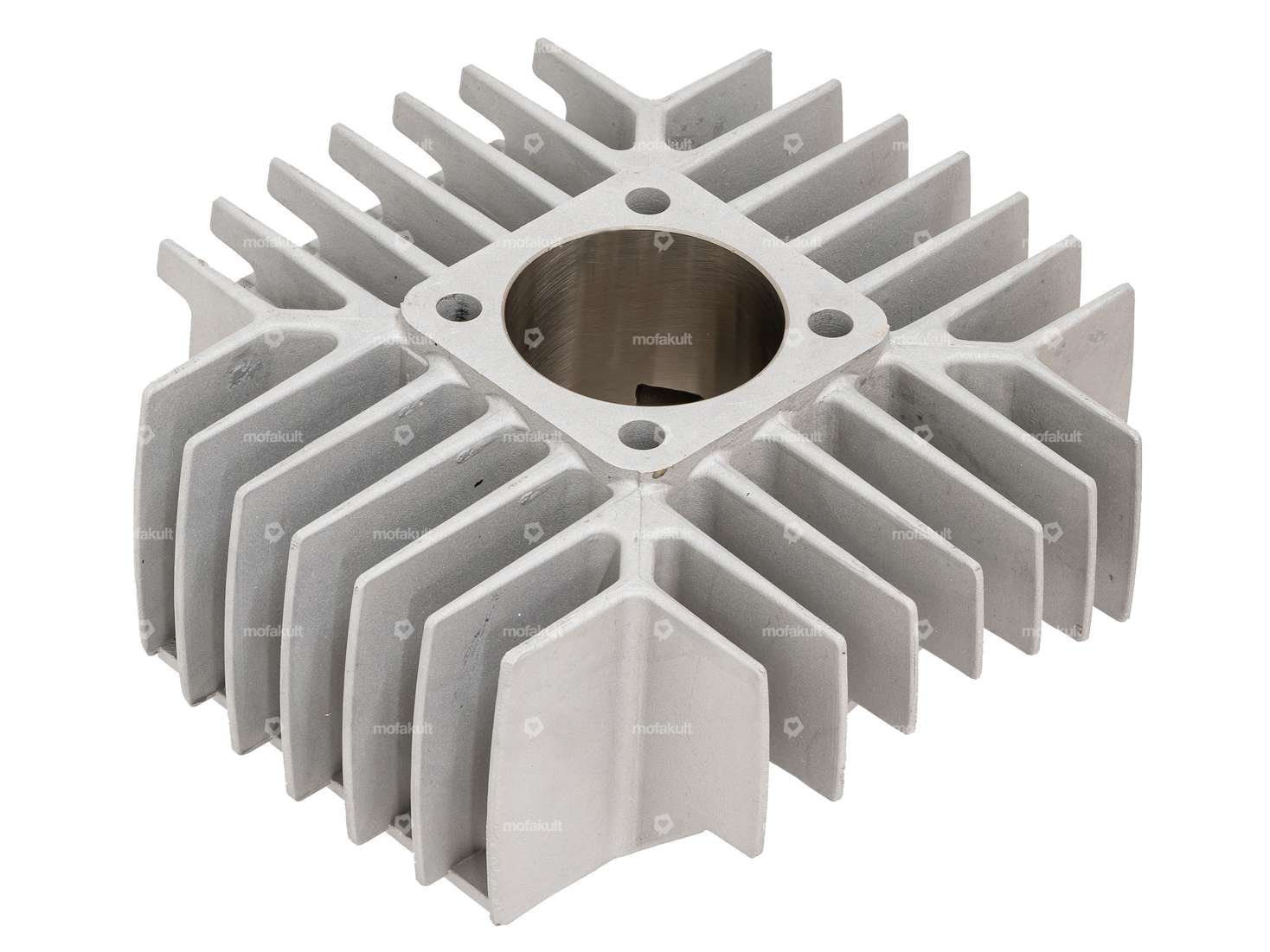

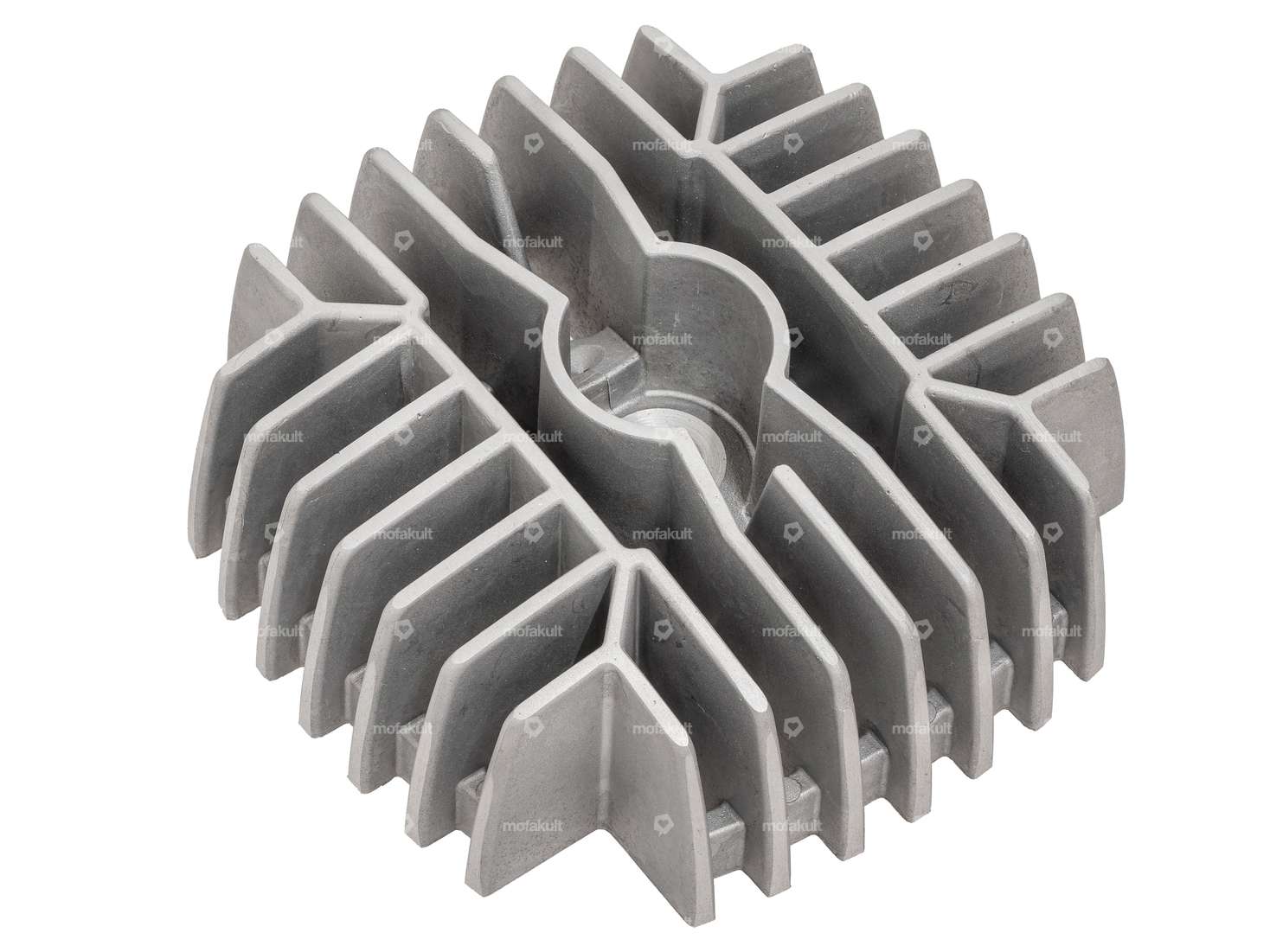

Complete 47 mm (75 cc) racing cylinder with cylinder head from the quality brand Gilardoni italkit suitable for various Puch models.
This is a state-of-the-art cylinder kit for racing use – the strongest among the 47 mm cylinder kits. The nikasil-coated barrel guarantees durability and excellent emergency running properties (cylinder is not as prone to seizure).
Thanks to the generously designed intake tract and the high-quality 4-flap diaphragm, a very good filling value is achieved.
In combination with the cylinder's sharp timing, performance of up to 10 hp can be achieved with the appropriate setup.
In order to get the full power from this cylinder, at least a 19 mm (ideally 21 mm) carburettor should be installed in combination with a racing exhaust.
Attention: Engine housing must be milled out.
Quality product from the Italian manufacturer Gilardoni under the italkit brand.
Details
| Manufacturer | Gilardoni italkit |
| Material | Aluminum |
| Surface | sandblasted |
| Area of application | Tuning |
| Nominal diameter | 47 mm |
| Camouflaged | No |
| Decompressor | No |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
Gilardoni italkit piston 47 mm #B | Puch
Manufacturer: Gilardoni italkit · Nominal diameter: 47 mm · Ø outside piston (A): 46.97 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Thick piston ring: 2 mm · Tolerance group: B · Piston weight: 100 g
80,20 EUR
swiing® ingenious intake manifold Gilardoni italkit Inox
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Ø inside: 21 mm · Ø External connection: 24 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 35 · Number of fixing points: 4 pcs · Total height: 55 mm · Height flange center hole: 42.5 mm · Total length: 80 mm · Area of application: Tuning
78,90 EUR
Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)
Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Thick membrane platelets: 0.4 mm · Total length: 77 mm · Width: 49 mm · Hole pattern [mm]: 60 x 35 mm · Ø mounting hole: 6.6 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: High End
133,60 EUR
Not in stock
Gilardoni italkit piston 47 mm #A | Puch
Manufacturer: Gilardoni italkit · Nominal diameter: 47 mm · Ø outside piston (A): 46.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: A · Piston weight: 100 g
80,20 EUR
Gilardoni italkit piston 47 mm #C | Puch
Manufacturer: Gilardoni italkit · Nominal diameter: 47 mm · Ø outside piston (A): 46.98 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: C · Piston weight: 101 g
80,20 EUR
MLM 25 mm intake manifold Gilardoni italkit black | Puch
Manufacturer: MLM · Material: Steel · Area of application: Tuning · Surface: varnished · Color: black · Number of fixing points: 4 pcs · Ø inside: 25 mm · Hole pattern [mm]: 60 x 35 · Ø External connection: 28.5 mm · Mounting type: Screws
92,90 EUR
Gilardoni italkit piston 47 mm #D | Puch
Manufacturer: Gilardoni italkit · Nominal diameter: 47 mm · Ø outside piston (A): 46.99 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: D · Piston weight: 102 g
80,20 EUR
GPO cylinder stud bolt set special M6x106 mm galvanized | Puch
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 15 mm · Thread length: 19 mm · Width across flats SW: 10 mm · Strength class: 10 · Strength class: 10.9 · Drive: External hexagon · Alternative version of the Puch OEM number: 360.1.10.034.1
23,00 EUR
