47.0 mm replacement piston / piston kit with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) to fit the Gilardoni italkit cylinder for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.
Piston tolerance: D

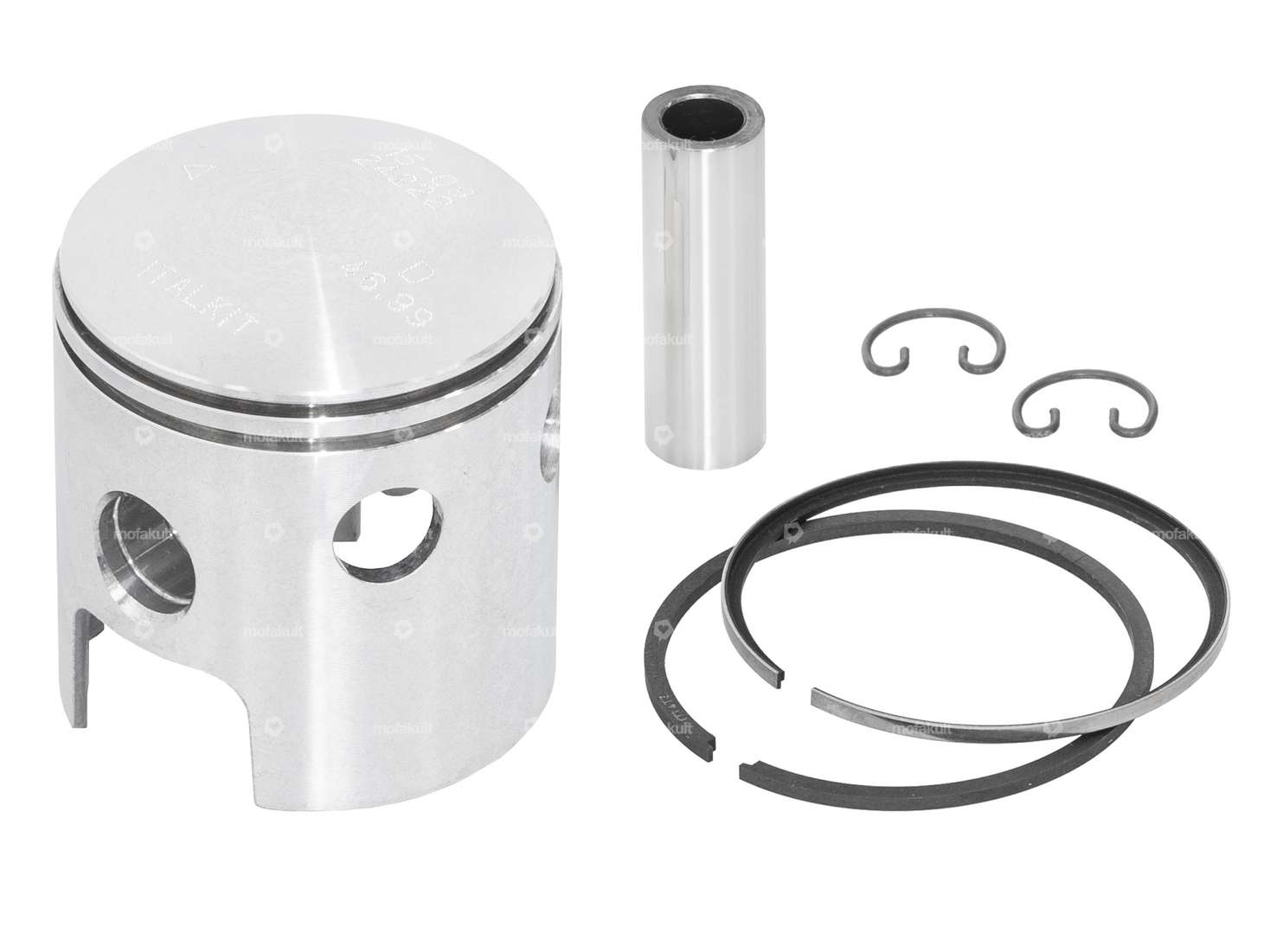

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Gilardoni under the italkit brand.
Details
Nominal diameter | 47 mm |
Manufacturer | Gilardoni italkit |
Ø outside piston (A) | 46.99 mm |
Ø piston pin (B) | 12 mm |
Compression height (C) | 22.5 mm |
Curvature (D) | 3.2 mm |
Total piston height (E) | 52.5 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | L-ring, Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Piston ring height | 2 mm, 1.5 mm |
Tolerance group | D |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
