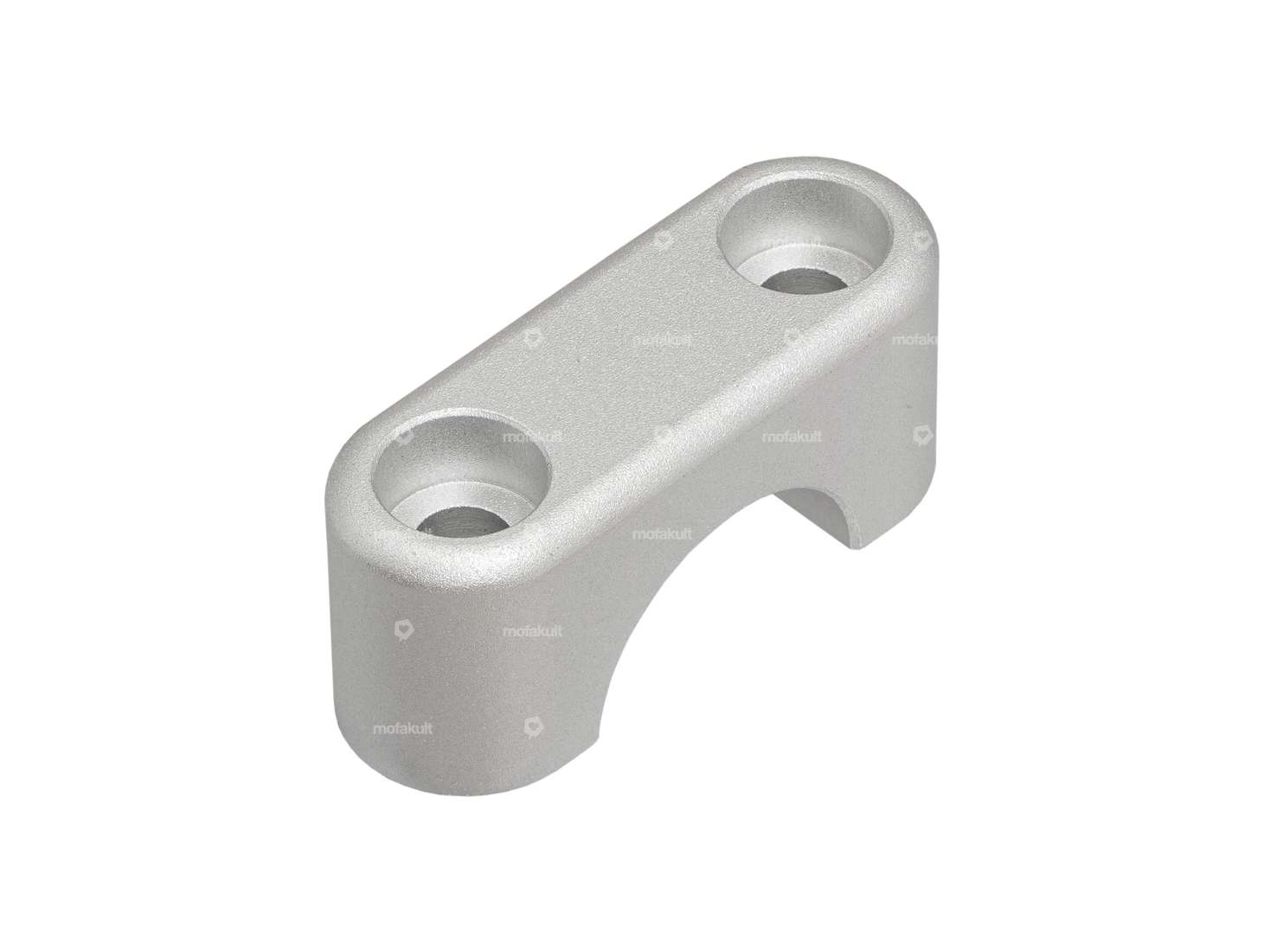

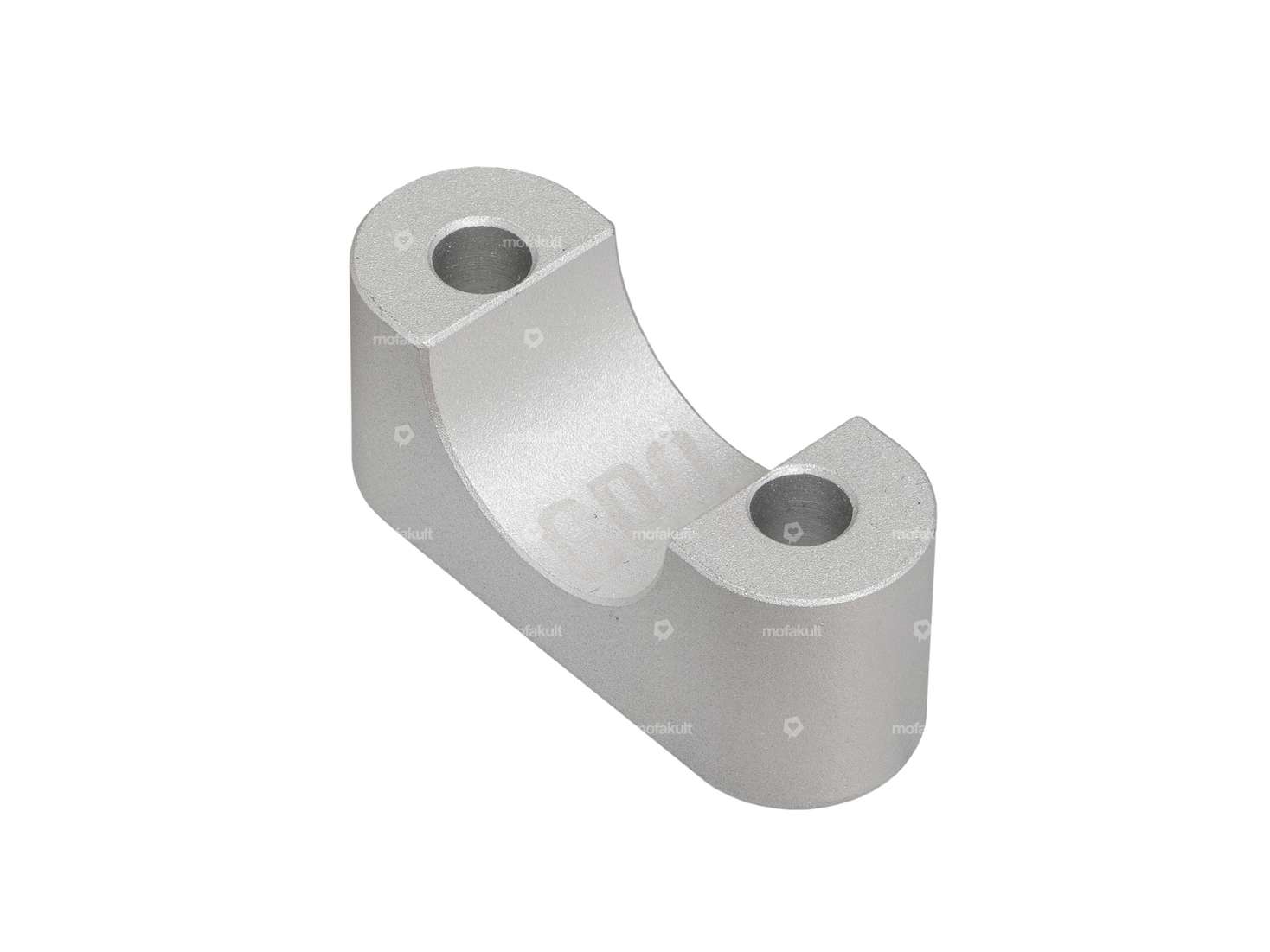

Single handlebar clamp for mounting the handlebars on EBR forks where the upper fork clamp is made of cast aluminium.
The mounting clamp is made of aluminium and has a silver anodized finish.
Hole spacing: 30 mm
Ø hole: 6.4 mm
Outer dimensions (L x W x H): 47 x 17 x 20.4 mm
Alternative clamps and forks can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Material | Aluminum |
| Surface | anodized |
| Color | silver |
| Width | 17 mm |
| Total length | 47 mm |
| Ø mounting hole | 6.4 mm |
| Clamping diameter | 22 mm |
| Height | 20.4 mm |
| Number of fixing points | 2 pcs |
| Hole spacing | 30 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio |
