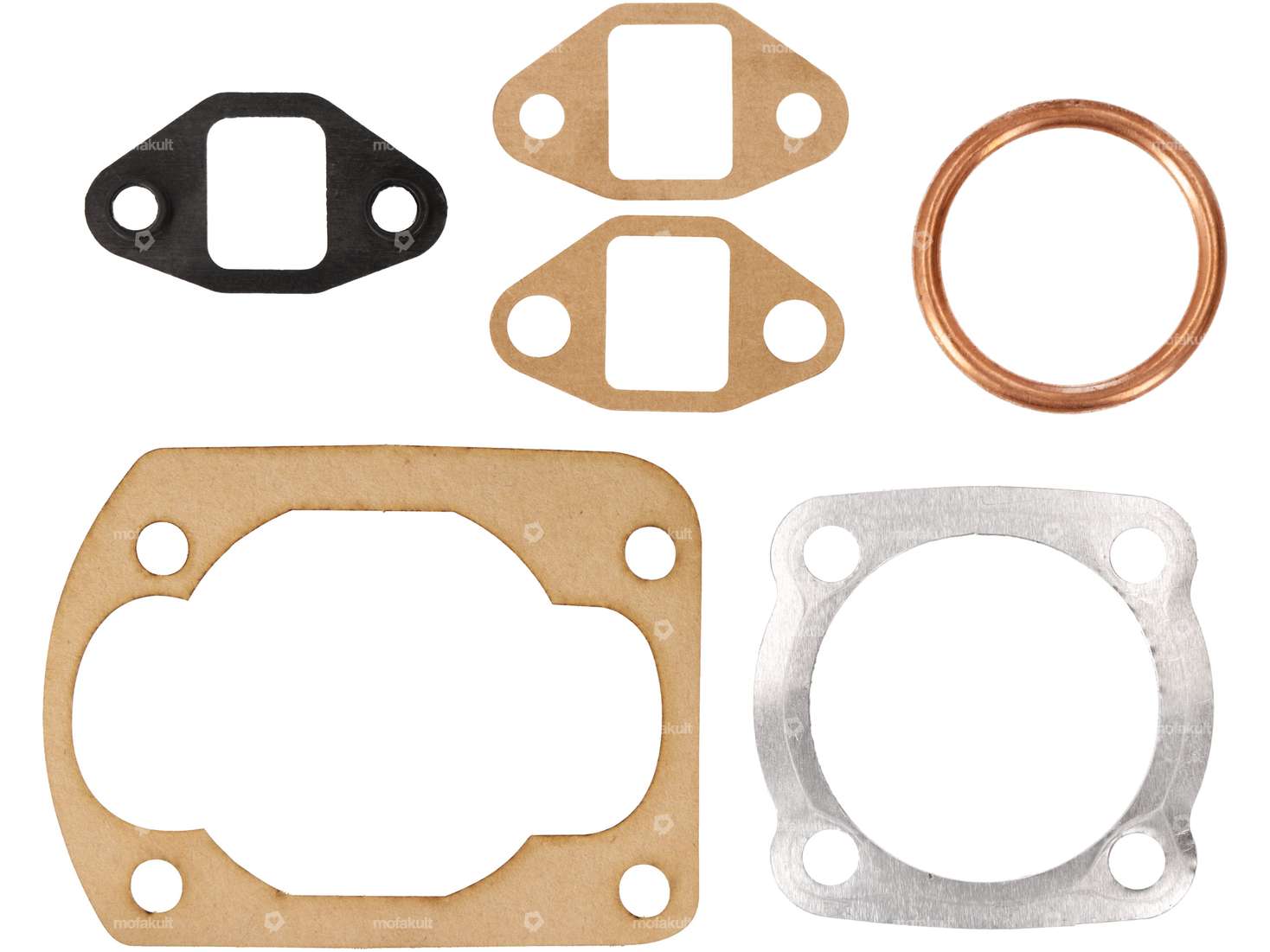

Gasket set for the blown 41 mm (55 ccm) BAD ASS Diablo cylinder kit with 12 mm piston pin, suitable for your moped / moped with Sachs 502 & 50/2 CH engine (Swiss version)
Details:
- Cylinder base gasket: 0.45 mm
- Hole spacing cylinder base: 60 x 40 mm

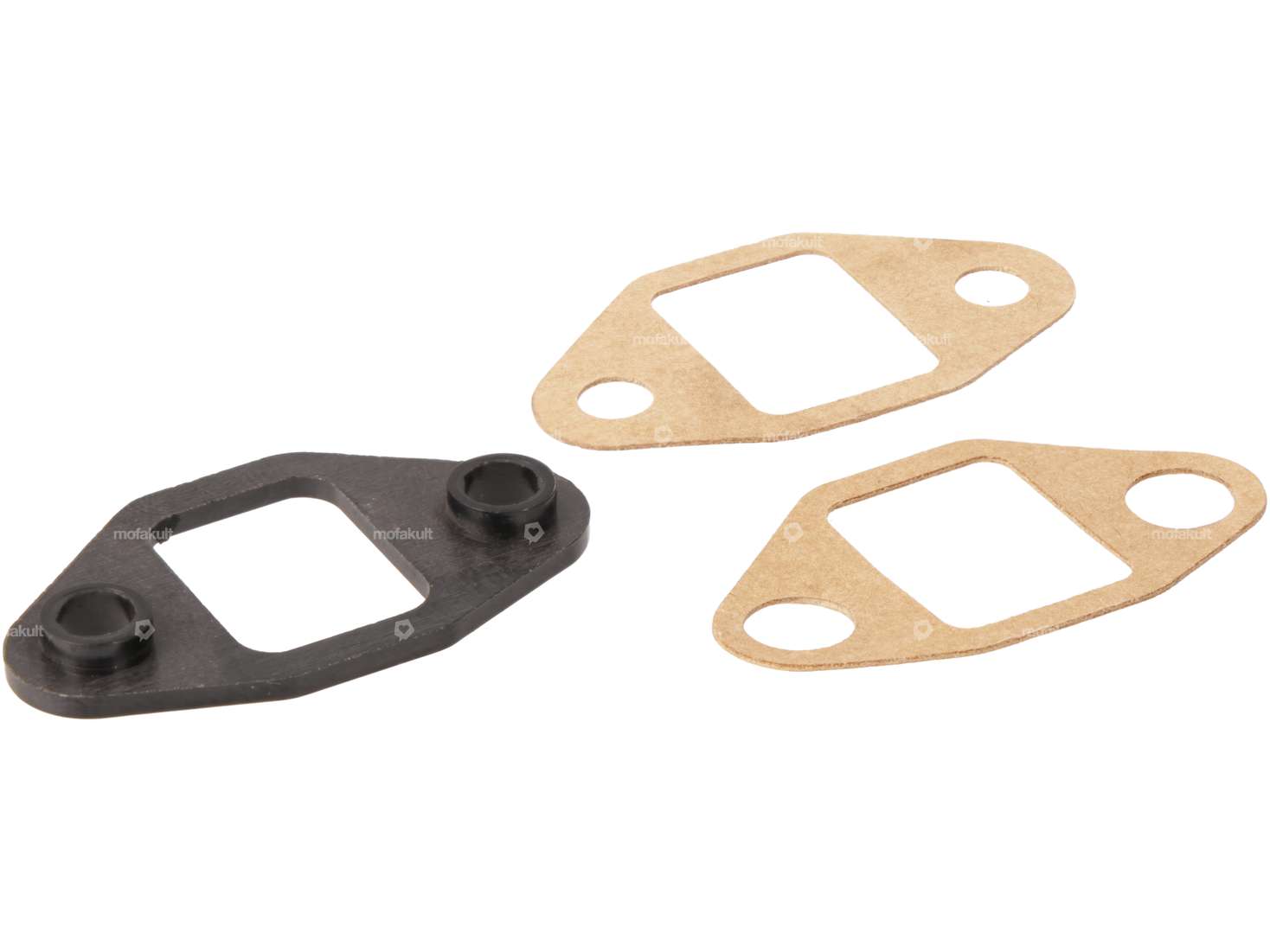

- Inlet gasket thickness: 2.6 mm
- Ø outer sealing ring outlet: 37.5 mm
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Material | Sealing paper, Aluminum |
| Number of components | 4 pcs |
| Area of application | Tuning |
| Ø cylinder | 41 mm |
| Hole spacing inlet | 31 mm |
| Thickness | 0.4 mm, 0.3 mm, 2.6 mm |
| Hole pattern [mm] | 60 x 40 mm / 37 x 37 mm |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) |
