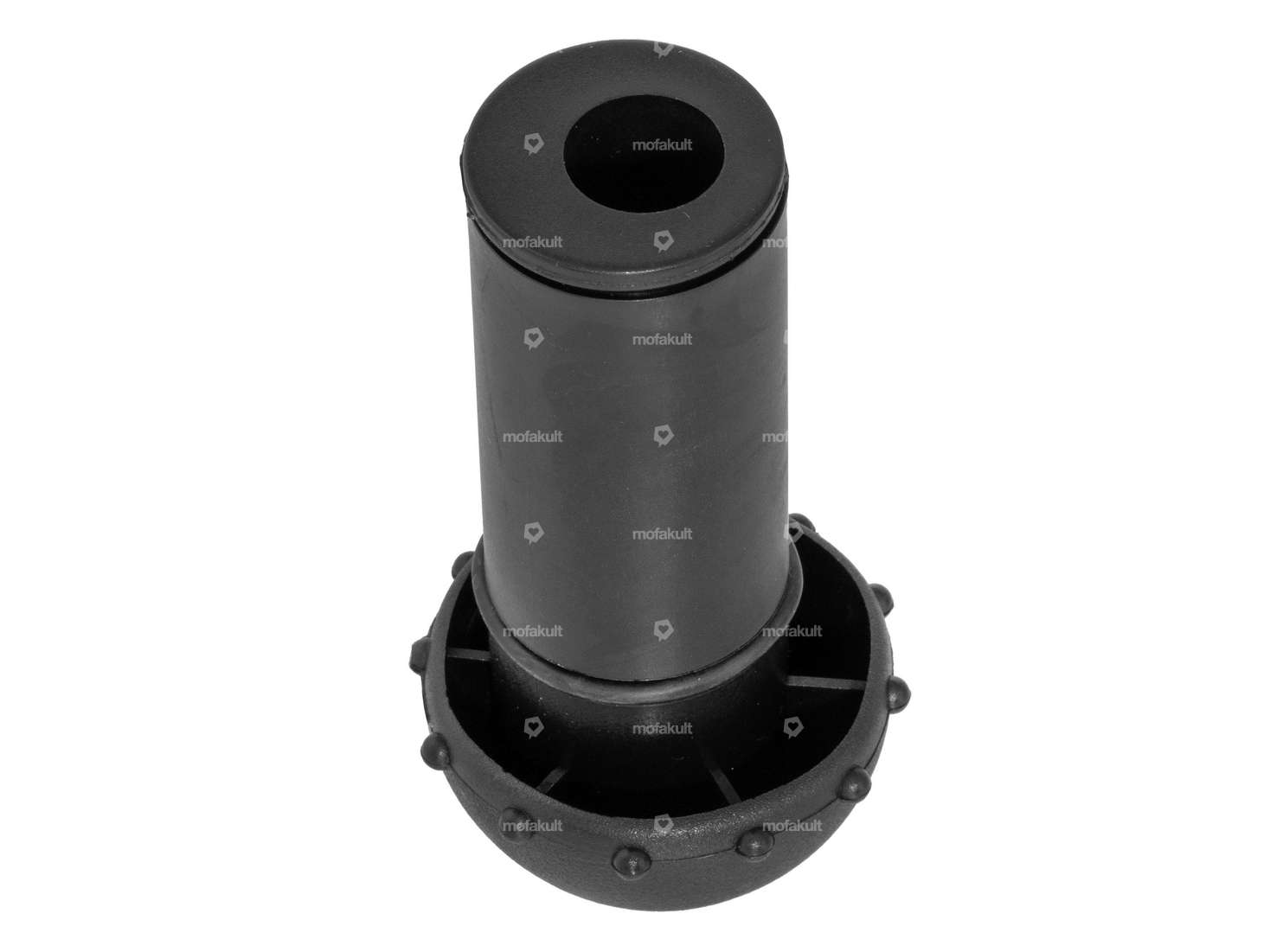

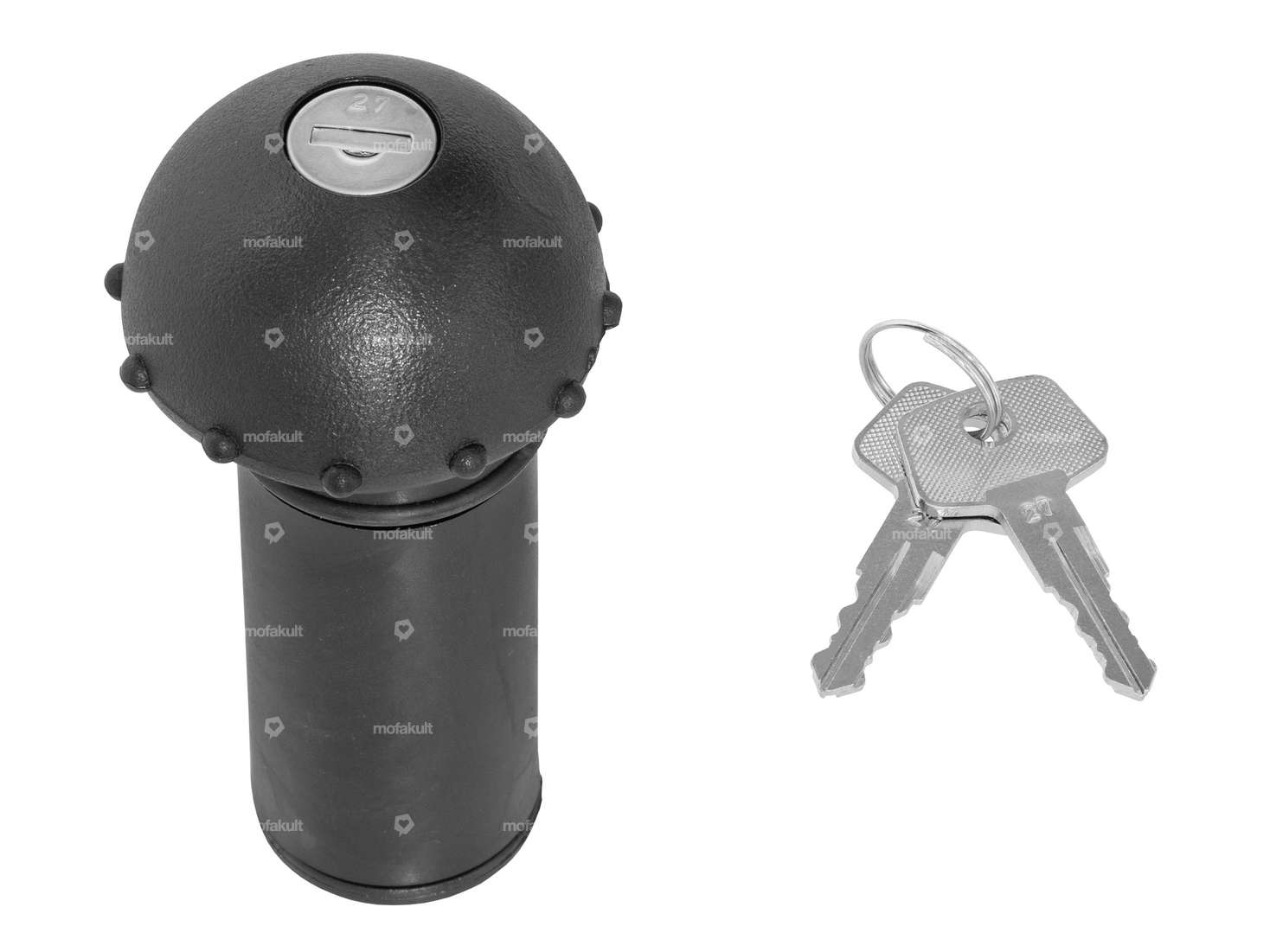

Lockable fuel filler cap | Piaggio Ciao

Tank cap with dipstick black | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Color: black · Lockable: No · Vented: Yes · Height: 39 mm · Height: 274 mm · Ø External head: 44.3 mm · Fuel filler cap: Plug 33 mm

66HEROES Tank cap perforated black | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: black · Surface: anodized · Vented: Yes · Ø External head: 45 mm · Fuel filler cap: Plug 33 mm

Tank cap 30 mm bayonet lockable | Piaggio Ciao

Material: Cast aluminum · Color: Chrome · Material: Steel · Surface: blue galvanized · Surface: chrome-plated · Lockable: Yes · Vented: Yes · Height: 39 mm · Ø External head: 53 mm · Ø outside connection piece: 46.4 mm · Fuel filler cap: Bayonet 30 mm

66HEROES Tank cap round black | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: black · Surface: anodized · Lockable: No · Vented: Yes · Ø External head: 45 mm · Fuel filler cap: Plug 33 mm

66HEROES Gas cap aluminum chrome | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Color: Chrome · Material: Chrome steel (stainless steel) · Lockable: No · Vented: Yes · Ø External head: 45 mm · Fuel filler cap: Plug 33 mm

66HEROES Sealing ring CNC tank cap | Piaggio Ciao, Bravo

Ø inside: 26 mm · Ø outside: 33 mm · Manufacturer: 66HEROES · Material: FPM - Rubber · Material: Viton · Color: black · Thickness: 3.5 mm · Mounting type: Plug connection clamped

66HEROES Tank cap "Piaggio" black round | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: black · Surface: anodized · Lockable: No · Vented: Yes · Ø External head: 45 mm · Ø outside connection piece: 32 mm · Fuel filler cap: Plug 33 mm

66HEROES fuel filler cap "66HEROES" black perforated | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: black · Surface: anodized · Lockable: No · Vented: Yes · Ø External head: 45 mm · Ø outside connection piece: 32 mm · Fuel filler cap: Plug 33 mm

66HEROES Tank cap "Piaggio" chrome round | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Lockable: No · Vented: Yes · Ø External head: 45 mm · Ø outside connection piece: 32 mm · Fuel filler cap: Plug 33 mm

66HEROES Tank cap "66HEROES" chrome round | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Lockable: No · Vented: Yes · Ø External head: 45 mm · Ø outside connection piece: 32 mm · Fuel filler cap: Plug 33 mm

O-ring 28 x 2.5 mm NBR black

Ø inside: 28 mm · Cord thickness: 2.5 mm · Hardness [Shore]: 70 Shore · Area of application: Standard · Material: NBR · Color: black · Ø outside: 33 mm · Number of components: 1 pcs

Replacement O-ring for lockable tank cap | Piaggio Ciao

Place of use: Tank (+ frame) · Ø inside: 28 mm · Ø outside: 33 mm · Cord thickness: 2.5 mm · Hardness [Shore]: 70 Shore · Color: black · Material: NBR · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Color: black · Surface: ribbed · Total length: 118 mm · Drive: Outer edge · Width: 51 mm · Height: 29 mm · Width across flats SW: 15 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Tail light black | Piaggio Ciao PX, C24, Bravo

Manufacturer: Made in Italy · Material: Plastic · Test mark: none · Color: black · Color: red · Width: 130 mm · Bulb holder: BA9s · Height: 58 mm · Number of fixing points: 2 pcs · Depth: 43 mm · Battery operated: No · Mounting type: Nuts & bolts

GPO chain tensioner | Piaggio Ciao

Manufacturer: GPO · Material: Plastic · Material: Steel · Color: black · Color: silver · Surface: blue galvanized · Total length: 64 mm · Width: 45 mm · Number of teeth: 8 pcs · Number of fixing points: 1 pcs · Ø outside sprocket: 33 mm · Thread type: M8x1.25 (standard thread)

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Area of application: Standard · Material: Spring steel · Material: Steel · Color: silver · Surface: blue galvanized · Surface: raw · Drive: Slot · Screw head: Lens head · Number of components: 12 pcs

Headlight grille black | Piaggio Ciao

Manufacturer: Made in Italy · Test mark: none · Material: Plastic · Color: black · Surface: raw · Width: 132 mm · Height: 95 mm · Depth: 27 mm · Hole spacing: 105 mm

Lamp grille rear light black | Piaggio Ciao PX, C24, Bravo

Manufacturer: Made in Italy · Test mark: none · Material: Plastic · Color: black · Surface: blank · Width: 135 mm · Height: 58 mm · Ø Receptacle: 3.5 mm · Depth: 15 mm · Hole spacing: 112.5 mm

OMG fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: OMG · Possible lever positions: open / closed / reserve · Material lever: Plastic · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 100 mm

Petrol hose Ø 5 / 7 mm transparent 30 cm (1A quality)

Ø inside: 5 mm · Manufacturer: Made in Italy · Color: transparent · Ø outside: 7 mm · Total length: 300 mm
