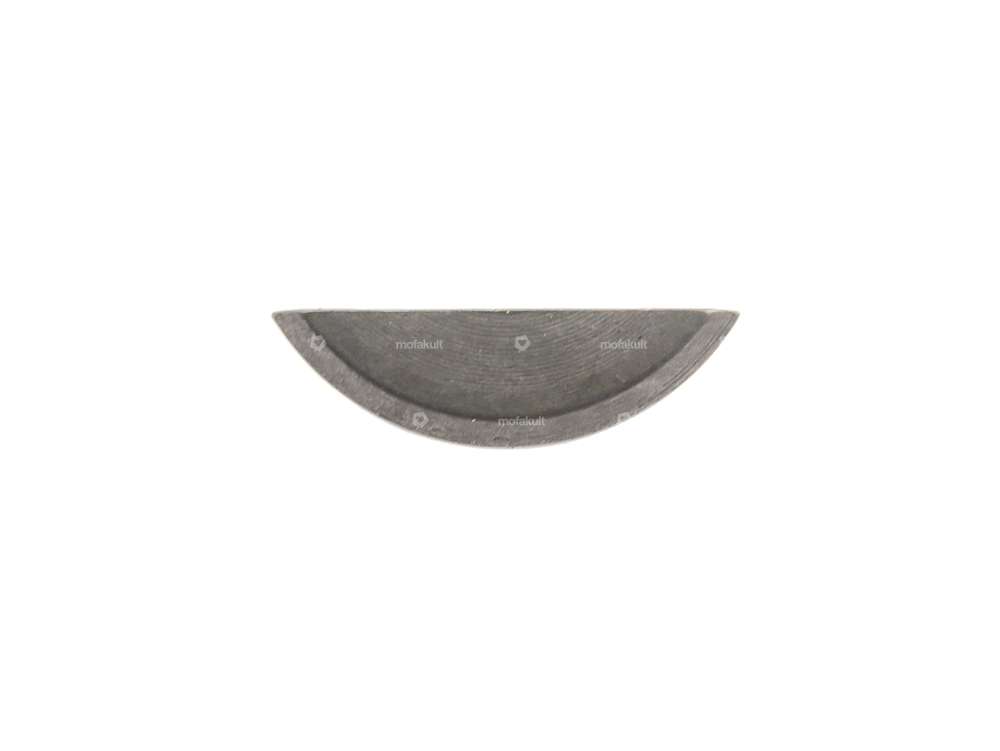

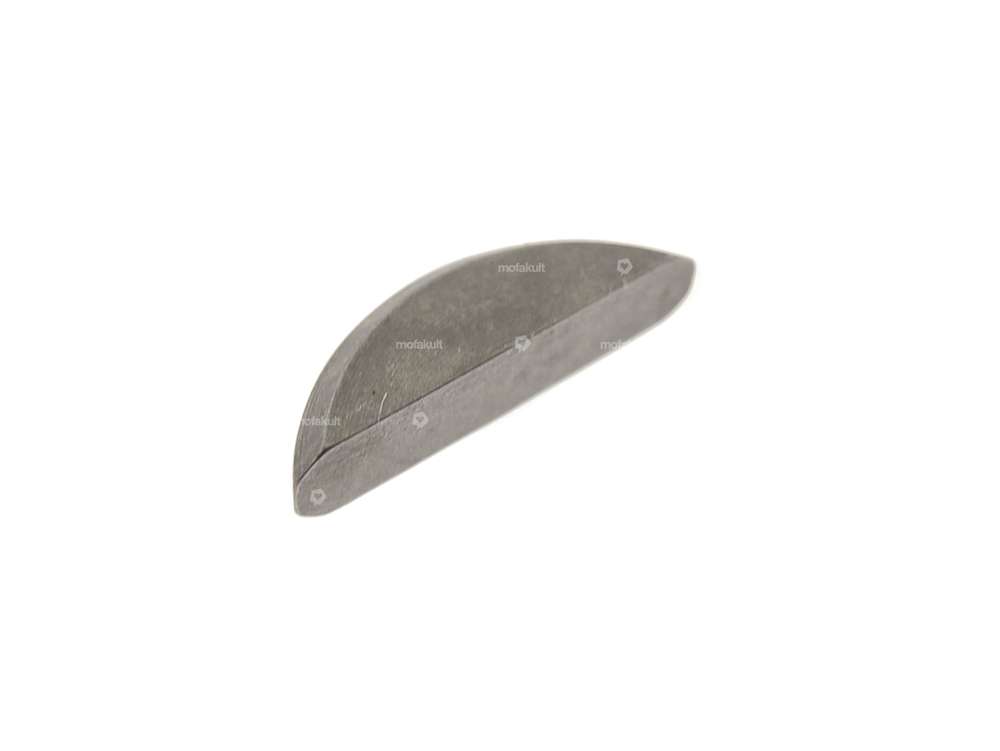

Malossi key crankshaft HPC | Piaggio Ciao, SI, Bravo, Boxer

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M10x1.5 (standard thread) · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 813 g · Number of gears: 1 pcs · Area of application: Racing

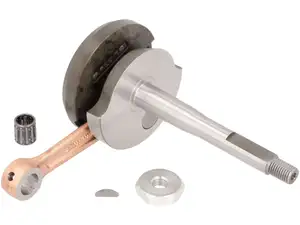

Malossi crankshaft "RHQ Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø crank webs: 70 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1.25 (fine pitch thread) · Thread length: 14 mm · Dimension needle bearing: 10 / 13 x 14 (axe 10) · Wide crank webs: 32.5 mm · Length 1st paragraph: 21.7 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.4 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 730 g · Number of gears: 1 pcs · Area of application: Tuning

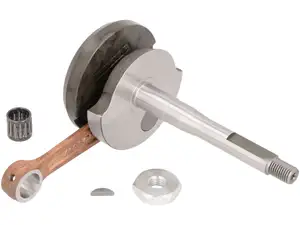

Malossi crankshaft "RHQ Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1.25 (fine pitch thread) · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 14.7 (axe 12) · Wide crank webs: 32.5 mm · Length 1st paragraph: 21.7 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.4 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 724 g · Number of gears: 1 pcs · Area of application: Tuning

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Ø outside: 5 mm · Drive: Slot · Screw head: Lens head · Manufacturer: Magura · Thread length: 4 mm · Ø Cable bushing: 1.6 mm · Number of components: 2 pcs · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Total length: 6 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

SKF Bearing Set Engine | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: SKF · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 3 pcs

Shim 16/22/0.5

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 21 mm · Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Material thickness: 0.2 mm · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Area of application: Standard

Flywheel rubber small up to 1975 | Piaggio Ciao, Bravo, Boxer

Manufacturer: Made in Italy · Material: Rubber · Total length: 42 mm · Width: 23 mm · Color: black · Piaggio OEM number: 102931

Ignition cams for flywheel original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Ø inside: 14.4 mm · Nominal diameter inside: 14.5 mm · Ø outside: 22 mm · Ø outside: 23 mm · Ø Puncture: 3 mm · Total length: 10.5 mm

Wedge 12.1x4.9x3 mm

Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel

Centering washer axle 11 mm original | Piaggio Ciao

Ø outside: 26.3 mm · Manufacturer: Piaggio · Ø inside: 11.1 mm · Nominal diameter (thread): 11 mm · Thickness: 4.2 mm

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel
