Piaggio gearbox

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Motor housing · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Fiber

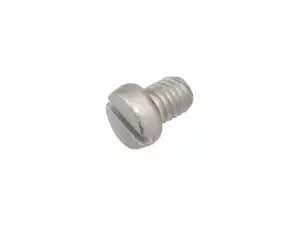

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Drive: Slot · Thread length: 10 mm

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Stock number: 6202 · Width: 11 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides

INA Needle roller bearing 15/21/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing cage: Sheet steel cage · Stock number: HK1512 · Dimension needle bearing: 15/21 x 12 · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: INA · Width: 12 mm · Piaggio spare part no.: 103689

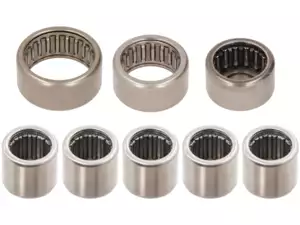

INA needle roller bearing set MG3 & MG4 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA

Koyo needle bearing set MG3 & MG4 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo

swiing® revival gasket & oil seals mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Manufacturer: swiing® revival parts · Gearbox type: Mono

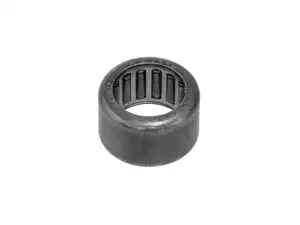

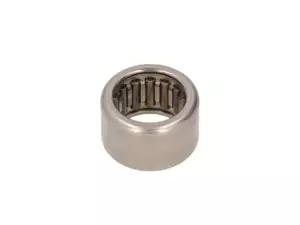

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio spare part no.: 103614

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Height: 13 mm · Width across flats SW: 15 mm

Koyo needle bearing set MG2 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio spare part no.: 103613 · Piaggio spare part no.: 103689 · Piaggio spare part no.: 103696 · Piaggio spare part no.: 131509

INA needle roller bearing set MG2 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA · Manufacturer: SKF

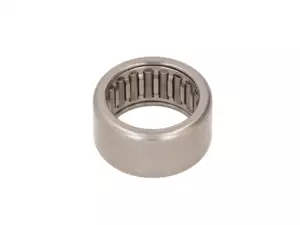

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio spare part no.: 103696

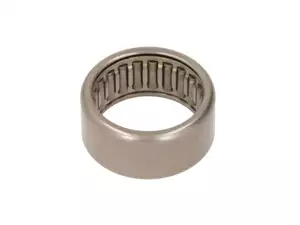

SKF Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: SKF · Width: 12 mm · Piaggio spare part no.: 131509

Polini Vario 13:1 / 11.5:1 gearbox ratio (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

swiing® revival gasket & oil seal set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Manufacturer: swiing® revival parts · Gearbox type: Vario

Koyo needle bearing set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio spare part no.: 103613 · Piaggio spare part no.: 103614 · Piaggio spare part no.: 103689 · Piaggio spare part no.: 131509

INA needle roller bearing set Vario gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Manufacturer: INA · Manufacturer: SKF · Piaggio spare part no.: 103613 · Piaggio spare part no.: 103614 · Piaggio spare part no.: 103689 · Piaggio spare part no.: 131509

Gearbox gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Sealing paper · Area of application: Standard · Surface: blank · Thickness: 0.2 mm · Place of use: Gear hub

CIF revision kit gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Standard · Gearbox type: Mono

Malossi gear set 8.92:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Area of application: Tuning · Surface: Hardened · Gearbox type: Vario · Translation: 8.92 / 1 · Toothing type: straight toothed

CIF gear set variomatic 11:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Racing · Material: Steel · Area of application: Tuning · Gearbox type: Vario · Translation: 10.73 / 1 · Toothing type: helical toothed · Toothing type: straight toothed

CIF gear set 9.5:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Tuning · Gearbox type: Vario · Translation: 9.49 / 1 · Toothing type: helical toothed

Washer 18/29/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 18 mm · Nominal diameter: 8 mm · Ø outside: 29 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Thickness: 1 mm

CIF gasket set Vario gearbox incl. oil seals| Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Standard · Gearbox type: Vario · Place of use: Gear hub

CIF gasket set mono gearbox incl. oil seals | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Standard · Gearbox type: Mono · Place of use: Gear hub

Gearbox housing (two gears) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Gearbox type: Mono

Pin gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 6.98 mm · Manufacturer: Piaggio · Total length: 30 mm

swiing® ingenious triangular bearing plate Racing aluminum black | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Ø axle: 15 mm · Material: Aluminum · Area of application: Racing · Surface: anodized · Color: black · Width: 101 mm · Thread type: M10x1.5 (standard thread) · Total length: 13 mm · Thread length: 13 mm · Number of fixing points: 2 pcs

swiing® ingenious triangular bearing plate Racing aluminium red anodized | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Ø axle: 15 mm · Material: Aluminum · Area of application: Racing · Surface: anodized · Color: red · Width: 101 mm · Thread type: M10x1.5 (standard thread) · Total length: 13 mm · Thread length: 13 mm · Number of fixing points: 2 pcs

swiing® ingenious triangular bearing plate Inox | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Chrome steel (stainless steel) · Area of application: Racing · Color: Chrome

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Ø inside: 17 mm · Stock number: HK1712 · Ø outside: 23 mm · Manufacturer: Koyo · Bearing cage: Sheet steel cage · Width: 12 mm · Dimension needle bearing: 17/23 x 12 · Piaggio spare part no.: 103696

Needle bearing 15/21/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: Piaggio · Width: 12 mm · Dimension needle bearing: 15/21 x 12 · Piaggio spare part no.: 103689

Needle bearing 9/13/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: Piaggio · Width: 12 mm · Dimension needle bearing: 9/13 x 12

Koyo HK2012 Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Ø inside: 20 mm · Stock number: HK2012 · Ø outside: 26 mm · Manufacturer: Koyo · Bearing cage: Sheet steel cage · Width: 12 mm · Dimension needle bearing: 20/26 x 12 · Piaggio spare part no.: 131509

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Gearbox type: Mono · Toothing type: straight toothed · Number of teeth: 74 pcs

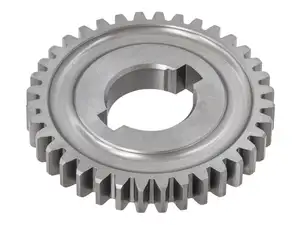

CIF gear wheel 37 teeth mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Toothing type: straight toothed · Number of teeth: 37 pcs

Oil seal NBR 17/25/4 A Gearbox Mono original | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Ø outside: 25 mm · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C

GPO oil seal set engine and gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Manufacturer: GPO · Material: NBR · Area of application: Original · Area of application: Standard · Width: 3 mm · Width: 4 mm · Width: 5 mm · Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Temperature resistance (min.): -30 - 120 °C

CIF gear shaft 10 teeth variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Total length: 137 mm · Toothing type: helical toothed · Number of teeth: 10 pcs · Ø shaft: 13 mm

Olympia freewheel hub galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Drive: External hexagon

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10 mm · Nominal diameter: 10 mm · Ø outside: 18 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Thickness: 1 mm

CIF gearwheel 23 teeth Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Translation: 9.49 / 1 · Translation: 10.73 / 1 · Translation: 14.82 / 1 · Toothing type: helical toothed · Number of teeth: 23 pcs

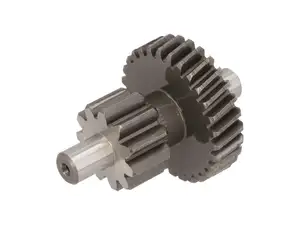

CIF gearwheel 29/11 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Translation: 9.49 / 1 · Toothing type: helical toothed · Toothing type: straight toothed · Number of teeth: 11 pcs · Number of teeth: 29 pcs

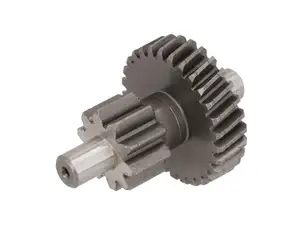

CIF gearwheel 29/10 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Translation: 10.73 / 1 · Toothing type: helical toothed · Toothing type: straight toothed · Number of teeth: 10 pcs · Number of teeth: 29 pcs

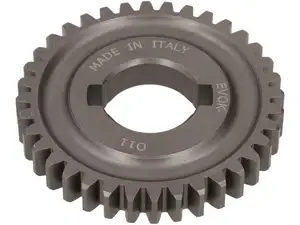

CIF gear wheel 36 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Translation: 8.92 / 1 · Translation: 9.49 / 1 · Toothing type: straight toothed · Number of teeth: 36 pcs

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 6 mm · Cord thickness: 1.7 mm · Ø outside: 9.4 mm · Manufacturer: Piaggio

swiing® ingenious triangular bearing plate blue | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Racing · Surface: anodized · Color: blue

swiing® ingenious triangular bearing plate chrome | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Racing · Color: Chrome · Surface: chrome-plated

swiing® ingenious triangular bearing plate green | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Racing · Surface: anodized · Color: green

swiing® ingenious triangular bearing plate gold orange | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Racing · Surface: anodized · Color: gold
