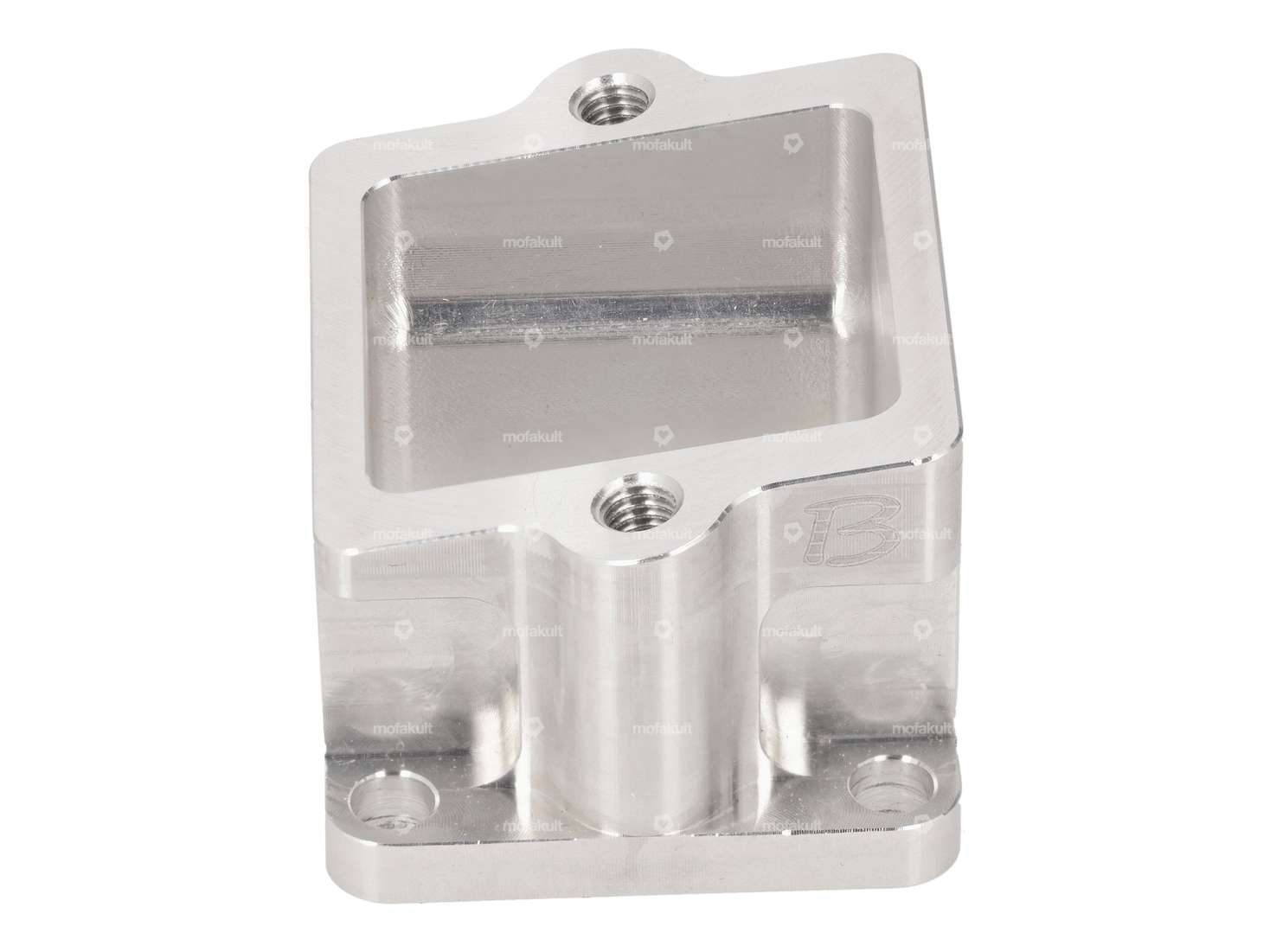

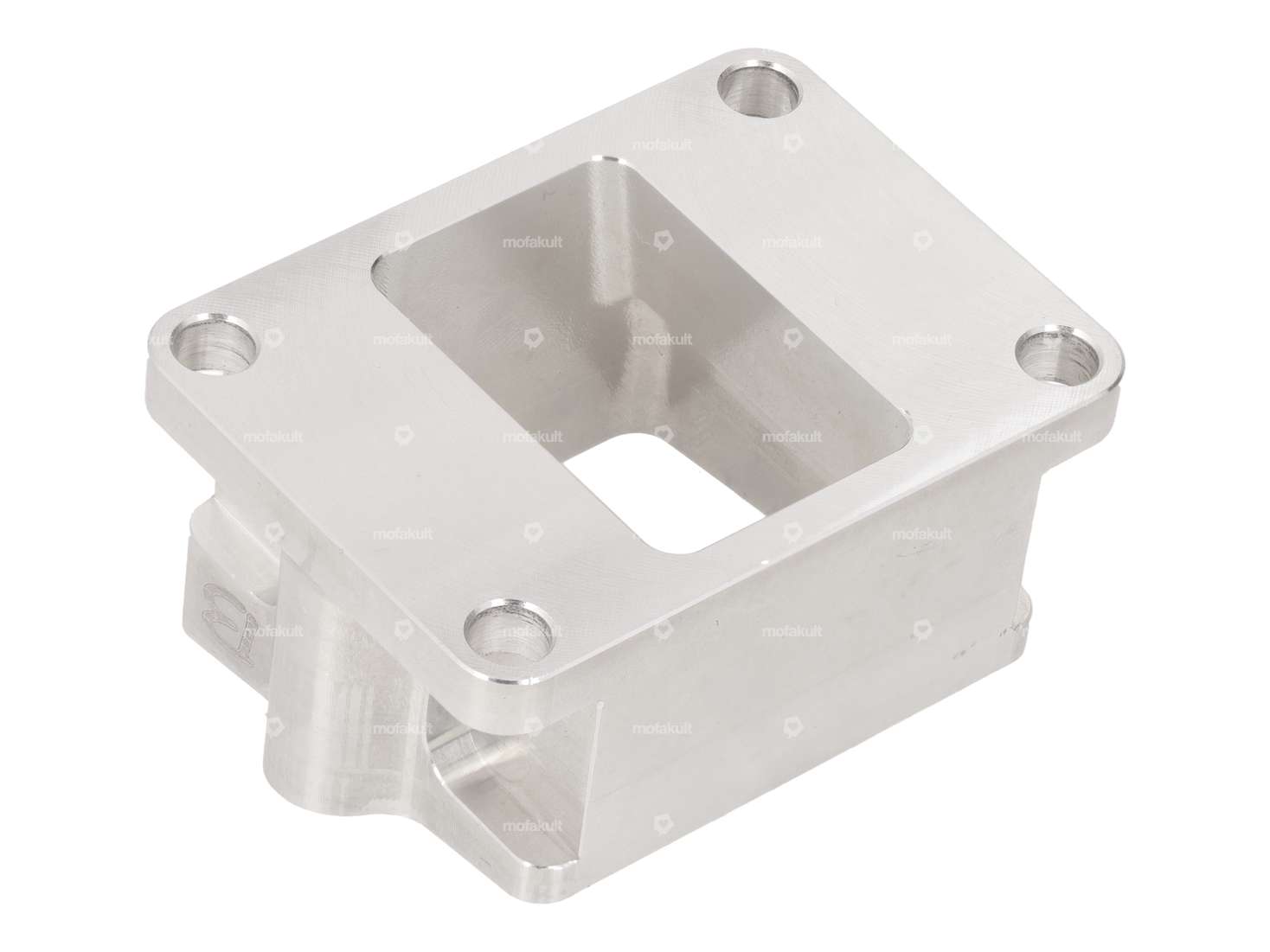

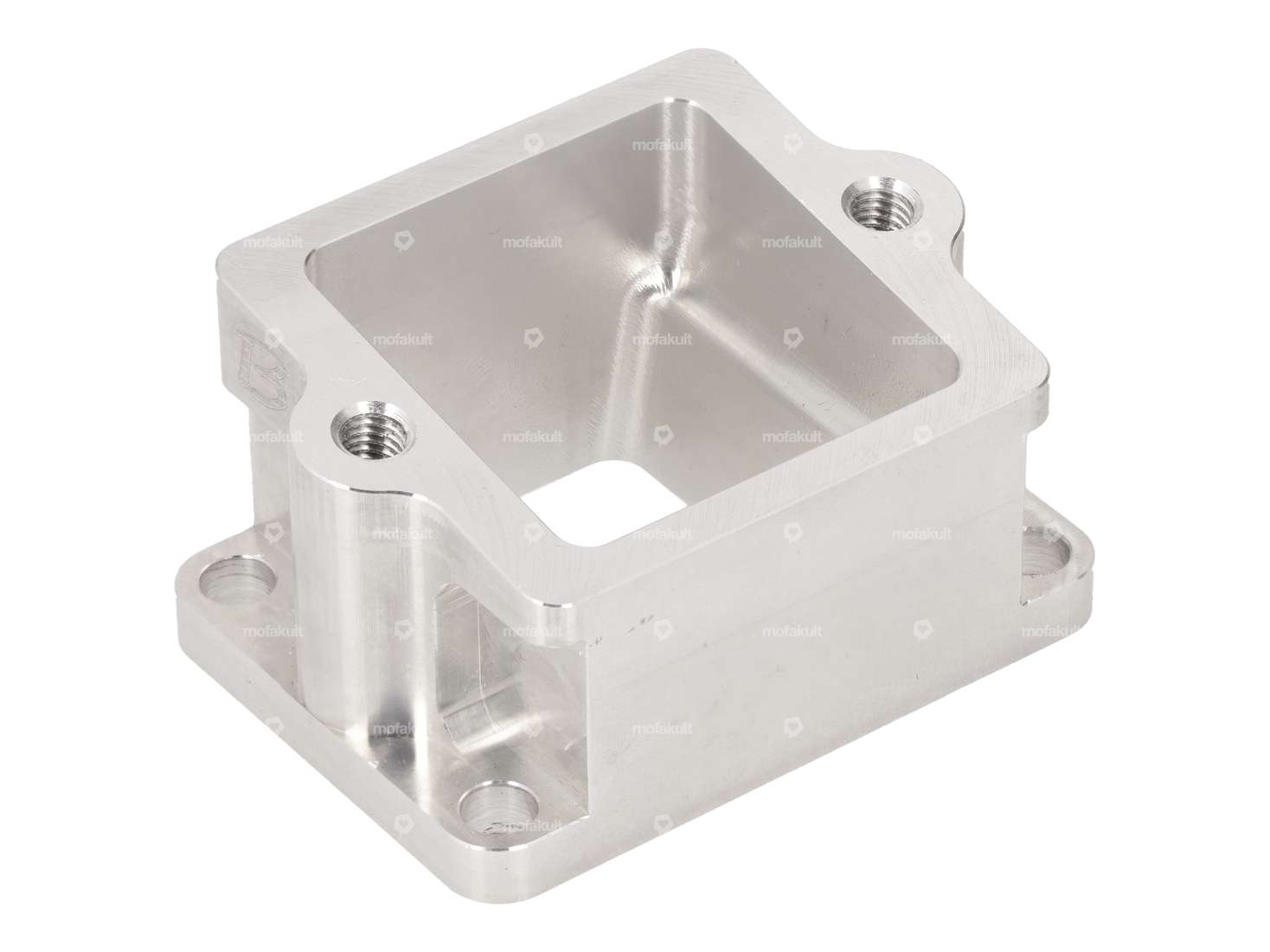

CNC machined reed box for the ADDY GME engine housing «Der.prüfstand» on your Puch moped / moped.
The diaphragm holder is neatly finished, fits perfectly and offers a massive passage of 39.5 x 26 mm.
Due to the sloping upper surface of the diaphragm box and the possibility to rotate it 180 degrees, it is possible to align the nozzle and carburetor mounted on it somewhat steeper or flatter.
Note: The box is intended for installation with sealing compound. If you prefer oil paper, you will find suitable sealing paper in the accessories, which you can cut to size yourself.
Details
| Thread type | M6x1 (standard thread) |
| Total length | 48 mm |
| Material | Aluminum |
| Hole spacing | 52 mm |
| Hole pattern [mm] | 37 x 55 |
| Width | 66 mm |
Suitable for the following models
| Puch | E50 |
