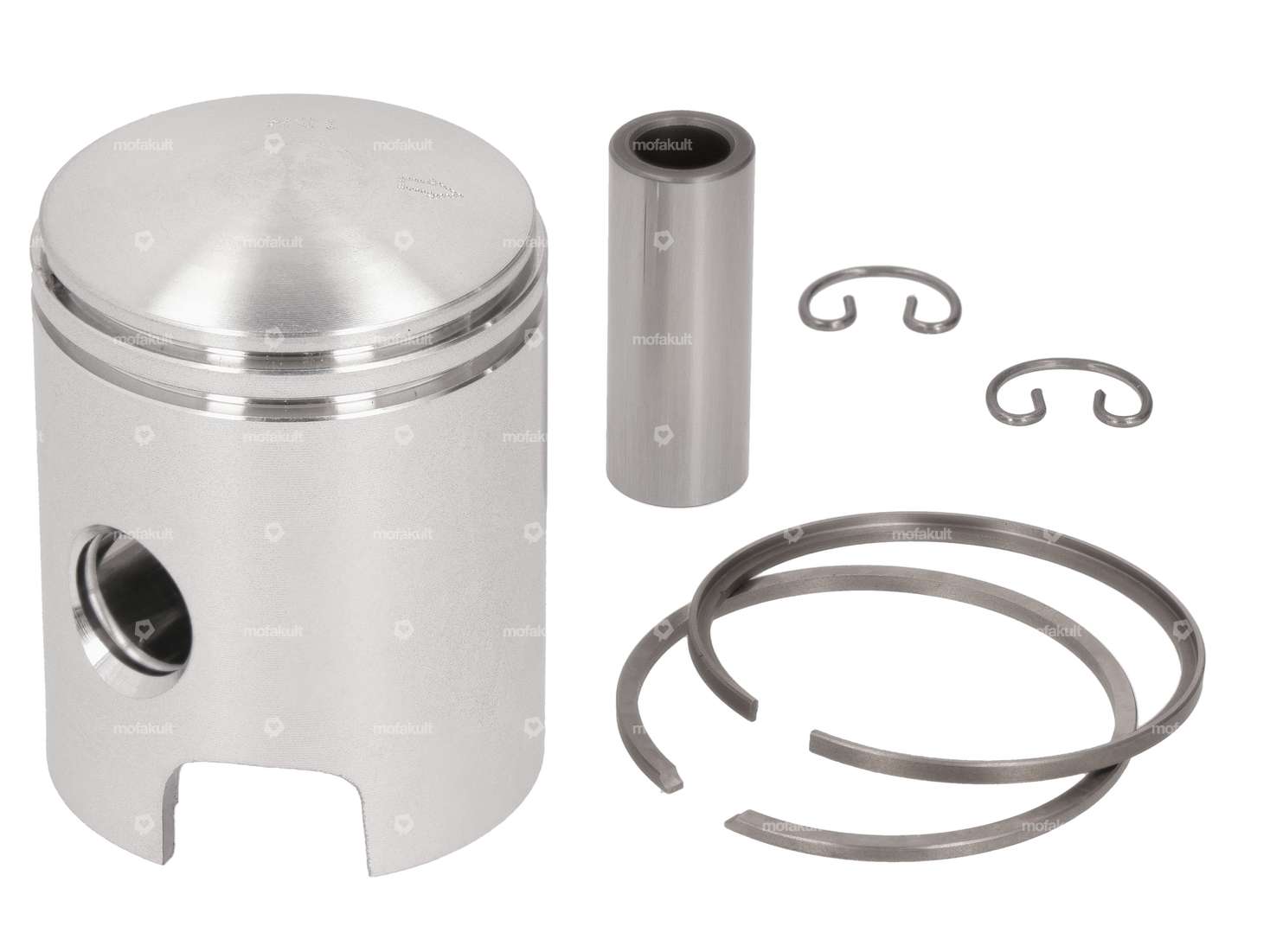

Piston kit with 1.5 mm rectangular piston rings with flank lock (FS) and 2 mm L-ring piston ring with internal lock (IS) for your Piaggio Ciao, Si, Bravo and Boxer moped / moped without catalytic converter.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 38.17 mm, 38.33 mm, 38.54 mm, 38.76 mm, 38.94 mm, 39.15 mm, 39.34 mm, 39.53 mm |
| Compression height (C) | 26.5 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm, 38.4 mm, 38.6 mm, 38.8 mm, 39 mm, 39.2 mm, 39.4 mm, 39.6 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
