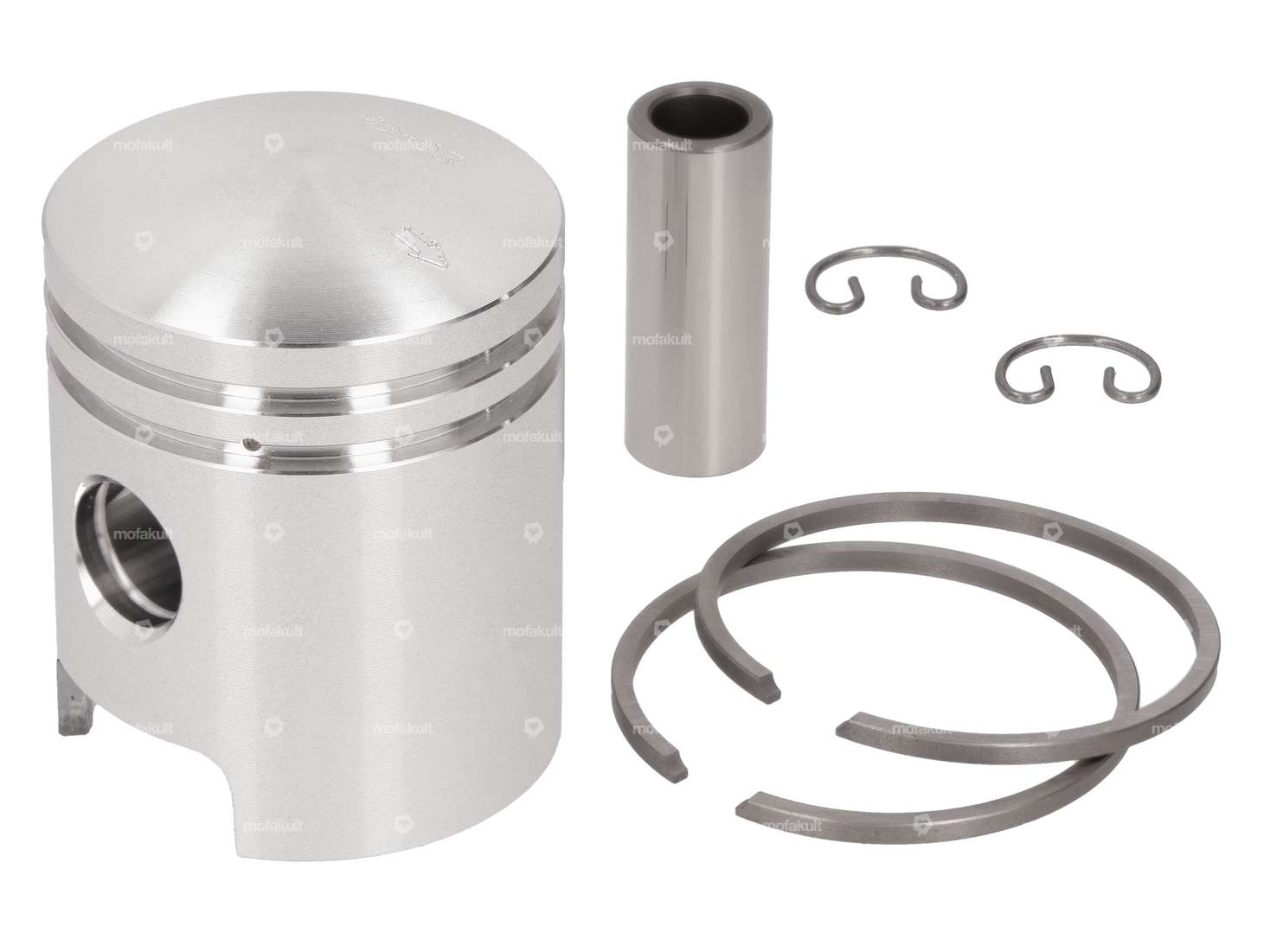

40 mm piston kit with two pieces of 2 mm rectangular piston ring with flank lock (FS) for your Tomos moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out more about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains pistons, piston pins, piston clips and piston rings.
You can find other piston kits and corresponding assembly tools in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 40 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Piston weight | 90 g |
Suitable for the following models
| Tomos |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Width across flats SW: 10 mm · Width across flats SW: 17 mm · Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Area of application: (Dis)assembly tool · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm
23,10 EUR
Airsal piston 38 mm (12 mm KoBo) | Tomos A35
Manufacturer: Airsal · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.85 mm · Total piston height (E): 52.35 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm
58,00 EUR
Not in stock
Airsal piston 44 mm (10 mm KoBo) | Tomos A35
Manufacturer: Airsal · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 10 mm · Compression height (C): 21.1 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 44 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 83 g
54,50 EUR
Airsal 44 mm piston (12 mm KoBo) | Tomos A55
Manufacturer: Airsal · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 62.65 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 44 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 92 g
54,50 EUR
GPO piston 44 mm (12 mm KoBo) | Tomos A3/A35
Manufacturer: GPO · Ø outside piston (A): 43.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 21.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 44 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm
44,10 EUR
Piston 45 mm (12 mm KoBo) | Tomos A3 / A35
Ø outside piston (A): 44.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22 mm · Curvature (D): 4 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 91 g
40,60 EUR
