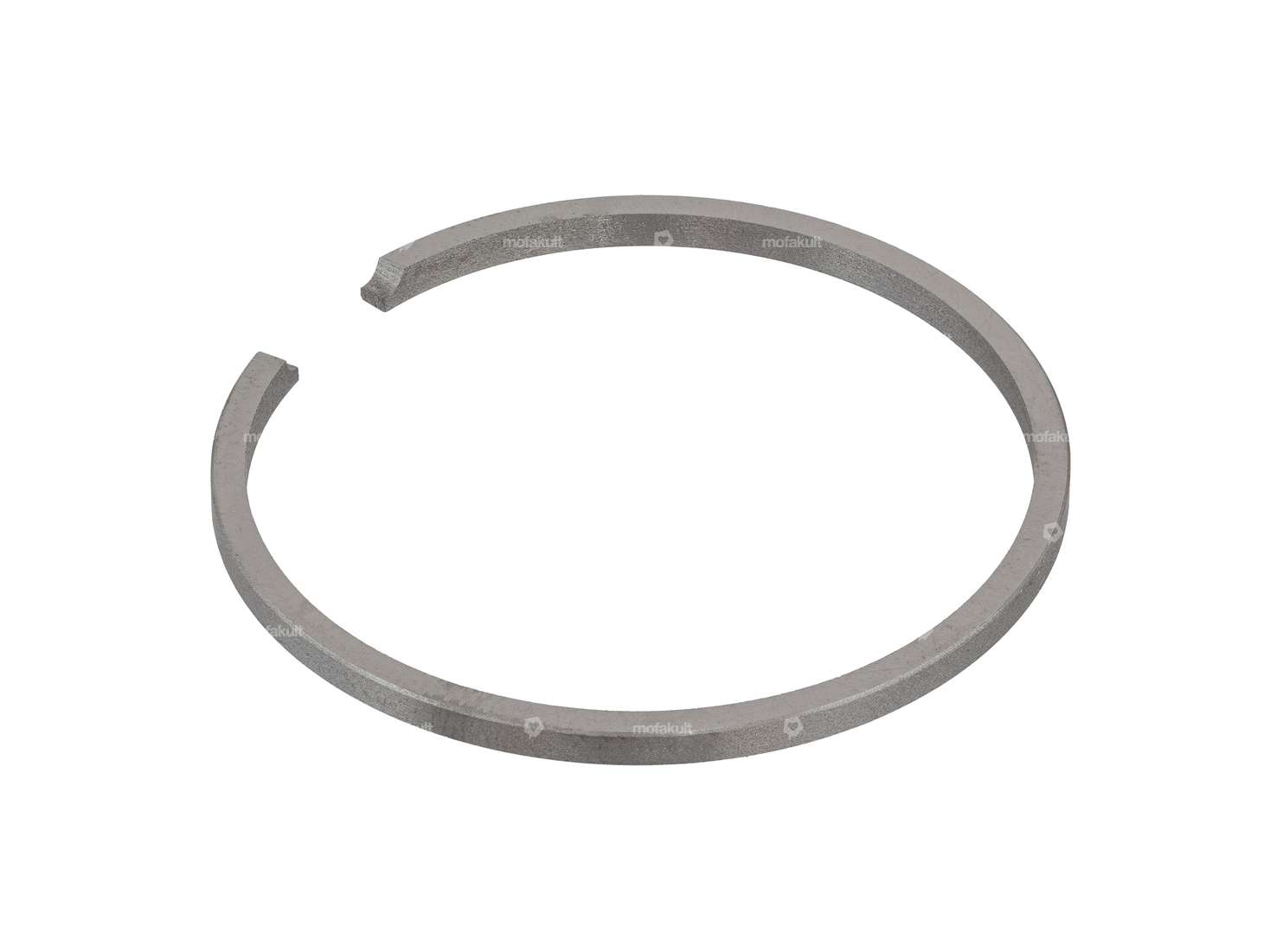

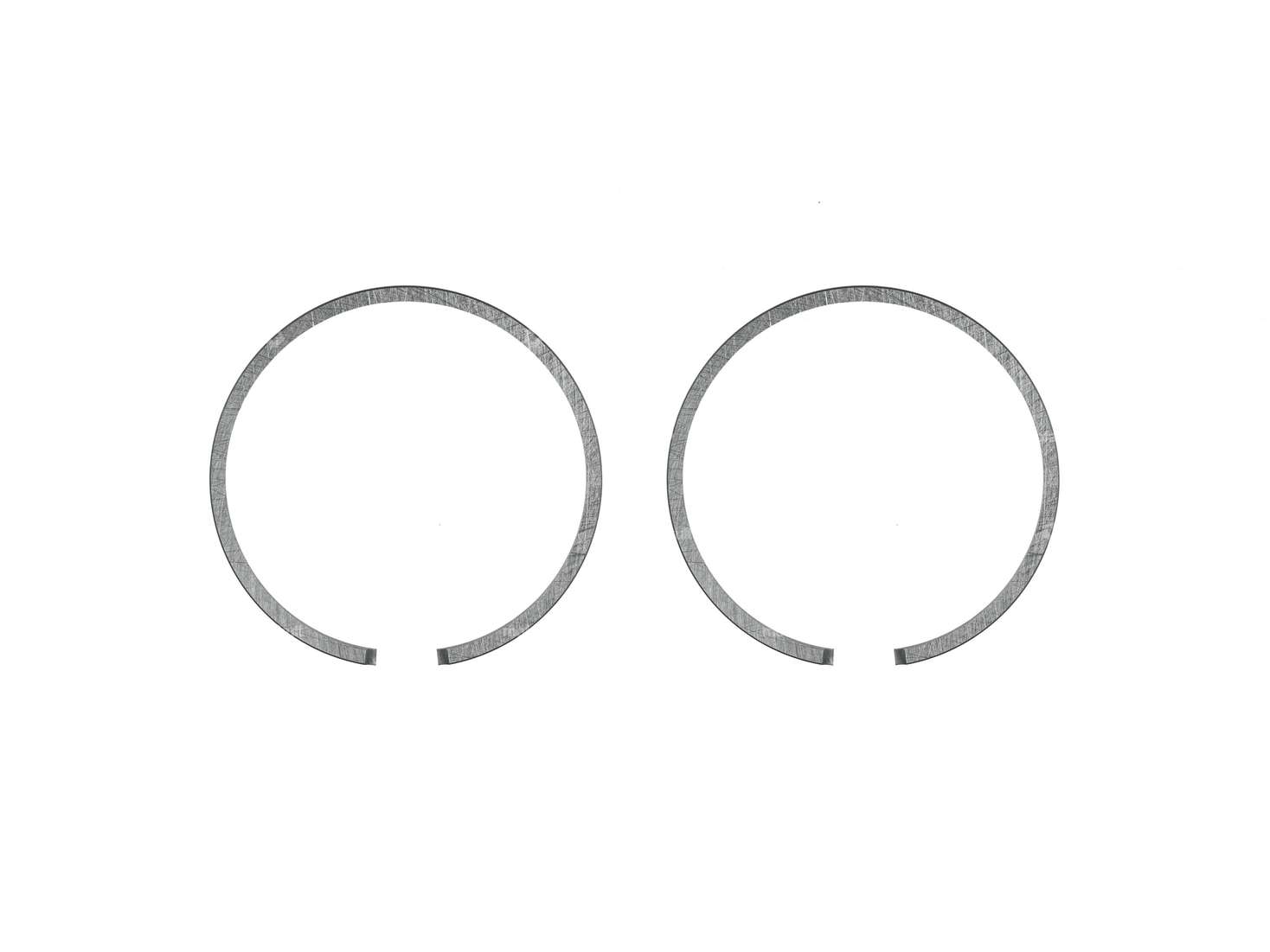

One set of compression rings consisting of two 38.5 x 2.0 mm rectangular rings, suitable for various Puch engines with Meteor pistons such as Puch X30 NG, Velux, etc.
Rectangular ring dimensions:
Diameter: 38.50 mm
Height: 2.00 mm
Thickness: 1.60 mm

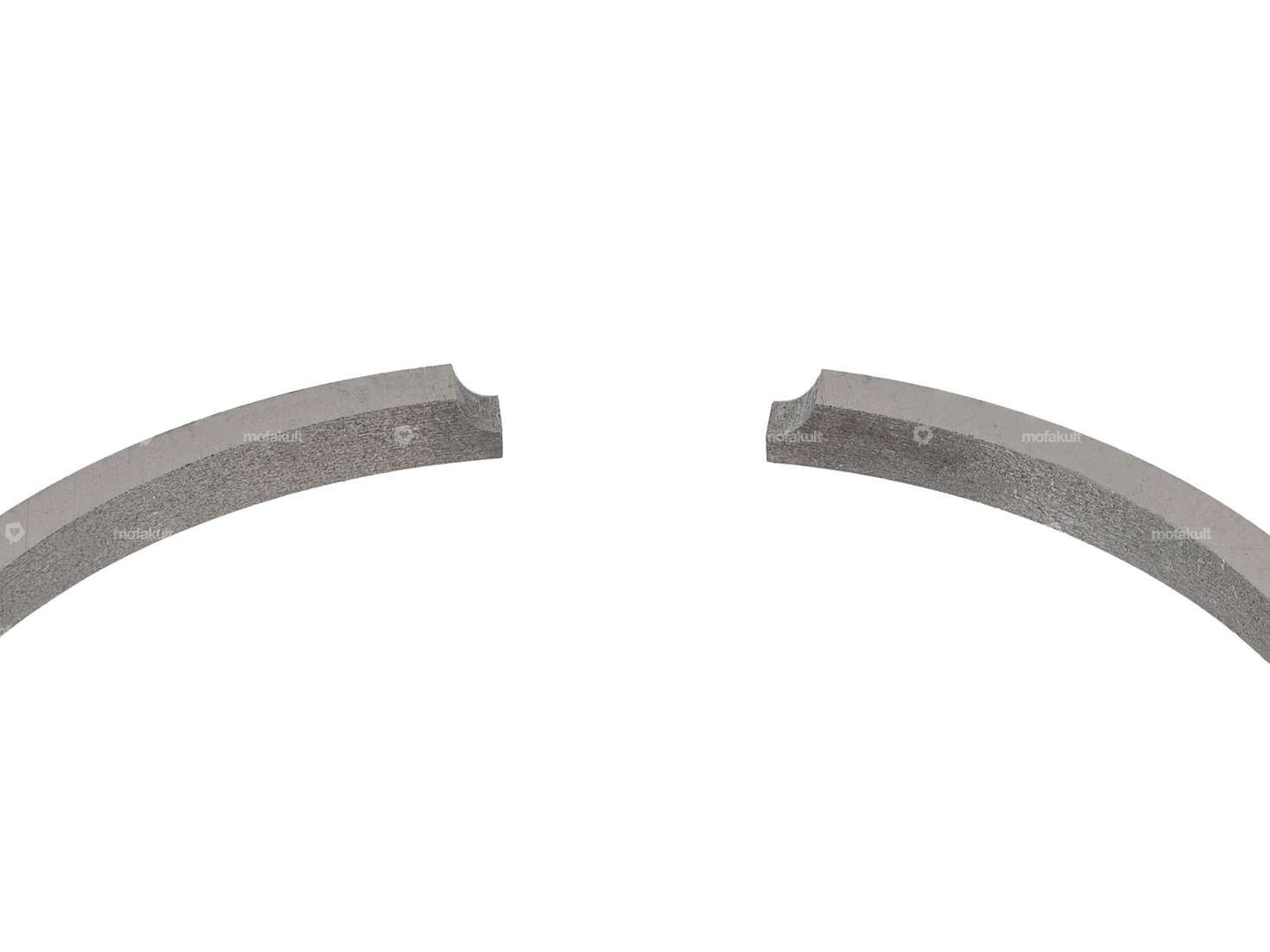

Piston ring joint: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found under accessories.
Original Puch spare part number: 320.1.10.060.3
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Details
| Manufacturer | Meteor |
| Height | 2 mm |
| Nominal diameter | 38.5 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Thick piston ring | 1.6 mm |
Suitable for the following models
| Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
