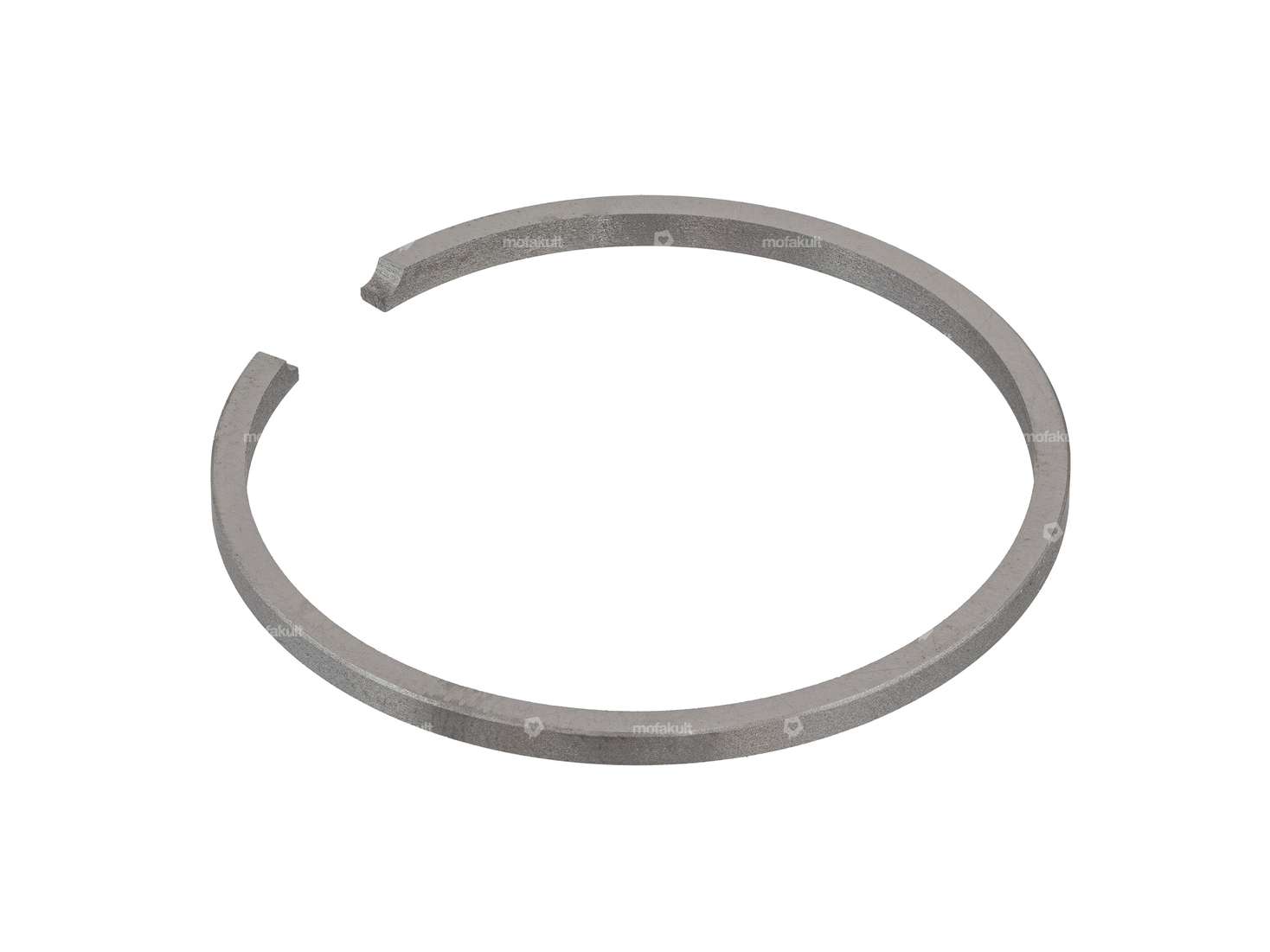

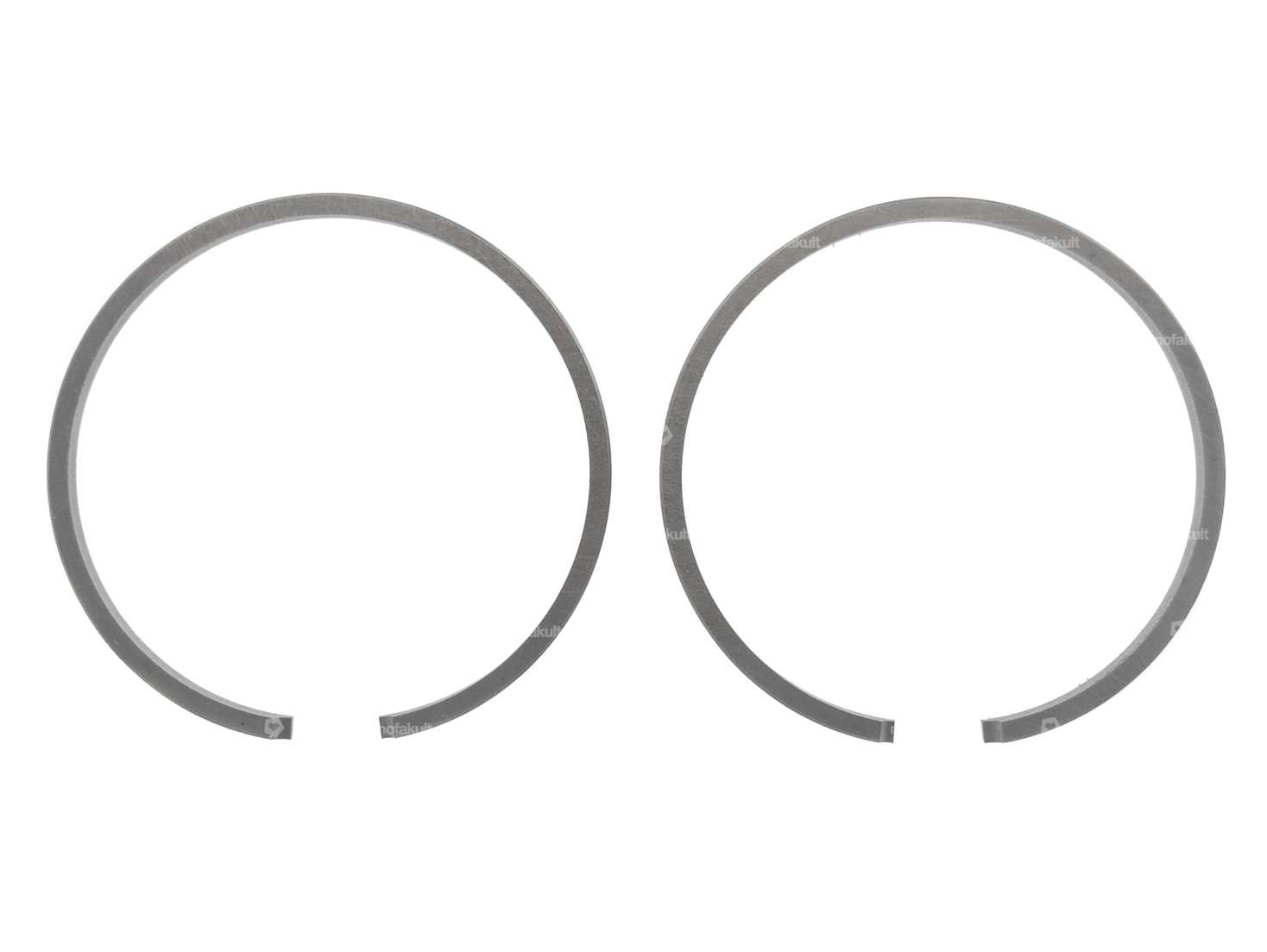

One set of compression rings consisting of two 38.9 x 2.0 mm rectangular rings, suitable for Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH.
Dimension rectangular ring:
Diameter: 38.90 mm
Height: 2.00 mm
Thickness: 1.60 mm

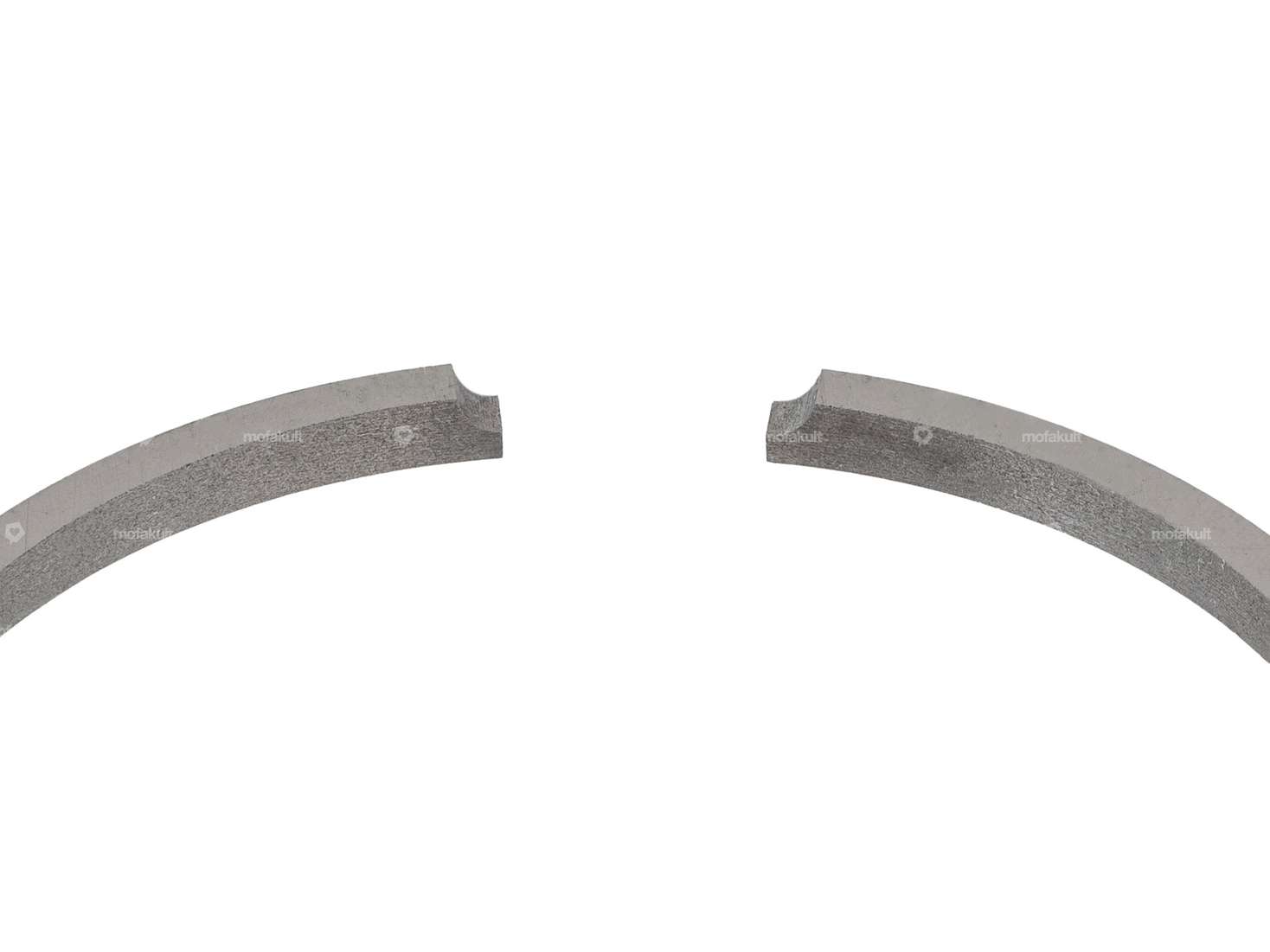

Piston ring joint: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found under accessories.
Original Sachs spare part number: A1094
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Details
Nominal diameter | 38.9 mm |
Manufacturer | Meteor |
Height | 2 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Thick piston ring | 1.6 mm |
Pony spare part no. | A1094 |
Sachs spare part no. | 0215 010 002 |
Suitable for the following models
Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL |
