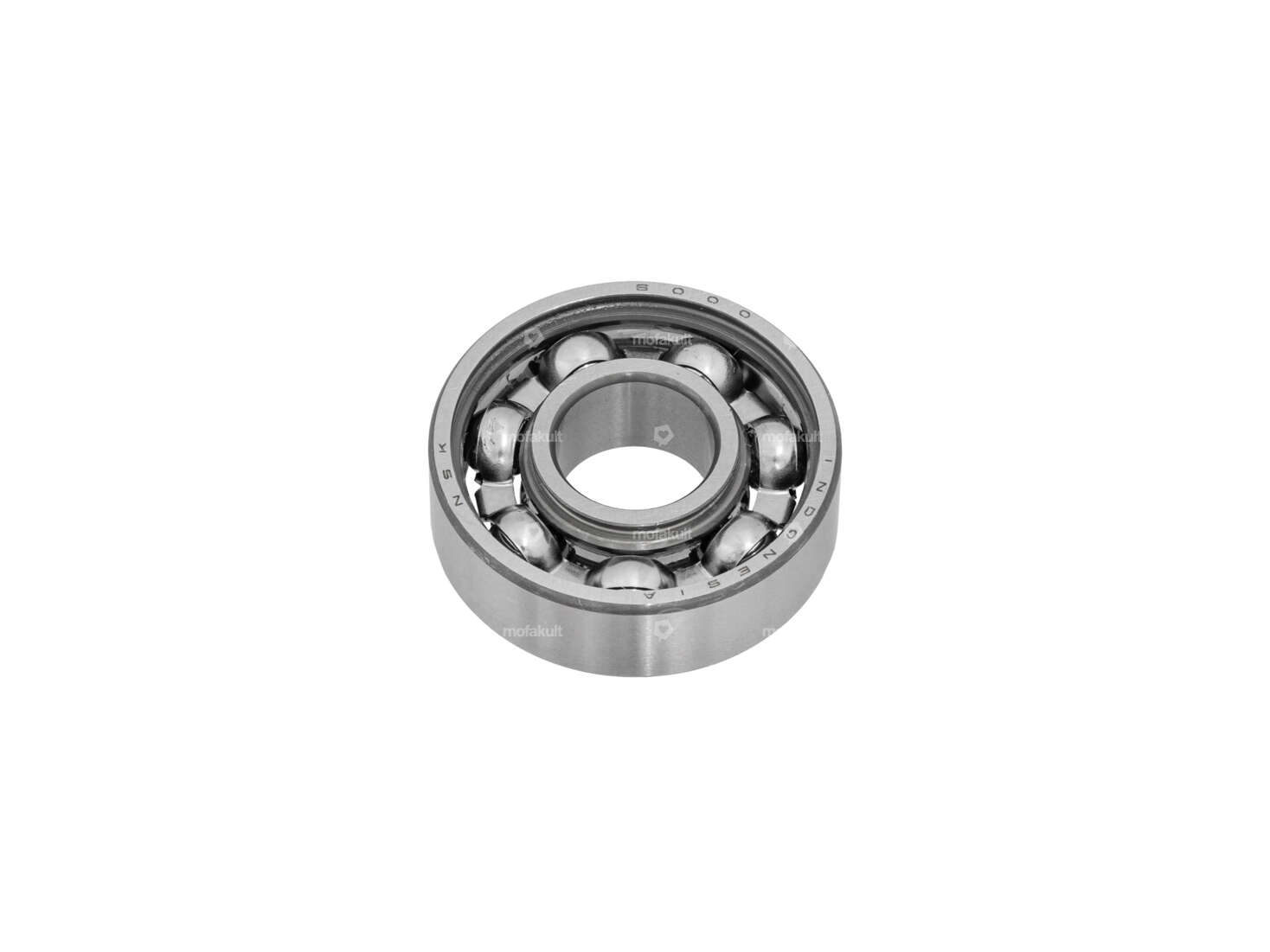

NSK 6000 ball bearing 10/26/8

swiing® ingenious bearing press-on plunger Ø 26 mm

Manufacturer: swiing® ingenious parts · Area of application: Special tool · Material: Aluminum · Surface: anodized · Number of components: 2 pcs · Total length: 52.5 mm · Ø inside: 10 mm · Ø outside: 26 mm · Ø Pin: 10 mm

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Width: 7 mm · Ø inside: 17 mm · Ø outside: 33 mm · Material: NBR · Place of use: Crankshaft

NSK 6201 ball bearing 12/32/10

Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: No

Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Temperature resistance (min.): -30 - 100 °C · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Ø inside: 14.96 mm · Width: 3.5 mm · Ø outside: 31.5 mm · Place of use: Pinion shaft · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200

swiing® revival clamp body reinforced | Sachs 503 AB, AC, ADV, ABL (A1196)

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Ø inside: 19 mm · Number of teeth: 24 pcs · Ø outside: 26.8 mm · Height: 10.9 mm · Pony spare part no.: A1196 · Sachs spare part no.: 0232 186 100

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)

Manufacturer: Jasil · Weight: 964 g · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Connecting rod length center-center: 86 mm · Total length of crankpin on clutch side: 97 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø piston pin (B): 12 mm · Thread length: 7 mm · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Standard · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Number of gears: 2 pcs

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Width: 11 mm · Puch spare part no.: 900.4.6202

NTN needle roller bearing 8/12/10 | Sachs 50/2, 503 (A1176)

Bearing type: Needle sleeve · Stock number: HK0810 · Ø inside: 8 mm · Dimension needle bearing: 8/12 x 10 · Ø outside: 12 mm · Width: 10 mm · Manufacturer: NTN · Pony spare part no.: A1176 · Sachs spare part no.: 0232 137 000

swiing® revival gasket set | Sachs 503 ADV wide wall Cat.

Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Number of components: 15 pcs · Hole spacing inlet: 38 mm · Ø outlet inside: 23.3 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No · Area of application: Standard

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard
