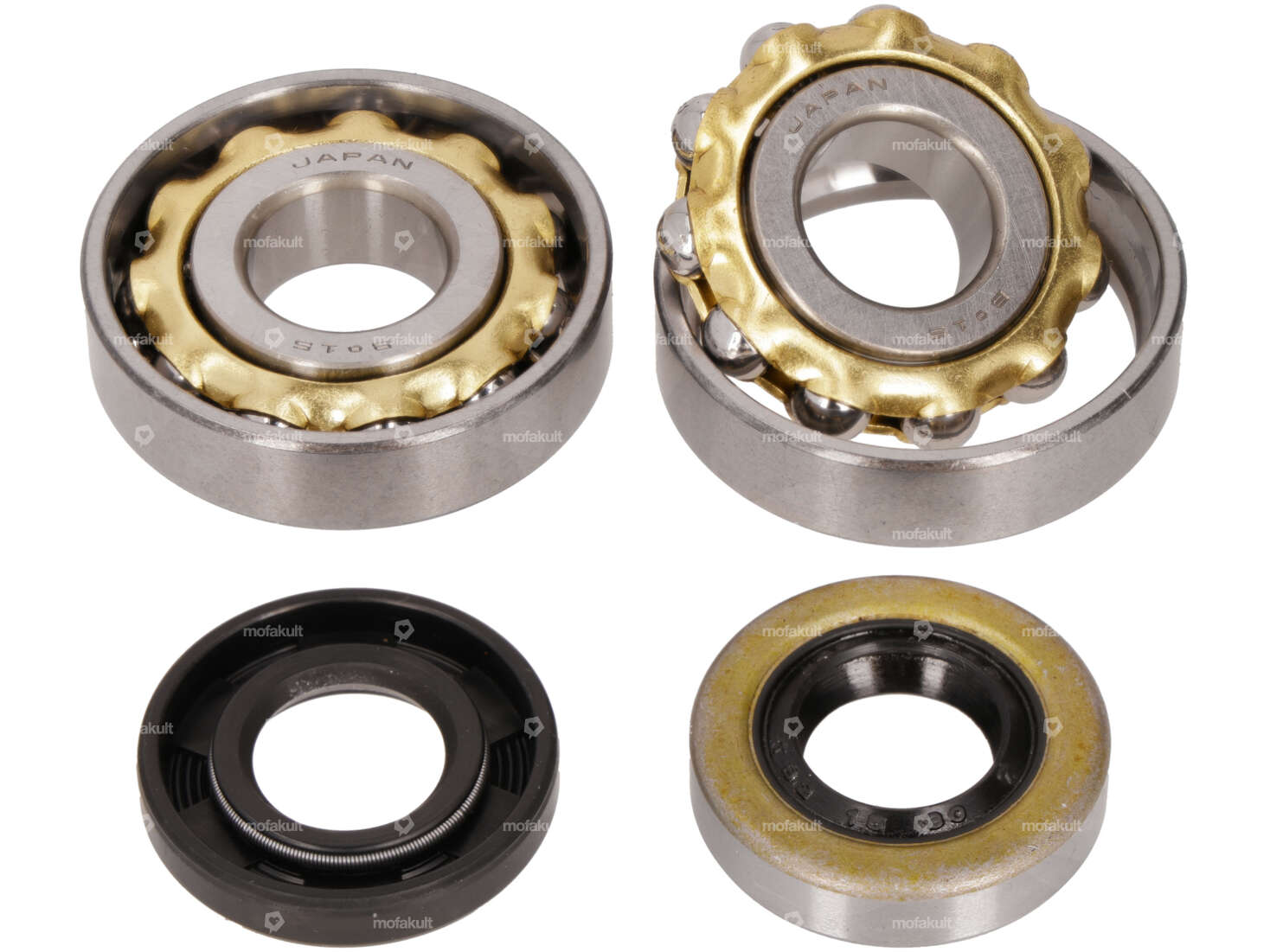

Bearing set incl. oil seals for overhauling Sachs 503 2AL/BL engines
The set contains the following components:
Guaranteed high-quality materials
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Quality product from the Japanese manufacturer NSK.
The set includes the following fixed parts:
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
Details
Manufacturer | NSK |
Area of application | Standard |
Suitable for the following models
Sachs | 503 - ABL |
