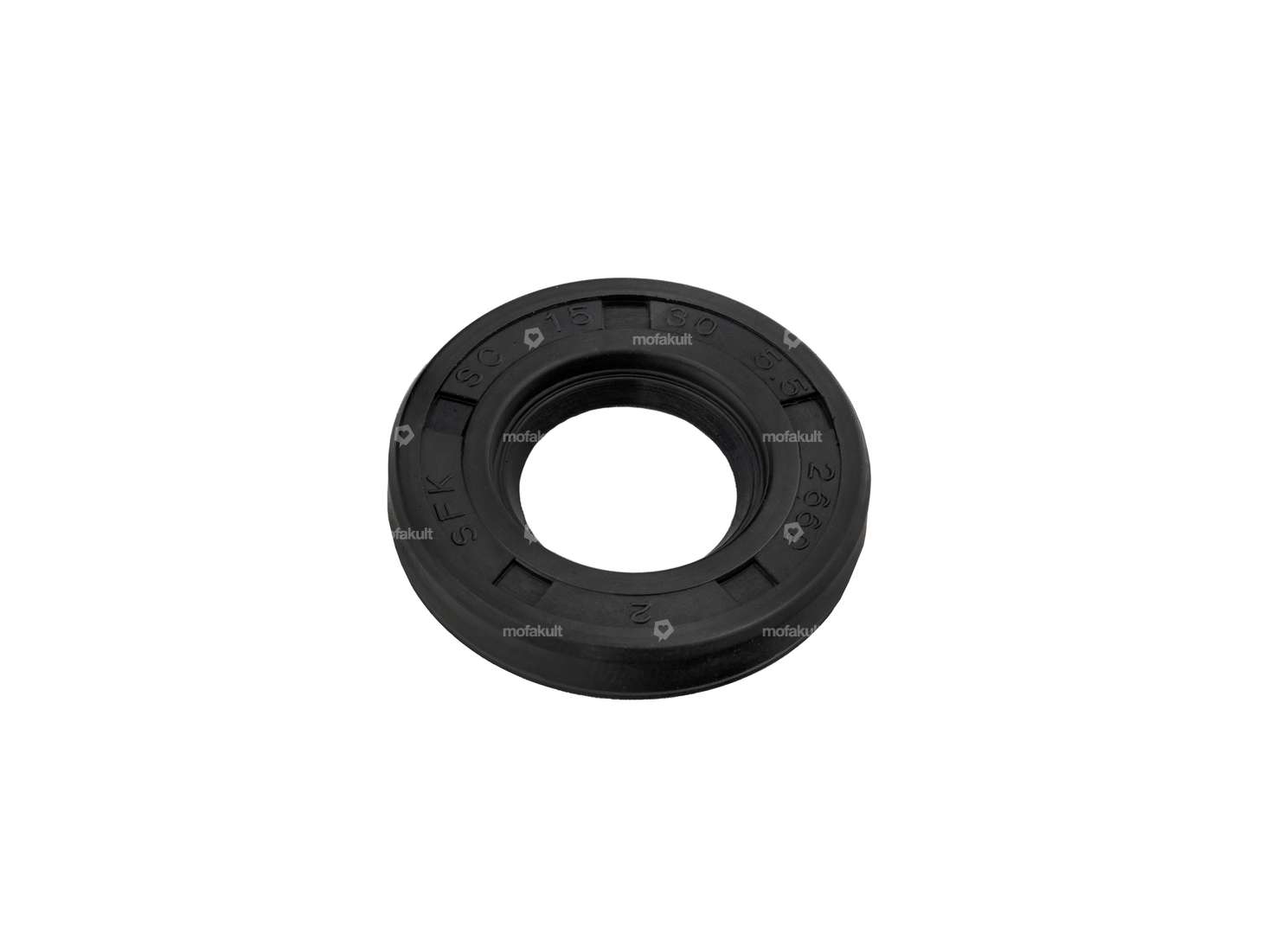

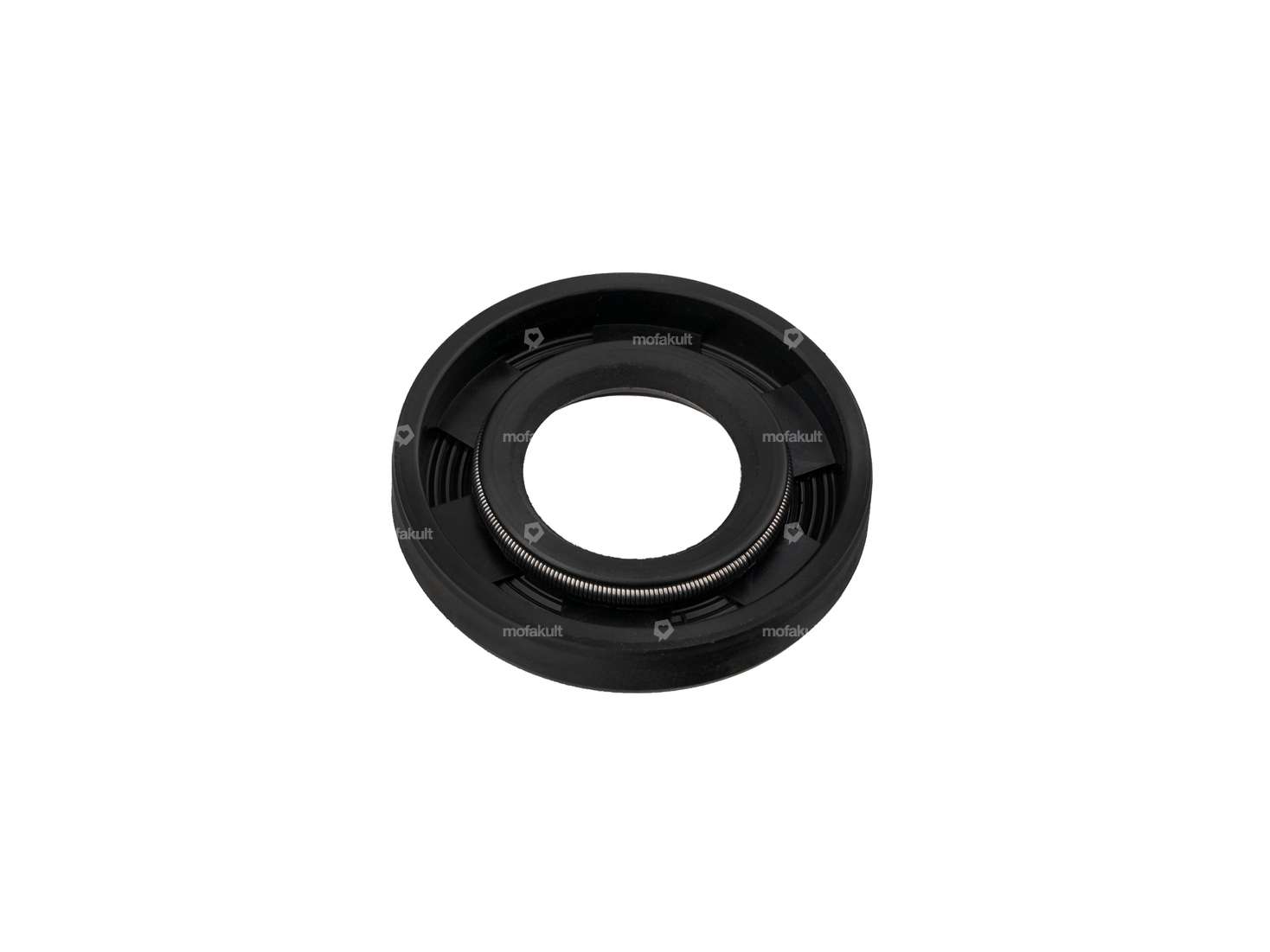

Shaft seal ring 15x30x5.5 mm for use on the crankshaft of your Sachs moped / moped.
This radial shaft seal ring is fitted to the crankshaft of Sachs 504, 535 and 503 ABL/AB as well as 504/1 main shafts.
Ø inner: 15 mm
Ø outer: 30 mm
Width: 5.5 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
Original Sachs spare part number: A4215 & A5602
Details
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Sachs |
| Temperature resistance (min.) | -30 - 100 °C |
| Material | NBR |
| Surface | rubberized |
| Ø outside | 30 mm |
| Ø inside | 15 mm |
| Width | 5.5 mm |
| Place of use | Crankshaft |
| Pony spare part no. | A5602 |
| Sachs spare part no. | 0230 111 100 |
Suitable for the following models
| Sachs | 503 - ABL 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
