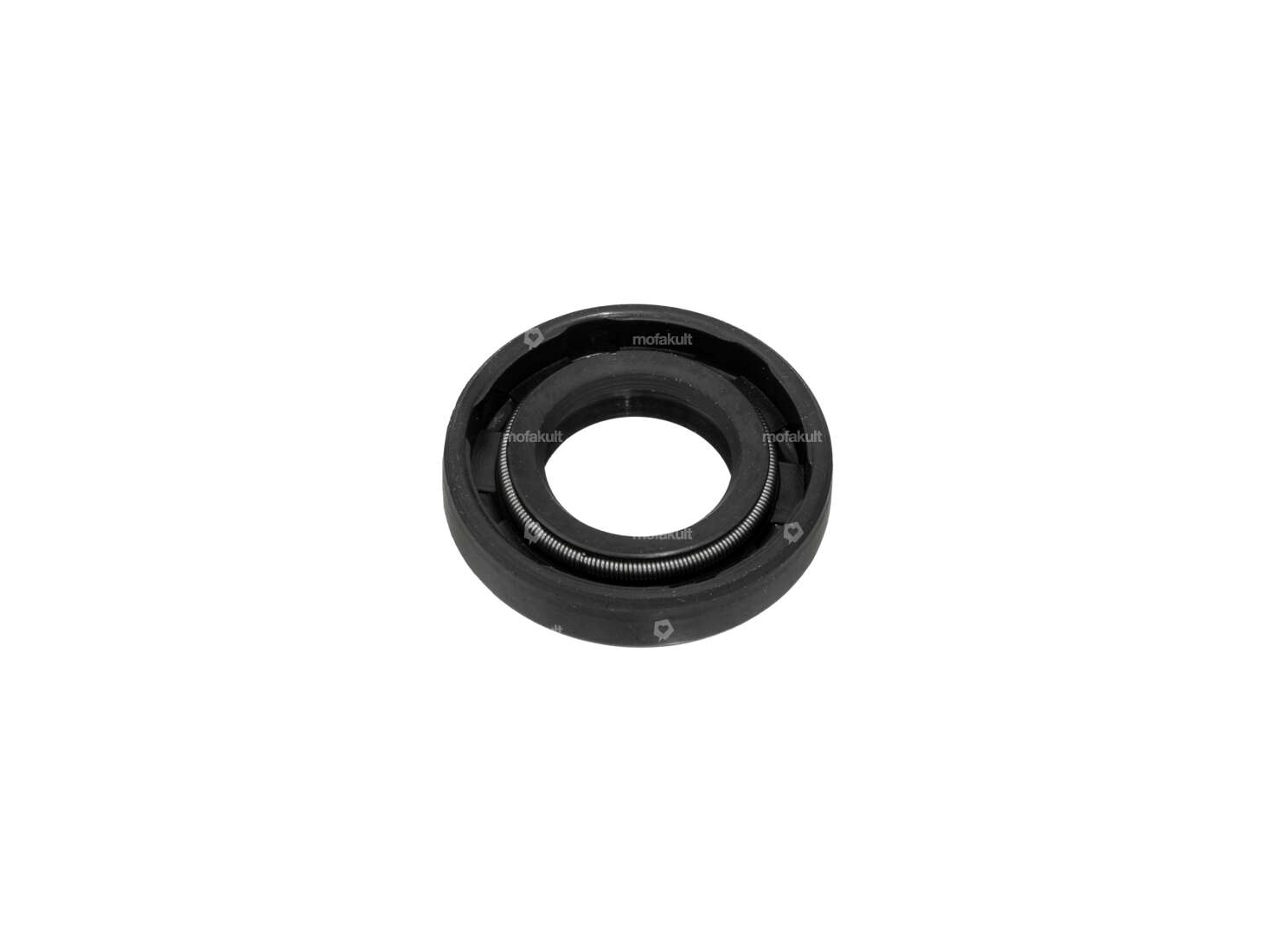

Shaft seal ring for the 13 mm pinion shaft of mopeds / mopeds with Sachs 50 engines
This radial shaft seal ring fits the old version, with 13.0 mm shaft seal ring or felt ring on the main shaft, these pinion shafts also have Ø 8 x 4 mm roller bearings installed.
Ø inner: 13 mm
Ø outer: 25 mm
Width: 5 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: AS - with rubberized outer casing, one sealing lip and one dust lip
The set includes the following fixed parts:
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Width | 5 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Manufacturer | Sachs |
| Material | NBR |
| Surface | rubberized |
| Place of use | Pinion shaft |
| Ø outside | 25 mm |
| Ø inside | 13 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) |
