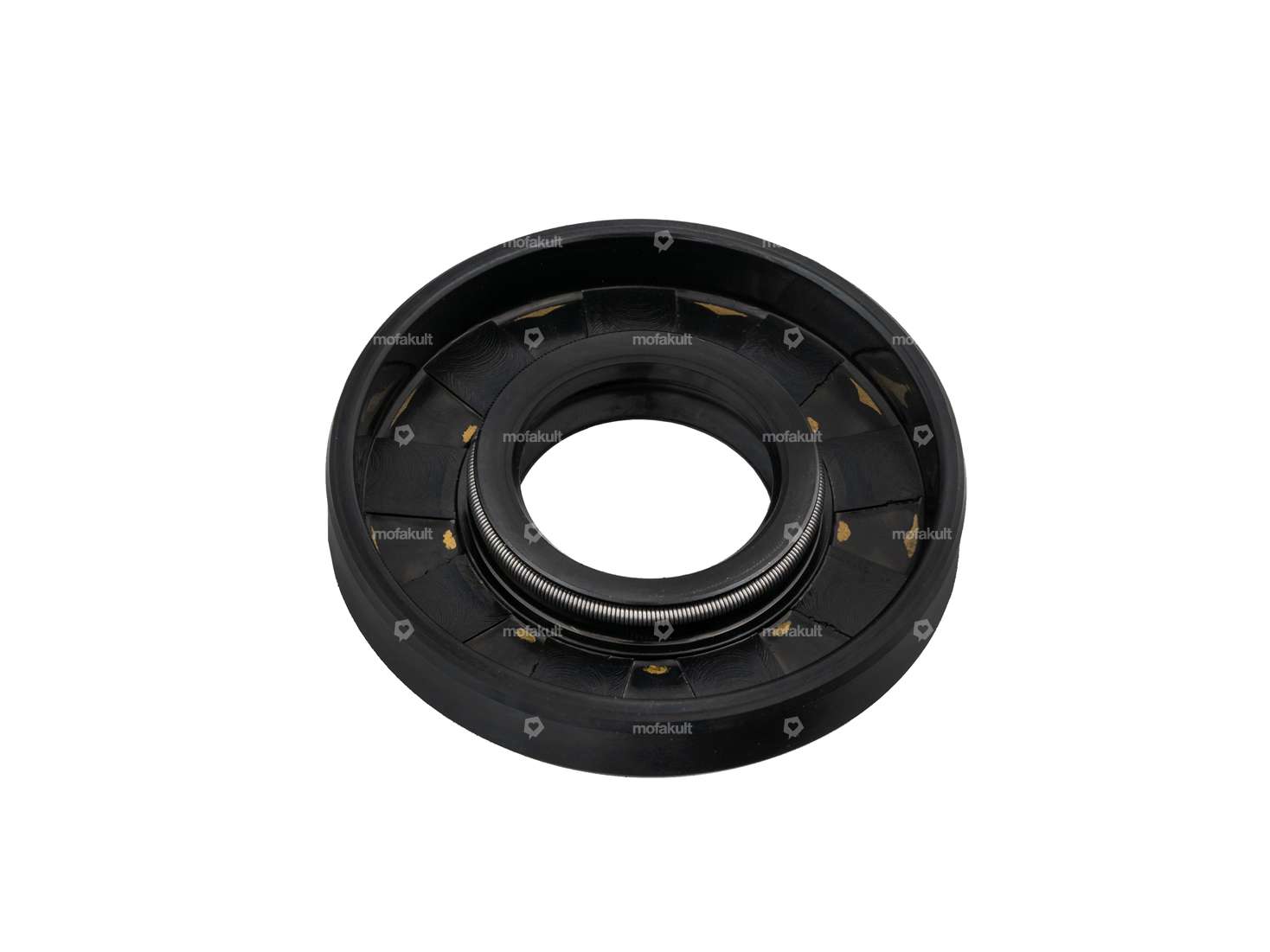

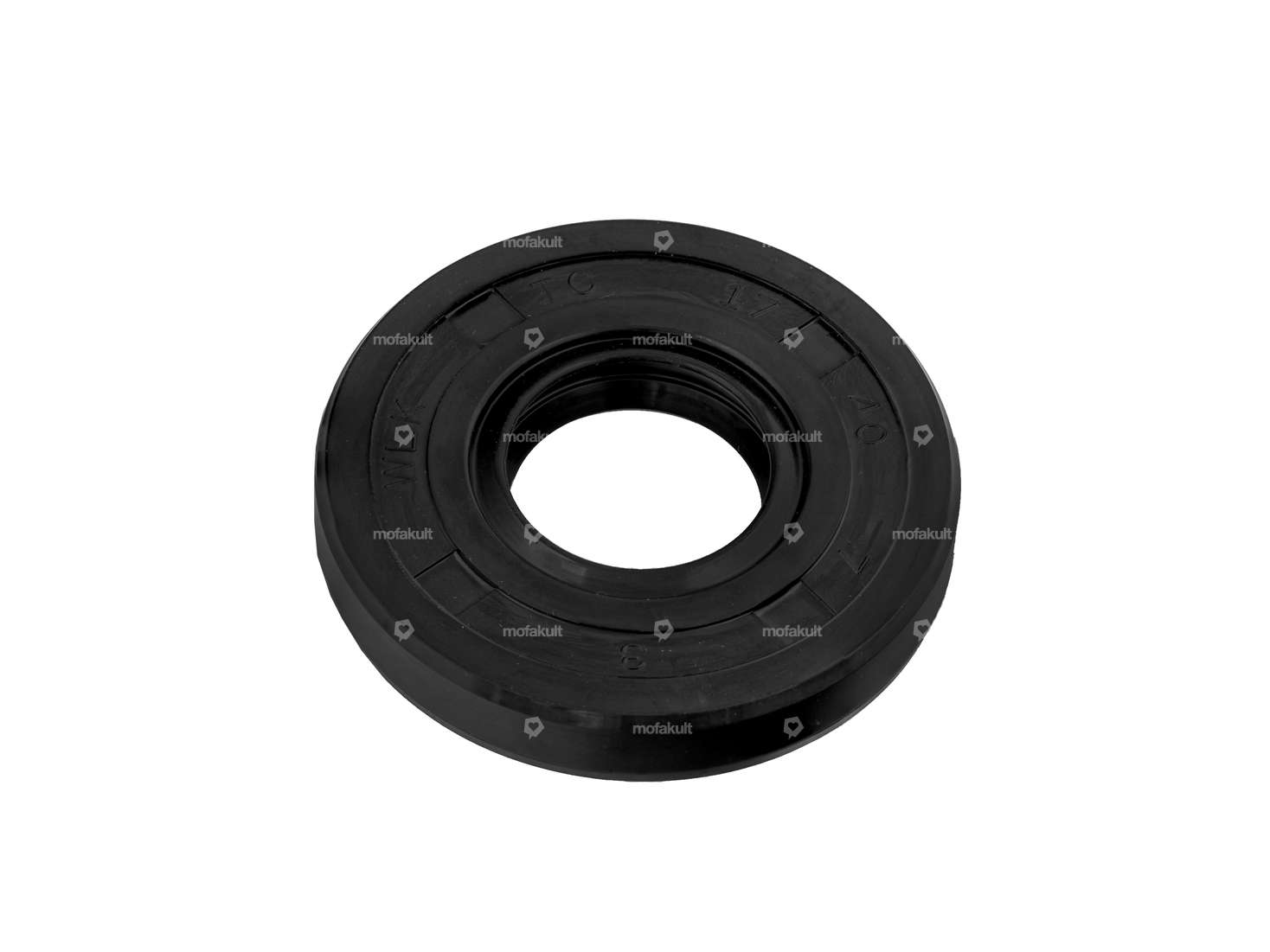

Oil seal NBR 17/40/7 AS | Puch E50

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Area of application: Chemistry · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Buzzetti bearing & oil seal assembly tool 40 - 65 mm

Manufacturer: Buzzetti · Area of application: Special tool · Total length: 140 mm

Oil seal FPM 17/40/7 A VITON | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

swiing® revival engine overhaul kit small | Puch E50

Manufacturer: Motorex · Manufacturer: swiing® revival parts · Number of components: 42 pcs · Area of application: Standard

Engine overhaul kit large | Puch E50

Manufacturer: GPO · Manufacturer: Motorex · Manufacturer: NGK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard

Oil seal FPM 17/40/7 DUO VITON | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Area of application: Standard · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

swiing® ingenious crankshaft oil seal assembly aid (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Special tool

swiing mounting aid radial shaft seal gear | Puch E50

Manufacturer: swiing · Material: Aluminum · Surface: anodized · Area of application: Special tool · Ø inside: 16.5 mm · Ø outside: 17 mm · Number of components: 1 pcs

swiing® ingenious engine revision set Racing C3 / Viton (new model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Racing · Number of components: 7 pcs

swiing® ingenious engine revision set Racing C3 / Viton (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Racing · Number of components: 7 pcs

swiing® revival plain bearing clutch basket | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

Oil seal NBR 22/40/7 AS crankshaft | E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 17 mm · Height: 8 mm

NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Material: Steel · Surface: blank · Area of application: Standard · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Ø outside: 44 mm · Ball bearing closed: No · Width: 12 mm

NTN 6203 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Ball bearing closed: No

15 mm circlip clutch basket E50 engine

Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Place of use: Clutch · Ø inside: 13.8 mm · Nominal diameter: 15 mm · Ø outside: 17 mm · Thickness: 0.95 mm

17 mm circlip E50 & ZA50 motor

Nominal diameter: 17 mm · Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Surface: gas nitrided · Place of use: Clutch · Ø inside: 15.6 mm · Thickness: 0.9 mm · Ø outside: 19.2 mm

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 0.5 mm · Number of components: 1 pcs · Number of fixing points: 4 pcs · Color: sand-colored · Alternative version of the Puch spare part no.: 349.1.10.349.1
