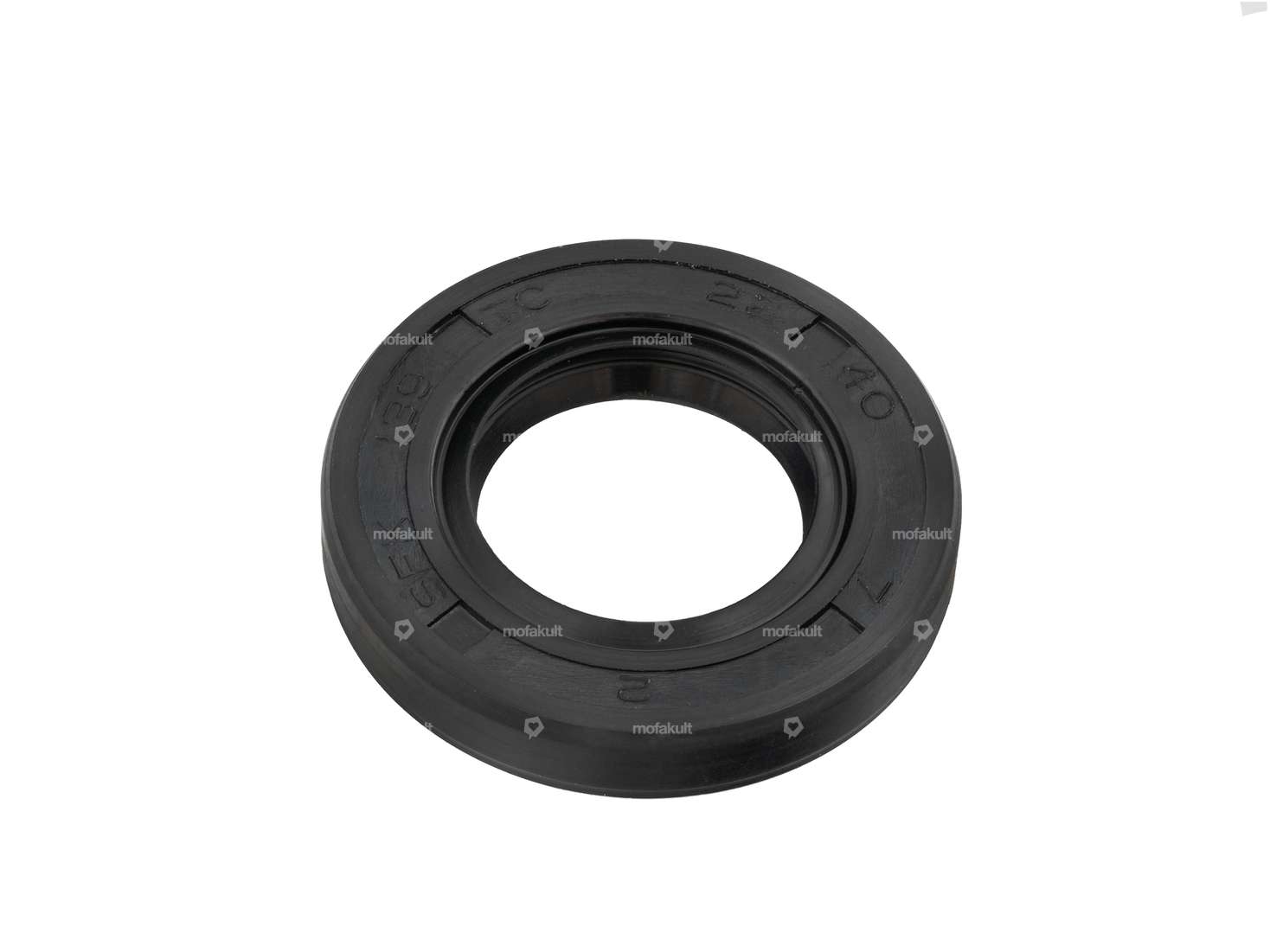

Shaft seal 22x40x7 mm for use on the crankshaft of your moped / moped with E50 engine.
Fits Puch Maxi S / N, as well as Puch Supermaxi mopeds.
This radial shaft seal is fitted to the crankshaft on the clutch side (only on the old model with a larger seat).
Ø inner: 22 mm
Ø outer: 40 mm
Width: 7 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer casing and a sealing lip & dust lip.
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Puch |
| Temperature resistance (min.) | -30 - 100 °C |
| Material | NBR |
| Surface | rubberized |
| Ø outside | 40 mm |
| Ø inside | 22 mm |
| Width | 7 mm |
| Place of use | Crankshaft |
Suitable for the following models
| Puch | E50 |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Contents [ml]: 10 ml · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
24,50 EUR
2.450,00 EUR/l
Loctite 638 High-strength adhesive 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
24,50 EUR
2.450,00 EUR/l

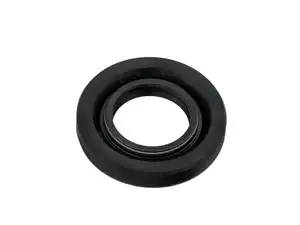

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Width: 7 mm · Ø outside: 40 mm · Temperature resistance (min.): -30 - 100 °C
6,60 EUR
Oil seal FPM 22/40/7 A DUO VITON crankshaft | Puch E50
Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Width: 7 mm · Ø outside: 40 mm · Place of use: Crankshaft · Ø inside: 22 mm
13,30 EUR

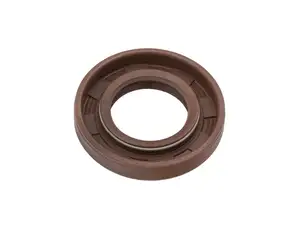

Oil seal FPM 22/40/7 AS VITON crankshaft | Puch E50
