43 mm tuning cast cylinder with 63 cc and 12 mm KoBo suitable for your Piaggio Ciao, Bravo, Boxer moped / moped.
All necessary parts are included in the scope of delivery, including the matching cylinder head for installation.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. The cylinder should therefore be cleaned with compressed air or brake cleaner before installation. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.

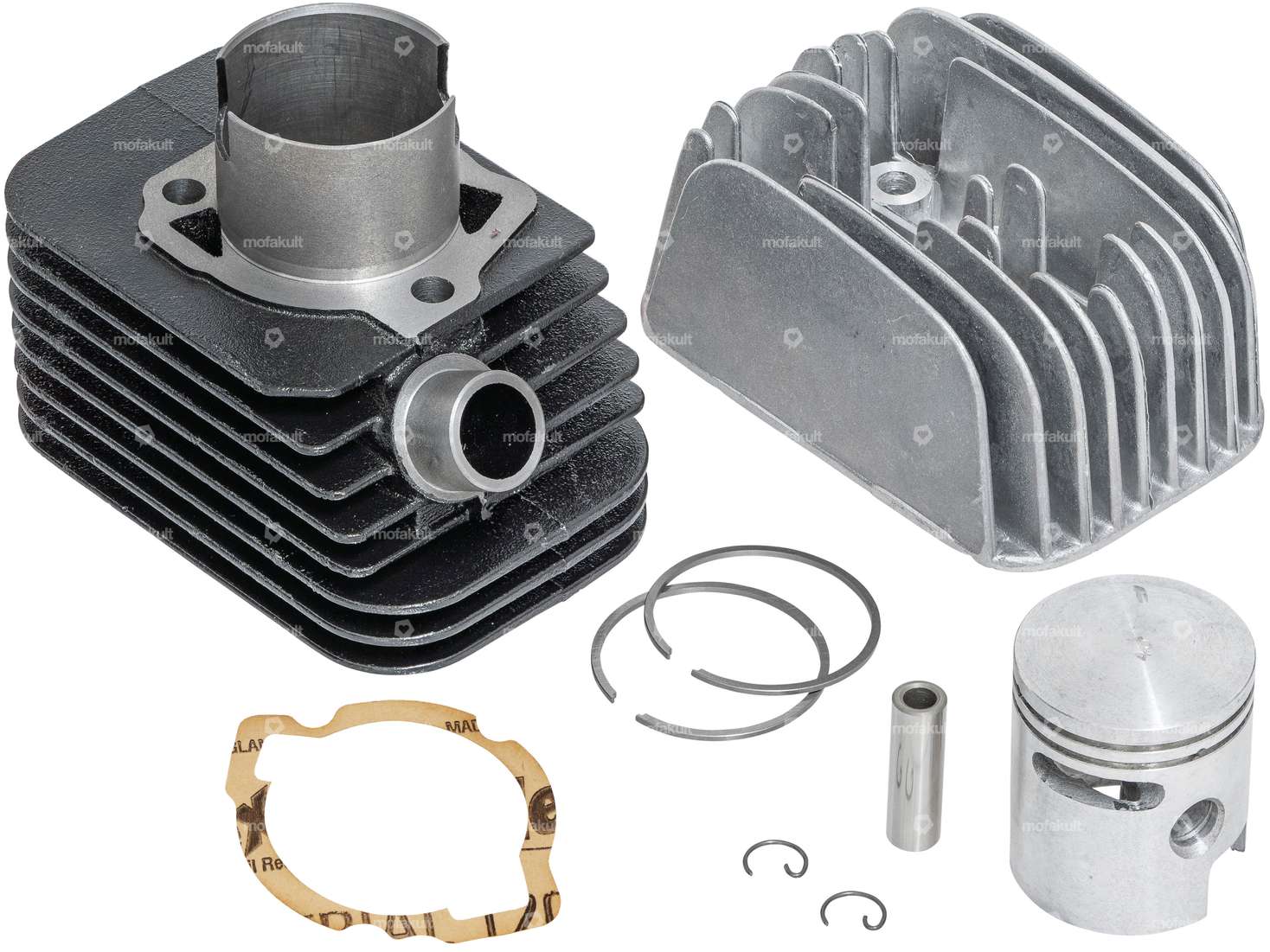

The set includes the following fixed parts:

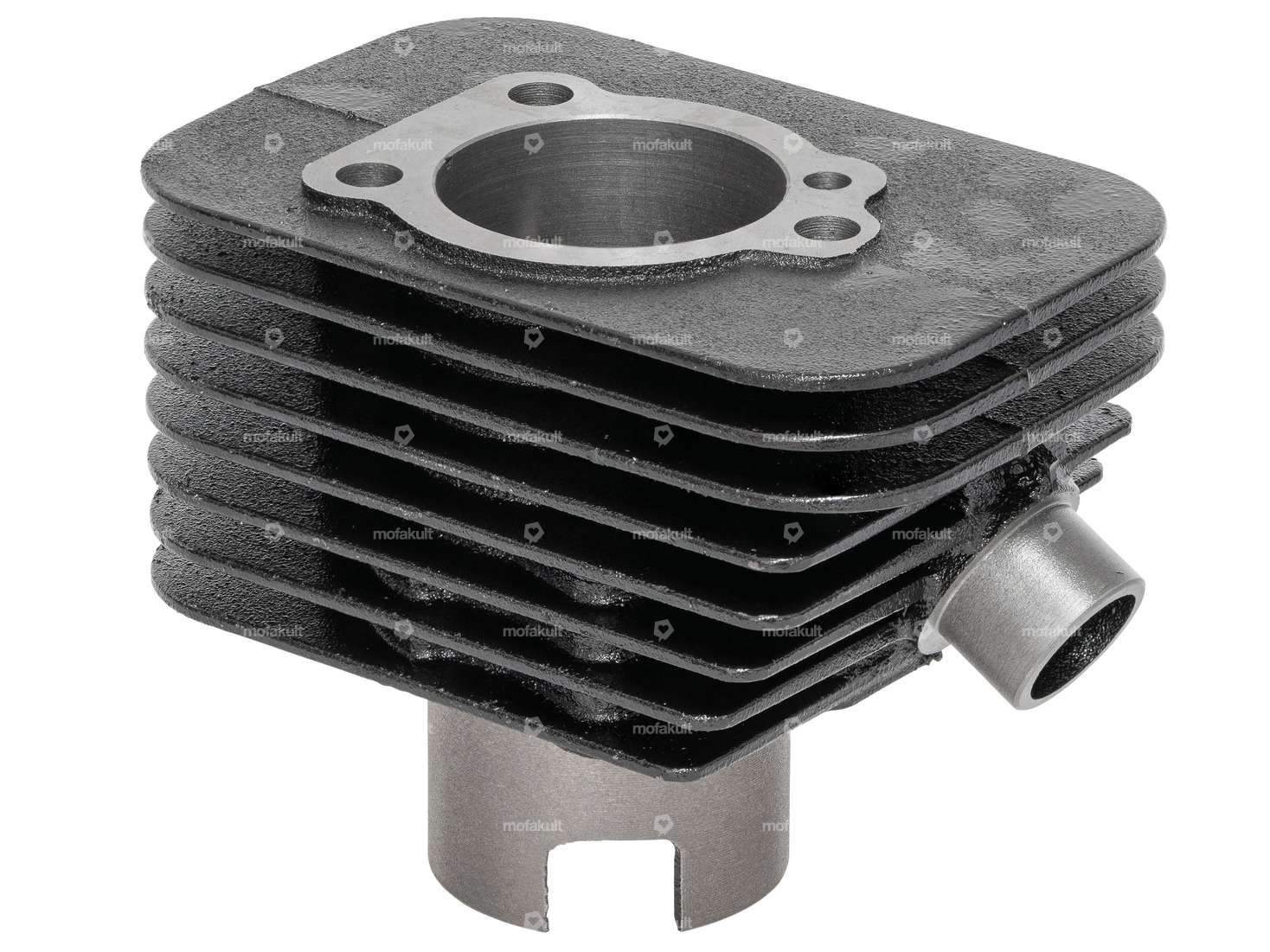

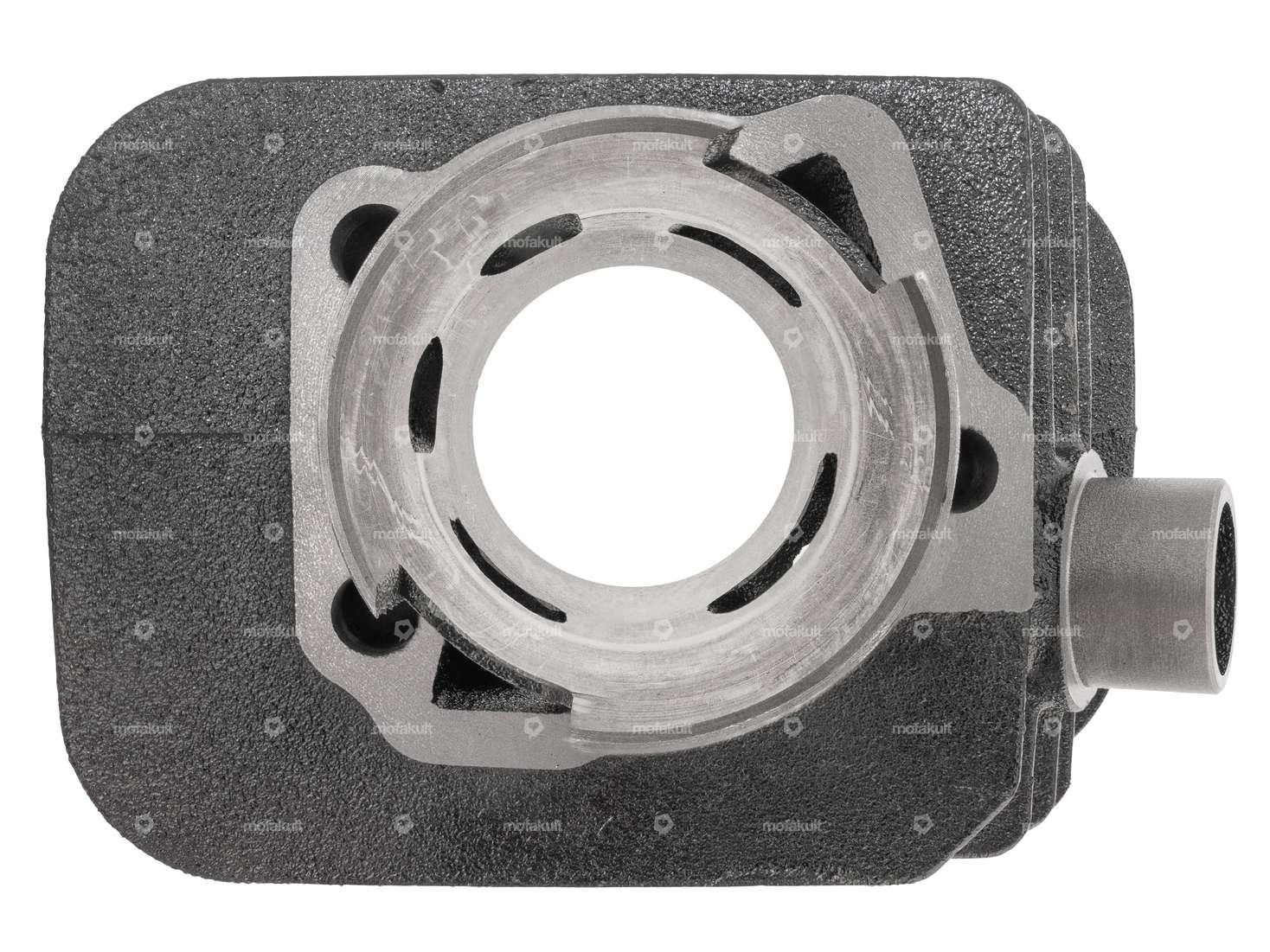

Manufacturer: Olympia · Material: Gray cast iron · Surface: varnished · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

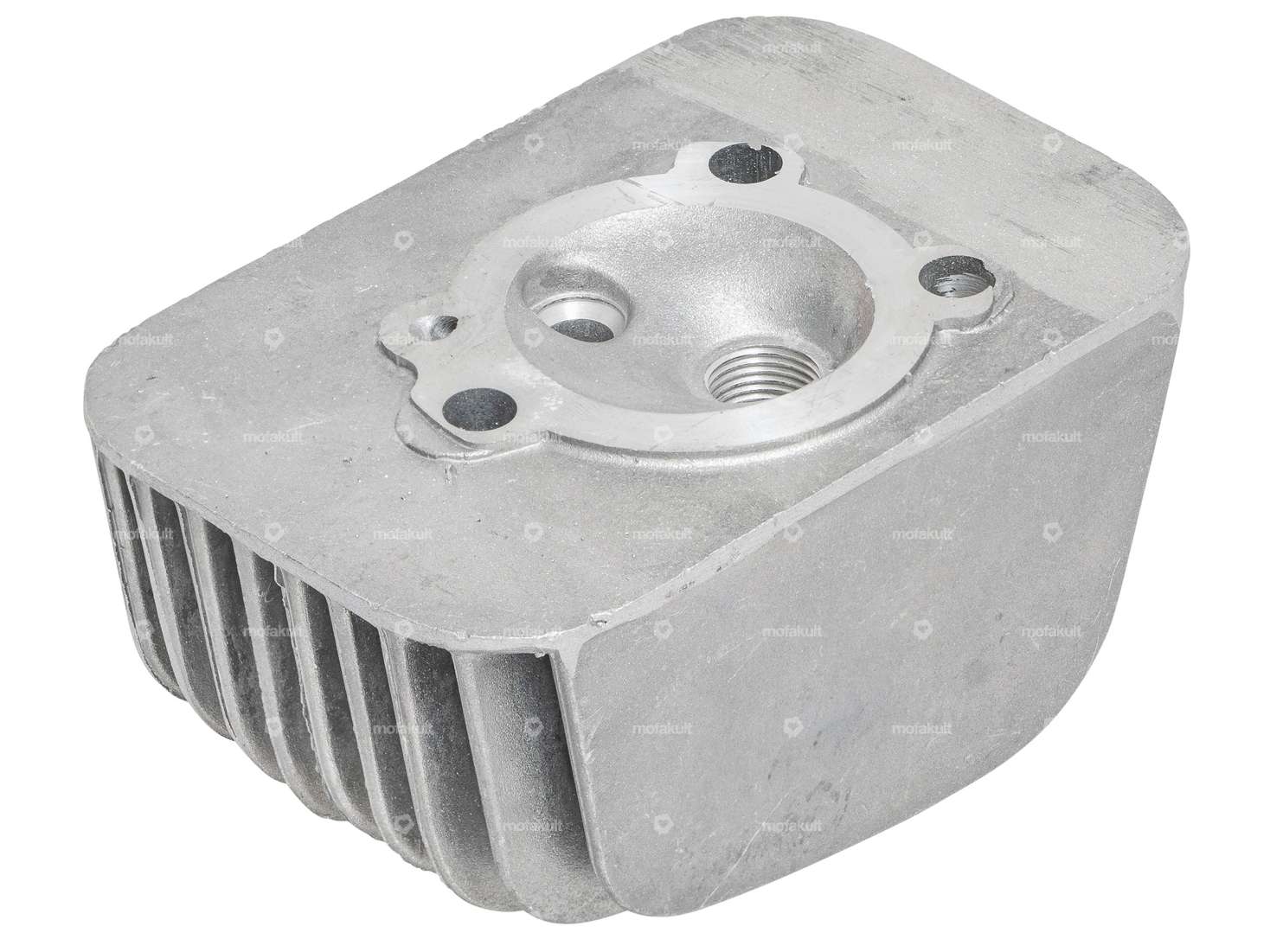

Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing, Tuning · Material: Aluminum · Number of fixing points: 3 pcs · Candle thread: short · Total length: 120 mm · Width: 78 mm · Height: 60 mm
Details
Nominal diameter | 43 mm |
Manufacturer | Olympia |
Area of application | Tuning |
Material | Gray cast iron |
Surface | varnished |
Displacement | 63 ccm |
Crankshaft stroke | 43 mm |
Ø cylinder neck | 46 mm |
Ø Outlet outside | 22.3 mm |
Ø piston pin (B) | 12 mm |
Outlet type | clamped |
Number of fixing points | 3 pcs |
Decompressor | Yes |
Camouflaged | No |
Suitable for the following models
Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
