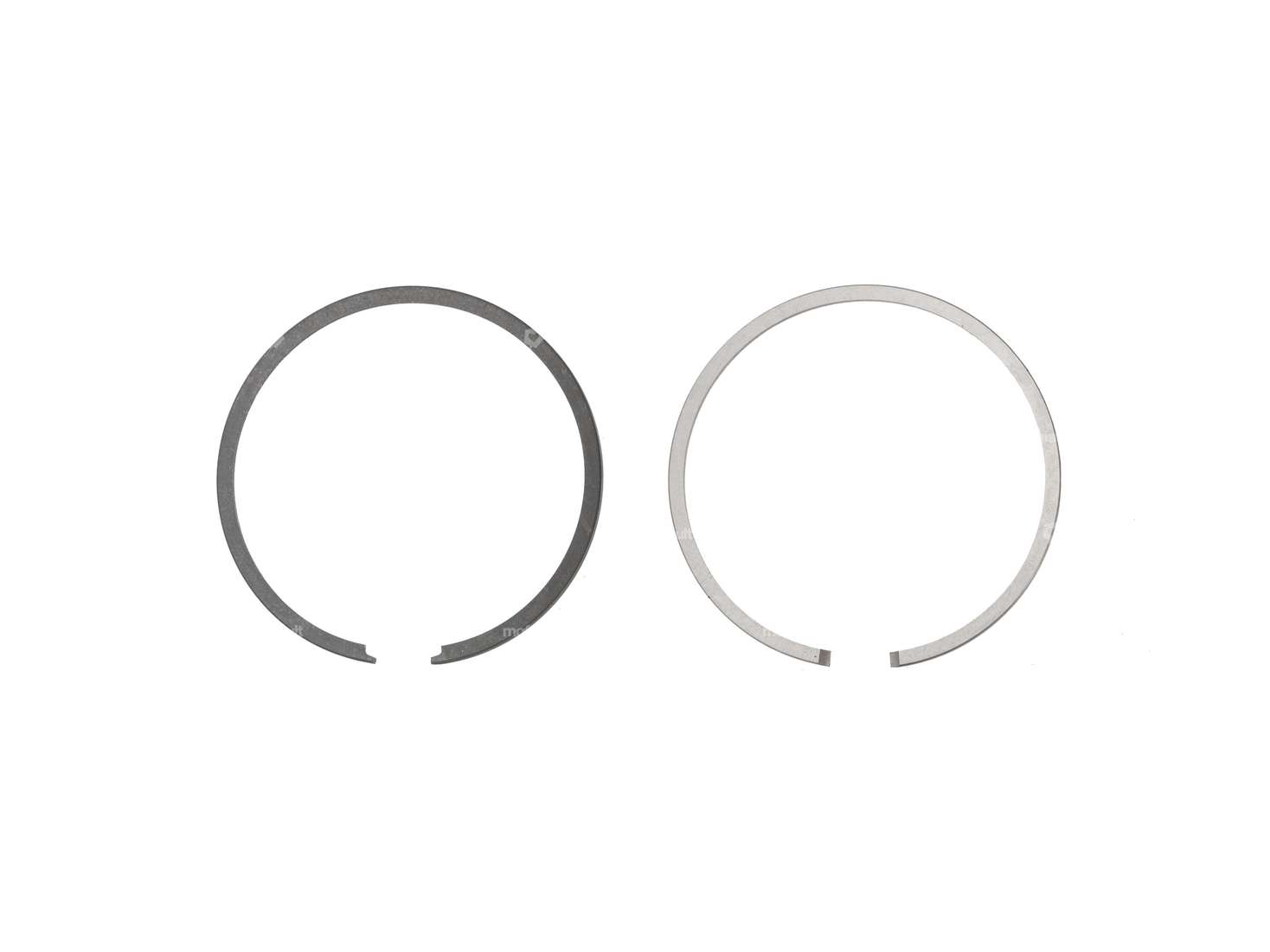

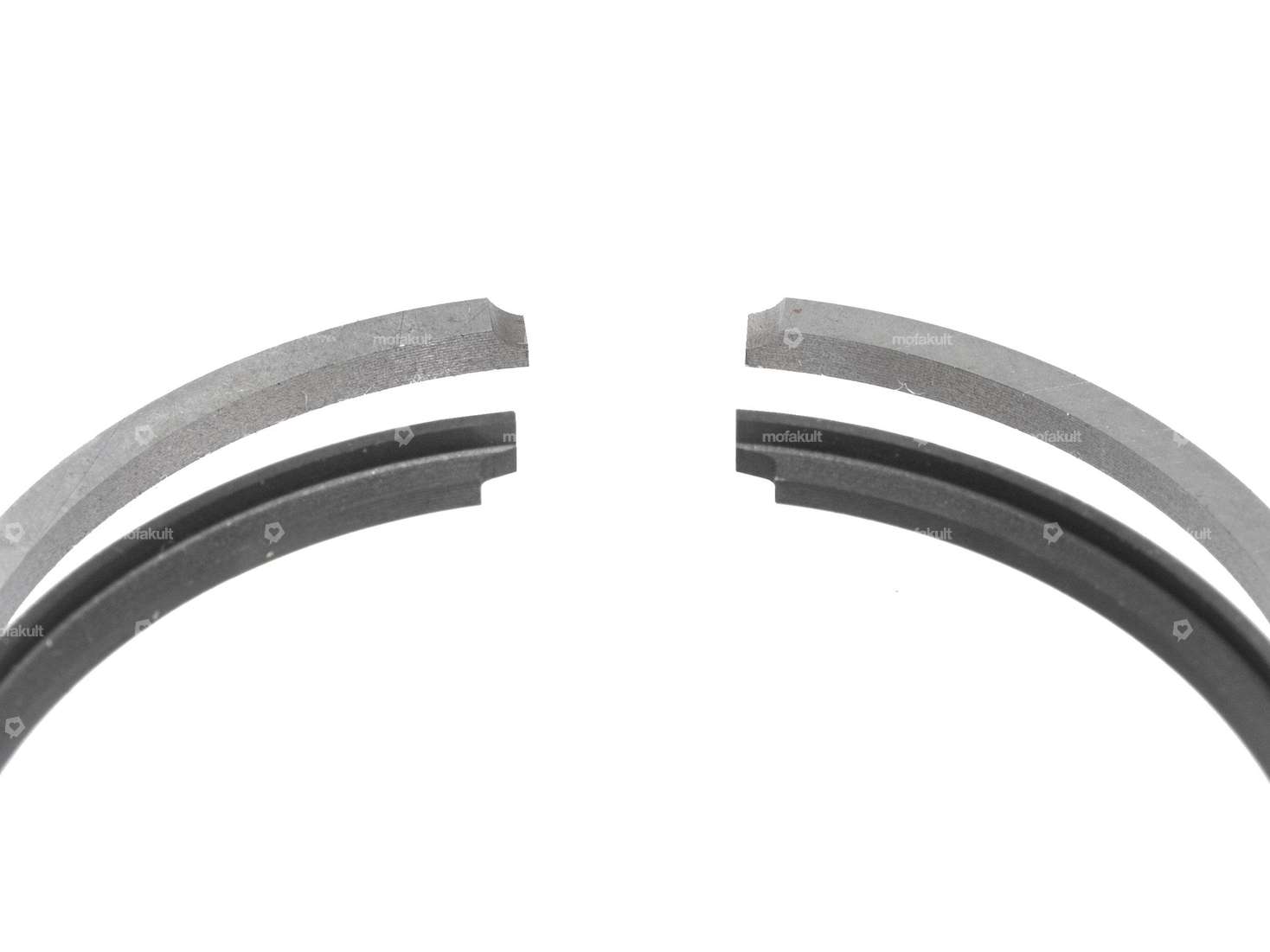

Olympia / DR piston rings 38.4x1.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Material: Gray cast iron · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

DR 38.4 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Material: Gray cast iron · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.33 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 78 g

DR Piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.33 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 79 g

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Ø outside: 10 mm · Number of sensors / lugs: 2 pcs

Continental 2.00 - 2.50 x 16" tube

Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Wheel size [inch]: 16 " · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Valve type: TR6 car valve

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Angle crank wedge: 3.5° · Ø outside: 9 mm · Color: silver · Total length: 43 mm

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Color: black · Total height: 250 mm

Side stand black | Piaggio Ciao PX, C24

Manufacturer: Made in Portugal · Material: Steel · Surface: powder-coated · Adjustable: No · Length pivot point - floor: 190 mm · Color: black · Number of fixing points: 2 pcs · Mounting type: Plug connection · Total length: 250 mm

Headlight black | Piaggio Ciao PX, C24

Depth: 147 mm · Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Tension: 6 V · Tension: 12 V · Housing material: Plastic · Lens material: Plastic · Ø External connection: 6.3 mm · Speedometer recording: 48 mm · Switch included: Yes · Color: black · Battery operated: No · Number of fixing points: 2 pcs · Area of application: Original · Area of application: Standard · Mounting type: Screws · Width: 125 mm · Height: 90 mm · Piaggio OEM number: 584240

Large flywheel rubber (from 1975) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Color: black · Total length: 42 mm · Total length: 47 mm · Width: 24 mm · Width: 27 mm · Piaggio OEM number: 166554

swiing® ingenious rear brake shoe Ø 135 x 16 High End | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Springs included: No · Number of springs: 1 pcs · Ø drum: 135 mm · Color: red · Area of application: High End · Width: 16 mm

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.3 mm · Ø inside: 46 mm · Ø cylinder: 38 - 43 mm · Piaggio OEM number: 182519

swiing® revival 0.5 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Ø inside: 46 mm · Thickness: 0.5 mm · Place of use: Cylinder base · Piaggio OEM number: 182519
