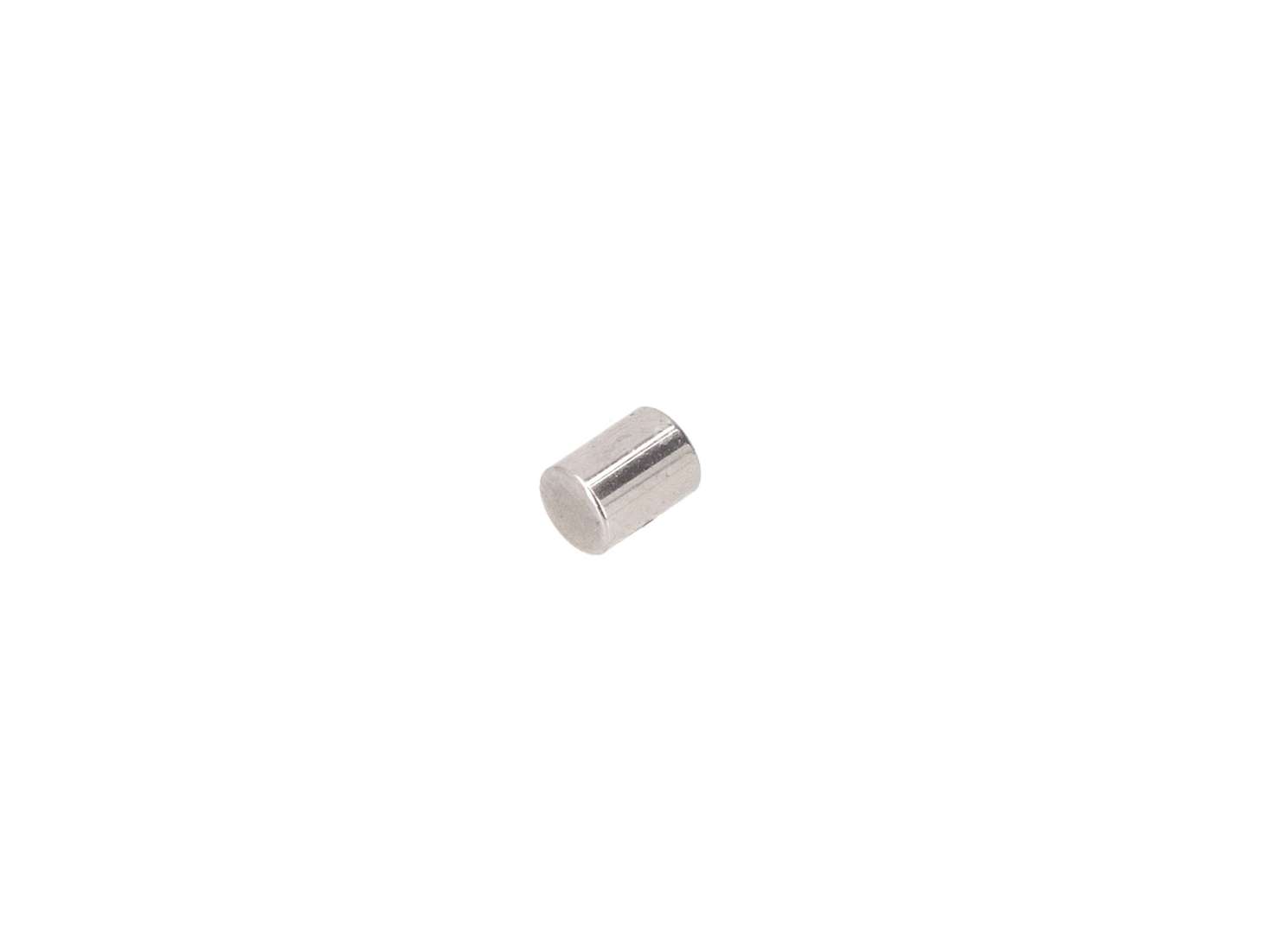

Pin Ø 3 x 4 mm Flywheel Tomos

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos spare part no.: 223421

Oil filler plug with sealing ring | Puch Maxi

Material: Steel · Surface: blue galvanized · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Total length: 14.6 mm · Number of components: 2 pcs · Thread length: 6 mm · Puch spare part no.: 364.1.10.660.1

Union pedals aluminum

Drive: Outer edge · Manufacturer: Union · Surface: rubberized · Total length: 122 mm · Material: Aluminum · Thread type: FG14.3 (9/16" 20G) · Color: silver · Width: 69 mm · Width across flats SW: 15 mm · Height: 29 mm · Reflectors: Yes

Nut flywheel M10x1 SW15 serrated

Material: Steel · Surface: blue galvanized · Drive: External hexagon · Nut type: Flange nut · Width across flats SW: 15 mm · Height: 10.5 mm · Area of application: Standard · Ø outside: 19.8 mm · Thread type: MF10x1 (fine pitch thread)

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Stock number: 6203 · Ball bearing closed: No · Area of application: Standard

GPO bulb 12V - 5W (BA9s) 1-filament rear light

Height: 23.6 mm · Manufacturer: GPO · Tension: 12 V · Performance: 5 W · Color: white · Bulb holder: BA9s · Ø base: 9 mm · Total length: 23 mm · Ø Lamp head: 11 mm · Test mark: none

Karcoma fuel filter plastic small

Ø inside: 3 mm · Ø outside: 20 mm · Total length: 23.4 mm · Total length: 50 mm · Manufacturer: Karcoma · Material: Plastic · Color: transparent · Color: white · Filter type: Plastic net · demountable: No · Ø fuel hose connection: 4.9 mm · Ø fuel hose connection: 6 mm

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Nozzle type: Main nozzle · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm · Drive: Slot · Nozzle thread: M5

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24

Color: black · Total length: 46 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Width: 60 mm · Carburetor type: SHA (type 3) · Height: 96 mm · Nominal diameter: 13 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Area of application: Tuning · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5 · Nozzle size: 66

swiing crankshaft Racing Tomos

Manufacturer: swiing · Cheek type: Full cheeks · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Area of application: Racing · Tomos spare part no.: 223421
