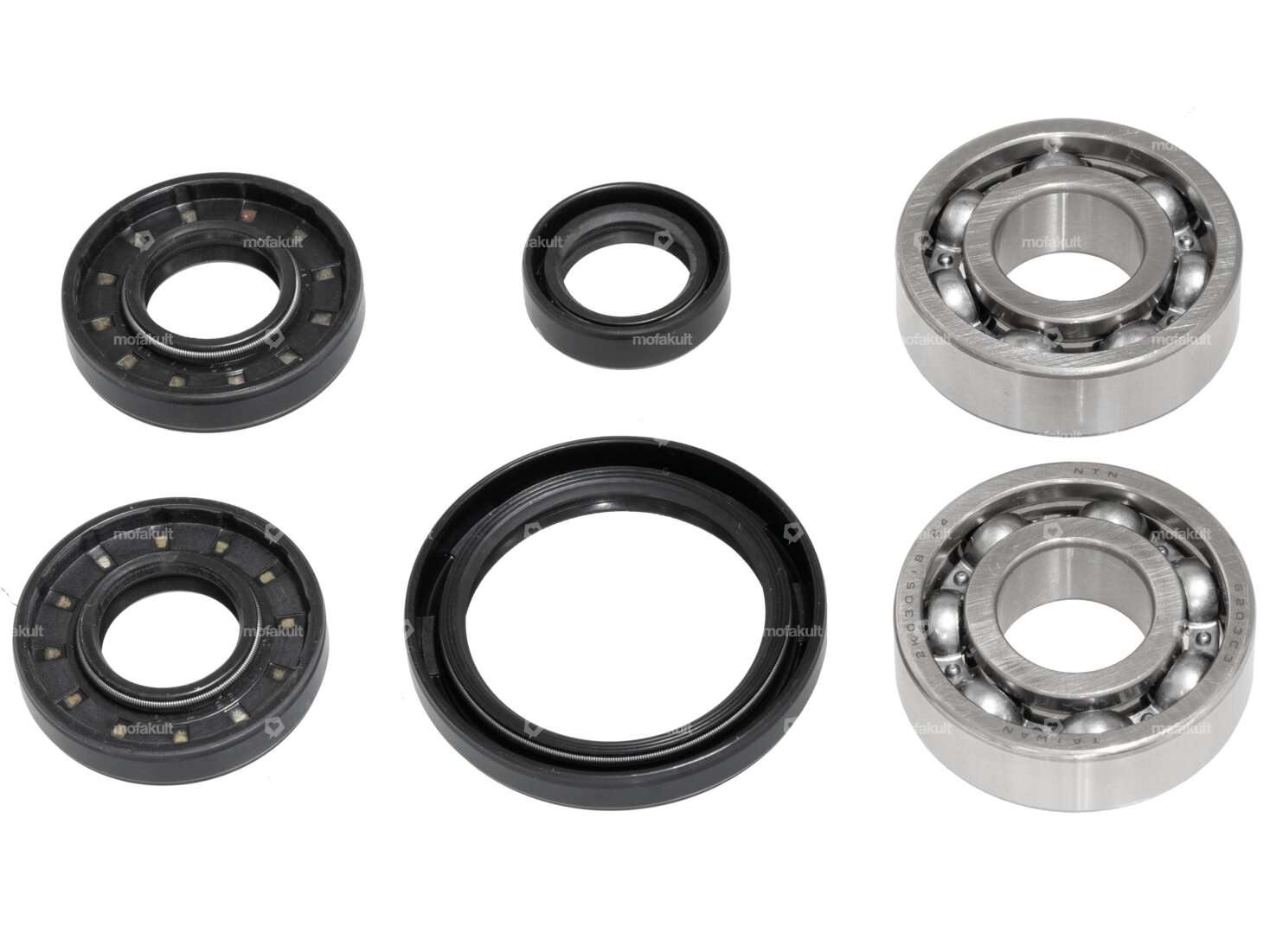

NTN bearings & oil seals engine | Tomos A35

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Manufacturer: Elring · Area of application: Chemistry · Contents [ml]: 70 ml · Color: green · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Contents [ml]: 10 ml · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Buzzetti bearing & oil seal assembly tool 40 - 65 mm

Manufacturer: Buzzetti · Area of application: Special tool · Total length: 140 mm

GPO Simmerring set | Tomos A35

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Manufacturer: GPO · Temperature resistance (min.): -30 - 100 °C · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm

Oil seal NBR 35/47/7 AS Pinion shaft | Tomos

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 35 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Place of use: Pinion shaft · Width: 7 mm · Ø outside: 47 mm · Temperature resistance (min.): -30 - 100 °C · Tomos spare part no.: 036620

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos spare part no.: 044838

Oil seal NBR 16/24/7 AS pedal axle | Tomos

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 16 mm · Manufacturer: Tomos · Area of application: Standard · Material: NBR · Surface: rubberized · Width: 7 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 100 °C · Tomos spare part no.: 200266

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Width: 12 mm · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ø inside: 17 mm · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: No

NSK 6201 ball bearing 12/32/10

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 12 mm · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø outside: 32 mm · Ball bearing closed: No

NTN 608 Ball bearing 8/22/7

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 608 · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Width: 7 mm · Ø outside: 22 mm · Ø inside: 8 mm

GPO Simmerring set | Tomos A35

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Manufacturer: GPO · Temperature resistance (min.): -30 - 100 °C · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm

Engine gasket set | Tomos A35

Area of application: Standard · Number of components: 6 pcs

Engine gasket set | Tomos A3

Manufacturer: Made in Netherlands · Area of application: Standard · Number of components: 6 pcs

NSK 6000 ball bearing 10/26/8

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 10 mm · Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 8 mm · Ø outside: 26 mm

swiing crankshaft Racing Tomos

Manufacturer: swiing · Area of application: Racing · Cheek type: Full cheeks · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Tomos spare part no.: 223421

Center seal | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of fixing points: 16 pcs · Number of components: 1 pcs · Tomos spare part no.: 209084

NTN 6006 ball bearing 30/55/13 pinion shaft | Tomos

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 30 mm · Stock number: 6006 · Inner ring width: 13 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 13 mm · Ø outside: 55 mm · Tomos spare part no.: 035037
